IGNIS ACF 976 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACF 976 WH |
| Kód 12NC/I.C. kód: | 852397644000 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

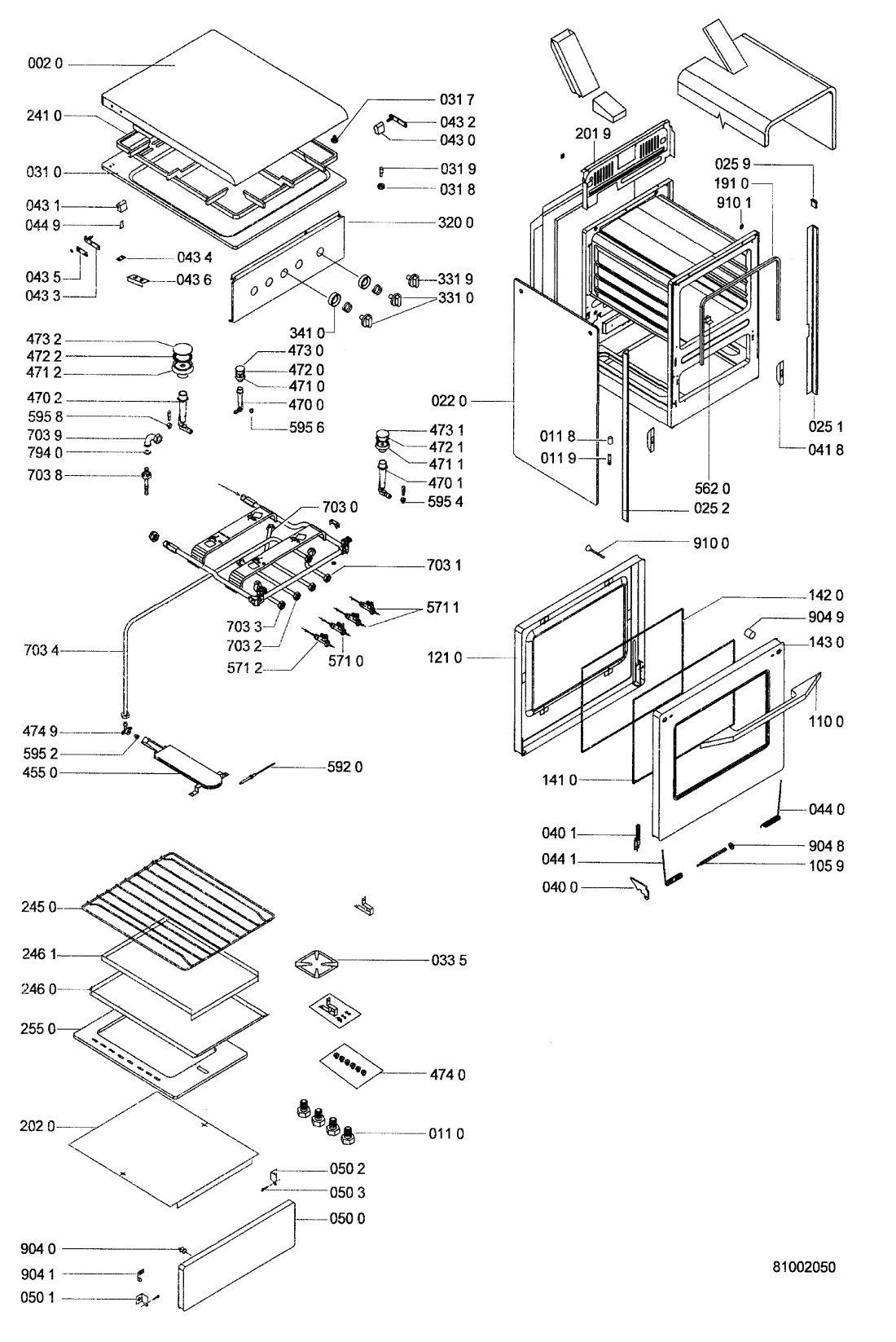

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR94771 |
C00485120
481244058171 |
Cover | Na dotaz | Zadat poptávku | |
| 011 0 WHR94771 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 011 8 WHR94771 |
C00582426
481953268684 |
Bushing. | Na dotaz | Zadat poptávku | |
| 011 9 WHR94771 |
C00582403
481950218419 |
Screw. | Na dotaz | Zadat poptávku | |
| 022 0 WHR94771 |
C00582335
481944059562 |
Side panel. | Na dotaz | Zadat poptávku | |
| 025 1 WHR94771 |
C00582374
481946078105 |
Trim side right. | Na dotaz | Zadat poptávku | |
| 025 2 WHR94771 |
C00582373
481946078104 |
Trim side left. | Na dotaz | Zadat poptávku | |
| 025 9 WHR94771 |
C00582390
481946698774 |
Cap. | Na dotaz | Zadat poptávku | |
| 031 0 WHR94771 |
C00745420
481944238028 |
Hob | Na dotaz | Zadat poptávku | |
| 031 7 WHR94771 |
C00582241
481253228917 |
Buffer. | Na dotaz | Zadat poptávku | |
| 031 8 WHR94771 |
C00494774
481953258284 |
Washer | Na dotaz | Zadat poptávku | |
| 031 9 WHR94771 |
C00492572
481950218373 |
Screw | Na dotaz | Zadat poptávku | |
| 033 5 WHR94771 |
C00747182
481945838037 |
Small pan supp. | Na dotaz | Zadat poptávku | |
| 040 0 WHR94771 |
C00532143
481953548003 |
Hook door door | Na dotaz | Zadat poptávku | |
| 040 1 WHR94771 |
C00486736
481946258134 |
Cover plate oven hinge | Na dotaz | Zadat poptávku | |
| 041 8 WHR94771 |
C00582314
481941719295 |
Hinge bearing. | Na dotaz | Zadat poptávku | |
| 043 0 WHR94771 |
C00582316
481941719297 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 043 1 WHR94771 |
C00582315
481941719296 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 043 2 WHR94771 |
C00582379
481946258133 |
Cover hinge right. | Na dotaz | Zadat poptávku | |
| 043 3 WHR94771 |
C00582378
481946258132 |
Cover hinge left. | Na dotaz | Zadat poptávku | |
| 043 4 WHR94771 |
C00582422
481953228252 |
Washer. | Na dotaz | Zadat poptávku | |
| 043 5 WHR94771 |
C00582423
481953228253 |
Washer. | Na dotaz | Zadat poptávku | |
| 043 6 WHR94771 |
C00484379
481940479051 |
Bracket | Na dotaz | Zadat poptávku | |
| 044 0 WHR94771 |
C00492530
481949248158 |
spring oven door right | Na dotaz | Zadat poptávku | |
| 044 1 WHR94771 |
C00492529
481949248157 |
Spring oven door left | Na dotaz | Zadat poptávku | |
| 044 9 WHR94771 |
C00582398
481949268667 |
Spring hinge lid. | Na dotaz | Zadat poptávku | |
| 050 0 WHR94771 |
C00582341
481944059937 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 050 1 WHR94771 |
C00490574
481941719298 |
Hook left | Na dotaz | Zadat poptávku | |
| 050 2 WHR94771 |
C00582317
481941719299 |
Hook right. | Na dotaz | Zadat poptávku | |
| 050 3 WHR94771 |
C00492716
481953598516 |
Pin | Na dotaz | Zadat poptávku | |
| 105 9 WHR94771 |
C00492713
481953598471 |
Pin | Na dotaz | Zadat poptávku | |
| 110 0 WHR94771 |
C00373652
481231068002 |
Madlo dveří trouby | 1 945 Kč
€ 79.90 |
||
| 121 0 WHR94771 |
C00747200
481244038804 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 141 0 WHR94771 |
C00747133
481945058435 |
Door glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR94771 |
C00582352
481945058434 |
Glass inner. | Na dotaz | Zadat poptávku | |
| 143 0 WHR94771 |
C00582353
481945058436 |
Frame door glas. | Na dotaz | Zadat poptávku | |
| 191 0 WHR94771 |
C00621586
481946669942 |
Gasket oven. | Na dotaz | Zadat poptávku | |
| 201 9 WHR94771 |
C00582339
481944059934 |
Panel rear. | Na dotaz | Zadat poptávku | |
| 202 0 WHR94771 |
C00582349
481944238601 |
Bottom. | Na dotaz | Zadat poptávku | |
| 241 0 WHR94771 |
C00598891
481945858425 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR94771 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR94771 |
C00490618
481941838361 |
Baking tray | Na dotaz | Zadat poptávku | |
| 246 1 WHR94771 |
C00582319
481941838333 |
Baking tray. | Na dotaz | Zadat poptávku | |
| 255 0 WHR94771 |
C00492371
481944059561 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 320 0 WHR94771 |
C00745421
481245359431 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR94771 |
C00747203
481241128035 |
Knob | Na dotaz | Zadat poptávku | |
| 331 9 WHR94771 |
C00582399
481949268668 |
Spring knob. | Na dotaz | Zadat poptávku | |
| 341 0 WHR94771 |
C00747136
481941379198 |
Indication disc | Na dotaz | Zadat poptávku | |
| 455 0 WHR94771 |
C00621560
481936069471 |
Burner oven | Na dotaz | Zadat poptávku | |
| 470 0 WHR94771 |
C00747138
481936069811 |
Burner small | Na dotaz | Zadat poptávku | |
| 470 1 WHR94771 |
C00747139
481936069812 |
Burner medium | Na dotaz | Zadat poptávku | |
| 470 2 WHR94771 |
C00747140
481936069813 |
Burner large | Na dotaz | Zadat poptávku | |
| 471 0 WHR94771 |
C00484318
481936069465 |
Burner body | Na dotaz | Zadat poptávku | |
| 471 1 WHR94771 |
C00747186
481936069466 |
Burner body | Na dotaz | Zadat poptávku | |
| 471 2 WHR94771 |
C00747187
481936069467 |
Burner body | Na dotaz | Zadat poptávku | |
| 472 0 WHR94771 |
C00378057
481936069468 |
Spreader,burner small | Na dotaz | Zadat poptávku | |
| 472 1 WHR94771 |
C00747204
481936069469 |
Spreader,burner medium | Na dotaz | Zadat poptávku | |
| 472 2 WHR94771 |
C00598856
481936069391 |
Spreader,burner large | Na dotaz | Zadat poptávku | |
| 473 0 WHR94771 |
C00373392
481936069392 |
Burner cap small | Na dotaz | Zadat poptávku | |
| 473 1 WHR94771 |
C00610513
481936069393 |
Burner cap medium. | Na dotaz | Zadat poptávku | |
| 473 2 WHR94771 |
C00622678
481936069394 |
Burner cap large | Na dotaz | Zadat poptávku | |
| 474 0 WHR94771 |
C00745422
481231038595 |
Nozzle set ZP S G20 | Na dotaz | Zadat poptávku | |
| 474 0 WHR94771 |
C00745423
481231038596 |
Nozzle set PB/G30 | Na dotaz | Zadat poptávku | |
| 474 9 WHR94771 |
C00582273
481936061377 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 562 0 WHR94771 |
C00486882
481953041097 |
Fuse | Na dotaz | Zadat poptávku | |
| 571 0 WHR94771 |
C00747209
481236058116 |
Tap rapid | Na dotaz | Zadat poptávku | |
| 571 1 WHR94771 |
C00745424
481236058259 |
Tap medium | Na dotaz | Zadat poptávku | |
| 571 2 WHR94771 |
C00747210
481236058117 |
Tap small | Na dotaz | Zadat poptávku | |
| 592 0 WHR94771 |
C00379121
481913838094 |
Thermo couple oven | Na dotaz | Zadat poptávku | |
| 595 2 WHR94771 |
C00747147
481936069886 |
Nozzle large G 20/25 | Na dotaz | Zadat poptávku | |
| 595 4 WHR94771 |
C00745425
481236068383 |
Fuse medium | Na dotaz | Zadat poptávku | |
| 595 6 WHR94771 |
C00745089
481236068185 |
Nozzle small G20/25 | Na dotaz | Zadat poptávku | |
| 595 8 WHR94771 |
C00745199
481236068204 |
Nozzle middle | Na dotaz | Zadat poptávku | |
| 703 0 WHR94771 |
C00747212
481953048871 |
Pipe rear right | Na dotaz | Zadat poptávku | |
| 703 1 WHR94771 |
C00745426
481253048371 |
Gas pipe front/right | Na dotaz | Zadat poptávku | |
| 703 2 WHR94771 |
C00747214
481953048872 |
Pipe rear left | Na dotaz | Zadat poptávku | |
| 703 3 WHR94771 |
C00747215
481953048873 |
Pipe front left | Na dotaz | Zadat poptávku | |
| 703 4 WHR94771 |
C00745427
481253048368 |
Gas pipe oven feeder | Na dotaz | Zadat poptávku | |
| 703 8 WHR94771 |
C00747216
481253048179 |
Hose extension 1/2" | Na dotaz | Zadat poptávku | |
| 703 9 WHR94771 |
C00745203
481253048241 |
Gas pipe knee | Na dotaz | Zadat poptávku | |
| 794 0 WHR94771 |
C00500914
481250218433 |
Connector hose push on LP | Na dotaz | Zadat poptávku | |
| 904 0 WHR94771 |
C00582376
481946248394 |
Shock absorber drawer. | Na dotaz | Zadat poptávku | |
| 904 1 WHR94771 |
C00582391
481946698775 |
Fixation. | Na dotaz | Zadat poptávku | |
| 904 8 WHR94771 |
C00494768
481953228242 |
Washer spring | Na dotaz | Zadat poptávku | |
| 904 9 WHR94771 |
C00582430
481953268893 |
Spacer. | Na dotaz | Zadat poptávku | |
| 910 0 WHR94771 |
C00745110
481250218431 |
Screw | Na dotaz | Zadat poptávku | |
| 910 1 WHR94771 |
C00598909
481950518379 |
Nut. | Na dotaz | Zadat poptávku | |
