WHIRLPOOL SPIW412LL/2
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIW412LL/2 |
| Kód 12NC/I.C. kód: | 852645698000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

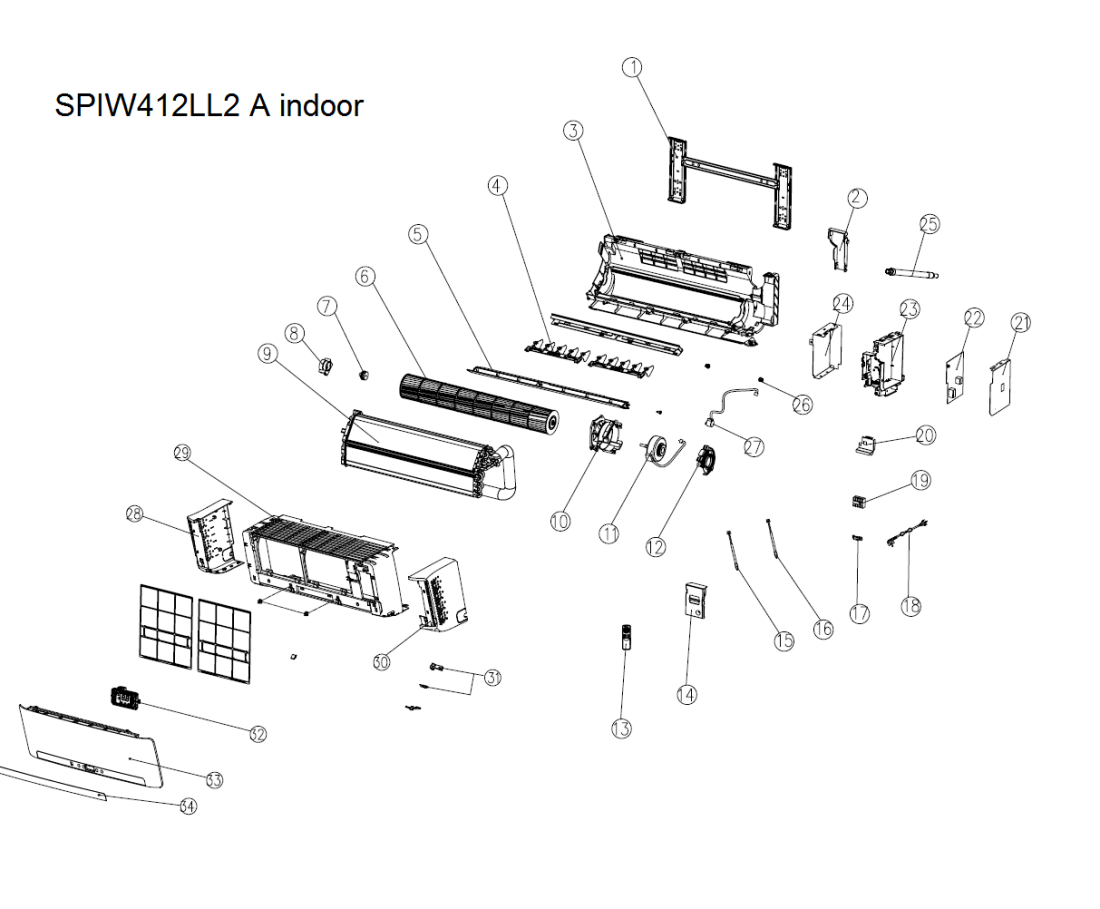

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR23446 |
C00563039 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| A001 WHR23446 |
C00386236
482000010322 |
Mounting plate | Na dotaz | Zadat poptávku | |
| A002 WHR23446 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A003 WHR23446 |
C00386303
482000021180 |
Rear panel | Na dotaz | Zadat poptávku | |
| A004 WHR23446 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| A005 WHR23446 |
C00386251
482000021181 |
Air guide | Na dotaz | Zadat poptávku | |
| A006 WHR23446 |
C00378268
482000010298 |
Turbine blades | Na dotaz | Zadat poptávku | |
| A007 WHR23446 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| A008 WHR23446 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A009 WHR23446 |
C00419621
482000091707 |
Evaporator | Na dotaz | Zadat poptávku | |
| A010 WHR23446 |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
| A011 WHR23446 |
C00378271
482000010312 |
Motor ventilátoru klimatizace Whirlpool | 3 909 Kč
€ 160.80 |
||
| A012 WHR23446 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| A013 WHR23446 |
C00506408
482000095040 |
Remote control | Na dotaz | Zadat poptávku | |
| A014 WHR23446 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A015 WHR23446 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A016 WHR23446 |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| A017 WHR23446 |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| A018 WHR23446 |
C00386257
482000021188 |
Mains cable | Na dotaz | Zadat poptávku | |
| A019 WHR23446 |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| A020 WHR23446 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A021 WHR23446 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| A022 WHR23446 |
C00513508
482000096944 |
Control board indoor main | Na dotaz | Zadat poptávku | |
| A023 WHR23446 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A024 WHR23446 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| A025 WHR23446 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A026 WHR23446 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A027 WHR23446 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| A028 WHR23446 |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A029 WHR23446 |
C00386263
482000021183 |
Cover front | Na dotaz | Zadat poptávku | |
| A030 WHR23446 |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A031 WHR23446 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| A032 WHR23446 |
C00506410
482000095042 |
Display | Na dotaz | Zadat poptávku | |
| A033 WHR23446 |
C00417419
482000021186 |
Front panel | Na dotaz | Zadat poptávku | |
| A034 WHR23446 |
C00513496
482000096943 |
Diaphragm according to | Na dotaz | Zadat poptávku | |
| B001 WHR23446 |
C00386271
482000021190 |
Front panel | Na dotaz | Zadat poptávku | |
| B002 WHR23446 |
C00386274
482000021191 |
Fan wheel | Na dotaz | Zadat poptávku | |
| B003 WHR23446 |
C00419871
482000092179 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| B004 WHR23446 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| B005 WHR23446 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| B006 WHR23446 |
C00386351
482000091714 |
UPPER BOARD | Na dotaz | Zadat poptávku | |
| B007 WHR23446 |
C00386312
482000021211 |
Air grid rear | Na dotaz | Zadat poptávku | |
| B008 WHR23446 |
C00419876
482000092184 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B009 WHR23446 |
C00386285
482000021195 |
BASE | Na dotaz | Zadat poptávku | |
| B010 WHR23446 |
C00386288
482000021196 |
Separator | Na dotaz | Zadat poptávku | |
| B011 WHR23446 |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| B012 WHR23446 |
C00419877
482000092185 |
Valve 4 way cpl. | Na dotaz | Zadat poptávku | |
| B013 WHR23446 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B014 WHR23446 |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| B015 WHR23446 |
C00386290
482000021199 |
Compressor | Na dotaz | Zadat poptávku | |
| B016 WHR23446 |
C00386293
482000021200 |
Cable harness | Na dotaz | Zadat poptávku | |
| B017 WHR23446 |
C00386295
482000021201 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B018 WHR23446 |
C00419878
482000092186 |
Capillary tube | Na dotaz | Zadat poptávku | |
| B019 WHR23446 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| B020 WHR23446 |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| B021 WHR23446 |
C00386297
482000021203 |
Side panel | Na dotaz | Zadat poptávku | |
| B022 WHR23446 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B023 WHR23446 |
C00386300
482000021204 |
Kryt zdroje napájení - externí | Na dotaz | Zadat poptávku | |
| B024 WHR23446 |
C00385981
482000000382 |
Support plate | Na dotaz | Zadat poptávku | |
| B025 WHR23446 |
C00386298
480150100391 |
Terminal Board. | Na dotaz | Zadat poptávku | |
| B026 WHR23446 |
C00419879
482000092187 |
Control board outdoor | Na dotaz | Zadat poptávku | |
| B027 WHR23446 |
C00386306
482000021207 |
Cover | Na dotaz | Zadat poptávku | |
| B028 WHR23446 |
C00386307
482000021208 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B029 WHR23446 |
C00386308
482000021209 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B030 WHR23446 |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| B031 WHR23446 |
C00386279
482000092113 |
SENSER BASE | Na dotaz | Zadat poptávku | |
