WHIRLPOOL SPIW 409LL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIW 409LL |
| Kód 12NC/I.C. kód: | 853002101110 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

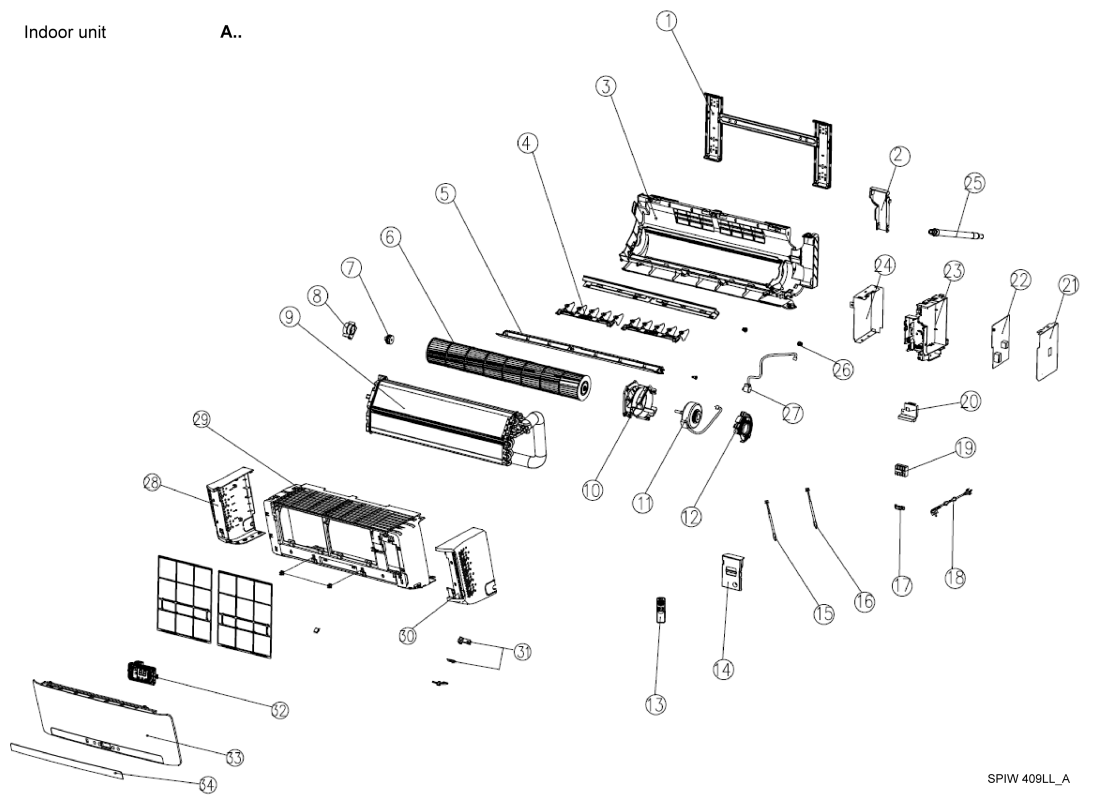

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22016 |
C00561837 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22016 |
C00561838 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22016 |
C00561840 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| A01 WHR22016 |
C00386236
482000010322 |
Mounting plate | Na dotaz | Zadat poptávku | |
| A02 WHR22016 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A03 WHR22016 |
C00386303
482000021180 |
Rear panel | Na dotaz | Zadat poptávku | |
| A04 WHR22016 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| A05 WHR22016 |
C00386251
482000021181 |
Air guide | Na dotaz | Zadat poptávku | |
| A06 WHR22016 |
C00378268
482000010298 |
Turbine blades | Na dotaz | Zadat poptávku | |
| A07 WHR22016 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| A08 WHR22016 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A09 WHR22016 |
C00386234
482000021182 |
Evaporator | Na dotaz | Zadat poptávku | |
| A10 WHR22016 |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
| A11 WHR22016 |
C00378271
482000010312 |
Motor ventilátoru klimatizace Whirlpool | 3 909 Kč
€ 159.90 |
||
| A12 WHR22016 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| A13 WHR22016 |
C00496502
482000017856 |
Remote control | Na dotaz | Zadat poptávku | |
| A14 WHR22016 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A15 WHR22016 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A16 WHR22016 |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| A17 WHR22016 |
C00385825
482000092111 |
Clamp | Na dotaz | Zadat poptávku | |
| A18 WHR22016 |
C00386257
482000021188 |
Mains cable | Na dotaz | Zadat poptávku | |
| A19 WHR22016 |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| A20 WHR22016 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A21 WHR22016 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| A22 WHR22016 |
C00386348
482000021189 |
Control board | Na dotaz | Zadat poptávku | |
| A23 WHR22016 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A24 WHR22016 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| A25 WHR22016 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A26 WHR22016 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A27 WHR22016 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| A28 WHR22016 |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A29 WHR22016 |
C00386263
482000021183 |
Cover front | Na dotaz | Zadat poptávku | |
| A30 WHR22016 |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A31 WHR22016 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| A32 WHR22016 |
C00386336
482000092177 |
Display board | Na dotaz | Zadat poptávku | |
| A33 WHR22016 |
C00417419
482000021186 |
Front panel | Na dotaz | Zadat poptávku | |
| A34 WHR22016 |
C00419870
482000092178 |
Display | Na dotaz | Zadat poptávku | |
| B01 WHR22016 |
C00386271
482000021190 |
Front panel | Na dotaz | Zadat poptávku | |
| B02 WHR22016 |
C00386274
482000021191 |
Fan wheel | Na dotaz | Zadat poptávku | |
| B03 WHR22016 |
C00419871
482000092179 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| B04 WHR22016 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| B05 WHR22016 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| B06 WHR22016 |
C00386351
482000091714 |
UPPER BOARD | Na dotaz | Zadat poptávku | |
| B07 WHR22016 |
C00386312
482000021211 |
Air grid rear | Na dotaz | Zadat poptávku | |
| B08 WHR22016 |
C00419872
482000092180 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B09 WHR22016 |
C00386285
482000021195 |
BASE | Na dotaz | Zadat poptávku | |
| B10 WHR22016 |
C00386288
482000021196 |
Separator | Na dotaz | Zadat poptávku | |
| B11 WHR22016 |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| B12 WHR22016 |
C00419873
482000092181 |
Valve 4 way cpl. | Na dotaz | Zadat poptávku | |
| B13 WHR22016 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B14 WHR22016 |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| B15 WHR22016 |
C00386290
482000021199 |
Compressor | Na dotaz | Zadat poptávku | |
| B16 WHR22016 |
C00386293
482000021200 |
Cable harness | Na dotaz | Zadat poptávku | |
| B17 WHR22016 |
C00386295
482000021201 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B18 WHR22016 |
C00419874
482000092182 |
Capillary tube | Na dotaz | Zadat poptávku | |
| B19 WHR22016 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| B20 WHR22016 |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| B21 WHR22016 |
C00386297
482000021203 |
Side panel | Na dotaz | Zadat poptávku | |
| B22 WHR22016 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B23 WHR22016 |
C00386300
482000021204 |
Kryt zdroje napájení - externí | Na dotaz | Zadat poptávku | |
| B24 WHR22016 |
C00385981
482000000382 |
Support plate | Na dotaz | Zadat poptávku | |
| B25 WHR22016 |
C00386298
480150100391 |
Terminal Board. | Na dotaz | Zadat poptávku | |
| B26 WHR22016 |
C00419875
482000092183 |
Control board outdoor | Na dotaz | Zadat poptávku | |
| B27 WHR22016 |
C00386306
482000021207 |
Cover | Na dotaz | Zadat poptávku | |
| B28 WHR22016 |
C00386307
482000021208 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B29 WHR22016 |
C00386308
482000021209 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B30 WHR22016 |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| B31 WHR22016 |
C00386279
482000092113 |
SENSER BASE | Na dotaz | Zadat poptávku | |
