WHIRLPOOL AMD 031/1 AIR CONDITIONERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 031/1 AIR CONDITIONERS WP |
| Kód 12NC/I.C. kód: | 853003101010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

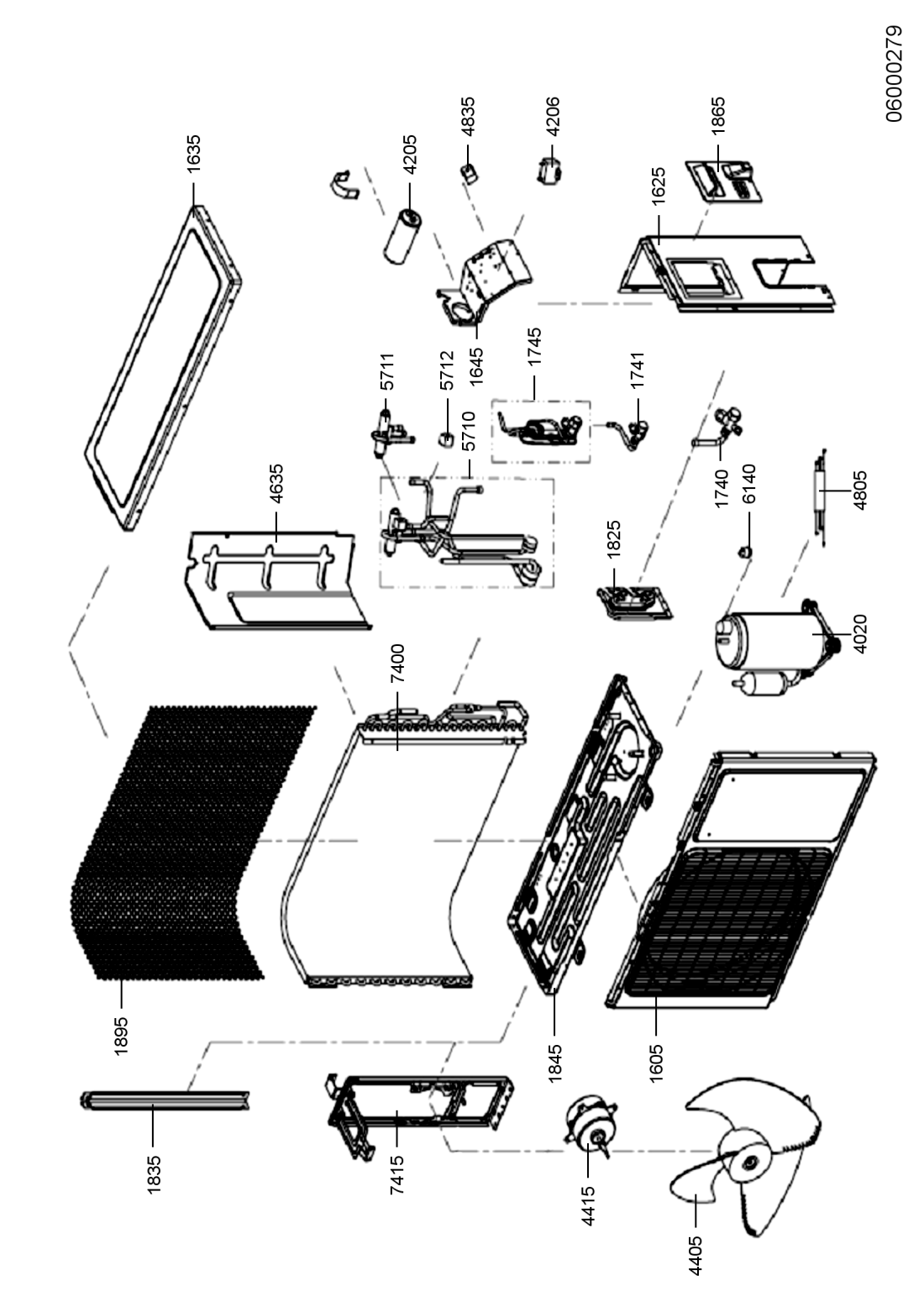

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1600 WHR21993 |
C00406823
482000000282 |
Front cover | Na dotaz | Zadat poptávku | |
| 1605 WHR21993 |
C00406842
482000000303 |
Panel side FRONT | Na dotaz | Zadat poptávku | |
| 1625 WHR21993 |
C00406843
482000000304 |
Panel side | Na dotaz | Zadat poptávku | |
| 1635 WHR21993 |
C00385871
480150100111 |
Cover top | Na dotaz | Zadat poptávku | |
| 1640 WHR21993 |
C00406824
482000000283 |
Electronic box | Na dotaz | Zadat poptávku | |
| 1641 WHR21993 |
C00406825
482000000284 |
Cover ELECTRONIC BOX | Na dotaz | Zadat poptávku | |
| 1642 WHR21993 |
C00406826
482000000285 |
Cover protect. | Na dotaz | Zadat poptávku | |
| 1645 WHR21993 |
C00376992
480150100148 |
Electric plate | Na dotaz | Zadat poptávku | |
| 1690 WHR21993 |
C00406827
482000000286 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 1710 WHR21993 |
C00406828
482000000287 |
Bushing | Na dotaz | Zadat poptávku | |
| 1740 WHR21993 |
C00377579
481236058638 |
Valve 3-way | Na dotaz | Zadat poptávku | |
| 1741 WHR21993 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| 1745 WHR21993 |
C00406844
482000000305 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 1800 WHR21993 |
C00406829
482000000288 |
Cabinet FRONT | Na dotaz | Zadat poptávku | |
| 1801 WHR21993 |
C00406830
482000000289 |
Cabinet REAR | Na dotaz | Zadat poptávku | |
| 1825 WHR21993 |
C00406845
482000000306 |
Support VALVE | Na dotaz | Zadat poptávku | |
| 1835 WHR21993 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| 1845 WHR21993 |
C00406846
482000000307 |
Base | Na dotaz | Zadat poptávku | |
| 1865 WHR21993 |
C00406847
482000000308 |
Handle | Na dotaz | Zadat poptávku | |
| 1895 WHR21993 |
C00376983
480150100114 |
Grille rear | Na dotaz | Zadat poptávku | |
| 3560 WHR21993 |
C00378134
482000000290 |
Display board | Na dotaz | Zadat poptávku | |
| 3561 WHR21993 |
C00395055
480150100302 |
Cover Display board | Na dotaz | Zadat poptávku | |
| 3562 WHR21993 |
C00406831
482000000291 |
Electronic box DISPLAY | Na dotaz | Zadat poptávku | |
| 3563 WHR21993 |
C00406832
482000000292 |
Foil DISPLAY | Na dotaz | Zadat poptávku | |
| 4020 WHR21993 |
C00406848
482000000309 |
Compressor | Na dotaz | Zadat poptávku | |
| 4205 WHR21993 |
C00406849
482000000310 |
Capacitor | Na dotaz | Zadat poptávku | |
| 4206 WHR21993 |
C00394926
480150100128 |
Capacitor | Na dotaz | Zadat poptávku | |
| 4220 WHR21993 |
C00376989
480150100135 |
Motorek | 273 Kč
€ 11.20 |
||
| 4400 WHR21993 |
C00406833
482000000293 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4405 WHR21993 |
C00406850
482000000311 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4410 WHR21993 |
C00406834
482000000294 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4415 WHR21993 |
C00406851
482000000312 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4635 WHR21993 |
C00406852
482000000313 |
Separator | Na dotaz | Zadat poptávku | |
| 4805 WHR21993 |
C00406853
482000000314 |
Cable harness | Na dotaz | Zadat poptávku | |
| 4830 WHR21993 |
C00394960
480150100178 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 4835 WHR21993 |
C00406854
482000000315 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 5210 WHR21993 |
C00406835
482000000295 |
Control board | Na dotaz | Zadat poptávku | |
| 5710 WHR21993 |
C00406855
482000000316 |
Valve 4-WAY | Na dotaz | Zadat poptávku | |
| 5711 WHR21993 |
C00406856
482000000317 |
Valve body 4-WAY | Na dotaz | Zadat poptávku | |
| 5712 WHR21993 |
C00394954
480150100172 |
Coil Valve | Na dotaz | Zadat poptávku | |
| 6140 WHR21993 |
C00406857
482000000318 |
Protect motor | Na dotaz | Zadat poptávku | |
| 6910 WHR21993 |
C00376990
480150100143 |
Sensor Indoor | Na dotaz | Zadat poptávku | |
| 7400 WHR21993 |
C00406858
482000000319 |
Condenser | Na dotaz | Zadat poptávku | |
| 7410 WHR21993 |
C00406836
482000000296 |
Support motor | Na dotaz | Zadat poptávku | |
| 7415 WHR21993 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| 7430 WHR21993 |
C00406837
482000000297 |
Air guide | Na dotaz | Zadat poptávku | |
| 7431 WHR21993 |
C00406838
482000000298 |
Bearing bushing | Na dotaz | Zadat poptávku | |
| 7432 WHR21993 |
C00406839
482000000299 |
Air guide | Na dotaz | Zadat poptávku | |
| 7433 WHR21993 |
C00378135
482000000300 |
Air guide | Na dotaz | Zadat poptávku | |
| 7434 WHR21993 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 7450 WHR21993 |
C00406840
482000000301 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7810 WHR21993 |
C00377871
481253008019 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 9410 WHR21993 |
C00406841
482000000302 |
Axle | Na dotaz | Zadat poptávku | |
| 9980 WHR21993 |
C00377008
480150100309 |
Dálkové ovládání | Na dotaz | Zadat poptávku | |
| 9981 WHR21993 |
C00378173
482000002784 |
Holder Remote control | Na dotaz | Zadat poptávku | |
