WHIRLPOOL SPIS412L
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPIS412L |
| Kód 12NC/I.C. kód: | 853004501000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

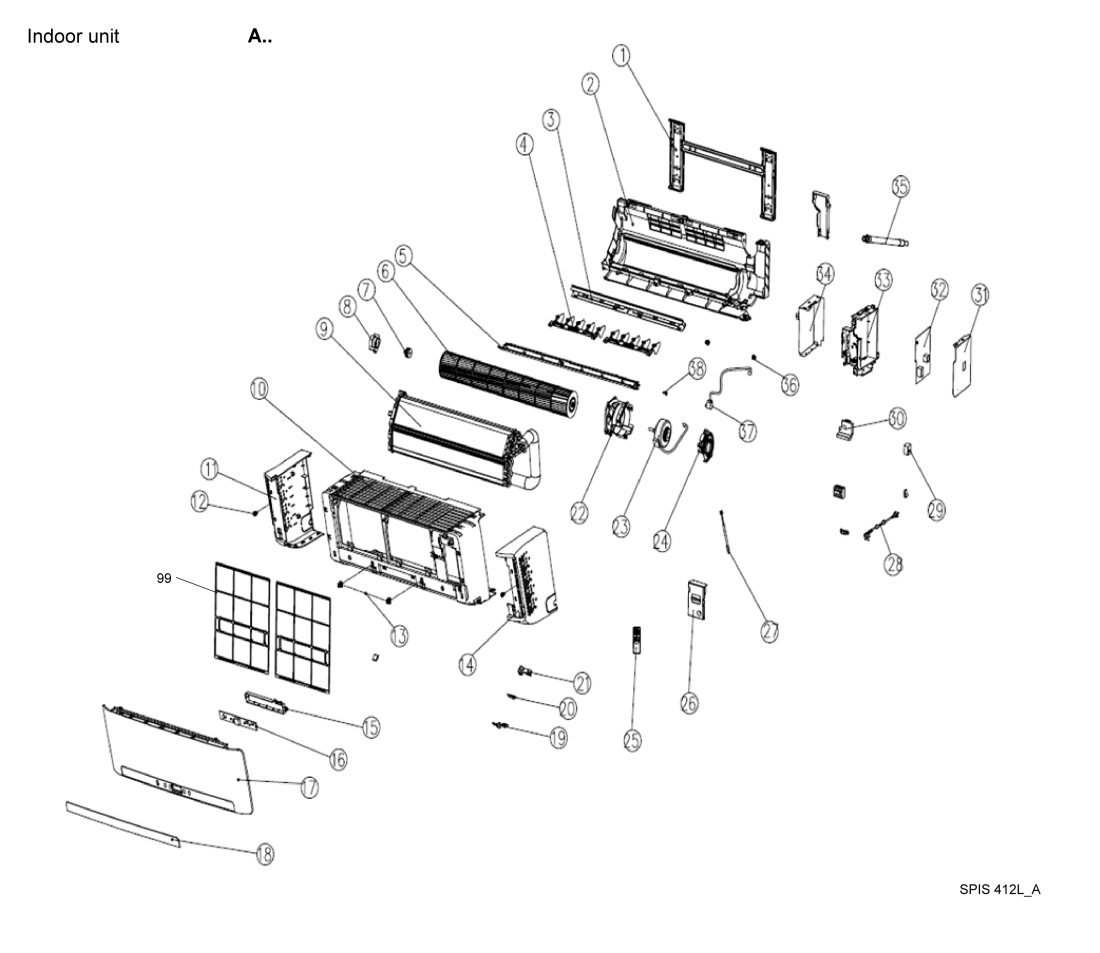

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22061 |
C00561840 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22061 |
C00561905 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22061 |
C00561906 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22061 |
C00561910 | IFU WHP | Na dotaz | Zadat poptávku | |
| A001 WHR22061 |
C00386236
482000010322 |
Mounting plate | Na dotaz | Zadat poptávku | |
| A002 WHR22061 |
C00386303
482000021180 |
Rear panel | Na dotaz | Zadat poptávku | |
| A003 WHR22061 |
C00386248
482000010301 |
Sinvezető SPIW 412L | Na dotaz | Zadat poptávku | |
| A004 WHR22061 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| A005 WHR22061 |
C00419668
482000091821 |
Air guide | Na dotaz | Zadat poptávku | |
| A006 WHR22061 |
C00378268
482000010298 |
Turbine blades | Na dotaz | Zadat poptávku | |
| A007 WHR22061 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| A008 WHR22061 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A009 WHR22061 |
C00386261
482000021240 |
Evaporator | Na dotaz | Zadat poptávku | |
| A010 WHR22061 |
C00419669
482000091822 |
Cover front | Na dotaz | Zadat poptávku | |
| A011 WHR22061 |
C00419670
482000091823 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A012 WHR22061 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A013 WHR22061 |
C00386265
482000010396 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A014 WHR22061 |
C00419671
482000091824 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A015 WHR22061 |
C00386268
482000021184 |
Box display | Na dotaz | Zadat poptávku | |
| A016 WHR22061 |
C00386299
482000021185 |
DISPLAY BOARD | Na dotaz | Zadat poptávku | |
| A017 WHR22061 |
C00419672
482000091825 |
Front panel | Na dotaz | Zadat poptávku | |
| A018 WHR22061 |
C00419673
482000091826 |
Display | Na dotaz | Zadat poptávku | |
| A019 WHR22061 |
C00419674
482000091827 |
Button | Na dotaz | Zadat poptávku | |
| A020 WHR22061 |
C00386275
482000021172 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A021 WHR22061 |
C00386304
482000021173 |
Keyboard | Na dotaz | Zadat poptávku | |
| A022 WHR22061 |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
| A023 WHR22061 |
C00378271
482000010312 |
Motor ventilátoru klimatizace Whirlpool | 3 909 Kč
€ 159.90 |
||
| A024 WHR22061 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| A025 WHR22061 |
C00496502
482000017856 |
Remote control | Na dotaz | Zadat poptávku | |
| A026 WHR22061 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A027 WHR22061 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A027 WHR22061 |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| A028 WHR22061 |
C00386257
482000021188 |
Mains cable | Na dotaz | Zadat poptávku | |
| A029 WHR22061 |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| A030 WHR22061 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A031 WHR22061 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| A032 WHR22061 |
C00386281
482000021241 |
Control board indoor | Na dotaz | Zadat poptávku | |
| A033 WHR22061 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A034 WHR22061 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| A035 WHR22061 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A036 WHR22061 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A037 WHR22061 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| A038 WHR22061 |
C00381043
482000010309 |
Axle | Na dotaz | Zadat poptávku | |
| A099 WHR22061 |
C00386262
482000021361 |
Carbon filter (white grid) | Na dotaz | Zadat poptávku | |
| B001 WHR22061 |
C00386271
482000021190 |
Front panel | Na dotaz | Zadat poptávku | |
| B002 WHR22061 |
C00386274
482000021191 |
Fan wheel | Na dotaz | Zadat poptávku | |
| B003 WHR22061 |
C00386276
482000021192 |
FAN MOTOR outdoor | Na dotaz | Zadat poptávku | |
| B004 WHR22061 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| B005 WHR22061 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| B006 WHR22061 |
C00386277
482000021193 |
Cover top | Na dotaz | Zadat poptávku | |
| B007 WHR22061 |
C00386250
480150100864 |
Holder Sensor temper. | Na dotaz | Zadat poptávku | |
| B008 WHR22061 |
C00386292
482000021242 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B009 WHR22061 |
C00386285
482000021195 |
BASE | Na dotaz | Zadat poptávku | |
| B010 WHR22061 |
C00386288
482000021196 |
Separator | Na dotaz | Zadat poptávku | |
| B011 WHR22061 |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| B012 WHR22061 |
C00386309
482000021243 |
Valve 4 way cpl. | Na dotaz | Zadat poptávku | |
| B013 WHR22061 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B014 WHR22061 |
C00386291
482000021198 |
Coil | Na dotaz | Zadat poptávku | |
| B015 WHR22061 |
C00386290
482000021199 |
Compressor | Na dotaz | Zadat poptávku | |
| B016 WHR22061 |
C00386293
482000021200 |
Cable harness | Na dotaz | Zadat poptávku | |
| B017 WHR22061 |
C00386295
482000021201 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B018 WHR22061 |
C00386311
482000021244 |
Capillary tube | Na dotaz | Zadat poptávku | |
| B019 WHR22061 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| B020 WHR22061 |
C00386297
482000021203 |
Side panel | Na dotaz | Zadat poptávku | |
| B021 WHR22061 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B022 WHR22061 |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| B023 WHR22061 |
C00385981
482000000382 |
Support plate | Na dotaz | Zadat poptávku | |
| B024 WHR22061 |
C00386298
480150100391 |
Terminal Board. | Na dotaz | Zadat poptávku | |
| B025 WHR22061 |
C00386300
482000021204 |
Kryt zdroje napájení - externí | Na dotaz | Zadat poptávku | |
| B026 WHR22061 |
C00386305
482000021206 |
Externí napájecí modul | Na dotaz | Zadat poptávku | |
| B027 WHR22061 |
C00386313
482000021245 |
Control board outdoor | Na dotaz | Zadat poptávku | |
| B028 WHR22061 |
C00386306
482000021207 |
Cover | Na dotaz | Zadat poptávku | |
| B029 WHR22061 |
C00386307
482000021208 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B030 WHR22061 |
C00386308
482000021209 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B031 WHR22061 |
C00386310
482000021210 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| B032 WHR22061 |
C00386312
482000021211 |
Air grid rear | Na dotaz | Zadat poptávku | |
| B033 WHR22061 |
C00386314
482000017849 |
Overload prot. | Na dotaz | Zadat poptávku | |
