WHIRLPOOL SPOW209
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | SPOW209 |
| Kód 12NC: | 853031401100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22135 |
C00561796 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22135 |
C00561798 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |

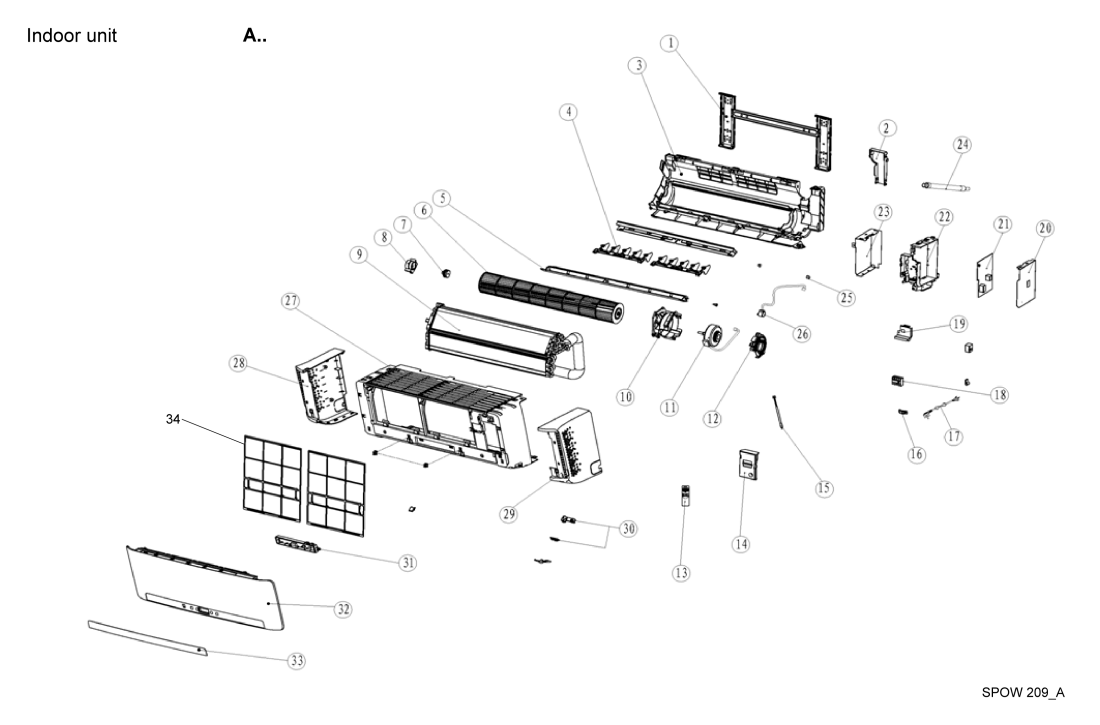

| A001 WHR22135 |
C00386236
482000010322 |
Mounting plate | Na dotaz | Zadat poptávku | |
| A002 WHR22135 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A003 WHR22135 |
C00386303
482000021180 |
Rear panel | Na dotaz | Zadat poptávku | |
| A004 WHR22135 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| A005 WHR22135 |
C00386251
482000021181 |
Air guide | Na dotaz | Zadat poptávku | |
| A006 WHR22135 |
C00378268
482000010298 |
Turbine blades | Na dotaz | Zadat poptávku | |
| A007 WHR22135 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| A008 WHR22135 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
| A009 WHR22135 |
C00419621
482000091707 |
Evaporator | Na dotaz | Zadat poptávku | |
| A010 WHR22135 |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
| A011 WHR22135 |
C00378271
482000010312 |
Motor fan | Na dotaz | Zadat poptávku | |
| A012 WHR22135 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| A013 WHR22135 |
C00378274
482000010320 |
Ovladač dálkový | 1 704 Kč
€ 74.90 |
||
| A014 WHR22135 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A015 WHR22135 |
C00378272
482000010314 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| A016 WHR22135 |
C00419622
482000091708 |
Clamp | Na dotaz | Zadat poptávku | |
| A017 WHR22135 |
C00411959
482000010308 |
Cable mains | Na dotaz | Zadat poptávku | |
| A018 WHR22135 |
C00394929
480150100136 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A019 WHR22135 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A020 WHR22135 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| A021 WHR22135 |
C00419623
482000091709 |
Control board | Na dotaz | Zadat poptávku | |
| A022 WHR22135 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A023 WHR22135 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| A024 WHR22135 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A025 WHR22135 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A026 WHR22135 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| A027 WHR22135 |
C00386263
482000021183 |
Cover front | Na dotaz | Zadat poptávku | |
| A028 WHR22135 |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A029 WHR22135 |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
| A030 WHR22135 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
| A031 WHR22135 |
C00419624
482000091711 |
Display board | Na dotaz | Zadat poptávku | |
| A032 WHR22135 |
C00417419
482000021186 |
Front panel | Na dotaz | Zadat poptávku | |
| A033 WHR22135 |
C00419625
482000091712 |
Display | Na dotaz | Zadat poptávku | |
| A034 WHR22135 |
C00386262
482000021361 |
Carbon filter (white grid) | Na dotaz | Zadat poptávku | |
| B001 WHR22135 |
C00386271
482000021190 |
Front panel | Na dotaz | Zadat poptávku | |
| B002 WHR22135 |
C00386274
482000021191 |
Fan wheel | Na dotaz | Zadat poptávku | |
| B003 WHR22135 |
C00419626
482000091713 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| B004 WHR22135 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| B005 WHR22135 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| B006 WHR22135 |
C00386351
482000091714 |
UPPER BOARD | Na dotaz | Zadat poptávku | |
| B007 WHR22135 |
C00419627
482000091715 |
Air grid rear | Na dotaz | Zadat poptávku | |
| B008 WHR22135 |
C00419657
482000091809 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B009 WHR22135 |
C00386285
482000021195 |
BASE | Na dotaz | Zadat poptávku | |
| B010 WHR22135 |
C00419629
482000091717 |
Separator | Na dotaz | Zadat poptávku | |
| B011 WHR22135 |
C00419658
482000091810 |
Valve 4 way cpl. | Na dotaz | Zadat poptávku | |
| B012 WHR22135 |
C00407061
482000000637 |
Valve body | Na dotaz | Zadat poptávku | |
| B013 WHR22135 |
C00394954
480150100172 |
Coil Valve | Na dotaz | Zadat poptávku | |
| B014 WHR22135 |
C00412067
482000010471 |
Compressor HSM150V4UDZ | Na dotaz | Zadat poptávku | |
| B016 WHR22135 |
C00406985
482000000519 |
Cable harness | Na dotaz | Zadat poptávku | |
| B017 WHR22135 |
C00386295
482000021201 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B018 WHR22135 |
C00419659
482000091811 |
Capillary tube | Na dotaz | Zadat poptávku | |
| B019 WHR22135 |
C00386445
482000000358 |
Valve | Na dotaz | Zadat poptávku | |
| B020 WHR22135 |
C00412066
482000010470 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| B021 WHR22135 |
C00386297
482000021203 |
Side panel | Na dotaz | Zadat poptávku | |
| B022 WHR22135 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B023 WHR22135 |
C00376992
480150100148 |
Electric plate | Na dotaz | Zadat poptávku | |
| B024 WHR22135 |
C00406986
482000000520 |
Terminal Board | Na dotaz | Zadat poptávku | |
| B025 WHR22135 |
C00409754
482000006138 |
Capacitor | Na dotaz | Zadat poptávku | |
| B026 WHR22135 |
C00419660
482000091812 |
Capacitor | Na dotaz | Zadat poptávku | |
