WHIRLPOOL AMD 332/2 AS-12CL4FVNUV
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 332/2 AS-12CL4FVNUV |
| Kód 12NC: | 853033201020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22163 |
C00562061 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22163 |
C00562063 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |

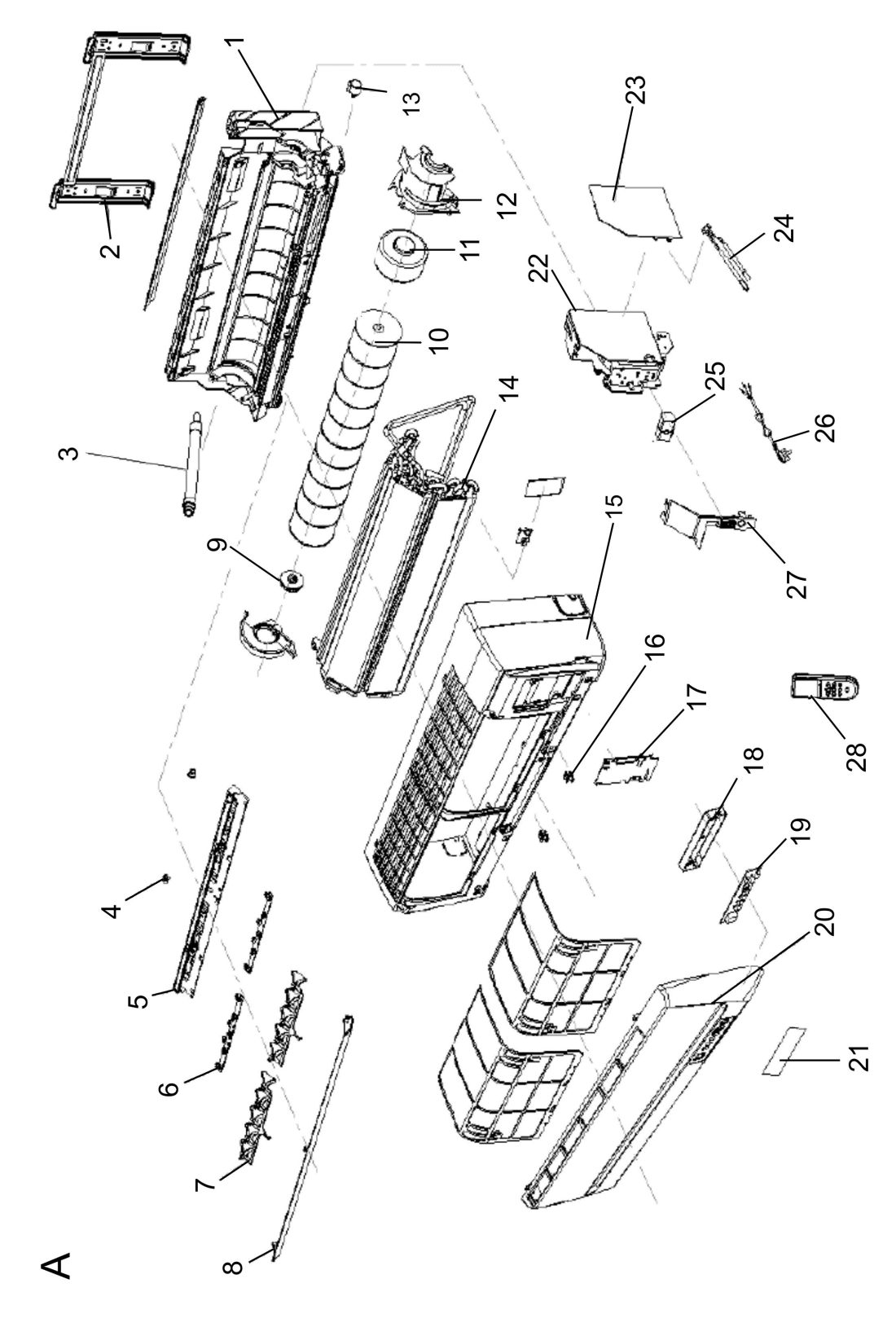

| A01 WHR22163 |
C00378255
482000009532 |
Cabinet | Na dotaz | Zadat poptávku | |
| A02 WHR22163 |
C00378146
482000000504 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A03 WHR22163 |
C00377871
481253008019 |
Drainpipe | Na dotaz | Zadat poptávku | |
| A04 WHR22163 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A05 WHR22163 |
C00378142
482000000406 |
Air guide | Na dotaz | Zadat poptávku | |
| A06 WHR22163 |
C00406990
482000000527 |
Holder | Na dotaz | Zadat poptávku | |
| A07 WHR22163 |
C00406991
482000000528 |
Air guide | Na dotaz | Zadat poptávku | |
| A08 WHR22163 |
C00378160
482000000529 |
Level vane | Na dotaz | Zadat poptávku | |
| A09 WHR22163 |
C00378162
482000000531 |
Axle | Na dotaz | Zadat poptávku | |
| A10 WHR22163 |
C00378153
482000000514 |
Fan wheel | 849 Kč
€ 37.30 |
||
| A11 WHR22163 |
C00378155
482000000516 |
Motor fan | Na dotaz | Zadat poptávku | |
| A12 WHR22163 |
C00411663
482000009533 |
Support motor | Na dotaz | Zadat poptávku | |
| A13 WHR22163 |
C00376989
480150100135 |
Motorek | 495 Kč
€ 21.80 |
||
| A14 WHR22163 |
C00411664
482000009534 |
Evaporator | Na dotaz | Zadat poptávku | |
| A15 WHR22163 |
C00378148
482000000507 |
Cabinet FRONT | Na dotaz | Zadat poptávku | |
| A16 WHR22163 |
C00378147
482000000505 |
Cap | Na dotaz | Zadat poptávku | |
| A17 WHR22163 |
C00406980
482000000503 |
Cover cable | Na dotaz | Zadat poptávku | |
| A18 WHR22163 |
C00378150
482000000511 |
Electronic box | 1 339 Kč
€ 58.90 |
||
| A19 WHR22163 |
C00378149
482000000510 |
displej | 2 302 Kč
€ 101.20 |
||
| A20 WHR22163 |
C00378144
482000000499 |
Cover front | Na dotaz | Zadat poptávku | |
| A21 WHR22163 |
C00376984
480150100123 |
Panel Display board | Na dotaz | Zadat poptávku | |
| A22_1 WHR22163 |
C00378236
482000006129 |
Electronic box | Na dotaz | Zadat poptávku | |
| A22_2 WHR22163 |
C00411665
482000009535 |
Elect.parts box metal | Na dotaz | Zadat poptávku | |
| A24 WHR22163 |
C00376990
480150100143 |
Sensor Indoor | Na dotaz | Zadat poptávku | |
| A25 WHR22163 |
C00386421
480150100141 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A26 WHR22163 |
C00411666
482000009536 |
Cable mains | Na dotaz | Zadat poptávku | |
| A27_1 WHR22163 |
C00409751
482000006132 |
Cover plate | Na dotaz | Zadat poptávku | |
| A27_2 WHR22163 |
C00411667
482000009537 |
Cover metal | Na dotaz | Zadat poptávku | |
| A27_3 WHR22163 |
C00411668
482000009538 |
Cover plastic | Na dotaz | Zadat poptávku | |
| A28 WHR22163 |
C00378232
482000006119 |
Remote control | Na dotaz | Zadat poptávku | |
| A29 WHR22163 |
C00408688
482000004273 |
Filter Silver Ion | Na dotaz | Zadat poptávku | |
| A30 WHR22163 |
C00408687
482000004272 |
Filter | Na dotaz | Zadat poptávku | |
| A31 WHR22163 |
C00408686
482000004271 |
Support Hepa filter | Na dotaz | Zadat poptávku | |
| AA23 WHR22163 |
C00408684
482000004269 |
Control board | Na dotaz | Zadat poptávku | |
| B01 WHR22163 |
C00406983
482000000509 |
Base | Na dotaz | Zadat poptávku | |
| B02 WHR22163 |
C00377024
480150100887 |
Support Valve | Na dotaz | Zadat poptávku | |
| B03 WHR22163 |
C00411669
482000009539 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B04 WHR22163 |
C00406984
482000000518 |
Separator | Na dotaz | Zadat poptávku | |
| B05 WHR22163 |
C00411670
482000009540 |
Compressor | Na dotaz | Zadat poptávku | |
| B07 WHR22163 |
C00386446
480150100462 |
Valve | Na dotaz | Zadat poptávku | |
| B08 WHR22163 |
C00411671
482000009541 |
Suction pipe | Na dotaz | Zadat poptávku | |
| B09 WHR22163 |
C00406985
482000000519 |
Cable harness | Na dotaz | Zadat poptávku | |
| B10 WHR22163 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| B11 WHR22163 |
C00411672
482000009542 |
Motor fan | Na dotaz | Zadat poptávku | |
| B12 WHR22163 |
C00378154
482000000515 |
Propeller fan blade | Na dotaz | Zadat poptávku | |
| B13 WHR22163 |
C00411673
482000009543 |
Tube discharg. | Na dotaz | Zadat poptávku | |
| B14 WHR22163 |
C00411674
482000009544 |
Capillary tube cpl. | Na dotaz | Zadat poptávku | |
| B15 WHR22163 |
C00386445
482000000358 |
Valve | Na dotaz | Zadat poptávku | |
| B16 WHR22163 |
C00395165
480150100434 |
Capacitor | Na dotaz | Zadat poptávku | |
| B17 WHR22163 |
C00376992
480150100148 |
Electric plate | Na dotaz | Zadat poptávku | |
| B18 WHR22163 |
C00411675
482000009545 |
Terminal Board | Na dotaz | Zadat poptávku | |
| B19 WHR22163 |
C00409754
482000006138 |
Capacitor | Na dotaz | Zadat poptávku | |
| B20 WHR22163 |
C00385958
480150100879 |
Panel side | Na dotaz | Zadat poptávku | |
| B21 WHR22163 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B22 WHR22163 |
C00385865
482000000500 |
Panel front | Na dotaz | Zadat poptávku | |
| B23 WHR22163 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| B24 WHR22163 |
C00376983
480150100114 |
Grille rear | Na dotaz | Zadat poptávku | |
| B25 WHR22163 |
C00385871
480150100111 |
Cover top | Na dotaz | Zadat poptávku | |
