| Komerční kód: | WRF 40 REFRIGERATORS WP |
| Kód 12NC/I.C. kód: | 853476443000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice |
| Další podobné modely: | 853476443001, 853476465000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

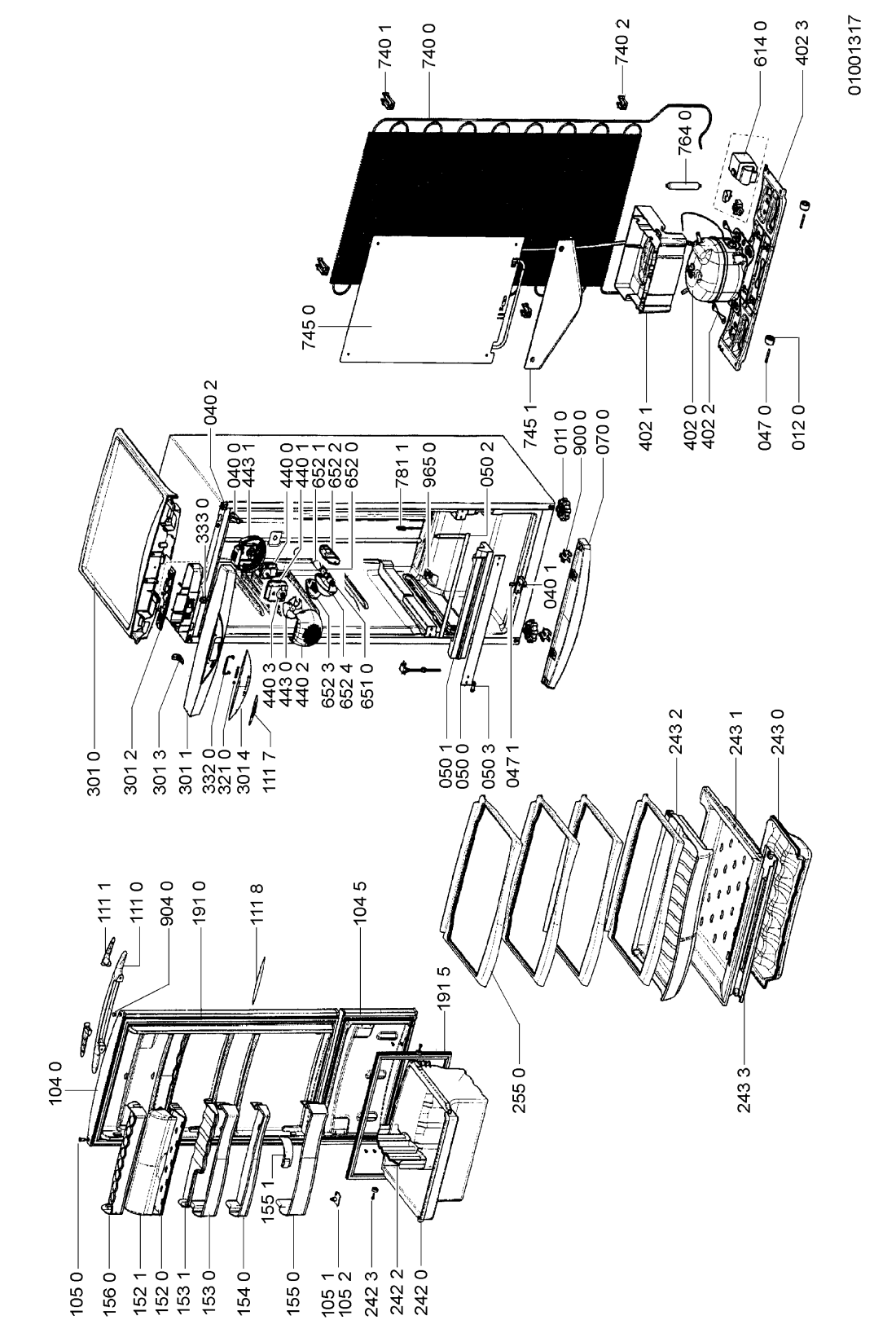

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR52453 |
C00584698
481246218253 |
Adjusting screw. | Na dotaz | Zadat poptávku | |
| 012 0 WHR52453 |
C00491928
481246238133 |
Roller | Na dotaz | Zadat poptávku | |
| 040 0 WHR52453 |
C00501909
481241719076 |
Hinge,upper + lower | Na dotaz | Zadat poptávku | |
| 040 1 WHR52453 |
C00500817
481241778095 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 2 WHR52453 |
C00491670
481241778082 |
Shim | Na dotaz | Zadat poptávku | |
| 047 0 WHR52453 |
C00584849
481253548028 |
Shaft. | Na dotaz | Zadat poptávku | |
| 047 1 WHR52453 |
C00500818
481241778096 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 050 0 WHR52453 |
C00584764
481246418102 |
Rail. | Na dotaz | Zadat poptávku | |
| 050 1 WHR52453 |
C00517537
481232588014 |
Insulation | Na dotaz | Zadat poptávku | |
| 050 2 WHR52453 |
C00584399
481225948158 |
Heating element | Na dotaz | Zadat poptávku | |
| 050 3 WHR52453 |
C00584398
481225948157 |
Cover f.shield. | Na dotaz | Zadat poptávku | |
| 070 0 WHR52453 |
C00576381
481246098038 |
Panel.. | Na dotaz | Zadat poptávku | |
| 104 0 WHR52453 |
C00584472
481241618701 |
Door. | Na dotaz | Zadat poptávku | |
| 104 5 WHR52453 |
C00584473
481241618702 |
Door small. | Na dotaz | Zadat poptávku | |
| 105 0 WHR52453 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
| 105 1 WHR52453 |
C00529681
481246228347 |
Bushing left | Na dotaz | Zadat poptávku | |
| 105 2 WHR52453 |
C00529680
481246228344 |
Bushing right | Na dotaz | Zadat poptávku | |
| 111 0 WHR52453 |
C00487794
481249848012 |
Handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR52453 |
C00490179
481249818242 |
Handle insert | Na dotaz | Zadat poptávku | |
| 111 7 WHR52453 |
C00576352
481245918188 |
PLAQUE DE MARQUE.. | Na dotaz | Zadat poptávku | |
| 111 8 WHR52453 |
C00584669
481245918225 |
Nameplate. | Na dotaz | Zadat poptávku | |
| 152 0 WHR52453 |
C00485997
481246228476 |
Shelf | Na dotaz | Zadat poptávku | |
| 152 1 WHR52453 |
C00485002
481241858041 |
Cover | Na dotaz | Zadat poptávku | |
| 153 0 WHR52453 |
C00485998
481246228477 |
Shelf | Na dotaz | Zadat poptávku | |
| 153 1 WHR52453 |
C00584770
481246428036 |
Shelf. | Na dotaz | Zadat poptávku | |
| 154 0 WHR52453 |
C00486092
481246428035 |
Shelf | Na dotaz | Zadat poptávku | |
| 155 0 WHR52453 |
C00584769
481246428034 |
Shelf. | Na dotaz | Zadat poptávku | |
| 155 1 WHR52453 |
C00584745
481246228489 |
Separator. | Na dotaz | Zadat poptávku | |
| 156 0 WHR52453 |
C00517547
481246088263 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 191 0 WHR52453 |
C00584796
481246818245 |
Magnetic seal. | Na dotaz | Zadat poptávku | |
| 191 5 WHR52453 |
C00584797
481246818246 |
Magnetic seal. | Na dotaz | Zadat poptávku | |
| 242 0 WHR52453 |
C00584560
481241879788 |
Crisper. | Na dotaz | Zadat poptávku | |
| 242 2 WHR52453 |
C00584771
481246428037 |
Separator. | Na dotaz | Zadat poptávku | |
| 242 3 WHR52453 |
C00517540
481240448854 |
Roller | Na dotaz | Zadat poptávku | |
| 243 0 WHR52453 |
C00500888
481246228475 |
Tray | Na dotaz | Zadat poptávku | |
| 243 1 WHR52453 |
C00584601
481244229181 |
Cover crisper. | Na dotaz | Zadat poptávku | |
| 243 2 WHR52453 |
C00584559
481241879787 |
Tray meat | Na dotaz | Zadat poptávku | |
| 243 3 WHR52453 |
C00584602
481244229182 |
Cover crisper Complement. | Na dotaz | Zadat poptávku | |
| 255 0 WHR52453 |
C00485996
481246228474 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 301 0 WHR52453 |
C00584645
481245310083 |
Console. | Na dotaz | Zadat poptávku | |
| 301 1 WHR52453 |
C00490034
481246038123 |
Upper front white | Na dotaz | Zadat poptávku | |
| 301 2 WHR52453 |
C00485174
481244148004 |
Protector | Na dotaz | Zadat poptávku | |
| 301 3 WHR52453 |
C00482883
481240478518 |
Support | Na dotaz | Zadat poptávku | |
| 301 4 WHR52453 |
C00584379
481220988019 |
Display. | Na dotaz | Zadat poptávku | |
| 321 0 WHR52453 |
C00484601
481213488046 |
Protector LED | Na dotaz | Zadat poptávku | |
| 332 0 WHR52453 |
C00487409
481241288019 |
Knob | Na dotaz | Zadat poptávku | |
| 333 0 WHR52453 |
C00493519
481241368015 |
Switch | Na dotaz | Zadat poptávku | |
| 402 0 WHR52453 |
C00584424
481236138077 |
Compressor EM45 HNR 220V 50Hz. | Na dotaz | Zadat poptávku | |
| 402 1 WHR52453 |
C00584558
481241879786 |
Tray compressor. | Na dotaz | Zadat poptávku | |
| 402 2 WHR52453 |
C00500771
481236038783 |
Strap ,compressor | Na dotaz | Zadat poptávku | |
| 402 3 WHR52453 |
C00576151
481240418308 |
Base compressor.. | Na dotaz | Zadat poptávku | |
| 440 0 WHR52453 |
C00488668
481236138076 |
Motor fan 220V / 60H | Na dotaz | Zadat poptávku | |
| 440 1 WHR52453 |
C00584803
481247838003 |
Protector. | Na dotaz | Zadat poptávku | |
| 440 2 WHR52453 |
C00621458
481247838004 |
Cover. | Na dotaz | Zadat poptávku | |
| 440 3 WHR52453 |
C00486295
481252448006 |
Damping part | Na dotaz | Zadat poptávku | |
| 443 0 WHR52453 |
C00484748
481236118378 |
Fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR52453 |
C00584679
481246049338 |
Support. | Na dotaz | Zadat poptávku | |
| 614 0 WHR52453 |
C00491161
481228028029 |
Relay EM45 HNR 220V | Na dotaz | Zadat poptávku | |
| 651 0 WHR52453 |
C00574299
481213488025 |
Lamp. | Na dotaz | Zadat poptávku | |
| 652 0 WHR52453 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 652 1 WHR52453 |
C00490082
481246098026 |
Reflector lamp | Na dotaz | Zadat poptávku | |
| 652 2 WHR52453 |
C00482932
481244029387 |
Base | Na dotaz | Zadat poptávku | |
| 652 3 WHR52453 |
C00519053
481246098057 |
Protector | Na dotaz | Zadat poptávku | |
| 652 4 WHR52453 |
C00584452
481240478575 |
Cover. | Na dotaz | Zadat poptávku | |
| 740 0 WHR52453 |
C00583970
481251148217 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 1 WHR52453 |
C00621380
481240418311 |
Fastener. | Na dotaz | Zadat poptávku | |
| 740 2 WHR52453 |
C00576152
481240418309 |
Fastener.. | Na dotaz | Zadat poptávku | |
| 745 0 WHR52453 |
C00486265
481251138229 |
Evaporator Assy | Na dotaz | Zadat poptávku | |
| 745 1 WHR52453 |
C00584818
481251138231 |
Drainpipe. | Na dotaz | Zadat poptávku | |
| 764 0 WHR52453 |
C00584806
481248028074 |
Dryer. | Na dotaz | Zadat poptávku | |
| 781 1 WHR52453 |
C00584855
481269028016 |
Swab. | Na dotaz | Zadat poptávku | |
| 900 0 WHR52453 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 904 0 WHR52453 |
C00342340
481246228342 |
Cover WH | Na dotaz | Zadat poptávku | |
| 965 0 WHR52453 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR52453 |
C00655250 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
