| Komerční kód: | 4GWTW5550YW |
| Kód 12NC: | 853796380000 |
| I.C. kód: | 853796380001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

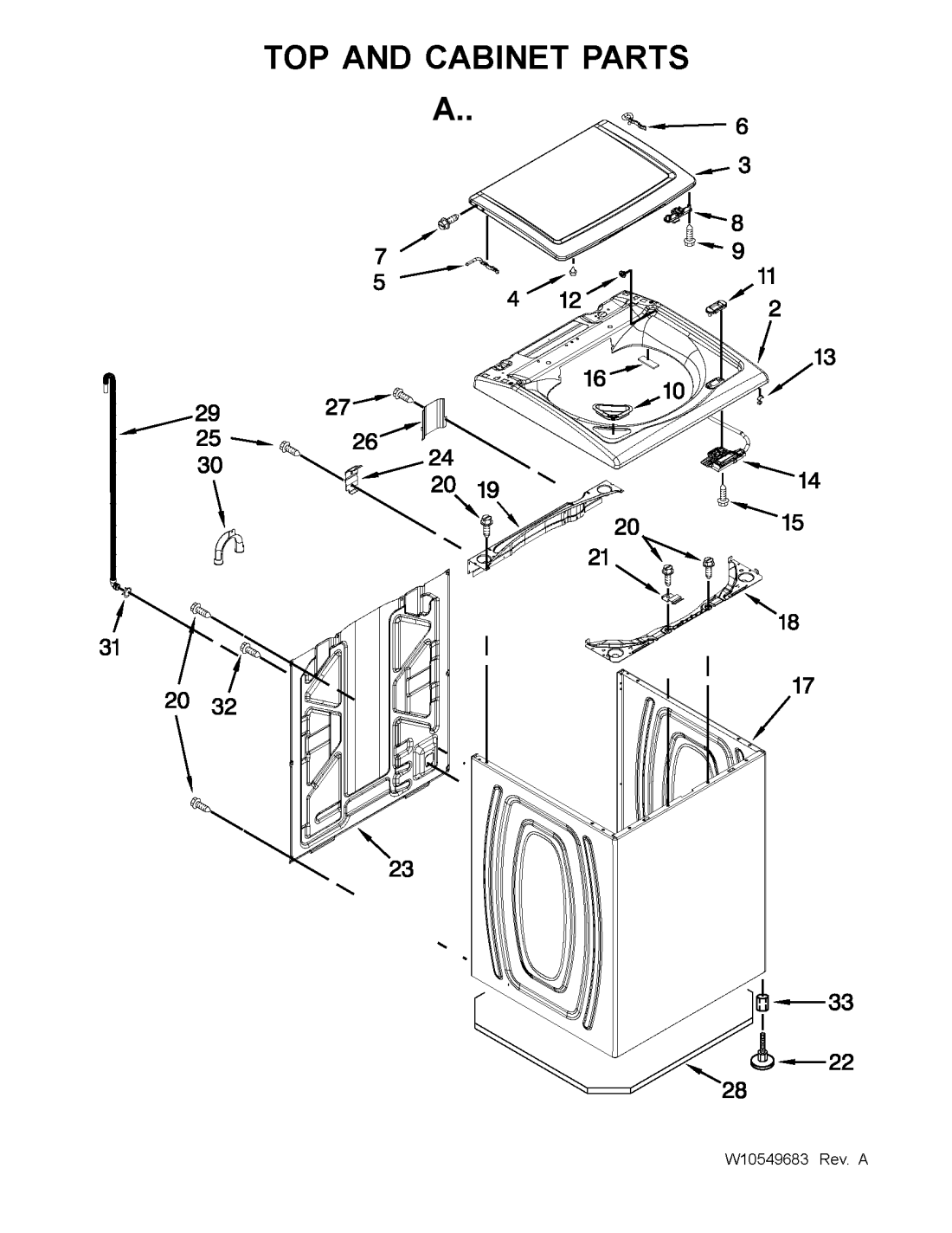

| A02 WHR42297 |
C00334598
482000012935 |
Lid inner | Na dotaz | Zadat poptávku | |
| A03 WHR42297 |
C00334599
482000012936 |
Lid outer | Na dotaz | Zadat poptávku | |
| A04 WHR42297 |
C00330920
481246668693 |
Damper cabinet lid | Na dotaz | Zadat poptávku | |
| A05 WHR42297 |
C00334545
482000012667 |
Hinge L H. | Na dotaz | Zadat poptávku | |
| A06 WHR42297 |
C00334546
482000012668 |
Hinge R.H. | Na dotaz | Zadat poptávku | |
| A07 WHR42297 |
C00320923
480110100251 |
W10119828 Screw. | Na dotaz | Zadat poptávku | |
| A08 WHR42297 |
C00318650
482000011381 |
Fixation lid lock | Na dotaz | Zadat poptávku | |
| A09 WHR42297 |
C00333994
482000010628 |
Screw | Na dotaz | Zadat poptávku | |
| A10 WHR42297 |
C00334547
482000012669 |
Dispenser bleach | Na dotaz | Zadat poptávku | |
| A11 WHR42297 |
C00317697
482000011383 |
Door lock | Na dotaz | Zadat poptávku | |
| A12 WHR42297 |
C00334548
482000012670 |
Bearing lid hinge, left. | Na dotaz | Zadat poptávku | |
| A12 WHR42297 |
C00334549
482000012671 |
Bearing lid hinge, right. | Na dotaz | Zadat poptávku | |
| A13 WHR42297 |
C00333177
481949268597 |
Clip fix harness | Na dotaz | Zadat poptávku | |
| A14 WHR42297 |
C00313324
482000011384 |
Lock | Na dotaz | Zadat poptávku | |
| A15 WHR42297 |
C00333733
482000007184 |
Screw | Na dotaz | Zadat poptávku | |
| A16 WHR42297 |
C00334600
482000012937 |
Pad lid hinge | Na dotaz | Zadat poptávku | |
| A17 WHR42297 |
C00334179
482000011386 |
Cabinet white | Na dotaz | Zadat poptávku | |
| A18 WHR42297 |
C00334180
482000011387 |
Brace side cabinet top front | Na dotaz | Zadat poptávku | |
| A19 WHR42297 |
C00334181
482000011388 |
Brace side cabinet top rear | Na dotaz | Zadat poptávku | |
| A20 WHR42297 |
C00320927
480110100505 |
Screw 8-18 x 3/8 | Na dotaz | Zadat poptávku | |
| A21 WHR42297 |
C00334182
482000011389 |
Lock plate top | Na dotaz | Zadat poptávku | |
| A22 WHR42297 |
C00334183
482000011390 |
Foot | Na dotaz | Zadat poptávku | |
| A23 WHR42297 |
C00334178
482000011385 |
Rear panel | Na dotaz | Zadat poptávku | |
| A24 WHR42297 |
C00334184
482000011391 |
Hinge top | Na dotaz | Zadat poptávku | |
| A25 WHR42297 |
C00334185
482000011392 |
Screw | Na dotaz | Zadat poptávku | |
| A26 WHR42297 |
C00334186
482000011393 |
Cover cable | Na dotaz | Zadat poptávku | |
| A27 WHR42297 |
C00332166
481250318003 |
Screw 10-32x5/8 | Na dotaz | Zadat poptávku | |
| A28 WHR42297 |
C00334602
482000012939 |
Insulation | Na dotaz | Zadat poptávku | |
| A29 WHR42297 |
C00334187
482000011394 |
Hose draining | Na dotaz | Zadat poptávku | |
| A30 WHR42297 |
C00334188
482000011395 |
Bow | Na dotaz | Zadat poptávku | |
| A31 WHR42297 |
C00332918
481940118546 |
Clamp hose | Na dotaz | Zadat poptávku | |
| A32 WHR42297 |
C00332158
481250238368 |
Screw 8-18x1/2 | Na dotaz | Zadat poptávku | |
| A33 WHR42297 |
C00313854
481950618023 |
3/8-16 X .329 HX NUT | Na dotaz | Zadat poptávku | |
| B01 WHR42297 |
C00413302
482000013031 |
Control panel | Na dotaz | Zadat poptávku | |
| B02 WHR42297 |
C00334604
482000012941 |
Knob control | Na dotaz | Zadat poptávku | |
| B03 WHR42297 |
C00316899
482000012942 |
User board | Na dotaz | Zadat poptávku | |
| B04 WHR42297 |
C00321210
480112100602 |
Screw 8-16x1/2 | Na dotaz | Zadat poptávku | |
| B05 WHR42297 |
C00320922
480110100224 |
Clip control panel | Na dotaz | Zadat poptávku | |
| B06 WHR42297 |
C00413303
482000013032 |
Control unit | Na dotaz | Zadat poptávku | |
| B07 WHR42297 |
C00334553
482000012681 |
Bracket | Na dotaz | Zadat poptávku | |
| B08 WHR42297 |
C00333204
481950218294 |
Screw | Na dotaz | Zadat poptávku | |
| B10 WHR42297 |
C00334554
482000012682 |
Seal control panel | Na dotaz | Zadat poptávku | |
| B11 WHR42297 |
C00413049
482000012683 |
Cable mains | Na dotaz | Zadat poptávku | |
| B13 WHR42297 |
C00334555
482000012684 |
Dispenser | Na dotaz | Zadat poptávku | |
| B14 WHR42297 |
C00334556
482000012685 |
Valve cold water inlet | Na dotaz | Zadat poptávku | |
| B15 WHR42297 |
C00334557
482000012686 |
Valve hot water inlet | Na dotaz | Zadat poptávku | |
| B16 WHR42297 |
C00334558
482000012687 |
Cable valve | Na dotaz | Zadat poptávku | |
| B17 WHR42297 |
C00320928
480110100535 |
Screw 10-16 x 9/16 | Na dotaz | Zadat poptávku | |
| B18 WHR42297 |
C00333236
481950318261 |
Screw 11-16x3/4 | Na dotaz | Zadat poptávku | |
| B19 WHR42297 |
C00334559
482000012688 |
Rail dispenser | Na dotaz | Zadat poptávku | |
| B20 WHR42297 |
C00334606
482000012945 |
Drawer | Na dotaz | Zadat poptávku | |
| B21 WHR42297 |
C00334560
482000012692 |
Clamping sleeve | Na dotaz | Zadat poptávku | |
| B23 WHR42297 |
C00334607
482000012946 |
Spacer knob | Na dotaz | Zadat poptávku | |
| B24 WHR42297 |
C00316533
480110100173 |
Spona ovládacího knoflíku pro poloprofesionální pračku a sušičku Whirlpool | 177 Kč
€ 7.30 |
||
| B25 WHR42297 |
C00334609
482000012948 |
Handle drawer | Na dotaz | Zadat poptávku | |
| B26 WHR42297 |
C00334622
482000013033 |
Nut | Na dotaz | Zadat poptávku | |
| B27 WHR42297 |
C00334623
482000013034 |
Seal user interface | Na dotaz | Zadat poptávku | |
| B28 WHR42297 |
C00334561
482000012695 |
Cable harness user board | Na dotaz | Zadat poptávku | |
| B29 WHR42297 |
C00314694
481953238055 |
Inlet Hose Washer | Na dotaz | Zadat poptávku | |
| B30 WHR42297 |
C00413053
482000012693 |
Hose inlet cold water | Na dotaz | Zadat poptávku | |
| B30 WHR42297 |
C00413054
482000012694 |
Hose inlet hot water | Na dotaz | Zadat poptávku | |
| B31 WHR42297 |
C00413055
482000012696 |
Washer | Na dotaz | Zadat poptávku | |
| B32 WHR42297 |
C00334202
482000011413 |
roupling piece Y | Na dotaz | Zadat poptávku | |
| B33 WHR42297 |
C00334173
482000011364 |
Washer | Na dotaz | Zadat poptávku | |
| C01 WHR42297 |
C00334610
482000012949 |
Spring | Na dotaz | Zadat poptávku | |
| C02 WHR42297 |
C00312931
480110100279 |
Screw 5/16-24 x 1 and washer | Na dotaz | Zadat poptávku | |
| C03 WHR42297 |
C00320854
481903949550 |
WASHER | Na dotaz | Zadat poptávku | |
| C04 WHR42297 |
C00334563
482000012698 |
Ring tub | Na dotaz | Zadat poptávku | |
| C05 WHR42297 |
C00334564
482000012699 |
Absorber | Na dotaz | Zadat poptávku | |
| C06 WHR42297 |
C00334620
482000013027 |
Impeller washplate | Na dotaz | Zadat poptávku | |
| C07 WHR42297 |
C00320930
480110100564 |
Screw 8-16 x 1.000 | Na dotaz | Zadat poptávku | |
| C08 WHR42297 |
C00334566
482000012701 |
Hub driven, basket | Na dotaz | Zadat poptávku | |
| C09 WHR42297 |
C00334567
482000012702 |
Block basket drive | Na dotaz | Zadat poptávku | |
| C10 WHR42297 |
C00334568
482000012703 |
Block basket drive | Na dotaz | Zadat poptávku | |
| C11 WHR42297 |
C00334569
482000012704 |
BASKET ASM - SS. | Na dotaz | Zadat poptávku | |
| C12 WHR42297 |
C00334570
482000012705 |
Tub | Na dotaz | Zadat poptávku | |
| C13 WHR42297 |
C00334206
482000011420 |
Shaft seal | Na dotaz | Zadat poptávku | |
| C14 WHR42297 |
C00334207
482000011421 |
Filter drain pump | Na dotaz | Zadat poptávku | |
| C15 WHR42297 |
C00320932
480110100581 |
Screw 8-18 x 3/4 | Na dotaz | Zadat poptávku | |
| C16 WHR42297 |
C00334612
482000012951 |
Damper | Na dotaz | Zadat poptávku | |
| C17 WHR42297 |
C00334209
482000011423 |
Bearing ball | Na dotaz | Zadat poptávku | |
| C18 WHR42297 |
C00334210
482000011424 |
Bushing | Na dotaz | Zadat poptávku | |
| C19 WHR42297 |
C00334572
482000012707 |
Cable harness lower | Na dotaz | Zadat poptávku | |
| C20 WHR42297 |
C00320929
480110100562 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| C21 WHR42297 |
C00320931
480110100571 |
Clamp | Na dotaz | Zadat poptávku | |
| C22 WHR42297 |
C00320934
480110100593 |
Screw 10-16 x 3/4 | Na dotaz | Zadat poptávku | |
| C23 WHR42297 |
C00334189
482000011396 |
Staple | Na dotaz | Zadat poptávku | |
| D01 WHR42297 |
C00413057
482000012709 |
Pump draining | Na dotaz | Zadat poptávku | |
| D02 WHR42297 |
C00320933
480110100587 |
Screw 12-16 x 1-1/8 | Na dotaz | Zadat poptávku | |
| D03 WHR42297 |
C00413259
482000012975 |
Hose | Na dotaz | Zadat poptávku | |
| D04 WHR42297 |
C00320919
480110100165 |
Clamp | Na dotaz | Zadat poptávku | |
| D05 WHR42297 |
C00413301
482000013030 |
Box transmiss. | Na dotaz | Zadat poptávku | |
| D06 WHR42297 |
C00334217
482000011432 |
Screw | Na dotaz | Zadat poptávku | |
| D07 WHR42297 |
C00318674
482000012711 |
Motor | Na dotaz | Zadat poptávku | |
| D08 WHR42297 |
C00320935
480110100778 |
Bolt counterweight | Na dotaz | Zadat poptávku | |
| D09 WHR42297 |
C00334219
482000011434 |
Spring splutch | Na dotaz | Zadat poptávku | |
| D10 WHR42297 |
C00318654
482000011435 |
Regulator splutch | Na dotaz | Zadat poptávku | |
| D11 WHR42297 |
C00334220
482000011436 |
Ring cam, splutch. | Na dotaz | Zadat poptávku | |
| D12 WHR42297 |
C00314614
482000011437 |
Cam splutch | Na dotaz | Zadat poptávku | |
| D13 WHR42297 |
C00413058
482000012713 |
Pulley | Na dotaz | Zadat poptávku | |
| D14 WHR42297 |
C00314011
482000011439 |
Nut pulley | Na dotaz | Zadat poptávku | |
| D15 WHR42297 |
C00413059
482000012714 |
Belt driving | Na dotaz | Zadat poptávku | |
| D16 WHR42297 |
C00334221
482000011441 |
Actuator | Na dotaz | Zadat poptávku | |
| D17 WHR42297 |
C00334222
482000011442 |
Screw | Na dotaz | Zadat poptávku | |
| D18 WHR42297 |
C00413060
482000012715 |
Capacitor | Na dotaz | Zadat poptávku | |
| D19 WHR42297 |
C00333229
481950318047 |
SCREW | Na dotaz | Zadat poptávku | |
| D20 WHR42297 |
C00312203
482000011444 |
Cover shield | Na dotaz | Zadat poptávku | |
| D21 WHR42297 |
C00334224
482000011445 |
Counter weight | Na dotaz | Zadat poptávku | |
| D22 WHR42297 |
C00318660
482000011446 |
Screw | Na dotaz | Zadat poptávku | |
| 999 WHR42298 |
C00617291 | Technical Instruction WHP | Na dotaz | Zadat poptávku | |
