BAUKNECHT CK 8482 ws 230V
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | CK 8482 ws 230V |
| Kód 12NC/I.C. kód: | 856739216330 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

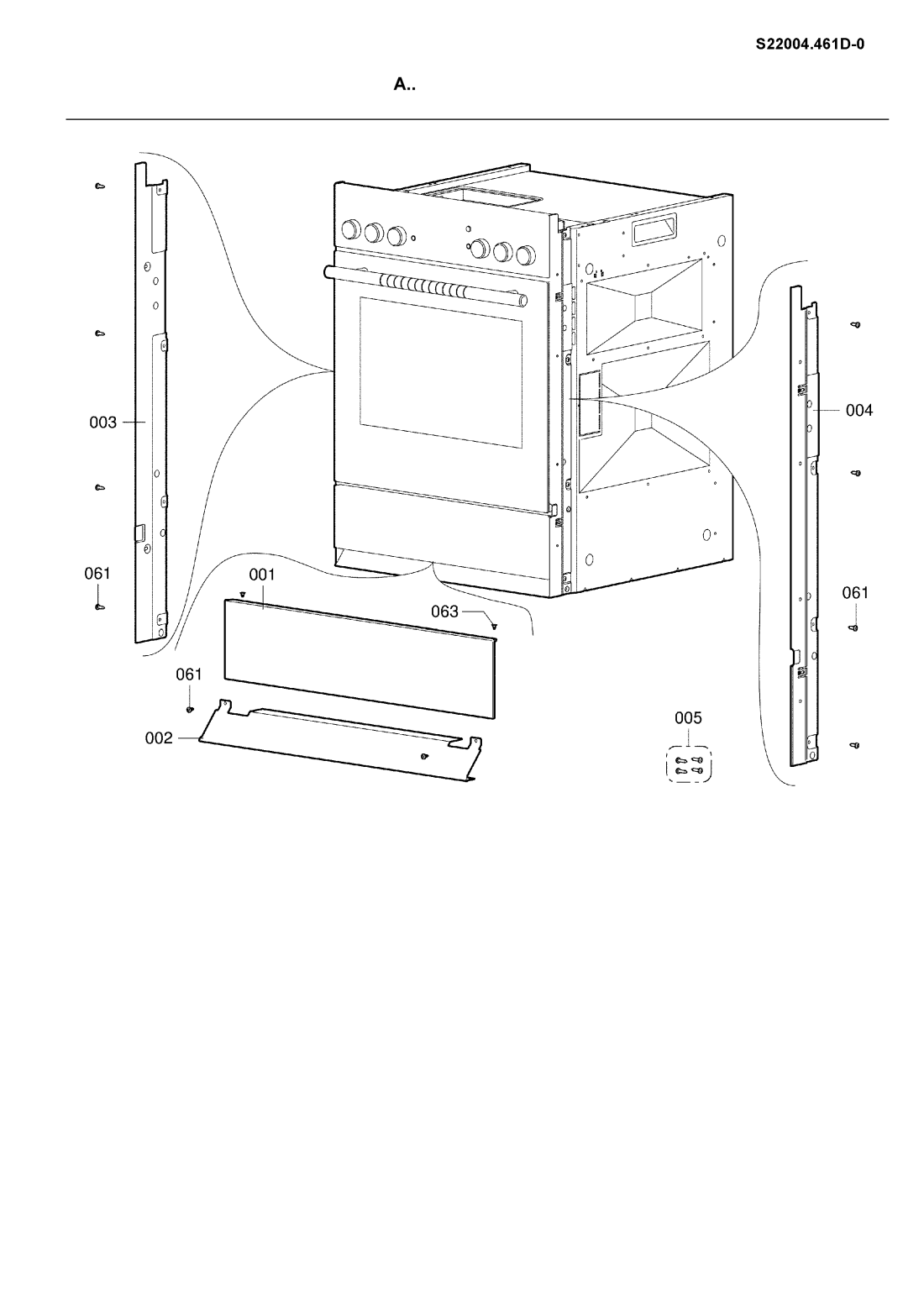

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A001 WHR45456 |
C00390785
480121102572 |
Panel | Na dotaz | Zadat poptávku | |
| A002 WHR45456 |
C00390786
480121102573 |
Front panel | Na dotaz | Zadat poptávku | |
| A003 WHR45456 |
C00390623
480121102374 |
Profile left 55-762 | Na dotaz | Zadat poptávku | |
| A004 WHR45456 |
C00390624
480121102375 |
Profile right 55-762 | Na dotaz | Zadat poptávku | |
| A005 WHR45456 |
C00415821
482000018290 |
Screw | Na dotaz | Zadat poptávku | |
| A023 WHR45456 |
C00415823
482000018292 |
Control panel | Na dotaz | Zadat poptávku | |
| A031 WHR45456 |
C00415824
482000018293 |
Lens grey | Na dotaz | Zadat poptávku | |
| A032 WHR45456 |
C00415825
482000018294 |
Ring | Na dotaz | Zadat poptávku | |
| A033 WHR45456 |
C00415826
482000018295 |
Push button | Na dotaz | Zadat poptávku | |
| A035 WHR45456 |
C00390865
480121102678 |
Knob white | Na dotaz | Zadat poptávku | |
| A036 WHR45456 |
C00390789
480121102576 |
Tlačítko trouby | 310 Kč
€ 12.70 |
||
| A037 WHR45456 |
C00390857
480121102656 |
Tlačítko trouby | 358 Kč
€ 14.70 |
||
| A040 WHR45456 |
C00415827
482000018296 |
Support control panel | Na dotaz | Zadat poptávku | |
| A041 WHR45456 |
C00399827
481213448356 |
Pilot lamp 250 V | Na dotaz | Zadat poptávku | |
| A042 WHR45456 |
C00390633
480121102386 |
Spínač | 396 Kč
€ 16.30 |
||
| A043 WHR45456 |
C00415828
482000018297 |
Support | Na dotaz | Zadat poptávku | |
| A044 WHR45456 |
C00390866
480121102679 |
Regulator ,2-KREIS, 230V | Na dotaz | Zadat poptávku | |
| A045 WHR45456 |
C00390867
480121102681 |
Regulator ,1-KREIS, 230V | Na dotaz | Zadat poptávku | |
| A046 WHR45456 |
C00401014
481228238176 |
Thermostat | Na dotaz | Zadat poptávku | |
| A047 WHR45456 |
C00390856
480121102655 |
Selector | Na dotaz | Zadat poptávku | |
| A061 WHR45456 |
C00415829
482000018298 |
Screw SZ, 4.2 x 9.5, black | Na dotaz | Zadat poptávku | |
| A063 WHR45456 |
C00415830
482000018299 |
Screw ST, 4.2 x 6.5 | Na dotaz | Zadat poptávku | |
| A064 WHR45456 |
C00415831
482000018300 |
Screw selftap 4.2 x 10.5 | Na dotaz | Zadat poptávku | |
| A065 WHR45456 |
C00415832
482000018301 |
Screw ST, 4.8 v M4 x 6 | Na dotaz | Zadat poptávku | |
| B001 WHR45456 |
C00415833
482000018302 |
Oven door cpl. | Na dotaz | Zadat poptávku | |
| B002 WHR45456 |
C00468883
482000018303 |
Oven glass | Na dotaz | Zadat poptávku | |
| B003 WHR45456 |
C00390793
480121102581 |
Madlo dveří trouby Bauknecht | 3 070 Kč
€ 126.10 |
||
| B005 WHR45456 |
C00389923
480121101206 |
Samořezný šroub | 61 Kč
€ 2.50 |
||
| B005 WHR45456 |
C00415834
482000018304 |
Washer | Na dotaz | Zadat poptávku | |
| B005 WHR45456 |
C00415835
482000018305 |
Screw 18/10 4.3/12 x 1 | Na dotaz | Zadat poptávku | |
| B006 WHR45456 |
C00403744
481245059564 |
Inner glass | Na dotaz | Zadat poptávku | |
| B007 WHR45456 |
C00405113
481246688891 |
Gasket | Na dotaz | Zadat poptávku | |
| B009 WHR45456 |
C00405114
481246688892 |
Gasket border | Na dotaz | Zadat poptávku | |
| B010 WHR45456 |
C00409582
482000005764 |
Door glass 55-600/762 inner | Na dotaz | Zadat poptávku | |
| B011 WHR45456 |
C00390663
480121102419 |
Tlumič | 60 Kč
€ 2.50 |
||
| B061 WHR45456 |
C00415836
482000018306 |
Screw 3.5 x 11, black | Na dotaz | Zadat poptávku | |
| C001 WHR45456 |
C00488488
481225928748 |
Heating element Oberhitze/Grill 230 V | Na dotaz | Zadat poptávku | |
| C002 WHR45456 |
C00488489
481225928749 |
Heating element Unterhitze 230 V | Na dotaz | Zadat poptávku | |
| C004 WHR45456 |
C00390665
480121102423 |
Čočka | 642 Kč
€ 26.40 |
||
| C004 WHR45456 |
C00415838
482000018308 |
Lens | Na dotaz | Zadat poptávku | |
| C004 WHR45456 |
C00410037
482000006926 |
Cable | Na dotaz | Zadat poptávku | |
| C005 WHR45456 |
C00415839
482000018309 |
Lamp 230V/25W | Na dotaz | Zadat poptávku | |
| C006 WHR45456 |
C00390754
480121102535 |
Connector filter | Na dotaz | Zadat poptávku | |
| C007 WHR45456 |
C00409583
482000005766 |
Inset grid | Na dotaz | Zadat poptávku | |
| C009 WHR45456 |
C00391469
480121104302 |
Ochrana | 1 117 Kč
€ 45.90 |
||
| C010 WHR45456 |
C00415987
482000018488 |
Oven cavity | Na dotaz | Zadat poptávku | |
| C011 WHR45456 |
C00390757
480121102538 |
Gasket door | Na dotaz | Zadat poptávku | |
| C012 WHR45456 |
C00482216
481221058007 |
Bracket | Na dotaz | Zadat poptávku | |
| C013 WHR45456 |
C00491939
481246279723 |
Grommetleather | Na dotaz | Zadat poptávku | |
| C015 WHR45456 |
C00415841
482000018311 |
Fixation | Na dotaz | Zadat poptávku | |
| C062 WHR45456 |
C00415842
482000018312 |
Screw 4.2 x 13 | Na dotaz | Zadat poptávku | |
| D001 WHR45456 |
C00390887
480121102707 |
Motor RL CPL, HOTAIR 230V | Na dotaz | Zadat poptávku | |
| D002 WHR45456 |
C00390760
480121102542 |
Termostat trouby | 498 Kč
€ 20.50 |
||
| D003 WHR45456 |
C00391523
480121104405 |
Resistor 1500 Ohm | Na dotaz | Zadat poptávku | |
| D004 WHR45456 |
C00484578
481211348001 |
Resistor | Na dotaz | Zadat poptávku | |
| D011 WHR45456 |
C00390763
480121102545 |
Conveyor | Na dotaz | Zadat poptávku | |
| D012 WHR45456 |
C00415844
482000018315 |
Cover oven | Na dotaz | Zadat poptávku | |
| D013 WHR45456 |
C00415845
482000018316 |
Cover hob | Na dotaz | Zadat poptávku | |
| D014 WHR45456 |
C00415846
482000018317 |
Cover front | Na dotaz | Zadat poptávku | |
| D015 WHR45456 |
C00500909
481249148003 |
Clip fix | Na dotaz | Zadat poptávku | |
| D016 WHR45456 |
C00390765
480121102547 |
Terminal block | Na dotaz | Zadat poptávku | |
| D018 WHR45456 |
C00415988
482000018489 |
Plate support | Na dotaz | Zadat poptávku | |
| D061 WHR45456 |
C00415848
482000018319 |
Screw SZ, 4.2 x 9.5 | Na dotaz | Zadat poptávku | |
| D062 WHR45456 |
C00415849
482000018320 |
Screw ST, 3.5 x 19 | Na dotaz | Zadat poptávku | |
| D063 WHR45456 |
C00405449
481250568026 |
Nut ST10 EZN M5 | Na dotaz | Zadat poptávku | |
| D064 WHR45456 |
C00405954
481253058181 |
Washer ST EZN 5,3/10X1 | Na dotaz | Zadat poptávku | |
| D071 WHR45456 |
C00409618
482000005838 |
Holder | Na dotaz | Zadat poptávku | |
| E001 WHR45456 |
C00390701
480121102475 |
Housing left | Na dotaz | Zadat poptávku | |
| E002 WHR45456 |
C00390702
480121102476 |
Housing right | Na dotaz | Zadat poptávku | |
| E003 WHR45456 |
C00390592
480121102318 |
Handle | Na dotaz | Zadat poptávku | |
| E004 WHR45456 |
C00415851
482000018322 |
Rear panel | Na dotaz | Zadat poptávku | |
| E010 WHR45456 |
C00409587
482000005770 |
Conveyor 55-600/762 | Na dotaz | Zadat poptávku | |
| E010 WHR45456 |
C00415852
482000018323 |
Conveyor 60-600/762 black | Na dotaz | Zadat poptávku | |
| E011 WHR45456 |
C00390707
480121102482 |
Crossbar 55/60-762 | Na dotaz | Zadat poptávku | |
| E012 WHR45456 |
C00409588
482000005771 |
Rail Guide left | Na dotaz | Zadat poptávku | |
| E013 WHR45456 |
C00409589
482000005772 |
Rail Guide right | Na dotaz | Zadat poptávku | |
| E014 WHR45456 |
C00390710
480121102485 |
Terminal block | Na dotaz | Zadat poptávku | |
| E015 WHR45456 |
C00493031
481229068211 |
Terminal strip | Na dotaz | Zadat poptávku | |
| E016 WHR45456 |
C00491378
481229048013 |
Strain relief | Na dotaz | Zadat poptávku | |
| E017 WHR45456 |
C00621453
481246818047 |
Cap,feedtrough | Na dotaz | Zadat poptávku | |
| E021 WHR45456 |
C00390711
480121102486 |
Drawer complete | Na dotaz | Zadat poptávku | |
| E062 WHR45456 |
C00415853
482000018324 |
Screw ST, 4.2 x 9.5 | Na dotaz | Zadat poptávku | |
| E063 WHR45456 |
C00415854
482000018325 |
Screw ST, 3.5 x 38 | Na dotaz | Zadat poptávku | |
| F001 WHR45456 |
C00409590
482000005773 |
Grating | Na dotaz | Zadat poptávku | |
| F002 WHR45456 |
C00409591
482000005774 |
Baking sheet | Na dotaz | Zadat poptávku | |
| G001 WHR45456 |
C00390778
480121102564 |
Kryt | 1 849 Kč
€ 76.00 |
||
| G010 WHR45456 |
C00409592
482000005775 |
Inset grid | Na dotaz | Zadat poptávku | |
| H001 WHR45456 |
C00390794
480121102582 |
Frame adapter | Na dotaz | Zadat poptávku | |
| H002 WHR45456 |
C00390601
480121102328 |
Angle iron set | Na dotaz | Zadat poptávku | |
