BAUKNECHT BTH 7302 IN OVEN BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | BTH 7302 IN OVEN BK |
| Kód 12NC/I.C. kód: | 856739816050 |
| Značka: | BAUKNECHT |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

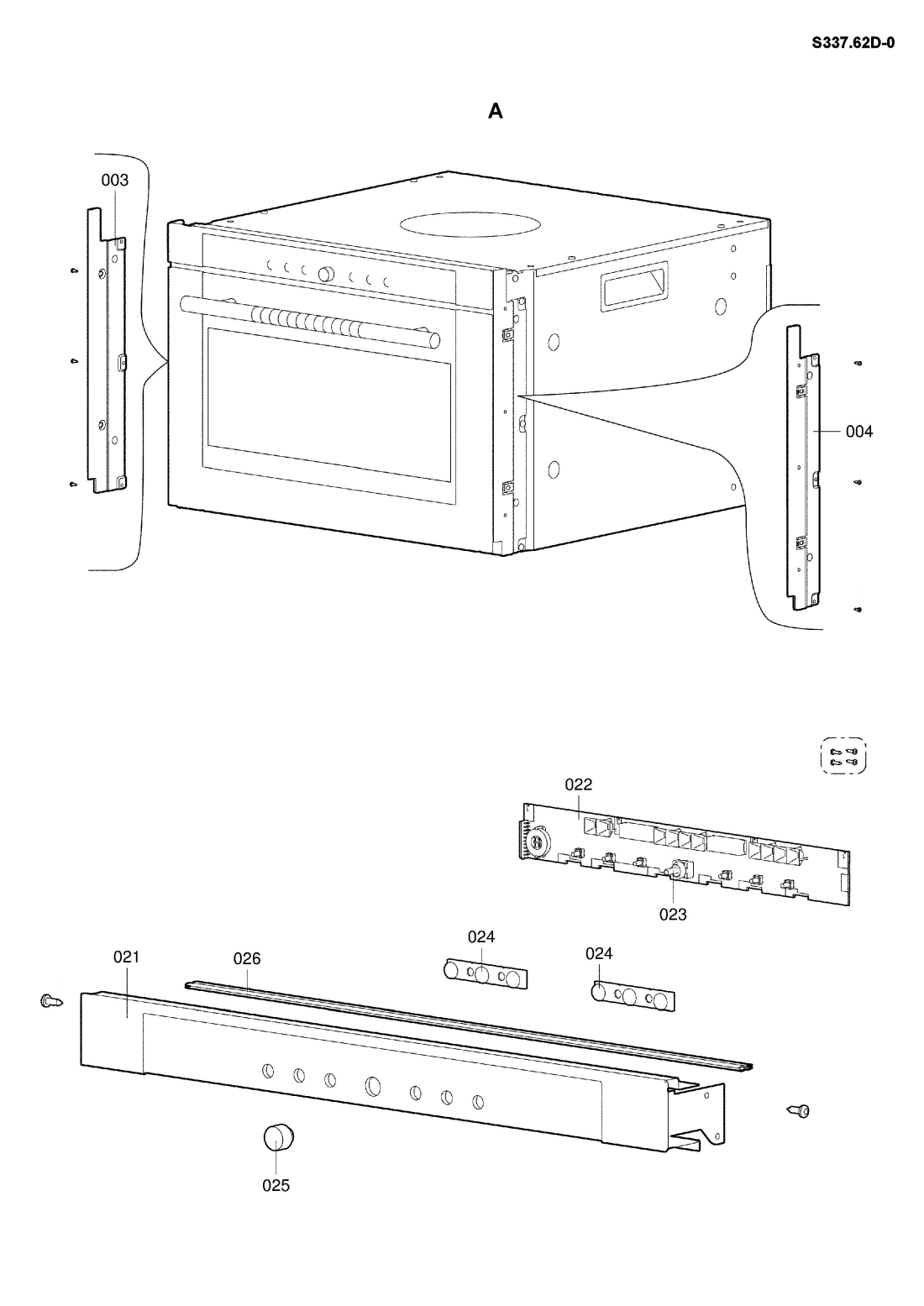

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A00 3 WHR45556 |
C00391112
480121103104 |
Profile ,LEFT | Na dotaz | Zadat poptávku | |
| A00 4 WHR45556 |
C00391113
480121103105 |
Profile ,RIGHT | Na dotaz | Zadat poptávku | |
| A02 1 WHR45556 |
C00391501
480121104379 |
Control panel | Na dotaz | Zadat poptávku | |
| A02 2 WHR45556 |
C00391502
480121104381 |
Unit control | Na dotaz | Zadat poptávku | |
| A02 3 WHR45556 |
C00390608
480121102336 |
Shaft gear | Na dotaz | Zadat poptávku | |
| A02 4 WHR45556 |
C00390541
480121102257 |
Push button 3 pushes Black | Na dotaz | Zadat poptávku | |
| A02 5 WHR45556 |
C00402226
481241029377 |
Knob | Na dotaz | Zadat poptávku | |
| A02 6 WHR45556 |
C00390542
480121102258 |
Profile | Na dotaz | Zadat poptávku | |
| B00 1 WHR45556 |
C00391503
480121104382 |
Door cpl. 55 cr | Na dotaz | Zadat poptávku | |
| B00 2 WHR45556 |
C00391504
480121104383 |
Oven glass 55 | Na dotaz | Zadat poptávku | |
| B00 3 WHR45556 |
C00390738
480121102516 |
Handle complete | Na dotaz | Zadat poptávku | |
| B00 5 WHR45556 |
C00389923
480121101206 |
Samořezný šroub | 61 Kč
€ 2.50 |
||
| B00 7 WHR45556 |
C00405113
481246688891 |
Gasket | Na dotaz | Zadat poptávku | |
| B01 0 WHR45556 |
C00391505
480121104384 |
Glass 55/60-381 | Na dotaz | Zadat poptávku | |
| B01 1 WHR45556 |
C00390612
480121102341 |
Glass ,MIDDLE | Na dotaz | Zadat poptávku | |
| B01 2 WHR45556 |
C00390606
480121102334 |
Gasket door | Na dotaz | Zadat poptávku | |
| B06 1 WHR45556 |
C00389928
480121101213 |
Screw,selftap | Na dotaz | Zadat poptávku | |
| C00 1 WHR45556 |
C00391506
480121104385 |
Tube,heating GR 230V/2300W | Na dotaz | Zadat poptávku | |
| C00 2 WHR45556 |
C00391507
480121104386 |
Tube,heating HL 230V/2000W | Na dotaz | Zadat poptávku | |
| C00 3 WHR45556 |
C00391508
480121104387 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| C00 4 WHR45556 |
C00390661
480121102417 |
Lamp Halogen 230V 25W | Na dotaz | Zadat poptávku | |
| C00 5 WHR45556 |
C00403731
481245038015 |
Lamp screen BO-Lampe | Na dotaz | Zadat poptávku | |
| C00 6 WHR45556 |
C00391509
480121104388 |
Filter | Na dotaz | Zadat poptávku | |
| C00 7 WHR45556 |
C00391510
480121104389 |
Filter Patrone D 32x12mm, 3gr | Na dotaz | Zadat poptávku | |
| C00 8 WHR45556 |
C00391511
480121104391 |
Holder grid | Na dotaz | Zadat poptávku | |
| C01 0 WHR45556 |
C00391512
480121104392 |
Oven | Na dotaz | Zadat poptávku | |
| C01 1 WHR45556 |
C00391513
480121104393 |
Rear panel 35L. | Na dotaz | Zadat poptávku | |
| C01 2 WHR45556 |
C00391514
480121104394 |
Gasket door 35L. | Na dotaz | Zadat poptávku | |
| C01 5 WHR45556 |
C00391515
480121104395 |
Fan wheel | Na dotaz | Zadat poptávku | |
| C01 6 WHR45556 |
C00492062
481250518376 |
Nut anti-clockwise | Na dotaz | Zadat poptávku | |
| C01 7 WHR45556 |
C00390409
480121101869 |
Shield | Na dotaz | Zadat poptávku | |
| C01 8 WHR45556 |
C00390408
480121101868 |
Shield | Na dotaz | Zadat poptávku | |
| C03 1 WHR45556 |
C00493112
481232058153 |
Cable flat cpl. 20-way | Na dotaz | Zadat poptávku | |
| C03 1 WHR45556 |
C00391516
480121104396 |
Control board | Na dotaz | Zadat poptávku | |
| C03 1 WHR45556 |
C00391517
480121104397 |
Cable harness | Na dotaz | Zadat poptávku | |
| C03 1 WHR45556 |
C00391518
480121104398 |
Cable harness | Na dotaz | Zadat poptávku | |
| C03 1 WHR45556 |
C00391519
480121104399 |
Cable harness | Na dotaz | Zadat poptávku | |
| C03 1 WHR45556 |
C00391520
480121104401 |
Cable harness | Na dotaz | Zadat poptávku | |
| C03 1 WHR45556 |
C00391521
480121104402 |
Connection | Na dotaz | Zadat poptávku | |
| C03 1 WHR45556 |
C00391522
480121104403 |
Connection | Na dotaz | Zadat poptávku | |
| C03 2 WHR45556 |
C00390887
480121102707 |
Motor RL CPL, HOTAIR 230V | Na dotaz | Zadat poptávku | |
| C03 3 WHR45556 |
C00390674
480121102443 |
Motor fan 230V | Na dotaz | Zadat poptávku | |
| C03 4 WHR45556 |
C00499714
480121104404 |
Termostat 100C | 931 Kč
€ 38.30 |
||
| C03 5 WHR45556 |
C00390678
480121102449 |
Feeler Pt1000 | Na dotaz | Zadat poptávku | |
| C03 6 WHR45556 |
C00391523
480121104405 |
Resistor 1500 Ohm | Na dotaz | Zadat poptávku | |
| C03 7 WHR45556 |
C00388763
480112100784 |
Strain relief | Na dotaz | Zadat poptávku | |
| C03 8 WHR45556 |
C00390992
480121102941 |
Cable mains | Na dotaz | Zadat poptávku | |
| C04 1 WHR45556 |
C00391524
480121104406 |
Conveyor air | Na dotaz | Zadat poptávku | |
| C05 1 WHR45556 |
C00390705
480121102479 |
Conveyor trim 55-600/762 | Na dotaz | Zadat poptávku | |
| C05 1 WHR45556 |
C00390706
480121102481 |
Conveyor trim 60-600/762 | Na dotaz | Zadat poptávku | |
| C05 2 WHR45556 |
C00390590
480121102316 |
Housing,l eft side | Na dotaz | Zadat poptávku | |
| C05 3 WHR45556 |
C00390591
480121102317 |
Housing, right side, not shown | Na dotaz | Zadat poptávku | |
| C05 4 WHR45556 |
C00390592
480121102318 |
Handle | Na dotaz | Zadat poptávku | |
| C05 9 WHR45556 |
C00390588
480121102314 |
Housing | Na dotaz | Zadat poptávku | |
| C07 1 WHR45556 |
C00621374
481240118567 |
Cable clamp | Na dotaz | Zadat poptávku | |
| C07 2 WHR45556 |
C00390596
480121102323 |
Holder | Na dotaz | Zadat poptávku | |
| D00 1 WHR45556 |
C00390712
480121102487 |
Grating | Na dotaz | Zadat poptávku | |
| D00 2 WHR45556 |
C00390713
480121102488 |
Baking tray | Na dotaz | Zadat poptávku | |
| D01 0 WHR45556 |
C00391525
480121104407 |
Sliding base | Na dotaz | Zadat poptávku | |
| E00 1 WHR45556 |
C00390739
480121102517 |
Frame adapter | Na dotaz | Zadat poptávku | |
| E00 2 WHR45556 |
C00390601
480121102328 |
Angle iron set | Na dotaz | Zadat poptávku | |
| 999 WHR45558 |
C00634826 | Mounting Instruction WHP | Na dotaz | Zadat poptávku | |
| 999 WHR45558 |
C00634828 | Installation Instruction WHP | Na dotaz | Zadat poptávku | |
