WHIRLPOOL WA 5065 RE WASHING MACHINE BK
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | WA 5065 RE WASHING MACHINE BK |
| Kód 12NC/I.C. kód: | 856820816010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 856820816011 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

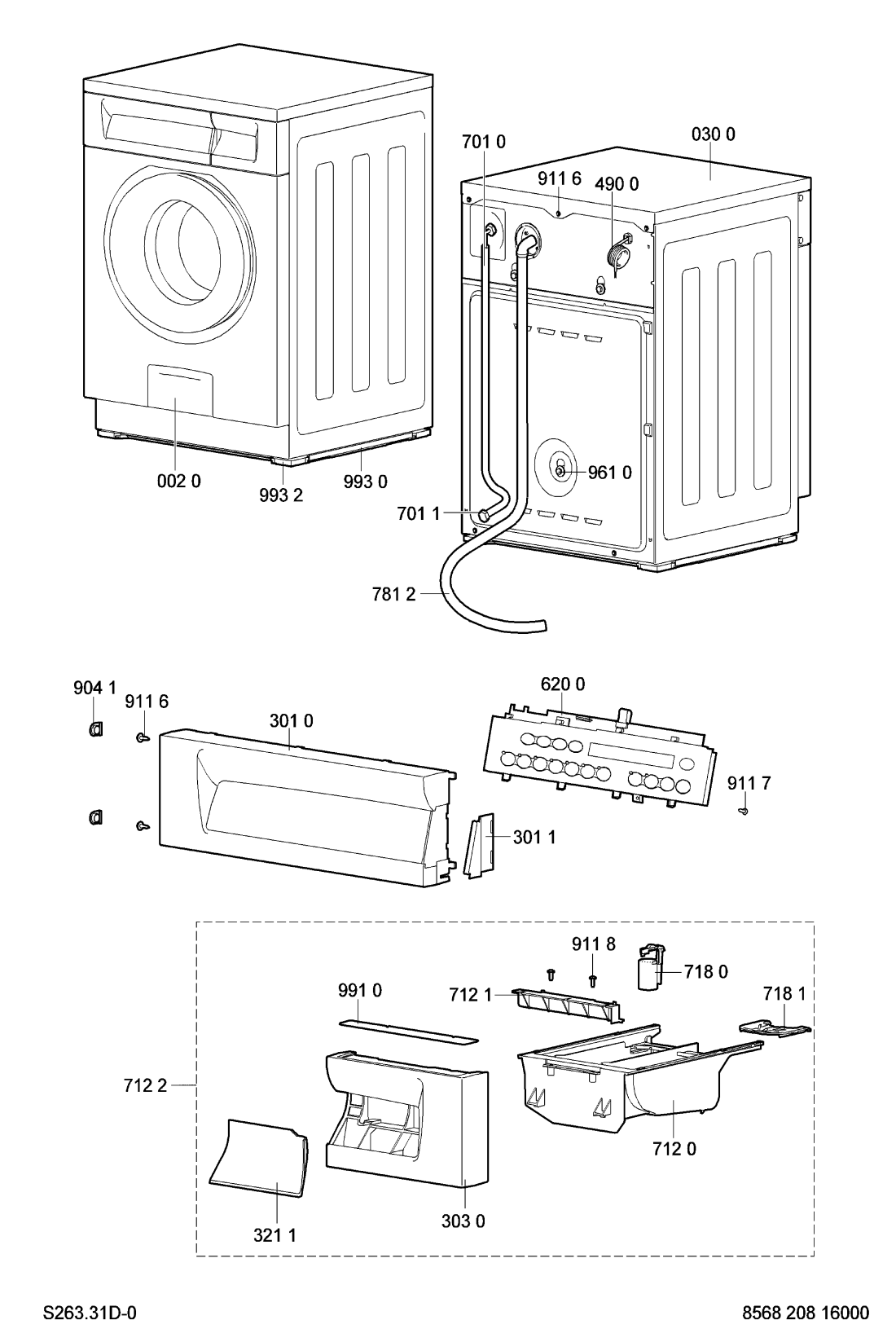

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR51024 |
C00403122
481244011354 |
Flap zu Pumpe | Na dotaz | Zadat poptávku | |
| 0021 WHR51024 |
C00403125
481244011357 |
Tank | Na dotaz | Zadat poptávku | |
| 0030 WHR51024 |
C00404991
481246448199 |
Crossbar Rueckwand oben | Na dotaz | Zadat poptávku | |
| 0040 WHR51024 |
C00500831
481244010516 |
Bottom | Na dotaz | Zadat poptávku | |
| 0110 WHR51024 |
C00492832
481990800255 |
Foot | Na dotaz | Zadat poptávku | |
| 0210 WHR51024 |
C00403123
481244011355 |
Front Unimatic-UF white 04 | Na dotaz | Zadat poptávku | |
| 0220 WHR51024 |
C00500832
481244010523 |
Side panel right/left | Na dotaz | Zadat poptávku | |
| 0240 WHR51024 |
C00403124
481244011356 |
Panel rear | Na dotaz | Zadat poptávku | |
| 0250 WHR51024 |
C00491562
481240478467 |
Holder control panel | Na dotaz | Zadat poptávku | |
| 0300 WHR51024 |
C00403121
481244011353 |
Table top cpl. white 2004 | Na dotaz | Zadat poptávku | |
| 0341 WHR51024 |
C00621375
481240418289 |
Plate upper | Na dotaz | Zadat poptávku | |
| 0400 WHR51024 |
C00488949
481241719032 |
Hinge cpl | Na dotaz | Zadat poptávku | |
| 0401 WHR51024 |
C00621398
481241719029 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0402 WHR51024 |
C00488948
481241719031 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0610 WHR51024 |
C00593670
481246688599 |
Counter weight front | Na dotaz | Zadat poptávku | |
| 0810 WHR51024 |
C00486129
481246648087 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 0860 WHR51024 |
C00491480
481240118559 |
Holder shockabsor.rear.L | Na dotaz | Zadat poptávku | |
| 0860 WHR51024 |
C00388309
480111100899 |
Washer 8/16x2 | Na dotaz | Zadat poptávku | |
| 0861 WHR51024 |
C00593503
481240118561 |
Holder Shockabsor.front L | Na dotaz | Zadat poptávku | |
| 0862 WHR51024 |
C00594171
481240118562 |
Holder Shockabsor.front R | Na dotaz | Zadat poptávku | |
| 0863 WHR51024 |
C00594172
481240118563 |
Holder Shockabsorb.rear R | Na dotaz | Zadat poptávku | |
| 1000 WHR51024 |
C00388306
480111100852 |
Door cpl. left | Na dotaz | Zadat poptávku | |
| 1000 WHR51024 |
C00388307
480111100853 |
Door cpl. right | Na dotaz | Zadat poptávku | |
| 1310 WHR51024 |
C00500815
481241728075 |
Lock hook | Na dotaz | Zadat poptávku | |
| 1311 WHR51024 |
C00491987
481249218022 |
Ejector | Na dotaz | Zadat poptávku | |
| 1400 WHR51024 |
C00485357
481245068281 |
Door glass | Na dotaz | Zadat poptávku | |
| 1430 WHR51024 |
C00485044
481244010512 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| 1440 WHR51024 |
C00485045
481244010513 |
Frame | Na dotaz | Zadat poptávku | |
| 1441 WHR51024 |
C00491382
481229108123 |
Adhesive tape Rahmen,Schaugl. | Na dotaz | Zadat poptávku | |
| 1442 WHR51024 |
C00500830
481244010514 |
Cover inner | Na dotaz | Zadat poptávku | |
| 1443 WHR51024 |
C00621371
481240118558 |
Bracket | Na dotaz | Zadat poptávku | |
| 1910 WHR51024 |
C00486148
481246668696 |
Door bellow | Na dotaz | Zadat poptávku | |
| 1911 WHR51024 |
C00621460
481249218026 |
Strap | Na dotaz | Zadat poptávku | |
| 1912 WHR51024 |
C00492006
481249298023 |
Strap tub | Na dotaz | Zadat poptávku | |
| 2000 WHR51024 |
C00621406
481241818364 |
Tub | Na dotaz | Zadat poptávku | |
| 2010 WHR51024 |
C00500897
481246448155 |
Bottom Tub | Na dotaz | Zadat poptávku | |
| 2100 WHR51024 |
C00486294
481252018285 |
Crosspiece vormontiert | Na dotaz | Zadat poptávku | |
| 2200 WHR51024 |
C00500820
481241818363 |
Drum cpl. | Na dotaz | Zadat poptávku | |
| 2710 WHR51024 |
C00482702
481235818178 |
Belt 1359 J6 | Na dotaz | Zadat poptávku | |
| 2720 WHR51024 |
C00621482
481252858033 |
Pulley | Na dotaz | Zadat poptávku | |
| 2721 WHR51024 |
C00492101
481253228932 |
Bushing pulley,drive | Na dotaz | Zadat poptávku | |
| 2722 WHR51024 |
C00493816
481253218066 |
Washer pulley, drive | Na dotaz | Zadat poptávku | |
| 2900 WHR51024 |
C00486321
481253058143 |
Gasket tub bottom | Na dotaz | Zadat poptávku | |
| 3010 WHR51024 |
C00403887
481245215344 |
Control panel WA-UF white 04 | Na dotaz | Zadat poptávku | |
| 3011 WHR51024 |
C00404710
481246098097 |
Cover wall to WA-panel white | Na dotaz | Zadat poptávku | |
| 3030 WHR51024 |
C00405330
481249818664 |
Handle drawer white 04 | Na dotaz | Zadat poptávku | |
| 3211 WHR51024 |
C00403888
481245215345 |
Insert panel f. handle drawer | Na dotaz | Zadat poptávku | |
| 3213 WHR51024 |
C00405097
481246688858 |
Gasket Front-Panel | Na dotaz | Zadat poptávku | |
| 3240 WHR51024 |
C00401907
481240438759 |
Cover | Na dotaz | Zadat poptávku | |
| 4000 WHR51024 |
C00388304
480111100827 |
Cable harness motor | Na dotaz | Zadat poptávku | |
| 4000 WHR51024 |
C00488679
481236158339 |
MOTOR | Na dotaz | Zadat poptávku | |
| 4002 WHR51024 |
C00495924
481240418288 |
Holder Motor | Na dotaz | Zadat poptávku | |
| 4300 WHR51024 |
C00499780
481236018512 |
Pump,draining MFH-Askoll | Na dotaz | Zadat poptávku | |
| 4510 WHR51024 |
C00488495
481225928808 |
Heating element typ SHD | Na dotaz | Zadat poptávku | |
| 4511 WHR51024 |
C00400790
481225928888 |
Heating element 230V,2300W with hole NTC | Na dotaz | Zadat poptávku | |
| 4840 WHR51024 |
C00493187
481232148023 |
Cable | Na dotaz | Zadat poptávku | |
| 4900 WHR51024 |
C00401302
481232118272 |
Cable mains | Na dotaz | Zadat poptávku | |
| 5210 WHR51024 |
C00482315
481221478697 |
Control unit Motor | Na dotaz | Zadat poptávku | |
| 5211 WHR51024 |
C00482316
481221478698 |
Power unit | Na dotaz | Zadat poptávku | |
| 5211 WHR51024 |
C00493212
481232178227 |
Cable harness | Na dotaz | Zadat poptávku | |
| 5720 WHR51024 |
C00492960
481228128422 |
Valve magnet | Na dotaz | Zadat poptávku | |
| 5811 WHR51024 |
C00490994
481227118019 |
Sensor Water | Na dotaz | Zadat poptávku | |
| 5812 WHR51024 |
C00486114
481246638053 |
Gasket Sensor | Na dotaz | Zadat poptávku | |
| 6200 WHR51024 |
C00400486
481221479536 |
Control unit WA 5056 | Na dotaz | Zadat poptávku | |
| 6220 WHR51024 |
C00491096
481227618378 |
Push button Switch,sensor | Na dotaz | Zadat poptávku | |
| 6300 WHR51024 |
C00491172
481228058039 |
Door lock | Na dotaz | Zadat poptávku | |
| 6321 WHR51024 |
C00621422
481244098288 |
Lever | Na dotaz | Zadat poptávku | |
| 6330 WHR51024 |
C00493458
481241078121 |
Button press doorlock | Na dotaz | Zadat poptávku | |
| 6331 WHR51024 |
C00484673
481229088085 |
Guide | Na dotaz | Zadat poptávku | |
| 6910 WHR51024 |
C00401007
481228219942 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 6910 WHR51024 |
C00388308
480111100854 |
Connector Lumberg Rast 2.5, n. gez. | Na dotaz | Zadat poptávku | |
| 7010 WHR51024 |
C00493828
481254828006 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 7011 WHR51024 |
C00405096
481246688857 |
Gasket Hose, inlet | Na dotaz | Zadat poptávku | |
| 7030 WHR51024 |
C00493688
481253018051 |
Hose window rinse | Na dotaz | Zadat poptávku | |
| 7070 WHR51024 |
C00484628
481222318434 |
Regulator white | Na dotaz | Zadat poptávku | |
| 7071 WHR51024 |
C00484629
481222318435 |
Regulator grau zu ventil | Na dotaz | Zadat poptávku | |
| 7072 WHR51024 |
C00493616
481248418001 |
Sieve regulator | Na dotaz | Zadat poptávku | |
| 7080 WHR51024 |
C00405676
481253049021 |
Bend Zulauf | Na dotaz | Zadat poptávku | |
| 7081 WHR51024 |
C00405562
481252648219 |
O-Ring 38.0x5.0 NBR 50Shore | Na dotaz | Zadat poptávku | |
| 7110 WHR51024 |
C00403076
481241868358 |
Dispenser cpl. white 04 | Na dotaz | Zadat poptávku | |
| 7111 WHR51024 |
C00388527
480111104597 |
Lid Dispenser | Na dotaz | Zadat poptávku | |
| 7120 WHR51024 |
C00403075
481241868357 |
Drawer | Na dotaz | Zadat poptávku | |
| 7121 WHR51024 |
C00404748
481246228771 |
Cover f. drawer white 04 | Na dotaz | Zadat poptávku | |
| 7122 WHR51024 |
C00403079
481241868366 |
Drawer + handle, cpl. | Na dotaz | Zadat poptávku | |
| 7180 WHR51024 |
C00405561
481252648218 |
Siphon white 04 | Na dotaz | Zadat poptávku | |
| 7181 WHR51024 |
C00489124
481241888987 |
Flap | Na dotaz | Zadat poptávku | |
| 7530 WHR51024 |
C00482905
481241868253 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 7540 WHR51024 |
C00493730
481253029136 |
Drainhose cpl | Na dotaz | Zadat poptávku | |
| 7541 WHR51024 |
C00492835
481990800365 |
Clamp hose | Na dotaz | Zadat poptávku | |
| 7600 WHR51024 |
C00405239
481248058366 |
Pump filter Labyrinth | Na dotaz | Zadat poptávku | |
| 7810 WHR51024 |
C00495525
481253029253 |
Hose draining innen | Na dotaz | Zadat poptávku | |
| 7811 WHR51024 |
C00621487
481253048362 |
Sleeve hose | Na dotaz | Zadat poptávku | |
| 7812 WHR51024 |
C00494981
481990800354 |
Hose draining | Na dotaz | Zadat poptávku | |
| 7812 WHR51024 |
C00405596
481253029373 |
Hose draining | Na dotaz | Zadat poptávku | |
| 7830 WHR51024 |
C00416297
482000018963 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 7870 WHR51024 |
C00493690
481253018063 |
Steam hose | Na dotaz | Zadat poptávku | |
| 9000 WHR51024 |
C00491485
481240148583 |
Holder f.drainhose | Na dotaz | Zadat poptávku | |
| 9002 WHR51024 |
C00401036
481229018032 |
Strain relief | Na dotaz | Zadat poptávku | |
| 9005 WHR51024 |
C00621372
481240118565 |
Clip cable | Na dotaz | Zadat poptávku | |
| 9006 WHR51024 |
C00492836
481990800367 |
Clip | Na dotaz | Zadat poptávku | |
| 9008 WHR51024 |
C00594178
481240488036 |
Cover cable | Na dotaz | Zadat poptávku | |
| 9013 WHR51024 |
C00491499
481240438641 |
Holder PCB | Na dotaz | Zadat poptávku | |
| 9014 WHR51024 |
C00492833
481990800317 |
Holder | Na dotaz | Zadat poptávku | |
| 9016 WHR51024 |
C00499783
481240438642 |
Holder | Na dotaz | Zadat poptávku | |
| 9017 WHR51024 |
C00621388
481240478469 |
Holder | Na dotaz | Zadat poptávku | |
| 9031 WHR51024 |
C00593498
481231618021 |
Cableclamp. | Na dotaz | Zadat poptávku | |
| 9040 WHR51024 |
C00491972
481246818105 |
Buffer piece motorcover | Na dotaz | Zadat poptávku | |
| 9041 WHR51024 |
C00500905
481246818104 |
Spacebar | Na dotaz | Zadat poptávku | |
| 9042 WHR51024 |
C00404749
481246228772 |
Cover white 04 | Na dotaz | Zadat poptávku | |
| 9044 WHR51024 |
C00491973
481246818252 |
Spacebar | Na dotaz | Zadat poptávku | |
| 9045 WHR51024 |
C00491520
481240448785 |
Holder | Na dotaz | Zadat poptávku | |
| 9100 WHR51024 |
C00500915
481250218547 |
Screw M8x30 - st EZN | Na dotaz | Zadat poptávku | |
| 9101 WHR51024 |
C00492037
481250218546 |
Screw M10x60 | Na dotaz | Zadat poptávku | |
| 9102 WHR51024 |
C00492034
481250218542 |
Screw M8x25 St8.8 EZN | Na dotaz | Zadat poptávku | |
| 9103 WHR51024 |
C00492033
481250218541 |
Screw M8x25- st 18/10 | Na dotaz | Zadat poptávku | |
| 9106 WHR51024 |
C00492036
481250218545 |
Screw M5x12 - DIN7500 | Na dotaz | Zadat poptávku | |
| 9107 WHR51024 |
C00492837
481990800378 |
Screw M8x25 | Na dotaz | Zadat poptávku | |
| 9108 WHR51024 |
C00492038
481250218548 |
Screw M6x30 | Na dotaz | Zadat poptávku | |
| 9110 WHR51024 |
C00492035
481250218543 |
Screw M8x12-St8.8 EZN | Na dotaz | Zadat poptávku | |
| 9111 WHR51024 |
C00492018
481250118006 |
Fastener | Na dotaz | Zadat poptávku | |
| 9113 WHR51024 |
C00492032
481250218539 |
Screw M5x20-DIN 7500 | Na dotaz | Zadat poptávku | |
| 9114 WHR51024 |
C00492031
481250218538 |
Screw M5x20-Torx | Na dotaz | Zadat poptávku | |
| 9116 WHR51024 |
C00405400
481250218707 |
Screw Torx WN 2147 M4x14 | Na dotaz | Zadat poptávku | |
| 9117 WHR51024 |
C00405401
481250218708 |
Screw Torx St EZN 3.0x9 | Na dotaz | Zadat poptávku | |
| 9118 WHR51024 |
C00345195
481250218709 |
Screw Torx 18/10 4.0x10 WN 1451 | Na dotaz | Zadat poptávku | |
| 9119 WHR51024 |
C00345209
481250218711 |
Screw Furch St EZN Torx M 5x16 | Na dotaz | Zadat poptávku | |
| 9120 WHR51024 |
C00405402
481250218712 |
Screw Torx 18/10 4.0x14 | Na dotaz | Zadat poptávku | |
| 9121 WHR51024 |
C00405403
481250218713 |
Screw Torx 18/10 4.0x25 | Na dotaz | Zadat poptávku | |
| 9122 WHR51024 |
C00405404
481250218714 |
Screw 16rd St EZN 4.0x16 | Na dotaz | Zadat poptávku | |
| 9211 WHR51024 |
C00492073
481252648111 |
Ring | Na dotaz | Zadat poptávku | |
| 9410 WHR51024 |
C00500924
481252028131 |
Bearing,ball 6305 -2RS | Na dotaz | Zadat poptávku | |
| 9411 WHR51024 |
C00484075
481252028132 |
Bearing,ball 6306 -2RS | Na dotaz | Zadat poptávku | |
| 9500 WHR51024 |
C00388394
480111103301 |
O-Ring | Na dotaz | Zadat poptávku | |
| 9530 WHR51024 |
C00499857
481253068021 |
Gasket | Na dotaz | Zadat poptávku | |
| 9610 WHR51024 |
C00621368
481239598015 |
Lever,security | Na dotaz | Zadat poptávku | |
| 9621 WHR51024 |
C00405055
481246638099 |
Cover | Na dotaz | Zadat poptávku | |
| 9622 WHR51024 |
C00594174
481240438638 |
Holder f.pump. | Na dotaz | Zadat poptávku | |
| 9910 WHR51024 |
C00403889
481245215377 |
Instr.for use | Na dotaz | Zadat poptávku | |
| 9930 WHR51024 |
C00401120
481231019061 |
Kit installation white 04 | Na dotaz | Zadat poptávku | |
| 9932 WHR51024 |
C00401790
481240118699 |
Tilt lock white | Na dotaz | Zadat poptávku | |
| 9933 WHR51024 |
C00621369
481239598016 |
Key | Na dotaz | Zadat poptávku | |
| 999 WHR51026 |
C00647605 | Installation Instruction WHP | Na dotaz | Zadat poptávku | |
