WHIRLPOOL ACM 562/WH/01 COOKERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACM 562/WH/01 COOKERS WP |
| Kód 12NC: | 857656210010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

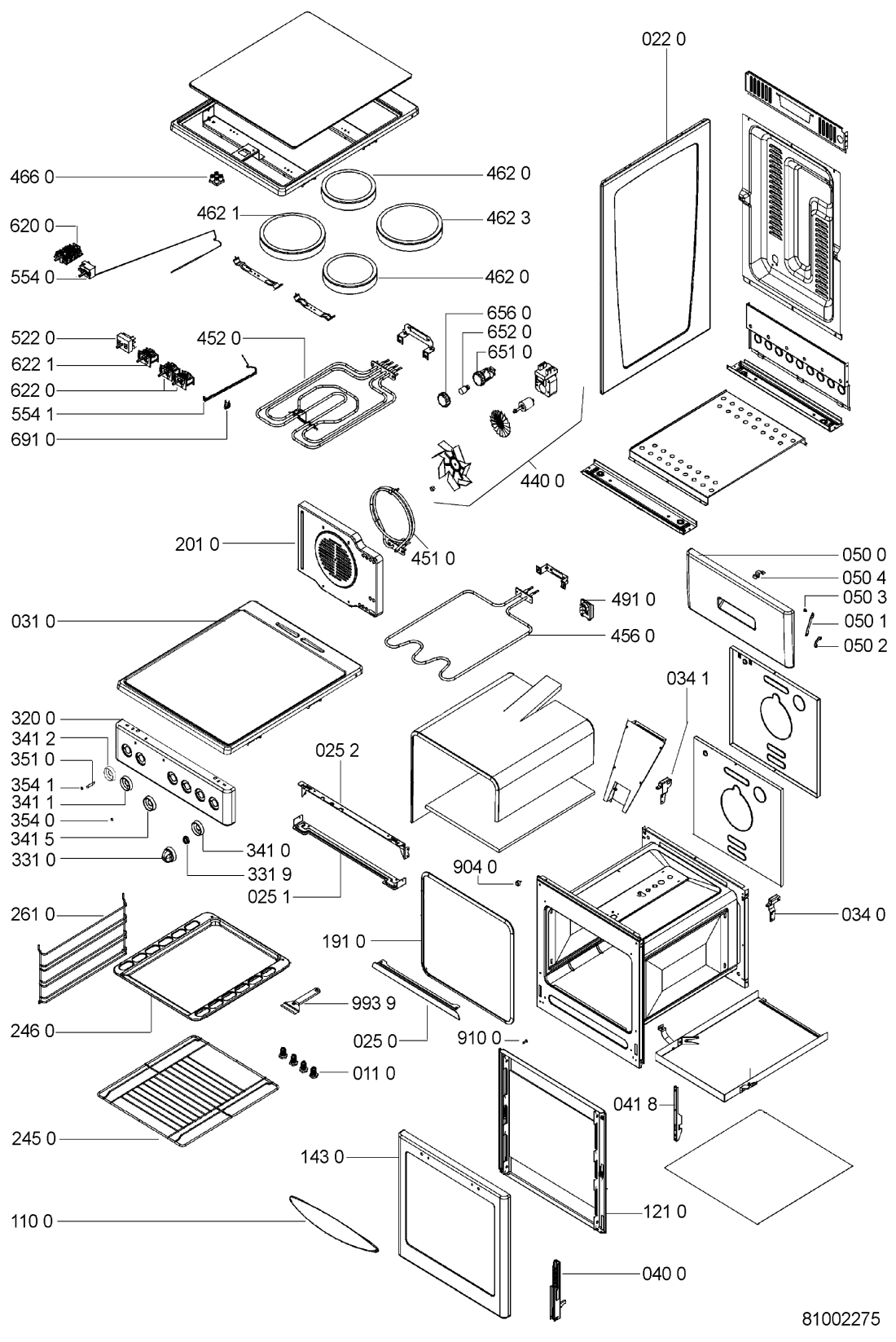

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR65297 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 022 0 WHR65297 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
| 025 0 WHR65297 |
C00484773
481240478329 |
Trim cover | Na dotaz | Zadat poptávku | |
| 025 1 WHR65297 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR65297 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
| 031 0 WHR65297 |
C00599051
481225998375 |
Hotplate cooktop. | Na dotaz | Zadat poptávku | |
| 034 0 WHR65297 |
C00553503
481241719157 |
Hinge | Na dotaz | Zadat poptávku | |
| 034 1 WHR65297 |
C00553504
481241719158 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 0 WHR65297 |
C00582243
481253548018 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
| 041 8 WHR65297 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
| 050 0 WHR65297 |
C00599242
481244269302 |
Flap. | Na dotaz | Zadat poptávku | |
| 050 1 WHR65297 |
C00493561
481244269303 |
Rod drawer upper | Na dotaz | Zadat poptávku | |
| 050 2 WHR65297 |
C00493562
481244269304 |
Rod drawer lower | Na dotaz | Zadat poptávku | |
| 050 3 WHR65297 |
C00489336
481244269305 |
Bush drawer | Na dotaz | Zadat poptávku | |
| 050 4 WHR65297 |
C00582194
481244269306 |
Spring drawer. | Na dotaz | Zadat poptávku | |
| 110 0 WHR65297 |
C00377807
481246268871 |
Handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR65297 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 143 0 WHR65297 |
C00582200
481245058777 |
Door frame upper sheet | Na dotaz | Zadat poptávku | |
| 191 0 WHR65297 |
C00377819
481246668715 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 201 0 WHR65297 |
C00599245
481244528017 |
Fan distributing cover. | Na dotaz | Zadat poptávku | |
| 245 0 WHR65297 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR65297 |
C00597185
481941838415 |
Baking tray. | Na dotaz | Zadat poptávku | |
| 261 0 WHR65297 |
C00548555
481246238123 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 320 0 WHR65297 |
C00599219
481244058251 |
Panel control. | Na dotaz | Zadat poptávku | |
| 331 0 WHR65297 |
C00380472
481241128809 |
Knob control | Na dotaz | Zadat poptávku | |
| 331 9 WHR65297 |
C00377834
481249268169 |
Spring | Na dotaz | Zadat poptávku | |
| 341 0 WHR65297 |
C00599173
481241378668 |
Collar control 1-6. | Na dotaz | Zadat poptávku | |
| 341 1 WHR65297 |
C00599176
481241378672 |
Collar thermostat. | Na dotaz | Zadat poptávku | |
| 341 2 WHR65297 |
C00599182
481241378685 |
Collar electric oven. | Na dotaz | Zadat poptávku | |
| 341 5 WHR65297 |
C00599174
481241378669 |
Collar energy regulator. | Na dotaz | Zadat poptávku | |
| 351 0 WHR65297 |
C00599045
481225518258 |
Lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR65297 |
C00488477
481225518252 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR65297 |
C00488476
481225518251 |
Lens yellow | Na dotaz | Zadat poptávku | |
| 440 0 WHR65297 |
C00598457
481236158157 |
Motor with ventilator. | Na dotaz | Zadat poptávku | |
| 451 0 WHR65297 |
C00556762
481225928856 |
English description not available.. | Na dotaz | Zadat poptávku | |
| 452 0 WHR65297 |
C00318916
481225928817 |
Heating element upper+grill 750/1850 W | Na dotaz | Zadat poptávku | |
| 456 0 WHR65297 |
C00488505
481225928857 |
Heating element lower 1100W 230V | Na dotaz | Zadat poptávku | |
| 462 0 WHR65297 |
C00572999
481925998628 |
Heating element radient D145 1200W. | Na dotaz | Zadat poptávku | |
| 462 1 WHR65297 |
C00597115
481925998629 |
Heating element radiant D180/120 1700W | Na dotaz | Zadat poptávku | |
| 462 3 WHR65297 |
C00221422
481225998377 |
HARVEST 2.10132G/37G | Na dotaz | Zadat poptávku | |
| 466 0 WHR65297 |
C00597104
481913448528 |
Indicator for rest.heat. | Na dotaz | Zadat poptávku | |
| 491 0 WHR65297 |
C00377601
481240118573 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 522 0 WHR65297 |
C00377510
481227328214 |
Energy Regulat. | Na dotaz | Zadat poptávku | |
| 554 0 WHR65297 |
C00377501
481227128493 |
Termostat | 2 634 Kč
€ 115.80 |
||
| 554 1 WHR65297 |
C00491347
481228238097 |
termostat | 451 Kč
€ 19.80 |
||
| 620 0 WHR65297 |
C00377523
481227618416 |
Switch oven rotary | Na dotaz | Zadat poptávku | |
| 622 0 WHR65297 |
C00377522
481227618384 |
Switch rotary DUO | Na dotaz | Zadat poptávku | |
| 622 1 WHR65297 |
C00599065
481227618386 |
Switch rotary. | Na dotaz | Zadat poptávku | |
| 651 0 WHR65297 |
C00582091
481225518245 |
Lamp. | Na dotaz | Zadat poptávku | |
| 652 0 WHR65297 |
C00377486
481225518257 |
Lamp 15W 240V AC | Na dotaz | Zadat poptávku | |
| 656 0 WHR65297 |
C00487005
481213428072 |
Glass cover | Na dotaz | Zadat poptávku | |
| 691 0 WHR65297 |
C00599055
481227128499 |
Sensor limiter assy.. | Na dotaz | Zadat poptávku | |
| 904 0 WHR65297 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
| 910 0 WHR65297 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku | |
| 993 9 WHR65297 |
C00598461
481239598012 |
Scraper. | Na dotaz | Zadat poptávku | |
