WHIRLPOOL ACM 820 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACM 820 WH |
| Kód 12NC/I.C. kód: | 857682035000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

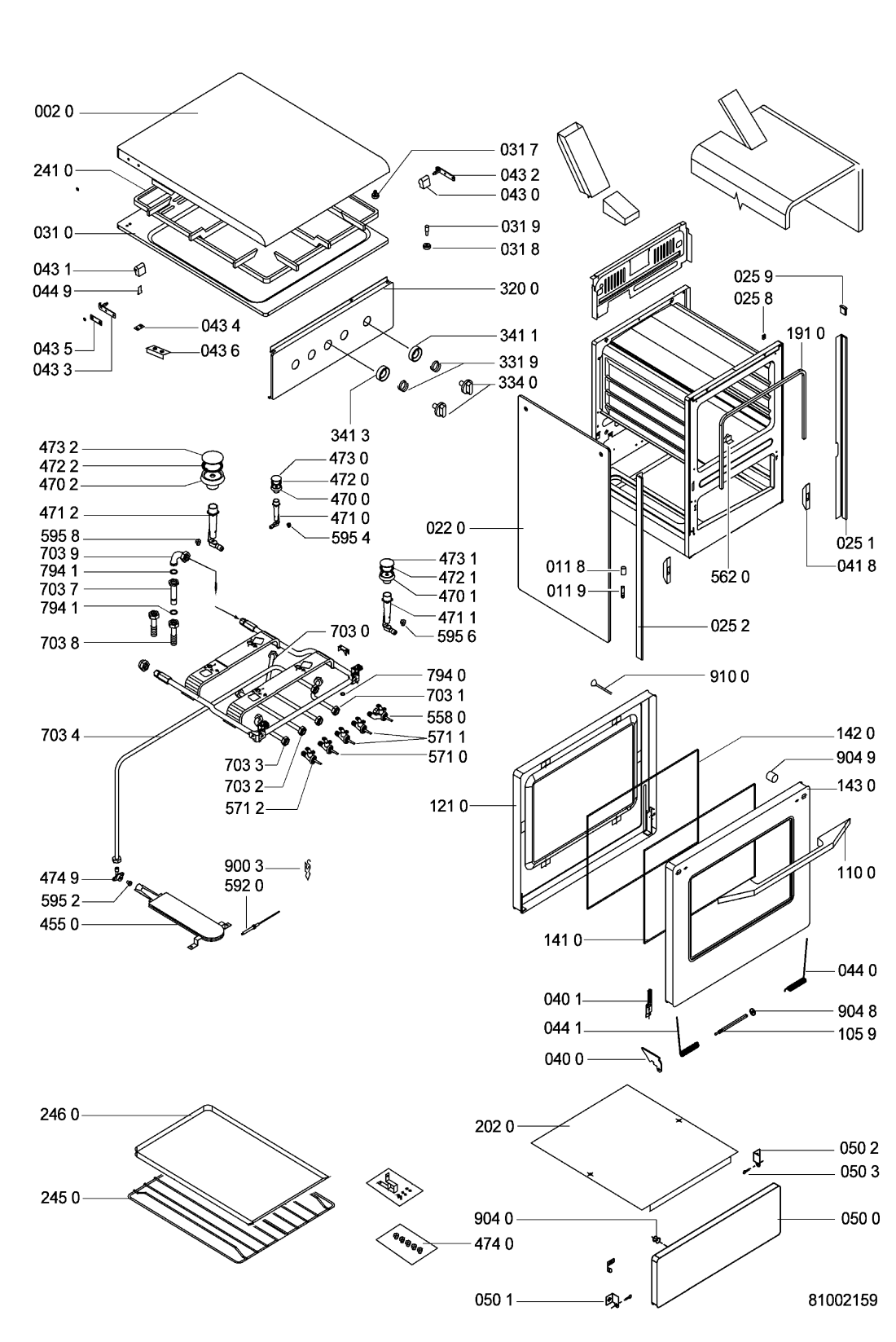

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR103422 |
C00485120
481244058171 |
Cover | Na dotaz | Zadat poptávku | |
| 011 8 WHR103422 |
C00582426
481953268684 |
Bushing. | Na dotaz | Zadat poptávku | |
| 011 9 WHR103422 |
C00582403
481950218419 |
Screw. | Na dotaz | Zadat poptávku | |
| 022 0 WHR103422 |
C00582335
481944059562 |
Side panel. | Na dotaz | Zadat poptávku | |
| 025 1 WHR103422 |
C00582374
481946078105 |
Trim side right. | Na dotaz | Zadat poptávku | |
| 025 2 WHR103422 |
C00582373
481946078104 |
Trim side left. | Na dotaz | Zadat poptávku | |
| 025 8 WHR103422 |
C00598909
481950518379 |
Nut. | Na dotaz | Zadat poptávku | |
| 025 9 WHR103422 |
C00582390
481946698774 |
Cap. | Na dotaz | Zadat poptávku | |
| 031 0 WHR103422 |
C00746802
481944059563 |
Hob | Na dotaz | Zadat poptávku | |
| 031 7 WHR103422 |
C00582241
481253228917 |
Buffer. | Na dotaz | Zadat poptávku | |
| 031 8 WHR103422 |
C00598930
481953228238 |
Washer | Na dotaz | Zadat poptávku | |
| 031 9 WHR103422 |
C00492572
481950218373 |
Screw | Na dotaz | Zadat poptávku | |
| 040 0 WHR103422 |
C00532143
481953548003 |
Hook door door | Na dotaz | Zadat poptávku | |
| 040 1 WHR103422 |
C00486736
481946258134 |
Cover plate oven hinge | Na dotaz | Zadat poptávku | |
| 041 8 WHR103422 |
C00582314
481941719295 |
Hinge bearing. | Na dotaz | Zadat poptávku | |
| 043 0 WHR103422 |
C00582316
481941719297 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 043 1 WHR103422 |
C00582315
481941719296 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 043 2 WHR103422 |
C00582379
481946258133 |
Cover hinge right. | Na dotaz | Zadat poptávku | |
| 043 3 WHR103422 |
C00582378
481946258132 |
Cover hinge left. | Na dotaz | Zadat poptávku | |
| 043 4 WHR103422 |
C00582422
481953228252 |
Washer. | Na dotaz | Zadat poptávku | |
| 043 5 WHR103422 |
C00582423
481953228253 |
Washer. | Na dotaz | Zadat poptávku | |
| 043 6 WHR103422 |
C00484379
481940479051 |
Bracket | Na dotaz | Zadat poptávku | |
| 044 0 WHR103422 |
C00492530
481949248158 |
spring oven door right | Na dotaz | Zadat poptávku | |
| 044 1 WHR103422 |
C00492529
481949248157 |
Spring oven door left | Na dotaz | Zadat poptávku | |
| 044 9 WHR103422 |
C00582398
481949268667 |
Spring hinge lid. | Na dotaz | Zadat poptávku | |
| 050 0 WHR103422 |
C00582341
481944059937 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 050 1 WHR103422 |
C00490574
481941719298 |
Hook left | Na dotaz | Zadat poptávku | |
| 050 2 WHR103422 |
C00582317
481941719299 |
Hook right. | Na dotaz | Zadat poptávku | |
| 050 3 WHR103422 |
C00492716
481953598516 |
Pin | Na dotaz | Zadat poptávku | |
| 105 9 WHR103422 |
C00492713
481953598471 |
Pin | Na dotaz | Zadat poptávku | |
| 110 0 WHR103422 |
C00373652
481231068002 |
Madlo dveří trouby | 1 945 Kč
€ 79.90 |
||
| 121 0 WHR103422 |
C00582351
481944239435 |
Door frame inner. | Na dotaz | Zadat poptávku | |
| 141 0 WHR103422 |
C00598545
481245068263 |
Oven glass. | Na dotaz | Zadat poptávku | |
| 142 0 WHR103422 |
C00582352
481945058434 |
Glass inner. | Na dotaz | Zadat poptávku | |
| 143 0 WHR103422 |
C00582353
481945058436 |
Frame door glas. | Na dotaz | Zadat poptávku | |
| 191 0 WHR103422 |
C00621586
481946669942 |
Gasket oven. | Na dotaz | Zadat poptávku | |
| 202 0 WHR103422 |
C00582349
481944238601 |
Bottom. | Na dotaz | Zadat poptávku | |
| 241 0 WHR103422 |
C00598891
481945858425 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR103422 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR103422 |
C00758691
481241838083 |
Baking tray | Na dotaz | Zadat poptávku | |
| 320 0 WHR103422 |
C00758690
481245319602 |
Panel control | Na dotaz | Zadat poptávku | |
| 331 9 WHR103422 |
C00598902
481949268829 |
Spring. | Na dotaz | Zadat poptávku | |
| 334 0 WHR103422 |
C00582304
481941129417 |
Knob. | Na dotaz | Zadat poptávku | |
| 341 1 WHR103422 |
C00758334
481941379206 |
Indication disc | Na dotaz | Zadat poptávku | |
| 341 3 WHR103422 |
C00758692
481241378684 |
Indication disc hob burner | Na dotaz | Zadat poptávku | |
| 455 0 WHR103422 |
C00621560
481936069471 |
Burner oven | Na dotaz | Zadat poptávku | |
| 470 0 WHR103422 |
C00598852
481936069385 |
Burner body small. | Na dotaz | Zadat poptávku | |
| 470 1 WHR103422 |
C00598853
481936069386 |
Burner body medium. | Na dotaz | Zadat poptávku | |
| 470 2 WHR103422 |
C00598854
481936069387 |
Burner body large. | Na dotaz | Zadat poptávku | |
| 471 0 WHR103422 |
C00598860
481936078332 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 471 1 WHR103422 |
C00492271
481936078333 |
INJECTOR HOLDER | Na dotaz | Zadat poptávku | |
| 471 2 WHR103422 |
C00598861
481936078334 |
INJECTOR HOLDER. | Na dotaz | Zadat poptávku | |
| 472 0 WHR103422 |
C00557418
481936069388 |
Spreader,burner small.. | Na dotaz | Zadat poptávku | |
| 472 1 WHR103422 |
C00598855
481936069389 |
Spreader,burner medium. | Na dotaz | Zadat poptávku | |
| 472 2 WHR103422 |
C00598856
481936069391 |
Spreader,burner large | Na dotaz | Zadat poptávku | |
| 473 0 WHR103422 |
C00373392
481936069392 |
Burner cap small | Na dotaz | Zadat poptávku | |
| 473 1 WHR103422 |
C00610513
481936069393 |
Burner cap medium. | Na dotaz | Zadat poptávku | |
| 473 2 WHR103422 |
C00622678
481936069394 |
Burner cap large | Na dotaz | Zadat poptávku | |
| 474 0 WHR103422 |
C00758693
481231038639 |
Nozzle set G 20 | Na dotaz | Zadat poptávku | |
| 474 9 WHR103422 |
C00582273
481936061377 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 558 0 WHR103422 |
C00746820
481927128964 |
Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR103422 |
C00486882
481953041097 |
Fuse | Na dotaz | Zadat poptávku | |
| 571 0 WHR103422 |
C00598851
481936058752 |
Tap R. | Na dotaz | Zadat poptávku | |
| 571 1 WHR103422 |
C00758694
481236058294 |
Tap gas medium/normal | Na dotaz | Zadat poptávku | |
| 571 2 WHR103422 |
C00527385
481236058293 |
Tap gas small | Na dotaz | Zadat poptávku | |
| 592 0 WHR103422 |
C00379121
481913838094 |
Thermo couple oven | Na dotaz | Zadat poptávku | |
| 595 2 WHR103422 |
C00758695
481236068434 |
Nozzle oven burner | Na dotaz | Zadat poptávku | |
| 595 4 WHR103422 |
C00758696
481236068433 |
Nozzle small G 20 | Na dotaz | Zadat poptávku | |
| 595 6 WHR103422 |
C00747146
481236068209 |
Nozzle,small G20/G25 | Na dotaz | Zadat poptávku | |
| 595 8 WHR103422 |
C00745200
481236068203 |
Nozzle small | Na dotaz | Zadat poptávku | |
| 703 0 WHR103422 |
C00598919
481953041101 |
Gas pipe rear right. | Na dotaz | Zadat poptávku | |
| 703 1 WHR103422 |
C00494710
481953041102 |
Gas pipe front right | Na dotaz | Zadat poptávku | |
| 703 2 WHR103422 |
C00598917
481953041099 |
Gas pipe rear left. | Na dotaz | Zadat poptávku | |
| 703 3 WHR103422 |
C00598914
481953041098 |
Gas pipe front left. | Na dotaz | Zadat poptávku | |
| 703 4 WHR103422 |
C00598922
481953048554 |
Gas pipe burner oven. | Na dotaz | Zadat poptávku | |
| 703 7 WHR103422 |
C00746823
481952648421 |
Extension piece | Na dotaz | Zadat poptávku | |
| 703 8 WHR103422 |
C00557591
481952648419 |
Holder,hose for bottle.. | Na dotaz | Zadat poptávku | |
| 703 9 WHR103422 |
C00494673
481952648422 |
Coupling pipe | Na dotaz | Zadat poptávku | |
| 794 0 WHR103422 |
C00598423
481232568002 |
GASKET. | Na dotaz | Zadat poptávku | |
| 794 1 WHR103422 |
C00746825
481932568051 |
Gasket | Na dotaz | Zadat poptávku | |
| 900 3 WHR103422 |
C00491993
481249248158 |
Spring | Na dotaz | Zadat poptávku | |
| 904 0 WHR103422 |
C00582376
481946248394 |
Shock absorber drawer. | Na dotaz | Zadat poptávku | |
| 904 8 WHR103422 |
C00494768
481953228242 |
Washer spring | Na dotaz | Zadat poptávku | |
| 904 9 WHR103422 |
C00582430
481953268893 |
Spacer. | Na dotaz | Zadat poptávku | |
| 910 0 WHR103422 |
C00582227
481250218438 |
Screw. | Na dotaz | Zadat poptávku | |
