| Komerční kód: | S 5510/WS/01 |
| Kód 12NC: | 858230201010 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

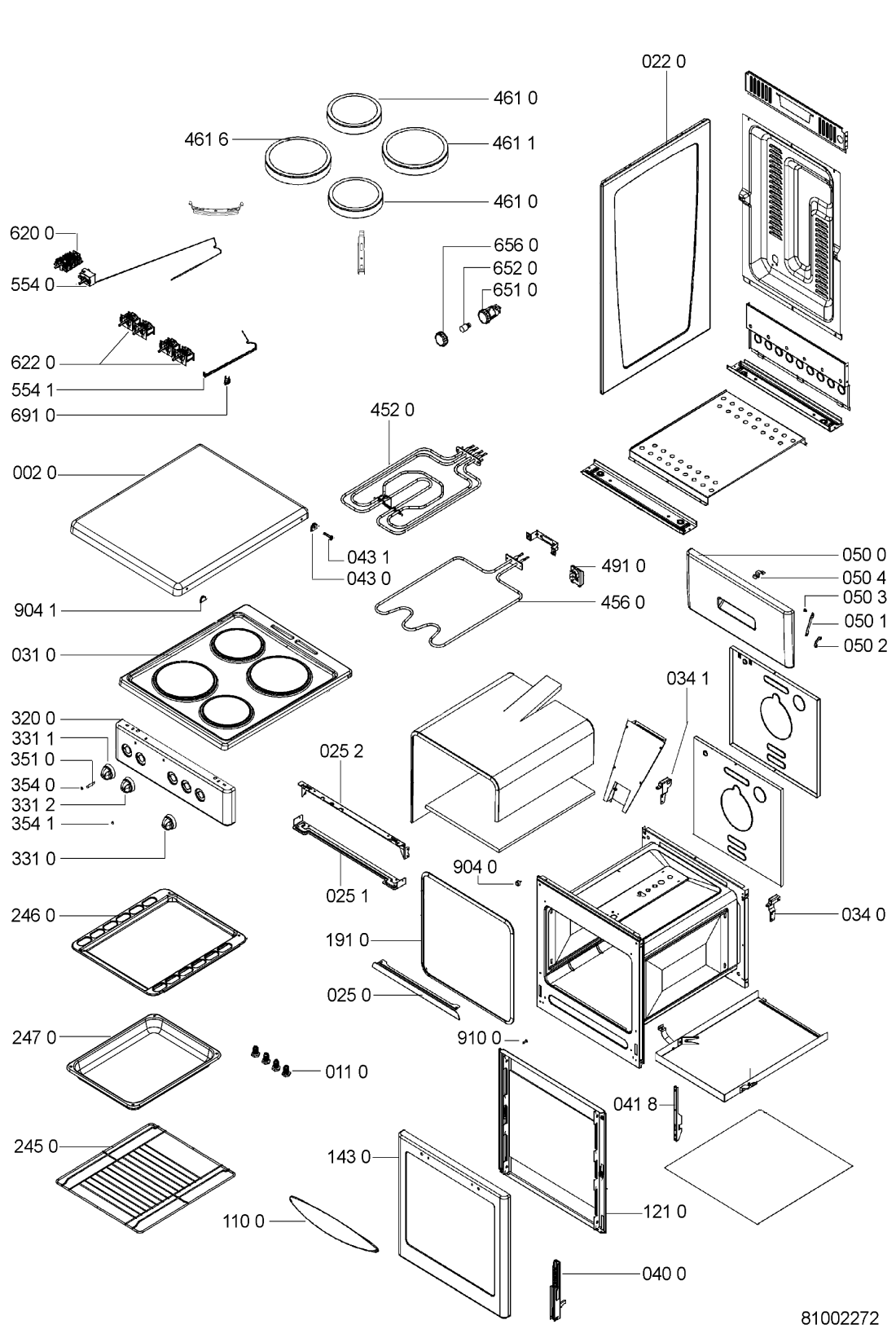

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR104407 |
C00485122
481244058293 |
Lid | Na dotaz | Zadat poptávku | |
| 011 0 WHR104407 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 022 0 WHR104407 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
| 025 0 WHR104407 |
C00484773
481240478329 |
Trim cover | Na dotaz | Zadat poptávku | |
| 025 1 WHR104407 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR104407 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
| 031 0 WHR104407 |
C00488535
481225998374 |
Hob | Na dotaz | Zadat poptávku | |
| 034 0 WHR104407 |
C00553503
481241719157 |
Hinge | Na dotaz | Zadat poptávku | |
| 034 1 WHR104407 |
C00553504
481241719158 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 0 WHR104407 |
C00582243
481253548018 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
| 041 8 WHR104407 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
| 043 0 WHR104407 |
C00493530
481241719159 |
Washer lid | Na dotaz | Zadat poptávku | |
| 043 1 WHR104407 |
C00492111
481253268123 |
Pivot lid | Na dotaz | Zadat poptávku | |
| 050 0 WHR104407 |
C00489337
481244269316 |
Plinth | Na dotaz | Zadat poptávku | |
| 050 1 WHR104407 |
C00493561
481244269303 |
Rod drawer upper | Na dotaz | Zadat poptávku | |
| 050 2 WHR104407 |
C00493562
481244269304 |
Rod drawer lower | Na dotaz | Zadat poptávku | |
| 050 3 WHR104407 |
C00489336
481244269305 |
Bush drawer | Na dotaz | Zadat poptávku | |
| 050 4 WHR104407 |
C00582194
481244269306 |
Spring drawer. | Na dotaz | Zadat poptávku | |
| 110 0 WHR104407 |
C00490190
481249858195 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR104407 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 143 0 WHR104407 |
C00778810
481245058621 |
Door inner oven | Na dotaz | Zadat poptávku | |
| 191 0 WHR104407 |
C00377819
481246668715 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 245 0 WHR104407 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR104407 |
C00597185
481941838415 |
Baking tray. | Na dotaz | Zadat poptávku | |
| 247 0 WHR104407 |
C00582538
481941838332 |
Fat pan | Na dotaz | Zadat poptávku | |
| 320 0 WHR104407 |
C00778811
481245359523 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR104407 |
C00778812
481241128818 |
Knob control 1-6 | Na dotaz | Zadat poptávku | |
| 331 1 WHR104407 |
C00778813
481241128821 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 331 2 WHR104407 |
C00778814
481241128819 |
Knob oven control | Na dotaz | Zadat poptávku | |
| 351 0 WHR104407 |
C00488478
481225518253 |
PILOT LAMP | Na dotaz | Zadat poptávku | |
| 354 0 WHR104407 |
C00488477
481225518252 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR104407 |
C00488476
481225518251 |
Lens yellow | Na dotaz | Zadat poptávku | |
| 452 0 WHR104407 |
C00318916
481225928817 |
Heating element upper+grill 750/1850 W | Na dotaz | Zadat poptávku | |
| 456 0 WHR104407 |
C00488505
481225928857 |
Heating element lower 1100W 230V | Na dotaz | Zadat poptávku | |
| 461 0 WHR104407 |
C00377498
481225998379 |
Hotplate dia 145, 230V, 1000W | Na dotaz | Zadat poptávku | |
| 461 1 WHR104407 |
C00377499
481225998381 |
Hotplate dia 180, 230V, 1500W | Na dotaz | Zadat poptávku | |
| 461 6 WHR104407 |
C00377497
481225998378 |
Hotplate dia 180, 230V, 2000W | Na dotaz | Zadat poptávku | |
| 491 0 WHR104407 |
C00377601
481240118573 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 554 0 WHR104407 |
C00377501
481227128493 |
Termostat | 2 634 Kč
€ 115.80 |
||
| 554 1 WHR104407 |
C00491347
481228238097 |
termostat | 451 Kč
€ 19.80 |
||
| 620 0 WHR104407 |
C00373665
481227618417 |
Switch oven rotary | Na dotaz | Zadat poptávku | |
| 622 0 WHR104407 |
C00377522
481227618384 |
Switch rotary DUO | Na dotaz | Zadat poptávku | |
| 651 0 WHR104407 |
C00582091
481225518245 |
Lamp. | Na dotaz | Zadat poptávku | |
| 652 0 WHR104407 |
C00377486
481225518257 |
Lamp 15W 240V AC | Na dotaz | Zadat poptávku | |
| 656 0 WHR104407 |
C00487005
481213428072 |
Glass cover | Na dotaz | Zadat poptávku | |
| 691 0 WHR104407 |
C00491014
481227128494 |
Sensor limiter assy. | Na dotaz | Zadat poptávku | |
| 904 0 WHR104407 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
| 904 1 WHR104407 |
C00491966
481246698998 |
Spacer | Na dotaz | Zadat poptávku | |
| 910 0 WHR104407 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku | |
