ARISTON A 43 V (EX)
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | A 43 V (EX) |
| Kód 12NC: | 869990264810 |
| I.C. kód: | AQ264810000 |
| Značka: | ARISTON |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás

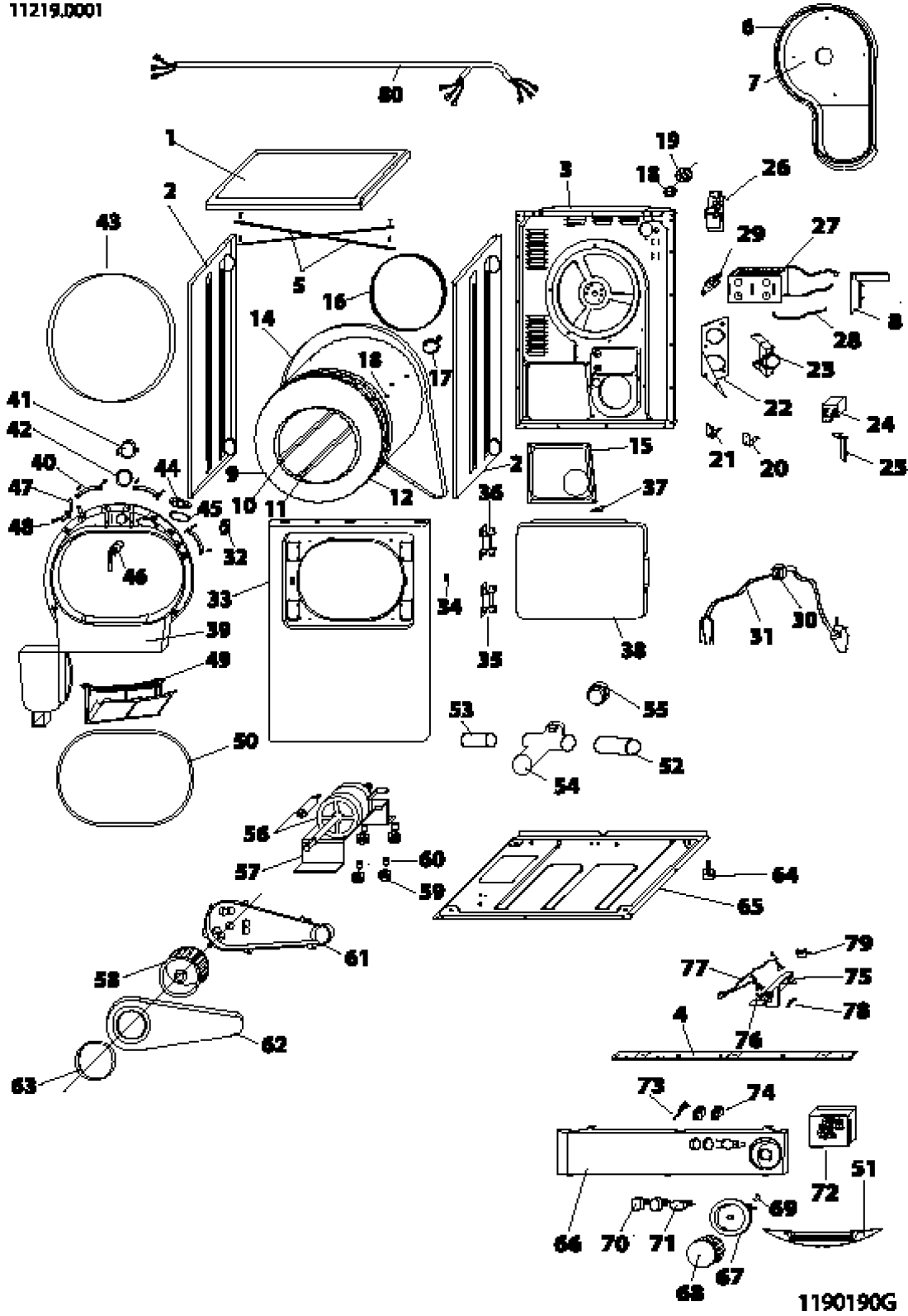

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 000 1190190g |
C00074626
482000067696 |
KIT CONNECTION LB-DRYERS | Na dotaz | Zadat poptávku | |
| 000 1190190g |
C00087041 | USER ISTRUCTIONS | Na dotaz | Zadat poptávku | |
| 001 1190190g |
C00086524 | TOP DRYER ARISTON 'IAR' | Na dotaz | Zadat poptávku | |
| 002 1190190g |
C00086555 | SIDE PANEL RIGHT | Na dotaz | Zadat poptávku | |
| 002 1190190g |
C00086556 | SIDE PANEL LEFT | Na dotaz | Zadat poptávku | |
| 003 1190190g |
C00085324 | BACK PANEL | Na dotaz | Zadat poptávku | |
| 004 1190190g |
C00085325 | TOP REAR CROSSPIECE | Na dotaz | Zadat poptávku | |
| 005 1190190g |
C00081321 | TOP BRACKET | Na dotaz | Zadat poptávku | |
| 006 1190190g |
C00085326 | BOTTOM BACK PANEL | Na dotaz | Zadat poptávku | |
| 007 1190190g |
C00085327 | INTERSPACE | Na dotaz | Zadat poptávku | |
| 008 1190190g |
C00085328 | DEFLECTOR | Na dotaz | Zadat poptávku | |
| 009 1190190g |
C00087038 | DRUM | Na dotaz | Zadat poptávku | |
| 010 1190190g |
C00770145
482000091028 |
EXTRACTABLE BEATER (EX 810145) | Na dotaz | Zadat poptávku | |
| 011 1190190g |
C00770146
482000090073 |
TROMMELRIB+SENSOR (WAS 810146) | Na dotaz | Zadat poptávku | |
| 012 1190190g |
C00770150 | SENSORSTRIP TROMMEL (WAS 810150) | Na dotaz | Zadat poptávku | |
| 013 1190190g |
C00770148 | AFDICHTINGSKAPJE (WAS 810148) | Na dotaz | Zadat poptávku | |
| 014 1190190g |
C00770336
482000032350 |
ŘEMEN D = 1932 MM H 9 'IAR' | Na dotaz | Zadat poptávku | |
| 014 1190190g |
C00090733 | BELT INSTALLING TOOL 'IAR' | Na dotaz | Zadat poptávku | |
| 015 1190190g |
C00085331 | ENGINE COMPARTMENT DOOR | Na dotaz | Zadat poptávku | |
| 016 1190190g |
C00770285
482000032347 |
FELP TAPE (EX810285) | Na dotaz | Zadat poptávku | |
| 017 1190190g |
C00087248
482000077230 |
NUT | Na dotaz | Zadat poptávku | |
| 017 1190190g |
C00770055
482000032336 |
DRUM SUPPORT (EX 810055) | Na dotaz | Zadat poptávku | |
| 018 1190190g |
C00770101
482000032337 |
Ložisko 608 SKF 2Z (22x7x8) | 106 Kč
€ 4.40 |
||
| 019 1190190g |
C00770103
482000032338 |
BEARING LOCKING DISC (EX 810103) | Na dotaz | Zadat poptávku | |
| 020 1190190g |
C00770322 | STEUN RECHTS | Na dotaz | Zadat poptávku | |
| 021 1190190g |
C00770323 | STEUN LINKS | Na dotaz | Zadat poptávku | |
| 022 1190190g |
C00063885
482000075265 |
TŘMEN TERMOSTATY 'IAR' | Na dotaz | Zadat poptávku | |
| 023 1190190g |
C00770038
482000090066 |
THERMOSTAAT 47C (WAS 810038) | Na dotaz | Zadat poptávku | |
| 023 1190190g |
C00770360
482000090107 |
THERMOSTAAT 70øC | Na dotaz | Zadat poptávku | |
| 026 1190190g |
C00085332
482000077062 |
RADIO INTERFERENCE SUPPRESSOR | Na dotaz | Zadat poptávku | |
| 027 1190190g |
C00085333
482000027670 |
TOPNÉ TĚLÍSKO 220V 2400W/230V 'IAR' | Na dotaz | Zadat poptávku | |
| 028 1190190g |
C00063677 | SPRING | Na dotaz | Zadat poptávku | |
| 029 1190190g |
C00063893
482000075267 |
TERMOSTAT 120[C 'IAR' | Na dotaz | Zadat poptávku | |
| 030 1190190g |
C00085334
481229068197 |
CROSSING OF CABLE | Na dotaz | Zadat poptávku | |
| 031 1190190g |
C00085335 | SUPPLY CABLE | Na dotaz | Zadat poptávku | |
| 032 1190190g |
C00063676
482000027121 |
TERMOSTAT 135[C 'IAR' | Na dotaz | Zadat poptávku | |
| 033 1190190g |
C00086558 | FRONT PANEL | Na dotaz | Zadat poptávku | |
| 034 1190190g |
C00086527
482000070866 |
PLATE | Na dotaz | Zadat poptávku | |
| 035 1190190g |
C00086528
482000077163 |
HINGE PLATE OUTER CASE | Na dotaz | Zadat poptávku | |
| 037 1190190g |
C00086529
482000067703 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| 038 1190190g |
C00086530
482000068995 |
LID ASSEMBLY WHITE | Na dotaz | Zadat poptávku | |
| 039 1190190g |
C00086559 | CONVEYOR | Na dotaz | Zadat poptávku | |
| 040 1190190g |
C00770222
482000090082 |
BEARING SUPPORT | Na dotaz | Zadat poptávku | |
| 041 1190190g |
C00086560 | TAMPA DA SEDE DA LAMPADA | Na dotaz | Zadat poptávku | |
| 042 1190190g |
C00086532 | SEAL | Na dotaz | Zadat poptávku | |
| 043 1190190g |
C00086561
482000077165 |
FELP TAPE | Na dotaz | Zadat poptávku | |
| 044 1190190g |
C00770218 | THERMOSTAATPLAATJE (WAS 810218) | Na dotaz | Zadat poptávku | |
| 045 1190190g |
C00086534 | SAFETY THERMOSTAT GASKET | Na dotaz | Zadat poptávku | |
| 047 1190190g |
C00086536 | BRACKET | Na dotaz | Zadat poptávku | |
| 048 1190190g |
C00770310
482000090100 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| 049 1190190g |
C00086538
482000068994 |
FILTER | Na dotaz | Zadat poptávku | |
| 050 1190190g |
C00086540
482000077164 |
DOOR GASKET | Na dotaz | Zadat poptávku | |
| 051 1190190g |
C00086541 | PROBE SUPPORT 'IAR' | Na dotaz | Zadat poptávku | |
| 052 1190190g |
C00086562 | TUBO SCARICO LATERALE DX 'IAR' | Na dotaz | Zadat poptávku | |
| 053 1190190g |
C00086563 | TUBO SCARICO LATERALE SX 'IAR' | Na dotaz | Zadat poptávku | |
| 054 1190190g |
C00086564 | OUTLET HOSE | Na dotaz | Zadat poptávku | |
| 055 1190190g |
C00770105
482000032339 |
TAP (WAS 810105) | Na dotaz | Zadat poptávku | |
| 056 1190190g |
C00063674
482000075251 |
MOTOR## | Na dotaz | Zadat poptávku | |
| 058 1190190g |
C00077042
482000027406 |
VENTILATOR | Na dotaz | Zadat poptávku | |
| 059 1190190g |
C00770048 | RUBBER SHOCK ABSORBER (EX 810048) | Na dotaz | Zadat poptávku | |
| 060 1190190g |
C00770242 | SPACER MOTOR SUPPORT (EX 810242) | Na dotaz | Zadat poptávku | |
| 061 1190190g |
C00770036 | FAN HOUSINMOTOR SIDE | Na dotaz | Zadat poptávku | |
| 062 1190190g |
C00770035
482000090065 |
INLET FAN (WAS 810035) | Na dotaz | Zadat poptávku | |
| 063 1190190g |
C00085339 | JOIN LOCATION FAN | Na dotaz | Zadat poptávku | |
| 064 1190190g |
C00770034 | VOETJE (WAS 810034) | Na dotaz | Zadat poptávku | |
| 065 1190190g |
C00770237 | BODEMPLAAT (WAS 810237) | Na dotaz | Zadat poptávku | |
| 066 1190190g |
C00087039 | DASHBOARD | Na dotaz | Zadat poptávku | |
| 067 1190190g |
C00086546 | SUPPORT KNOB TIMER | Na dotaz | Zadat poptávku | |
| 068 1190190g |
C00086547 | TIMER KNOB | Na dotaz | Zadat poptávku | |
| 069 1190190g |
C00770999 | KNOB SPRING TIMER | Na dotaz | Zadat poptávku | |
| 070 1190190g |
C00086548 | PUSHBOTTON SWITCH | Na dotaz | Zadat poptávku | |
| 071 1190190g |
C00086549 | PUSHBOTTON SWITCH | Na dotaz | Zadat poptávku | |
| 072 1190190g |
C00087040 | TIMER | Na dotaz | Zadat poptávku | |
| 073 1190190g |
C00086551 | LED | Na dotaz | Zadat poptávku | |
| 074 1190190g |
C00085343
482000077064 |
SWITCH NC | Na dotaz | Zadat poptávku | |
| 074 1190190g |
C00085344
482000077065 |
SWITCH NA+NA | Na dotaz | Zadat poptávku | |
| 074 1190190g |
C00085414 | SWITCH NA | Na dotaz | Zadat poptávku | |
| 075 1190190g |
C00085416
482000077073 |
KIT COM ESCOVAS SECADOR IAR | Na dotaz | Zadat poptávku | |
| 076 1190190g |
C00085417 | KIT SUPORTE FIXO+MOVEL IAR | Na dotaz | Zadat poptávku | |
| 077 1190190g |
C00077230
482000076547 |
CABLAGEM COM ESCOVAS IAR | Na dotaz | Zadat poptávku | |
| 078 1190190g |
C00770211 | KLEMVEER SENSORBORSTEL (WAS 810211) | Na dotaz | Zadat poptávku | |
| 079 1190190g |
C00077046 | SUPPORT TOP | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00770243 | TERMINALL (WAS 810243) | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00770241
482000032345 |
CONDENSATOR 10 MF (WAS 810241) | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00770054
482000090068 |
DEFROST WATER HOSE CONNECTION (EX 810054) | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00770315 | VERWARMINGSELEMENTSCREW 4,2X9,5 | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00770047 | WASHER | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00770119
488000770119 |
DRAIN HOSE (EX 810119) | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00770144 | WIRING FIXING (EX 810144) | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00063403
482000075245 |
TOP HINGE BLOCK BLACK | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00063404
482000075246 |
BOTTOM HINGE BLOCK | Na dotaz | Zadat poptávku | |
| 999 1190190g |
C00094507
482000078072 |
DEFLECTOR | Na dotaz | Zadat poptávku | |
