IGNIS ACF 950 WH/3
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACF 950 WH/3 |
| Kód 12NC: | 852395038050 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

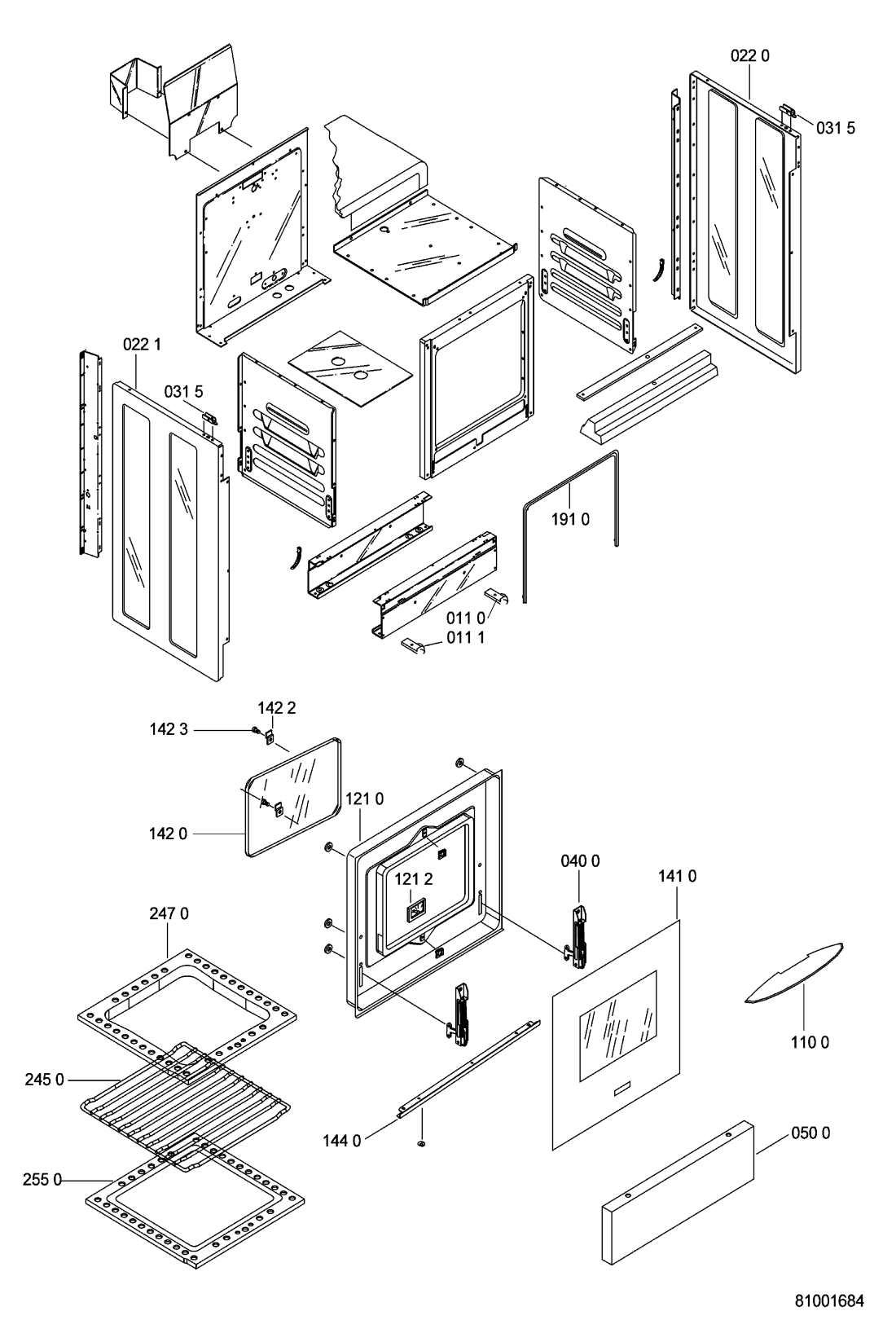

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR94757 |
C00598878
481944238296 |
Lid. | Na dotaz | Zadat poptávku | |
| 011 0 WHR94757 |
C00747160
481946248488 |
Foot right | Na dotaz | Zadat poptávku | |
| 011 1 WHR94757 |
C00747161
481946248489 |
Foot left | Na dotaz | Zadat poptávku | |
| 022 0 WHR94757 |
C00598879
481944238297 |
Side panel right. | Na dotaz | Zadat poptávku | |
| 022 1 WHR94757 |
C00745228
481244228049 |
Side panel left | Na dotaz | Zadat poptávku | |
| 031 0 WHR94757 |
C00598880
481944238299 |
HOB. | Na dotaz | Zadat poptávku | |
| 031 5 WHR94757 |
C00745263
481240448715 |
Holder Door | Na dotaz | Zadat poptávku | |
| 040 0 WHR94757 |
C00490583
481941719423 |
HINGE | Na dotaz | Zadat poptávku | |
| 043 0 WHR94757 |
C00063517
481946258158 |
HINGE RIGHT (ON LID) | Na dotaz | Zadat poptávku | |
| 043 1 WHR94757 |
C00063518
481946258159 |
HINGE LEFT (ON LID) | Na dotaz | Zadat poptávku | |
| 047 8 WHR94757 |
C00582539
481946258185 |
Cover left | Na dotaz | Zadat poptávku | |
| 047 9 WHR94757 |
C00582380
481946258184 |
Cover right. | Na dotaz | Zadat poptávku | |
| 050 0 WHR94757 |
C00582342
481944238301 |
Panel. | Na dotaz | Zadat poptávku | |
| 110 0 WHR94757 |
C00745229
481949858581 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR94757 |
C00745230
481246688476 |
Door inner | Na dotaz | Zadat poptávku | |
| 121 2 WHR94757 |
C00582270
481934938079 |
Thermometer. | Na dotaz | Zadat poptávku | |
| 141 0 WHR94757 |
C00745231
481245058155 |
Oven glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR94757 |
C00582355
481945069912 |
sklo dveri vnitrni | 981 Kč
€ 43.10 |
||
| 142 2 WHR94757 |
C00484372
481940478666 |
Bracket | Na dotaz | Zadat poptávku | |
| 142 3 WHR94757 |
C00582402
481950218415 |
Screw | Na dotaz | Zadat poptávku | |
| 144 0 WHR94757 |
C00582375
481946089508 |
lista dveri spodni | 839 Kč
€ 36.90 |
||
| 191 0 WHR94757 |
C00582394
481946818078 |
Gasket. | Na dotaz | Zadat poptávku | |
| 241 0 WHR94757 |
C00582745
481245858121 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR94757 |
C00582367
481945819909 |
Grid | Na dotaz | Zadat poptávku | |
| 247 0 WHR94757 |
C00745233
481241838047 |
Fat pan | Na dotaz | Zadat poptávku | |
| 255 0 WHR94757 |
C00582526
481944059544 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 320 0 WHR94757 |
C00745234
481245319496 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR94757 |
C00745235
481241358986 |
Knob gas | Na dotaz | Zadat poptávku | |
| 331 9 WHR94757 |
C00378100
481949258065 |
pruzina knofliku | 100 Kč
€ 4.40 |
||
| 341 0 WHR94757 |
C00745236
481241378514 |
Indication disc oven | Na dotaz | Zadat poptávku | |
| 341 0 WHR94757 |
C00745264
481241378573 |
Indication disc white | Na dotaz | Zadat poptávku | |
| 455 0 WHR94757 |
C00063468
481936069851 |
OVEN BURNERS | Na dotaz | Zadat poptávku | |
| 471 1 WHR94757 |
C00745239
481236078055 |
Burner body SR | Na dotaz | Zadat poptávku | |
| 471 2 WHR94757 |
C00745238
481236078056 |
Burner body R | Na dotaz | Zadat poptávku | |
| 472 1 WHR94757 |
C00582825
481936069304 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR94757 |
C00582824
481936069303 |
Spreader,burner R. | Na dotaz | Zadat poptávku | |
| 474 0 WHR94757 |
C00582264
481931039275 |
trysky - zemni plyn - vyřazeno | Na dotaz | Zadat poptávku | |
| 474 0 WHR94757 |
C00582265
481931039276 |
SADA ODTOKOV | Na dotaz | Zadat poptávku | |
| 571 0 WHR94757 |
C00063480
481936058513 |
ventil velky | 839 Kč
€ 36.90 |
||
| 571 1 WHR94757 |
C00063481
481936058512 |
VENTIL STREDNY ACM22 | 1 125 Kč
€ 49.50 |
||
| 571 5 WHR94757 |
C00745158
481936058726 |
Tap oven burner | Na dotaz | Zadat poptávku | |
| 592 0 WHR94757 |
C00582252
481921078082 |
Thermo couple oven grill 1000 mm. | Na dotaz | Zadat poptávku | |
| 703 0 WHR94757 |
C00598924
481953048607 |
GAS PIPE. | Na dotaz | Zadat poptávku | |
| 703 1 WHR94757 |
C00598926
481953048608 |
GAS PIPE. | Na dotaz | Zadat poptávku | |
| 703 4 WHR94757 |
C00745161
481953048814 |
Gas pipe oven burner | Na dotaz | Zadat poptávku | |
| 703 5 WHR94757 |
C00582569
481953048458 |
spojka hadice | 651 Kč
€ 28.60 |
||
| 703 8 WHR94757 |
C00333269
481952648227 |
Gas connection G20/G110 | Na dotaz | Zadat poptávku | |
| 703 8 WHR94757 |
C00333268
481952648224 |
Gas connection G30/G31 | Na dotaz | Zadat poptávku | |
| 794 0 WHR94757 |
C00333317
481953258189 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR94757 |
C00494641
481946279758 |
doraz gumovy | 228 Kč
€ 10.00 |
||
| 904 5 WHR94757 |
C00492696
481953538146 |
nyt | 89 Kč
€ 3.90 |
||
| 923 0 WHR94757 |
C00582299
481940478965 |
Washer | Na dotaz | Zadat poptávku | |
