| Komerční kód: | ACF 984 WH/2 |
| Kód 12NC/I.C. kód: | 852398438040 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

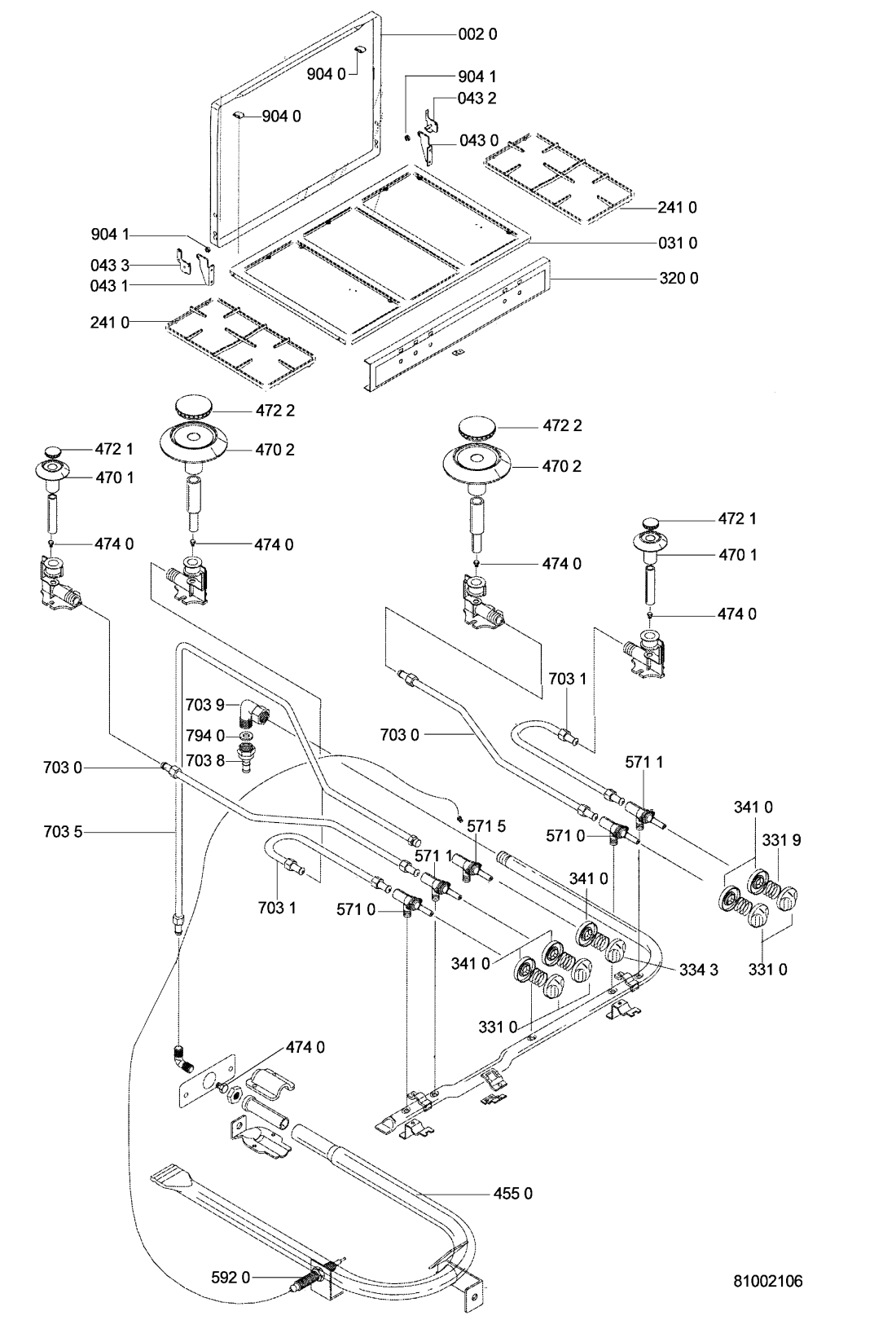

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR94775 |
C00745642
481944238385 |
Lid | Na dotaz | Zadat poptávku | |
| 022 0 WHR94775 |
C00745438
481944239427 |
Side panel | Na dotaz | Zadat poptávku | |
| 022 1 WHR94775 |
C00745643
481244268989 |
Side panel left | Na dotaz | Zadat poptávku | |
| 022 3 WHR94775 |
C00745665
481946078636 |
Trim lower | Na dotaz | Zadat poptávku | |
| 022 4 WHR94775 |
C00745664
481244269052 |
Door | Na dotaz | Zadat poptávku | |
| 022 5 WHR94775 |
C00745652
481944239431 |
Door flap | Na dotaz | Zadat poptávku | |
| 025 0 WHR94775 |
C00745725
481244269053 |
Frame oven face | Na dotaz | Zadat poptávku | |
| 025 6 WHR94775 |
C00745657
481946089594 |
Frame Oven door | Na dotaz | Zadat poptávku | |
| 031 0 WHR94775 |
C00490689
481944238377 |
HOB | Na dotaz | Zadat poptávku | |
| 040 0 WHR94775 |
C00745646
481941719449 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 040 3 WHR94775 |
C00745650
481941719302 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 4 WHR94775 |
C00040678
481941719256 |
BOTTOM DOOR HINGE | Na dotaz | Zadat poptávku | |
| 043 0 WHR94775 |
C00490601
481941719567 |
Hinge right | Na dotaz | Zadat poptávku | |
| 043 1 WHR94775 |
C00745647
481941719568 |
Hinge left | Na dotaz | Zadat poptávku | |
| 043 2 WHR94775 |
C00745648
481946258347 |
Cover hinge right | Na dotaz | Zadat poptávku | |
| 043 3 WHR94775 |
C00745649
481946258346 |
Cover hinge left | Na dotaz | Zadat poptávku | |
| 050 0 WHR94775 |
C00745651
481944268929 |
Plinth | Na dotaz | Zadat poptávku | |
| 110 0 WHR94775 |
C00745229
481949858581 |
Handle door | Na dotaz | Zadat poptávku | |
| 110 1 WHR94775 |
C00333333
481953268891 |
Spacer glass/tubular handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR94775 |
C00745653
481944239428 |
Innerdoor,oven | Na dotaz | Zadat poptávku | |
| 141 0 WHR94775 |
C00745655
481945058428 |
Oven glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR94775 |
C00745656
481945069954 |
Inner glass | Na dotaz | Zadat poptávku | |
| 142 2 WHR94775 |
C00582402
481950218415 |
Screw | Na dotaz | Zadat poptávku | |
| 142 3 WHR94775 |
C00484372
481940478666 |
Bracket | Na dotaz | Zadat poptávku | |
| 191 0 WHR94775 |
C00582394
481946818078 |
Gasket. | Na dotaz | Zadat poptávku | |
| 241 0 WHR94775 |
C00745459
481945868271 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 245 0 WHR94775 |
C00582367
481945819909 |
Grid | Na dotaz | Zadat poptávku | |
| 247 0 WHR94775 |
C00745233
481241838047 |
Fat pan | Na dotaz | Zadat poptávku | |
| 255 0 WHR94775 |
C00582526
481944059544 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 320 0 WHR94775 |
C00745709
481245248165 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR94775 |
C00745466
481941258817 |
Knob | Na dotaz | Zadat poptávku | |
| 331 9 WHR94775 |
C00378100
481949258065 |
pruzina knofliku | 41 Kč
€ 1.70 |
||
| 334 3 WHR94775 |
C00745467
481241458083 |
Knob oven | Na dotaz | Zadat poptávku | |
| 341 0 WHR94775 |
C00745236
481241378514 |
Indication disc oven | Na dotaz | Zadat poptávku | |
| 341 0 WHR94775 |
C00745264
481241378573 |
Indication disc white | Na dotaz | Zadat poptávku | |
| 455 0 WHR94775 |
C00063468
481936069851 |
OVEN BURNERS | Na dotaz | Zadat poptávku | |
| 470 1 WHR94775 |
C00745238
481236078056 |
Burner body R | Na dotaz | Zadat poptávku | |
| 470 2 WHR94775 |
C00745239
481236078055 |
Burner body SR | Na dotaz | Zadat poptávku | |
| 472 1 WHR94775 |
C00621194
481936068783 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR94775 |
C00745222
481936068784 |
Spreader,burner R | Na dotaz | Zadat poptávku | |
| 474 0 WHR94775 |
C00582264
481931039275 |
trysky - zemni plyn - vyřazeno | Na dotaz | Zadat poptávku | |
| 474 0 WHR94775 |
C00582265
481931039276 |
SADA ODTOKOV | Na dotaz | Zadat poptávku | |
| 571 0 WHR94775 |
C00486467
481936058423 |
Tap large | Na dotaz | Zadat poptávku | |
| 571 1 WHR94775 |
C00745473
481936058424 |
Tap medium | Na dotaz | Zadat poptávku | |
| 571 5 WHR94775 |
C00745710
481936058737 |
Tap oven | Na dotaz | Zadat poptávku | |
| 592 0 WHR94775 |
C00582252
481921078082 |
Thermo couple oven grill 1000 mm. | Na dotaz | Zadat poptávku | |
| 703 0 WHR94775 |
C00494748
481953048727 |
Gas pipe rear | Na dotaz | Zadat poptávku | |
| 703 1 WHR94775 |
C00745475
481953048725 |
Gas pipe front | Na dotaz | Zadat poptávku | |
| 703 5 WHR94775 |
C00745711
481953048825 |
Gas pipe oven | Na dotaz | Zadat poptávku | |
| 703 8 WHR94775 |
C00333269
481952648227 |
Gas connection G20/G110 | Na dotaz | Zadat poptávku | |
| 703 8 WHR94775 |
C00333268
481952648224 |
Gas connection G30/G31 | Na dotaz | Zadat poptávku | |
| 703 9 WHR94775 |
C00745634
481952648538 |
Coupling piece | Na dotaz | Zadat poptávku | |
| 794 0 WHR94775 |
C00333317
481953258189 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR94775 |
C00745663
481946248173 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 904 1 WHR94775 |
C00583015
481953268874 |
SPACER. | Na dotaz | Zadat poptávku | |
| 904 5 WHR94775 |
C00636245
481946248207 |
Buffer piece | Na dotaz | Zadat poptávku | |
