IGNIS ACF 990WH/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACF 990WH/1 |
| Kód 12NC/I.C. kód: | 852399038010 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

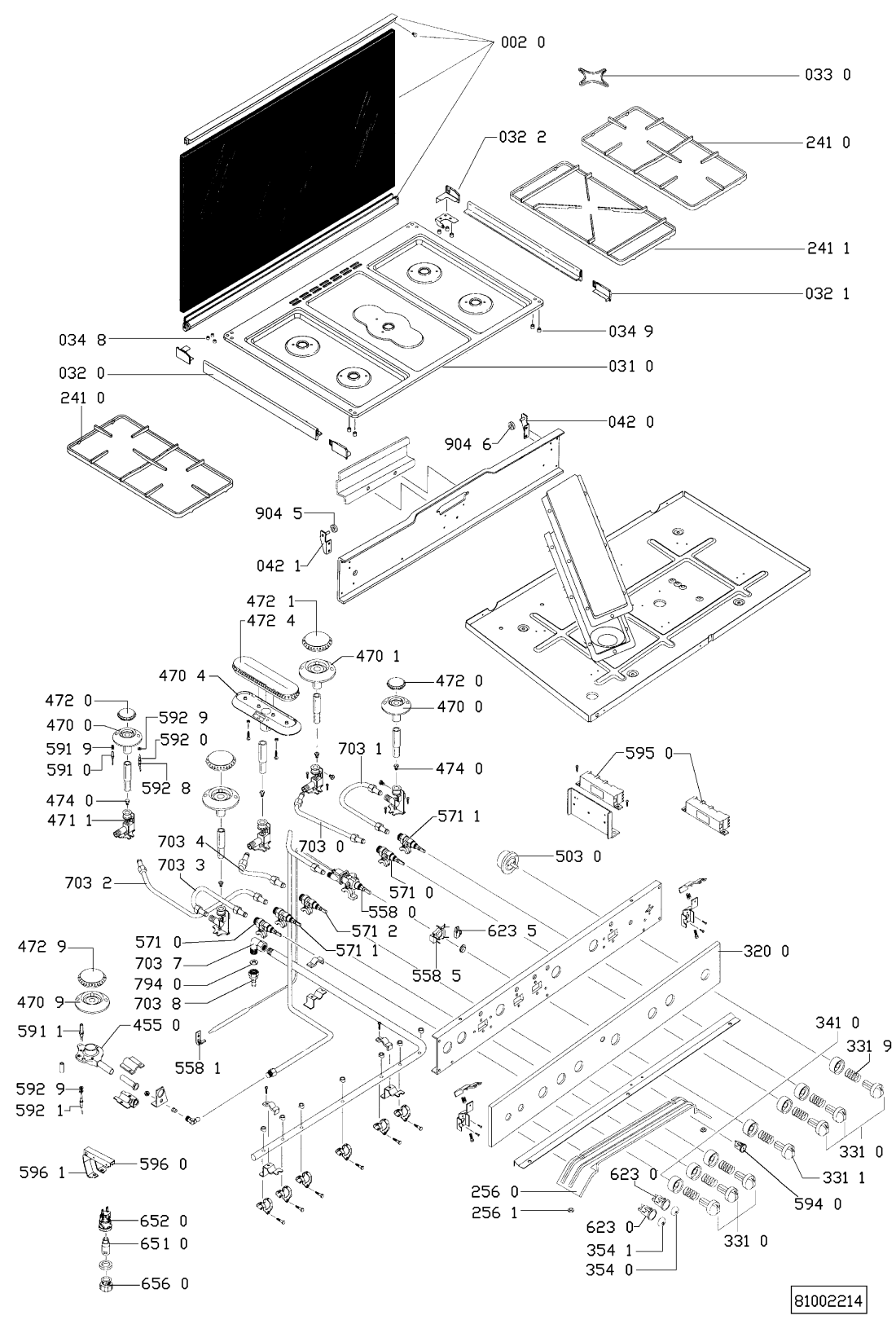

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR94780 |
C00745736
481945069958 |
Lid glass | Na dotaz | Zadat poptávku | |
| 011 0 WHR94780 |
C00582995
481950018146 |
FOOT. | Na dotaz | Zadat poptávku | |
| 011 1 WHR94780 |
C00583017
481953538121 |
Spacer foot. | Na dotaz | Zadat poptávku | |
| 022 0 WHR94780 |
C00745395
481944238388 |
Side panel right | Na dotaz | Zadat poptávku | |
| 022 1 WHR94780 |
C00745396
481944238389 |
Side panel | Na dotaz | Zadat poptávku | |
| 031 0 WHR94780 |
C00745737
481944238391 |
Hob | Na dotaz | Zadat poptávku | |
| 032 0 WHR94780 |
C00747224
481946078278 |
Trim side | Na dotaz | Zadat poptávku | |
| 032 1 WHR94780 |
C00747225
481946689278 |
koncovka | Na dotaz | Zadat poptávku | |
| 032 1 WHR94780 |
C00747226
481946689279 |
koncovka | Na dotaz | Zadat poptávku | |
| 032 2 WHR94780 |
C00747227
481946689281 |
koncovka ACM234/1 | Na dotaz | Zadat poptávku | |
| 032 2 WHR94780 |
C00747228
481946689282 |
koncovka ACM234/1 | Na dotaz | Zadat poptávku | |
| 033 0 WHR94780 |
C00333049
481945838045 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 034 8 WHR94780 |
C00492500
481946698874 |
Spacer hob rear | Na dotaz | Zadat poptávku | |
| 034 9 WHR94780 |
C00492499
481946698873 |
doraz | Na dotaz | Zadat poptávku | |
| 040 0 WHR94780 |
C00382475
481941719441 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 8 WHR94780 |
C00333001
481941758151 |
Hinge run.mech. | Na dotaz | Zadat poptávku | |
| 042 0 WHR94780 |
C00582883
481941719257 |
Z?VES HORNEJ DOSKY - PRAV# N | Na dotaz | Zadat poptávku | |
| 042 1 WHR94780 |
C00040678
481941719256 |
BOTTOM DOOR HINGE | Na dotaz | Zadat poptávku | |
| 043 0 WHR94780 |
C00745741
481941719454 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 043 1 WHR94780 |
C00745740
481941719453 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 050 0 WHR94780 |
C00745399
481944238392 |
Panel | Na dotaz | Zadat poptávku | |
| 050 1 WHR94780 |
C00745753
481944239354 |
Door inner | Na dotaz | Zadat poptávku | |
| 050 4 WHR94780 |
C00599990
481953258253 |
Spacer. | Na dotaz | Zadat poptávku | |
| 050 5 WHR94780 |
C00490568
481941719255 |
Z?VES SPODNŚCH DVIEROK - UAVŚ N | Na dotaz | Zadat poptávku | |
| 050 5 WHR94780 |
C00582882
481941719254 |
Z?VES SPODNŚCH DVIEROK - PRAVŚ N | Na dotaz | Zadat poptávku | |
| 110 0 WHR94780 |
C00745289
481949858557 |
Handle door | Na dotaz | Zadat poptávku | |
| 110 1 WHR94780 |
C00582428
481953268761 |
Spacer. | Na dotaz | Zadat poptávku | |
| 110 2 WHR94780 |
C00745743
481949878079 |
Handle | Na dotaz | Zadat poptávku | |
| 110 3 WHR94780 |
C00745403
481946699145 |
Spacer | Na dotaz | Zadat poptávku | |
| 121 0 WHR94780 |
C00745404
481944238639 |
Door inner | Na dotaz | Zadat poptávku | |
| 121 1 WHR94780 |
C00745407
481944238386 |
Door inner | Na dotaz | Zadat poptávku | |
| 124 0 WHR94780 |
C00585207
481953048523 |
Tube for smoke.. | Na dotaz | Zadat poptávku | |
| 140 0 WHR94780 |
C00745406
481944238404 |
Door | Na dotaz | Zadat poptávku | |
| 141 0 WHR94780 |
C00745744
481945069957 |
Oven glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR94780 |
C00488239
481945069503 |
Inner glass | Na dotaz | Zadat poptávku | |
| 142 1 WHR94780 |
C00582402
481950218415 |
Screw | Na dotaz | Zadat poptávku | |
| 142 3 WHR94780 |
C00484372
481940478666 |
Bracket | Na dotaz | Zadat poptávku | |
| 191 0 WHR94780 |
C00585182
481946818013 |
Gasket oven.. | Na dotaz | Zadat poptávku | |
| 202 0 WHR94780 |
C00636198
481944238616 |
BOTTOM, OVEN. | Na dotaz | Zadat poptávku | |
| 241 0 WHR94780 |
C00747255
481945819899 |
Grid for hob le.+ri. | Na dotaz | Zadat poptávku | |
| 241 1 WHR94780 |
C00745746
481945858633 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 242 8 WHR94780 |
C00582892
481941758141 |
Magnet holder. | Na dotaz | Zadat poptávku | |
| 242 9 WHR94780 |
C00492600
481952628005 |
Magnet f. drawer | Na dotaz | Zadat poptávku | |
| 245 0 WHR94780 |
C00488244
481945819892 |
GRILOVACI ROST N | Na dotaz | Zadat poptávku | |
| 247 0 WHR94780 |
C00582895
481941838369 |
plech na peceni | Na dotaz | Zadat poptávku | |
| 248 0 WHR94780 |
C00492697
481953578122 |
OTOANŚ RAYEE N | Na dotaz | Zadat poptávku | |
| 248 1 WHR94780 |
C00488214
481941358655 |
RUKOVAT N | Na dotaz | Zadat poptávku | |
| 248 2 WHR94780 |
C00776633
481940478514 |
OPHANGHAAK DRAAISPIT | Na dotaz | Zadat poptávku | |
| 255 0 WHR94780 |
C00585145
481944238322 |
Bottom, oven.. | Na dotaz | Zadat poptávku | |
| 256 0 WHR94780 |
C00582971
481946689074 |
Knob protection. | Na dotaz | Zadat poptávku | |
| 256 1 WHR94780 |
C00492648
481953258252 |
podlozka distancni | Na dotaz | Zadat poptávku | |
| 320 0 WHR94780 |
C00745747
481945358226 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR94780 |
C00488066
481941129506 |
Knob burner,hob | Na dotaz | Zadat poptávku | |
| 331 1 WHR94780 |
C00745754
481941129507 |
Knob | Na dotaz | Zadat poptávku | |
| 331 9 WHR94780 |
C00378100
481949258065 |
pruzina knofliku | 41 Kč
€ 1.70 |
||
| 341 0 WHR94780 |
C00490536
481941379235 |
Indication disc | Na dotaz | Zadat poptávku | |
| 354 0 WHR94780 |
C00620791
481938118241 |
Switch cap red. | Na dotaz | Zadat poptávku | |
| 354 1 WHR94780 |
C00620736
481938118236 |
Switch cap light switch. | Na dotaz | Zadat poptávku | |
| 401 0 WHR94780 |
C00621724
481936178155 |
motorek grilu | Na dotaz | Zadat poptávku | |
| 452 0 WHR94780 |
C00585065
481925928832 |
Heating element grill.. | Na dotaz | Zadat poptávku | |
| 455 0 WHR94780 |
C00585103
481936069344 |
Burner oven.. | Na dotaz | Zadat poptávku | |
| 470 0 WHR94780 |
C00747240
481936078371 |
Burner body medium | Na dotaz | Zadat poptávku | |
| 470 1 WHR94780 |
C00747241
481936078369 |
Burner body large | Na dotaz | Zadat poptávku | |
| 470 4 WHR94780 |
C00745748
481936078373 |
Burner body | Na dotaz | Zadat poptávku | |
| 470 9 WHR94780 |
C00620687
481936069338 |
Support oven burner. | Na dotaz | Zadat poptávku | |
| 471 1 WHR94780 |
C00582561
481936078198 |
DRZIAK HORAKA KOV N | Na dotaz | Zadat poptávku | |
| 472 0 WHR94780 |
C00621260
481936068963 |
viko rozptylovace | Na dotaz | Zadat poptávku | |
| 472 1 WHR94780 |
C00484312
481936069341 |
viko rozptylovace | Na dotaz | Zadat poptávku | |
| 472 4 WHR94780 |
C00484320
481936069556 |
Spreader,burner fish | Na dotaz | Zadat poptávku | |
| 472 9 WHR94780 |
C00620691
481936069339 |
Spreader,burner Oven. | Na dotaz | Zadat poptávku | |
| 474 0 WHR94780 |
C00745749
481931039184 |
Set of nozzles LPG | Na dotaz | Zadat poptávku | |
| 474 0 WHR94780 |
C00745750
481931039185 |
Set of nozzles NG | Na dotaz | Zadat poptávku | |
| 491 0 WHR94780 |
C00343507
481929068173 |
svorkovnice | 81 Kč
€ 3.30 |
||
| 491 3 WHR94780 |
C00582853
481940118714 |
STRAIN RELIEF. | Na dotaz | Zadat poptávku | |
| 503 0 WHR94780 |
C00494398
481928218629 |
PROGRAMATOR N | Na dotaz | Zadat poptávku | |
| 558 0 WHR94780 |
C00747267
481927129071 |
Thermostat (1WAY 0,35) | Na dotaz | Zadat poptávku | |
| 558 1 WHR94780 |
C00492549
481949268652 |
PRUZINA | Na dotaz | Zadat poptávku | |
| 558 5 WHR94780 |
C00585119
481940479409 |
HOLDER | Na dotaz | Zadat poptávku | |
| 562 0 WHR94780 |
C00776638
481927128616 |
pojistka tepelna | Na dotaz | Zadat poptávku | |
| 562 1 WHR94780 |
C00494316
481927618237 |
Switch security | Na dotaz | Zadat poptávku | |
| 571 0 WHR94780 |
C00747244
481936058592 |
kohout sporaku | Na dotaz | Zadat poptávku | |
| 571 1 WHR94780 |
C00747245
481936058593 |
kohout sporaku | Na dotaz | Zadat poptávku | |
| 571 2 WHR94780 |
C00745158
481936058726 |
Tap oven burner | Na dotaz | Zadat poptávku | |
| 591 0 WHR94780 |
C00378008
481925268107 |
zapalovac plynu ele. | Na dotaz | Zadat poptávku | |
| 591 1 WHR94780 |
C00747246
481925268109 |
Spark plug oven burner | Na dotaz | Zadat poptávku | |
| 591 9 WHR94780 |
C00492535
481949268318 |
pruzina zapalovace | Na dotaz | Zadat poptávku | |
| 592 0 WHR94780 |
C00492203
481921078071 |
pojistka tepelna dl. | Na dotaz | Zadat poptávku | |
| 592 1 WHR94780 |
C00627163
481921078069 |
Thermo couple oven burner. | Na dotaz | Zadat poptávku | |
| 592 8 WHR94780 |
C00492502
481946698992 |
Spacer | Na dotaz | Zadat poptávku | |
| 592 9 WHR94780 |
C00776587
481946698757 |
podlozka pojistky | Na dotaz | Zadat poptávku | |
| 594 0 WHR94780 |
C00599377
481927328356 |
mikrospinac | Na dotaz | Zadat poptávku | |
| 595 0 WHR94780 |
C00585062
481914578155 |
Generator.. | Na dotaz | Zadat poptávku | |
| 595 0 WHR94780 |
C00599800
481914578043 |
Electron.ignit.. | Na dotaz | Zadat poptávku | |
| 596 0 WHR94780 |
C00747248
481925268131 |
Lighter | Na dotaz | Zadat poptávku | |
| 596 1 WHR94780 |
C00747249
481925268132 |
Support | Na dotaz | Zadat poptávku | |
| 623 0 WHR94780 |
C00378025
481927328357 |
Microswitch light/turnspit | Na dotaz | Zadat poptávku | |
| 623 0 WHR94780 |
C00620495
481927618248 |
Microswitch grill. | Na dotaz | Zadat poptávku | |
| 623 5 WHR94780 |
C00585070
481927138277 |
Microswitch.. | Na dotaz | Zadat poptávku | |
| 651 0 WHR94780 |
C00490311
481913488138 |
YIAROVKA OSVETLENIA 15W N | Na dotaz | Zadat poptávku | |
| 652 0 WHR94780 |
C00332821
481925518162 |
objimka zarovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR94780 |
C00582356
481945069999 |
KRYT ZIAROVKY kov N | Na dotaz | Zadat poptávku | |
| 703 0 WHR94780 |
C00745065
481953048716 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 703 1 WHR94780 |
C00494744
481953048715 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 703 2 WHR94780 |
C00745755
481953048806 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 703 3 WHR94780 |
C00494746
481953048719 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 703 4 WHR94780 |
C00494745
481953048717 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 703 7 WHR94780 |
C00582569
481953048458 |
spojka hadice | Na dotaz | Zadat poptávku | |
| 703 8 WHR94780 |
C00333269
481952648227 |
Gas connection G20/G110 | Na dotaz | Zadat poptávku | |
| 703 8 WHR94780 |
C00333268
481952648224 |
Gas connection G30/G31 | Na dotaz | Zadat poptávku | |
| 794 0 WHR94780 |
C00333317
481953258189 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR94780 |
C00745742
481946698743 |
Dumper drawer door | Na dotaz | Zadat poptávku | |
| 904 5 WHR94780 |
C00583014
481953268838 |
Spacer. | Na dotaz | Zadat poptávku | |
| 904 6 WHR94780 |
C00583015
481953268874 |
SPACER. | Na dotaz | Zadat poptávku | |
| 922 0 WHR94780 |
C00585212
481953238073 |
Ring for smoke.. | Na dotaz | Zadat poptávku | |
| 993 0 WHR94780 |
C00745416
481945868012 |
Basket | Na dotaz | Zadat poptávku | |
