| Komerční kód: | ACM 307IX COOKERS WP |
| Kód 12NC: | 857630729000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

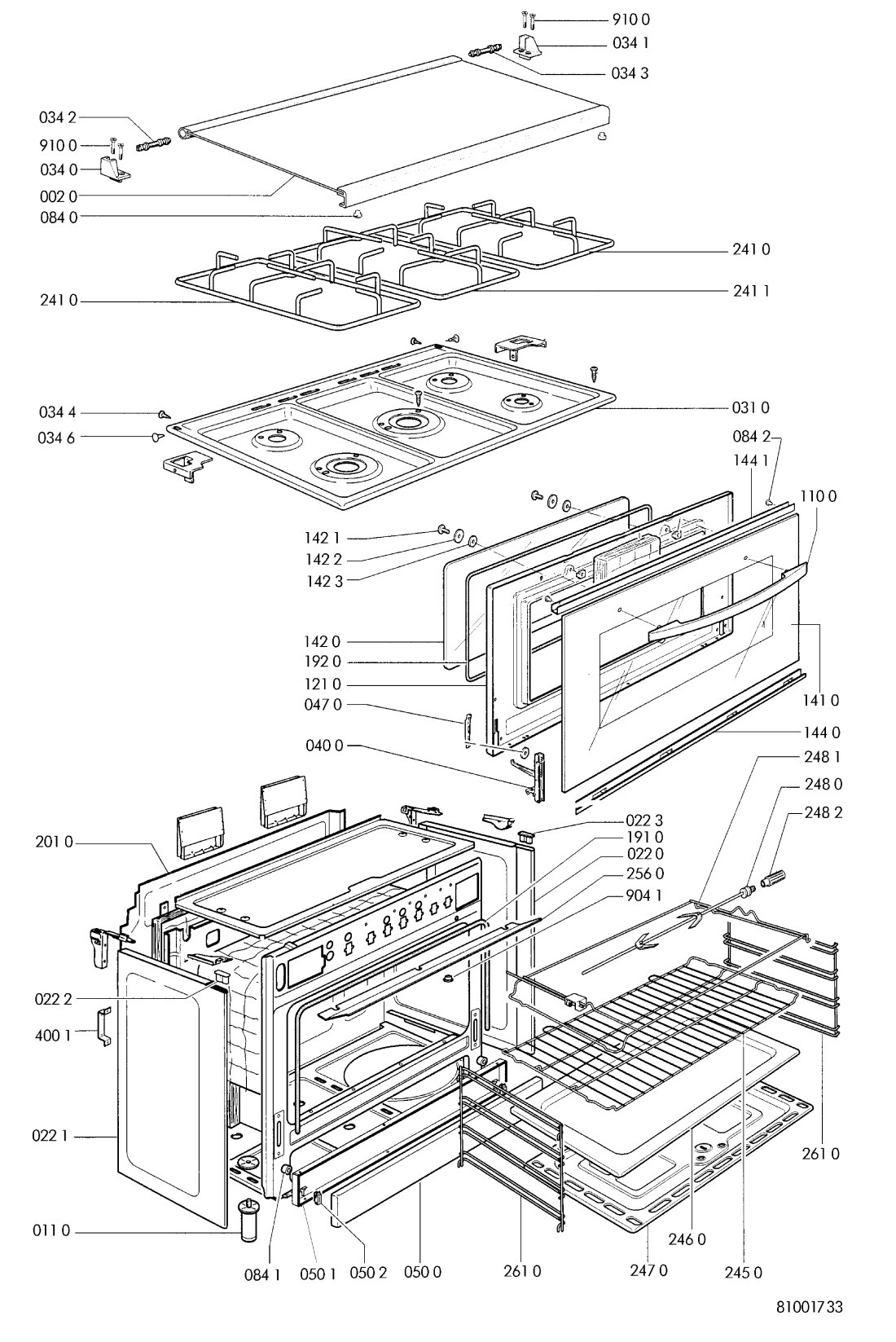

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR97393 |
C00598519
481244038809 |
Lid glass. | Na dotaz | Zadat poptávku | |
| 011 0 WHR97393 |
C00491905
481246218193 |
Foot from 00/08 | Na dotaz | Zadat poptávku | |
| 022 0 WHR97393 |
C00598527
481244058177 |
Side panel right. | Na dotaz | Zadat poptávku | |
| 022 1 WHR97393 |
C00598528
481244058178 |
Side panel left. | Na dotaz | Zadat poptávku | |
| 022 2 WHR97393 |
C00492454
481946279658 |
Cap left | Na dotaz | Zadat poptávku | |
| 022 3 WHR97393 |
C00492453
481946279657 |
Cap right | Na dotaz | Zadat poptávku | |
| 031 0 WHR97393 |
C00598520
481244038811 |
Hob. | Na dotaz | Zadat poptávku | |
| 034 0 WHR97393 |
C00598467
481240448654 |
Bracket left hinge. | Na dotaz | Zadat poptávku | |
| 034 1 WHR97393 |
C00598468
481240448655 |
Bracket right hinge. | Na dotaz | Zadat poptávku | |
| 034 2 WHR97393 |
C00621461
481249238367 |
Spring left. | Na dotaz | Zadat poptávku | |
| 034 3 WHR97393 |
C00491990
481249238366 |
Spring right | Na dotaz | Zadat poptávku | |
| 034 4 WHR97393 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
| 034 6 WHR97393 |
C00598804
481253598056 |
Pin. | Na dotaz | Zadat poptávku | |
| 040 0 WHR97393 |
C00373608
481241758374 |
Hinge male | Na dotaz | Zadat poptávku | |
| 047 0 WHR97393 |
C00480937
481941719509 |
ZAVES | Na dotaz | Zadat poptávku | |
| 050 0 WHR97393 |
C00528179
481244088912 |
Plinth front front | Na dotaz | Zadat poptávku | |
| 050 1 WHR97393 |
C00598529
481244088175 |
Plinth inner. | Na dotaz | Zadat poptávku | |
| 050 2 WHR97393 |
C00598489
481241728057 |
Hinge. | Na dotaz | Zadat poptávku | |
| 084 0 WHR97393 |
C00598901
481949254004 |
Buffer. | Na dotaz | Zadat poptávku | |
| 084 1 WHR97393 |
C00597031
481246378004 |
Buffer. | Na dotaz | Zadat poptávku | |
| 084 2 WHR97393 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
| 110 0 WHR97393 |
C00487796
481249858116 |
Door handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR97393 |
C00598533
481244268903 |
Door inner. | Na dotaz | Zadat poptávku | |
| 141 0 WHR97393 |
C00598540
481245058447 |
Door glass. | Na dotaz | Zadat poptávku | |
| 142 0 WHR97393 |
C00487588
481245058188 |
Inner glass | Na dotaz | Zadat poptávku | |
| 142 1 WHR97393 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR97393 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR97393 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 144 0 WHR97393 |
C00598746
481245948033 |
Trim door. | Na dotaz | Zadat poptávku | |
| 144 1 WHR97393 |
C00598747
481245948084 |
Frame from 00/08. | Na dotaz | Zadat poptávku | |
| 191 0 WHR97393 |
C00598770
481246688477 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR97393 |
C00598771
481246688478 |
Seal,glass. | Na dotaz | Zadat poptávku | |
| 201 0 WHR97393 |
C00598524
481244058174 |
Panel rear. | Na dotaz | Zadat poptávku | |
| 241 0 WHR97393 |
C00621579
481945868126 |
Grid for hob gas | Na dotaz | Zadat poptávku | |
| 241 1 WHR97393 |
C00598740
481245848355 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR97393 |
C00490017
481245858123 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 246 0 WHR97393 |
C00489058
481241838043 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR97393 |
C00598494
481241838044 |
Fat pan. | Na dotaz | Zadat poptávku | |
| 248 0 WHR97393 |
C00621509
481253578041 |
Rotary spit. | Na dotaz | Zadat poptávku | |
| 248 1 WHR97393 |
C00157556
481245818959 |
ROTISSERIE SUPPORT | Na dotaz | Zadat poptávku | |
| 248 2 WHR97393 |
C00598903
481949818017 |
Grip Turnspit. | Na dotaz | Zadat poptávku | |
| 256 0 WHR97393 |
C00598751
481246098001 |
Deflector. | Na dotaz | Zadat poptávku | |
| 261 0 WHR97393 |
C00596669
481940478715 |
Support oven shelf. | Na dotaz | Zadat poptávku | |
| 320 0 WHR97393 |
C00598736
481245319938 |
Panel control. | Na dotaz | Zadat poptávku | |
| 320 1 WHR97393 |
C00582527
481949268692 |
Clip fix | Na dotaz | Zadat poptávku | |
| 331 0 WHR97393 |
C00373641
481241128038 |
knoflik ovladaci NB | 465 Kč
€ 20.40 |
||
| 331 9 WHR97393 |
C00336134
481949268813 |
Spring | Na dotaz | Zadat poptávku | |
| 334 1 WHR97393 |
C00373612
481241318227 |
Knob oven/grill | Na dotaz | Zadat poptávku | |
| 341 0 WHR97393 |
C00373611
481241378506 |
Indication disc gas tap | Na dotaz | Zadat poptávku | |
| 341 1 WHR97393 |
C00598486
481241378593 |
Indication disc thermostat. | Na dotaz | Zadat poptávku | |
| 341 8 WHR97393 |
C00488834
481241378505 |
Indication disc clock | Na dotaz | Zadat poptávku | |
| 400 0 WHR97393 |
C00621567
481936178203 |
Motor turn spit. | Na dotaz | Zadat poptávku | |
| 400 1 WHR97393 |
C00598469
481240448656 |
Support turnspit motor | Na dotaz | Zadat poptávku | |
| 452 0 WHR97393 |
C00253382
481236058126 |
KNOB OUTPUT | Na dotaz | Zadat poptávku | |
| 455 0 WHR97393 |
C00598428
481236058124 |
Burner oven. | Na dotaz | Zadat poptávku | |
| 470 0 WHR97393 |
C00621564
481936078341 |
Burner body A. | Na dotaz | Zadat poptávku | |
| 470 1 WHR97393 |
C00484345
481936078339 |
Burner body SR | Na dotaz | Zadat poptávku | |
| 470 2 WHR97393 |
C00484344
481936078338 |
Burner body R1 | Na dotaz | Zadat poptávku | |
| 470 3 WHR97393 |
C00484325
481936069642 |
Burner body DR | Na dotaz | Zadat poptávku | |
| 471 0 WHR97393 |
C00236832
481936069404 |
ARTHRITIC KNOB | Na dotaz | Zadat poptávku | |
| 471 1 WHR97393 |
C00481300
481936069405 |
Burner SR | Na dotaz | Zadat poptávku | |
| 471 2 WHR97393 |
C00621558
481936069406 |
Burner R1/DR. | Na dotaz | Zadat poptávku | |
| 471 3 WHR97393 |
C00481299
481936058537 |
Air adjust.tube A/SR | Na dotaz | Zadat poptávku | |
| 471 4 WHR97393 |
C00621552
481936058538 |
Air adjust.tube R1/DR. | Na dotaz | Zadat poptávku | |
| 472 0 WHR97393 |
C00484313
481936069407 |
Burner crown A | Na dotaz | Zadat poptávku | |
| 472 1 WHR97393 |
C00480484
481936069408 |
Burner crown SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR97393 |
C00621559
481936069409 |
Burner crown R1 | Na dotaz | Zadat poptávku | |
| 472 3 WHR97393 |
C00598859
481936069644 |
Spreader,burner outer ring DR. | Na dotaz | Zadat poptávku | |
| 472 5 WHR97393 |
C00598858
481936069643 |
Spreader,burner inner ring DR. | Na dotaz | Zadat poptávku | |
| 473 0 WHR97393 |
C00373926
481936054040 |
Burner cap A/DR | Na dotaz | Zadat poptávku | |
| 473 1 WHR97393 |
C00621549
481936054041 |
Burner cap SR. | Na dotaz | Zadat poptávku | |
| 473 2 WHR97393 |
C00621550
481936054043 |
Burner cap R1. | Na dotaz | Zadat poptávku | |
| 474 0 WHR97393 |
C00482603
481231038374 |
Set of nozzles NG | Na dotaz | Zadat poptávku | |
| 474 0 WHR97393 |
C00482604
481231038375 |
Set of nozzles GB | Na dotaz | Zadat poptávku | |
| 490 0 WHR97393 |
C00598849
481932118303 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 491 0 WHR97393 |
C00597124
481929068361 |
Connection cl.. | Na dotaz | Zadat poptávku | |
| 491 1 WHR97393 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR97393 |
C00492289
481940118716 |
Strain relief | Na dotaz | Zadat poptávku | |
| 503 0 WHR97393 |
C00484245
481928218633 |
Clock | Na dotaz | Zadat poptávku | |
| 558 0 WHR97393 |
C00598376
481228238061 |
Thermostat gas. | Na dotaz | Zadat poptávku | |
| 558 2 WHR97393 |
C00582291
481940118719 |
Clamp thermostat bulb. | Na dotaz | Zadat poptávku | |
| 571 0 WHR97393 |
C00486475
481936058536 |
Gas cock 0.39 | Na dotaz | Zadat poptávku | |
| 571 1 WHR97393 |
C00621551
481936058534 |
Gas cock 0.29. | Na dotaz | Zadat poptávku | |
| 571 2 WHR97393 |
C00621553
481936058646 |
Gas cock 0.47. | Na dotaz | Zadat poptávku | |
| 571 3 WHR97393 |
C00486474
481936058535 |
Gas cock 0.27 | Na dotaz | Zadat poptávku | |
| 591 0 WHR97393 |
C00597109
481925268118 |
Spark plug 520 mm. | Na dotaz | Zadat poptávku | |
| 591 0 WHR97393 |
C00621532
481925268114 |
Spark plug 260 mm | Na dotaz | Zadat poptávku | |
| 591 0 WHR97393 |
C00598343
481213818003 |
Spark plug 800 mm. | Na dotaz | Zadat poptávku | |
| 591 9 WHR97393 |
C00373299
481949258122 |
Spring | Na dotaz | Zadat poptávku | |
| 592 0 WHR97393 |
C00582251
481913838103 |
Thermo couple grill burner. | Na dotaz | Zadat poptávku | |
| 592 1 WHR97393 |
C00598806
481913838115 |
Thermo couple oven 1250 mm | Na dotaz | Zadat poptávku | |
| 595 0 WHR97393 |
C00598342
481213818002 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 595 1 WHR97393 |
C00598470
481240448743 |
Support. | Na dotaz | Zadat poptávku | |
| 623 0 WHR97393 |
C00598363
481227138371 |
Switch ignition. | Na dotaz | Zadat poptávku | |
| 651 0 WHR97393 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR97393 |
C00598352
481225518237 |
Holder,lamp. | Na dotaz | Zadat poptávku | |
| 655 0 WHR97393 |
C00373668
481227138372 |
Switch light+turnspit | Na dotaz | Zadat poptávku | |
| 703 0 WHR97393 |
C00598791
481253048192 |
Gas pipe oven. | Na dotaz | Zadat poptávku | |
| 703 1 WHR97393 |
C00598793
481253048256 |
Gas pipe. | Na dotaz | Zadat poptávku | |
| 703 2 WHR97393 |
C00493754
481253048186 |
Burner tube R1/DR | Na dotaz | Zadat poptávku | |
| 703 3 WHR97393 |
C00621738
481253048187 |
Burner tube left SR. | Na dotaz | Zadat poptávku | |
| 703 4 WHR97393 |
C00493756
481253048191 |
Burner tube DR | Na dotaz | Zadat poptávku | |
| 703 5 WHR97393 |
C00598790
481253048188 |
Burner tube right SR. | Na dotaz | Zadat poptávku | |
| 703 6 WHR97393 |
C00493755
481253048189 |
Burner tube A | Na dotaz | Zadat poptávku | |
| 703 7 WHR97393 |
C00582409
481952648321 |
Gas connection NG G20. | Na dotaz | Zadat poptávku | |
| 703 8 WHR97393 |
C00621601
481953043052 |
Gas connection G30/31 | Na dotaz | Zadat poptávku | |
| 794 0 WHR97393 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.70 |
||
| 904 1 WHR97393 |
C00597256
481946698889 |
Spacer. | Na dotaz | Zadat poptávku | |
| 910 0 WHR97393 |
C00598785
481250238153 |
Screw. | Na dotaz | Zadat poptávku | |
| 914 0 WHR97393 |
C00597270
481950518309 |
Nut. | Na dotaz | Zadat poptávku | |
| 914 1 WHR97393 |
C00621596
481950518302 |
Threaded cap. | Na dotaz | Zadat poptávku | |
