| Komerční kód: | ACM 328/WH COOKERS WP |
| Kód 12NC/I.C. kód: | 857632815000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

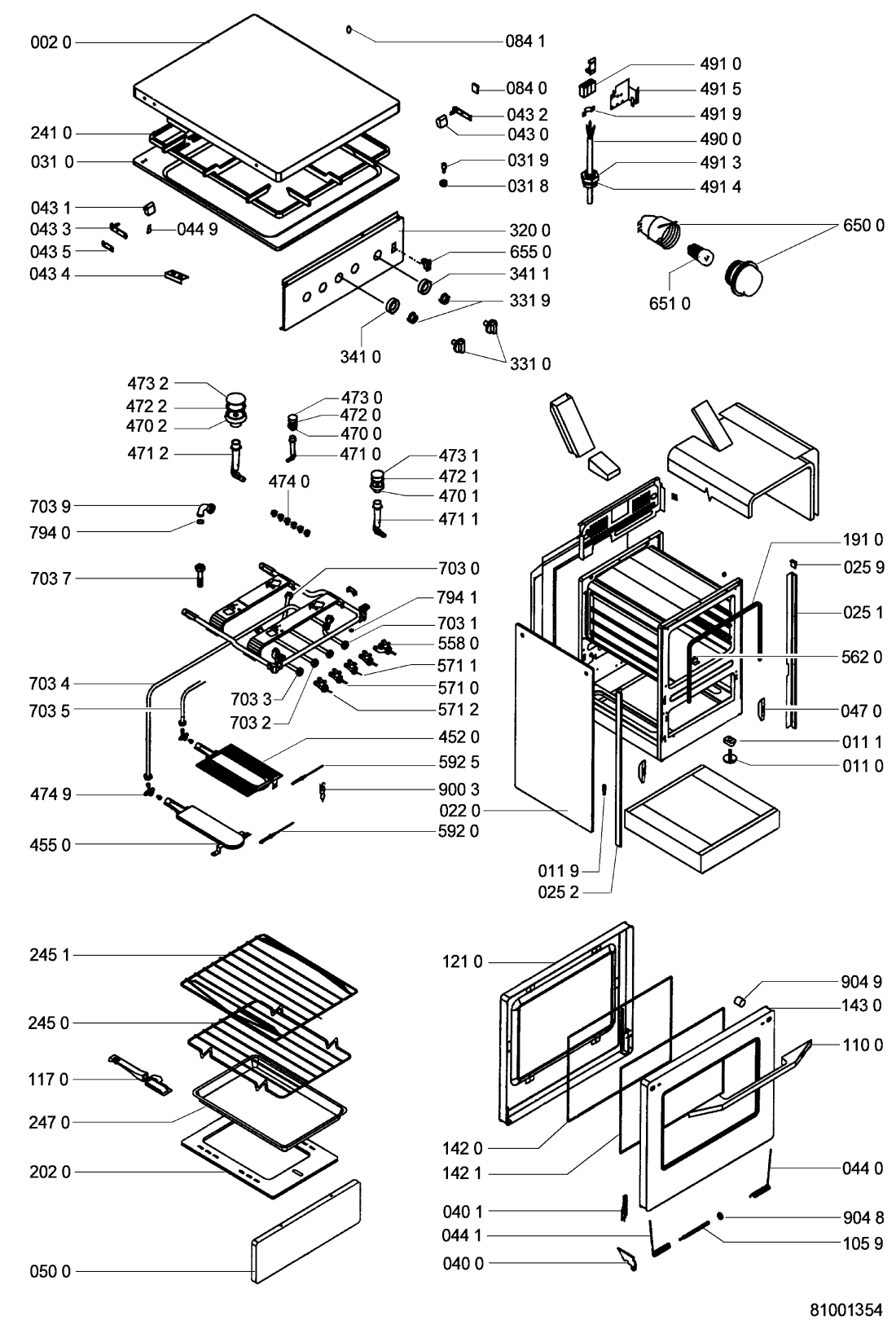

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR70529 |
C00582336
481944059564 |
Lid wh. | Na dotaz | Zadat poptávku | |
| 011 0 WHR70529 |
C00598910
481950518381 |
Nut. | Na dotaz | Zadat poptávku | |
| 011 1 WHR70529 |
C00598908
481950018149 |
Set screw M10 for plinth. | Na dotaz | Zadat poptávku | |
| 011 9 WHR70529 |
C00582403
481950218419 |
Screw. | Na dotaz | Zadat poptávku | |
| 022 0 WHR70529 |
C00582335
481944059562 |
Side panel. | Na dotaz | Zadat poptávku | |
| 025 1 WHR70529 |
C00582374
481946078105 |
Trim side right. | Na dotaz | Zadat poptávku | |
| 025 2 WHR70529 |
C00582373
481946078104 |
Trim side left. | Na dotaz | Zadat poptávku | |
| 025 9 WHR70529 |
C00598909
481950518379 |
Nut. | Na dotaz | Zadat poptávku | |
| 031 0 WHR70529 |
C00598826
481925998601 |
Hob gas. | Na dotaz | Zadat poptávku | |
| 031 8 WHR70529 |
C00598930
481953228238 |
Washer | Na dotaz | Zadat poptávku | |
| 031 9 WHR70529 |
C00492572
481950218373 |
Screw | Na dotaz | Zadat poptávku | |
| 040 0 WHR70529 |
C00532143
481953548003 |
Hook door door | Na dotaz | Zadat poptávku | |
| 040 1 WHR70529 |
C00486736
481946258134 |
Cover plate oven hinge | Na dotaz | Zadat poptávku | |
| 043 0 WHR70529 |
C00582316
481941719297 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 043 1 WHR70529 |
C00582315
481941719296 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 043 2 WHR70529 |
C00582379
481946258133 |
Cover hinge right. | Na dotaz | Zadat poptávku | |
| 043 3 WHR70529 |
C00582378
481946258132 |
Cover hinge left. | Na dotaz | Zadat poptávku | |
| 043 4 WHR70529 |
C00582422
481953228252 |
Washer. | Na dotaz | Zadat poptávku | |
| 043 5 WHR70529 |
C00582423
481953228253 |
Washer. | Na dotaz | Zadat poptávku | |
| 044 0 WHR70529 |
C00492530
481949248158 |
spring oven door right | Na dotaz | Zadat poptávku | |
| 044 1 WHR70529 |
C00556262
481949241122 |
Spring oven door left.. | Na dotaz | Zadat poptávku | |
| 044 9 WHR70529 |
C00582398
481949268667 |
Spring hinge lid. | Na dotaz | Zadat poptávku | |
| 047 0 WHR70529 |
C00598871
481941719472 |
HINGE. | Na dotaz | Zadat poptávku | |
| 050 0 WHR70529 |
C00598886
481944269037 |
Plinth. | Na dotaz | Zadat poptávku | |
| 084 0 WHR70529 |
C00582392
481946698776 |
Buffer lid. | Na dotaz | Zadat poptávku | |
| 084 1 WHR70529 |
C00598932
481953228254 |
Washer. | Na dotaz | Zadat poptávku | |
| 105 9 WHR70529 |
C00492713
481953598471 |
Pin | Na dotaz | Zadat poptávku | |
| 110 0 WHR70529 |
C00598907
481949878343 |
Handle,door. | Na dotaz | Zadat poptávku | |
| 117 0 WHR70529 |
C00317859
481939548003 |
Handle grid | 319 Kč
€ 13.10 |
||
| 121 0 WHR70529 |
C00582351
481944239435 |
Door frame inner. | Na dotaz | Zadat poptávku | |
| 142 0 WHR70529 |
C00582352
481945058434 |
Glass inner. | Na dotaz | Zadat poptávku | |
| 142 1 WHR70529 |
C00556686
481945058301 |
Door glass.. | Na dotaz | Zadat poptávku | |
| 143 0 WHR70529 |
C00582353
481945058436 |
Frame door glas. | Na dotaz | Zadat poptávku | |
| 191 0 WHR70529 |
C00621586
481946669942 |
Gasket oven. | Na dotaz | Zadat poptávku | |
| 202 0 WHR70529 |
C00492371
481944059561 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 241 0 WHR70529 |
C00598891
481945858425 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR70529 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 245 1 WHR70529 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 247 0 WHR70529 |
C00582538
481941838332 |
Fat pan | Na dotaz | Zadat poptávku | |
| 320 0 WHR70529 |
C00598890
481945358996 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
| 331 0 WHR70529 |
C00582304
481941129417 |
Knob. | Na dotaz | Zadat poptávku | |
| 331 9 WHR70529 |
C00598902
481949268829 |
Spring. | Na dotaz | Zadat poptávku | |
| 341 0 WHR70529 |
C00598868
481941379205 |
Indication disc gas hob. | Na dotaz | Zadat poptávku | |
| 341 1 WHR70529 |
C00598869
481941379212 |
Indication disc oven. | Na dotaz | Zadat poptávku | |
| 452 0 WHR70529 |
C00598857
481936069607 |
Burner grill. | Na dotaz | Zadat poptávku | |
| 455 0 WHR70529 |
C00621560
481936069471 |
Burner oven | Na dotaz | Zadat poptávku | |
| 470 0 WHR70529 |
C00598852
481936069385 |
Burner body small. | Na dotaz | Zadat poptávku | |
| 470 1 WHR70529 |
C00598853
481936069386 |
Burner body medium. | Na dotaz | Zadat poptávku | |
| 470 2 WHR70529 |
C00598854
481936069387 |
Burner body large. | Na dotaz | Zadat poptávku | |
| 471 0 WHR70529 |
C00598860
481936078332 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 471 1 WHR70529 |
C00492271
481936078333 |
INJECTOR HOLDER | Na dotaz | Zadat poptávku | |
| 471 2 WHR70529 |
C00598861
481936078334 |
INJECTOR HOLDER. | Na dotaz | Zadat poptávku | |
| 472 0 WHR70529 |
C00557418
481936069388 |
Spreader,burner small.. | Na dotaz | Zadat poptávku | |
| 472 1 WHR70529 |
C00598855
481936069389 |
Spreader,burner medium. | Na dotaz | Zadat poptávku | |
| 472 2 WHR70529 |
C00598856
481936069391 |
Spreader,burner large | Na dotaz | Zadat poptávku | |
| 473 0 WHR70529 |
C00373392
481936069392 |
Burner cap small | Na dotaz | Zadat poptávku | |
| 473 1 WHR70529 |
C00610513
481936069393 |
Burner cap medium. | Na dotaz | Zadat poptávku | |
| 473 2 WHR70529 |
C00622678
481936069394 |
Burner cap large | Na dotaz | Zadat poptávku | |
| 474 0 WHR70529 |
C00598845
481931039585 |
Set of nozzles G20/G25 | Na dotaz | Zadat poptávku | |
| 474 0 WHR70529 |
C00598846
481931039586 |
SET OF NOZZLES G30/G31. | Na dotaz | Zadat poptávku | |
| 474 9 WHR70529 |
C00582273
481936061377 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 490 0 WHR70529 |
C00598850
481932118324 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 491 0 WHR70529 |
C00598379
481229068169 |
CONNECTIONBLOCK. | Na dotaz | Zadat poptávku | |
| 491 3 WHR70529 |
C00598781
481250218406 |
SCREWED JOINT. | Na dotaz | Zadat poptávku | |
| 491 4 WHR70529 |
C00598780
481250218405 |
SCREWED JOINT. | Na dotaz | Zadat poptávku | |
| 491 5 WHR70529 |
C00531649
481940479428 |
Holder terminal block terminal block | Na dotaz | Zadat poptávku | |
| 491 9 WHR70529 |
C00598862
481940118846 |
Clip fix. | Na dotaz | Zadat poptávku | |
| 558 0 WHR70529 |
C00557083
481227128409 |
THERMOSTAT.. | Na dotaz | Zadat poptávku | |
| 562 0 WHR70529 |
C00598808
481925228129 |
Fuse. | Na dotaz | Zadat poptávku | |
| 571 0 WHR70529 |
C00598851
481936058752 |
Tap R. | Na dotaz | Zadat poptávku | |
| 571 1 WHR70529 |
C00556652
481936058751 |
Tap SR.. | Na dotaz | Zadat poptávku | |
| 571 2 WHR70529 |
C00556651
481936058745 |
Tap A.. | Na dotaz | Zadat poptávku | |
| 592 0 WHR70529 |
C00556631
481913838124 |
Thermo couple oven.. | Na dotaz | Zadat poptávku | |
| 592 5 WHR70529 |
C00556632
481913838125 |
Thermo couple grill.. | Na dotaz | Zadat poptávku | |
| 650 0 WHR70529 |
C00598818
481925518238 |
Holder lamp oven compl.. | Na dotaz | Zadat poptávku | |
| 651 0 WHR70529 |
C00555682
481913488175 |
Lamp E14 15W240V300C.. | Na dotaz | Zadat poptávku | |
| 655 0 WHR70529 |
C00597120
481927618275 |
Switch light. | Na dotaz | Zadat poptávku | |
| 703 0 WHR70529 |
C00598919
481953041101 |
Gas pipe rear right. | Na dotaz | Zadat poptávku | |
| 703 1 WHR70529 |
C00494710
481953041102 |
Gas pipe front right | Na dotaz | Zadat poptávku | |
| 703 2 WHR70529 |
C00598917
481953041099 |
Gas pipe rear left. | Na dotaz | Zadat poptávku | |
| 703 3 WHR70529 |
C00598914
481953041098 |
Gas pipe front left. | Na dotaz | Zadat poptávku | |
| 703 4 WHR70529 |
C00598922
481953048554 |
Gas pipe burner oven. | Na dotaz | Zadat poptávku | |
| 703 5 WHR70529 |
C00494712
481953048555 |
Gas pipe burner grill | Na dotaz | Zadat poptávku | |
| 703 7 WHR70529 |
C00598913
481952648496 |
COUPLING PIECE. | Na dotaz | Zadat poptávku | |
| 703 9 WHR70529 |
C00494673
481952648422 |
Coupling pipe | Na dotaz | Zadat poptávku | |
| 794 0 WHR70529 |
C00598928
481953058104 |
GASKET BORDER. | Na dotaz | Zadat poptávku | |
| 794 1 WHR70529 |
C00598423
481232568002 |
GASKET. | Na dotaz | Zadat poptávku | |
| 900 3 WHR70529 |
C00491993
481249248158 |
Spring | Na dotaz | Zadat poptávku | |
| 904 8 WHR70529 |
C00494768
481953228242 |
Washer spring | Na dotaz | Zadat poptávku | |
| 904 9 WHR70529 |
C00582430
481953268893 |
Spacer. | Na dotaz | Zadat poptávku | |
