| Komerční kód: | ACM 365/1 |
| Kód 12NC: | 857636519010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

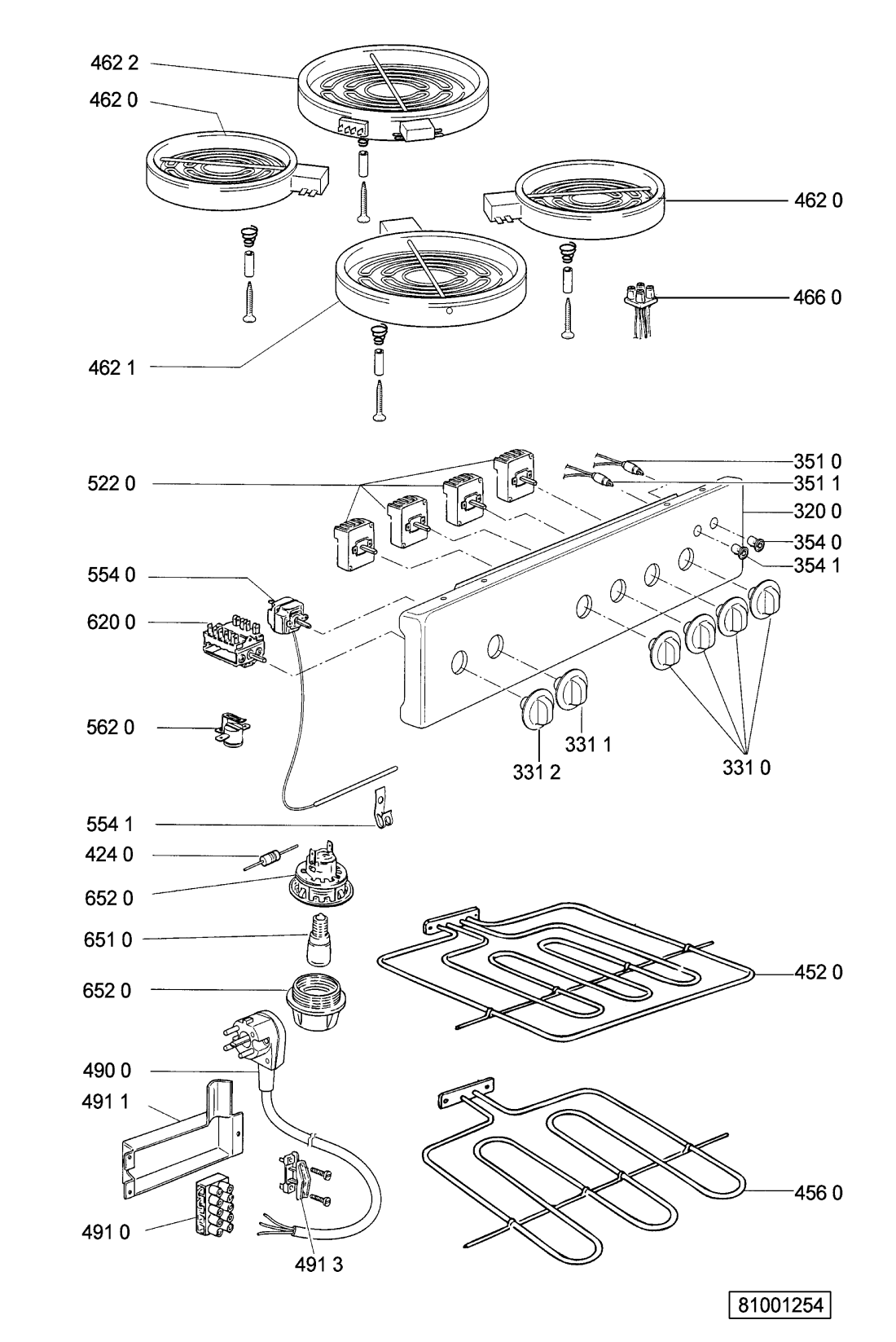

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR103362 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR103362 |
C00597189
481944059773 |
Panel front ,Drawer. | Na dotaz | Zadat poptávku | |
| 022 0 WHR103362 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR103362 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR103362 |
C00489169
481244038813 |
Hob | Na dotaz | Zadat poptávku | |
| 034 3 WHR103362 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
| 034 4 WHR103362 |
C00336218
481946689136 |
SPACER | Na dotaz | Zadat poptávku | |
| 040 0 WHR103362 |
C00500443
481241718822 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR103362 |
C00480937
481941719509 |
ZAVES | Na dotaz | Zadat poptávku | |
| 050 0 WHR103362 |
C00597197
481944238259 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 050 1 WHR103362 |
C00756100
481946288152 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 084 2 WHR103362 |
C00129135
481946818364 |
DRAIN SUPPORT ML45-I | Na dotaz | Zadat poptávku | |
| 084 3 WHR103362 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
| 111 0 WHR103362 |
C00499893
481949858582 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR103362 |
C00599453
481944239424 |
Door frame inner. | Na dotaz | Zadat poptávku | |
| 130 0 WHR103362 |
C00597283
481953538166 |
Child-prooflock oven door | Na dotaz | Zadat poptávku | |
| 130 2 WHR103362 |
C00490838
481953538165 |
Hook | Na dotaz | Zadat poptávku | |
| 130 5 WHR103362 |
C00488082
481941129668 |
Knob child security | Na dotaz | Zadat poptávku | |
| 141 0 WHR103362 |
C00599460
481945058431 |
Oven door ,front. | Na dotaz | Zadat poptávku | |
| 142 0 WHR103362 |
C00556072
481945058268 |
Inner glass.. | Na dotaz | Zadat poptávku | |
| 142 1 WHR103362 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR103362 |
C00494772
481953258274 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR103362 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR103362 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 142 5 WHR103362 |
C00556077
481945058424 |
Inner glass third glas.. | Na dotaz | Zadat poptávku | |
| 144 0 WHR103362 |
C00597237
481946078814 |
Trim door. | Na dotaz | Zadat poptávku | |
| 191 0 WHR103362 |
C00481208
481946669979 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 191 5 WHR103362 |
C00597259
481946818363 |
Gasket. | Na dotaz | Zadat poptávku | |
| 192 0 WHR103362 |
C00556210
481946669981 |
Gasket door.. | Na dotaz | Zadat poptávku | |
| 242 0 WHR103362 |
C00597181
481941838343 |
Drawer. | Na dotaz | Zadat poptávku | |
| 245 0 WHR103362 |
C00496490
481990704917 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR103362 |
C00597182
481941838383 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR103362 |
C00490617
481941838344 |
Fat pan | Na dotaz | Zadat poptávku | |
| 248 9 WHR103362 |
C00582377
481946248406 |
Cover. | Na dotaz | Zadat poptávku | |
| 261 0 WHR103362 |
C00597242
481946238859 |
Rail right. | Na dotaz | Zadat poptávku | |
| 261 0 WHR103362 |
C00596669
481940478715 |
Support oven shelf. | Na dotaz | Zadat poptávku | |
| 261 1 WHR103362 |
C00597244
481946238861 |
Rail left. | Na dotaz | Zadat poptávku | |
| 261 2 WHR103362 |
C00597240
481946238857 |
Rail. | Na dotaz | Zadat poptávku | |
| 261 3 WHR103362 |
C00597241
481946238858 |
Rail. | Na dotaz | Zadat poptávku | |
| 261 4 WHR103362 |
C00597157
481940479307 |
Support. | Na dotaz | Zadat poptávku | |
| 320 0 WHR103362 |
C00758384
481945358853 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR103362 |
C00756102
481941129681 |
Knob regulation 1C | Na dotaz | Zadat poptávku | |
| 331 1 WHR103362 |
C00488084
481941129675 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 331 2 WHR103362 |
C00758378
481941129676 |
Knob oven switch | Na dotaz | Zadat poptávku | |
| 351 0 WHR103362 |
C00621525
481913448483 |
Pilot lamp 600 mm | Na dotaz | Zadat poptávku | |
| 351 1 WHR103362 |
C00621526
481913448484 |
Pilot lamp 230 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR103362 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR103362 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 424 0 WHR103362 |
C00621980
481911248029 |
Resistor oven lamp | Na dotaz | Zadat poptávku | |
| 452 0 WHR103362 |
C00490340
481925928979 |
Heating element upper with grill 400 V | Na dotaz | Zadat poptávku | |
| 456 0 WHR103362 |
C00481293
481925928899 |
Heating element lower 400 V | Na dotaz | Zadat poptávku | |
| 462 0 WHR103362 |
C00500382
481925998486 |
Cooking plate 145 1200W 400V | Na dotaz | Zadat poptávku | |
| 462 1 WHR103362 |
C00599375
481925998645 |
Cooking plate d=210 - 2100 W. | Na dotaz | Zadat poptávku | |
| 462 2 WHR103362 |
C00597113
481925998487 |
Cooking plate 180 1800W 400V. | Na dotaz | Zadat poptávku | |
| 466 0 WHR103362 |
C00500284
481913448487 |
Residual indic. | Na dotaz | Zadat poptávku | |
| 490 0 WHR103362 |
C00599381
481932118335 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 491 0 WHR103362 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR103362 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR103362 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 522 0 WHR103362 |
C00494303
481927328437 |
Energy Regulat. 1C. 400 V | Na dotaz | Zadat poptávku | |
| 554 0 WHR103362 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 96.10 |
||
| 554 1 WHR103362 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR103362 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR103362 |
C00599378
481927328493 |
Switch,oven. | Na dotaz | Zadat poptávku | |
| 651 0 WHR103362 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR103362 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 743 0 WHR103362 |
C00599486
481953048838 |
Conveyor. | Na dotaz | Zadat poptávku | |
| 904 0 WHR103362 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 921 0 WHR103362 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
