| Komerční kód: | ACM 376 N COOKERS WP |
| Kód 12NC/I.C. kód: | 857637632000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

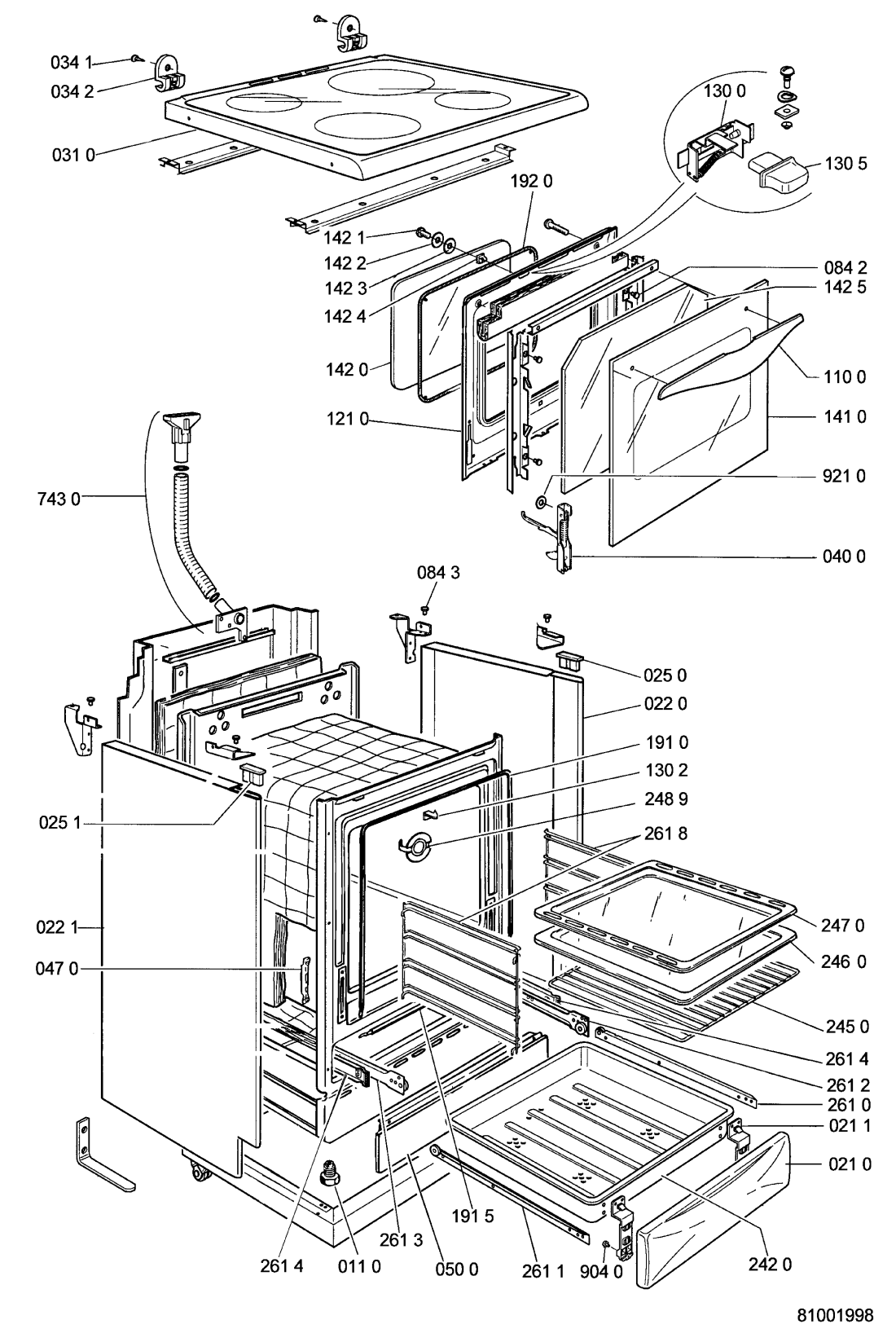

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR70534 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR70534 |
C00599286
481245359409 |
Front panel drawer. | Na dotaz | Zadat poptávku | |
| 021 1 WHR70534 |
C00484760
481240418164 |
Drawer fixing bracket | Na dotaz | Zadat poptávku | |
| 022 0 WHR70534 |
C00491705
481244010453 |
Panel right side | Na dotaz | Zadat poptávku | |
| 022 1 WHR70534 |
C00491704
481244010452 |
Panel left side | Na dotaz | Zadat poptávku | |
| 025 0 WHR70534 |
C00492453
481946279657 |
Cap right | Na dotaz | Zadat poptávku | |
| 025 1 WHR70534 |
C00492454
481946279658 |
Cap left | Na dotaz | Zadat poptávku | |
| 031 0 WHR70534 |
C00489169
481244038813 |
Hob | Na dotaz | Zadat poptávku | |
| 034 1 WHR70534 |
C00492027
481250218517 |
Screw | Na dotaz | Zadat poptávku | |
| 034 2 WHR70534 |
C00492104
481253258017 |
Spacer rear | Na dotaz | Zadat poptávku | |
| 040 0 WHR70534 |
C00500443
481241718822 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR70534 |
C00480937
481941719509 |
ZAVES | Na dotaz | Zadat poptávku | |
| 050 0 WHR70534 |
C00597197
481944238259 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 084 2 WHR70534 |
C00129135
481946818364 |
DRAIN SUPPORT ML45-I | Na dotaz | Zadat poptávku | |
| 084 3 WHR70534 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
| 110 0 WHR70534 |
C00598776
481249858191 |
Door handle. | Na dotaz | Zadat poptávku | |
| 121 0 WHR70534 |
C00599453
481944239424 |
Door frame inner. | Na dotaz | Zadat poptávku | |
| 130 0 WHR70534 |
C00597283
481953538166 |
Child-prooflock oven door | Na dotaz | Zadat poptávku | |
| 130 2 WHR70534 |
C00490838
481953538165 |
Hook | Na dotaz | Zadat poptávku | |
| 130 5 WHR70534 |
C00488082
481941129668 |
Knob child security | Na dotaz | Zadat poptávku | |
| 141 0 WHR70534 |
C00599255
481245058563 |
Door glass. | Na dotaz | Zadat poptávku | |
| 142 0 WHR70534 |
C00599266
481245068273 |
Oven glass inner. | Na dotaz | Zadat poptávku | |
| 142 1 WHR70534 |
C00492028
481250218528 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR70534 |
C00494772
481953258274 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR70534 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR70534 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 142 5 WHR70534 |
C00487593
481245058468 |
Inner glass third glass | Na dotaz | Zadat poptávku | |
| 191 0 WHR70534 |
C00481208
481946669979 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 191 5 WHR70534 |
C00597259
481946818363 |
Gasket. | Na dotaz | Zadat poptávku | |
| 192 0 WHR70534 |
C00481282
481246668653 |
Gasket inner door/glass | Na dotaz | Zadat poptávku | |
| 242 0 WHR70534 |
C00599192
481241879749 |
Drawer. | Na dotaz | Zadat poptávku | |
| 245 0 WHR70534 |
C00496490
481990704917 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR70534 |
C00597182
481941838383 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR70534 |
C00490617
481941838344 |
Fat pan | Na dotaz | Zadat poptávku | |
| 248 9 WHR70534 |
C00582221
481246279785 |
Plug rotisserie hole plug. | Na dotaz | Zadat poptávku | |
| 261 0 WHR70534 |
C00597242
481946238859 |
Rail right. | Na dotaz | Zadat poptávku | |
| 261 1 WHR70534 |
C00597244
481946238861 |
Rail left. | Na dotaz | Zadat poptávku | |
| 261 2 WHR70534 |
C00597240
481946238857 |
Rail. | Na dotaz | Zadat poptávku | |
| 261 3 WHR70534 |
C00597241
481946238858 |
Rail. | Na dotaz | Zadat poptávku | |
| 261 4 WHR70534 |
C00597157
481940479307 |
Support. | Na dotaz | Zadat poptávku | |
| 261 8 WHR70534 |
C00596669
481940478715 |
Support oven shelf. | Na dotaz | Zadat poptávku | |
| 320 0 WHR70534 |
C00599287
481245359411 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR70534 |
C00598480
481241128785 |
Knob oven switch. | Na dotaz | Zadat poptávku | |
| 331 1 WHR70534 |
C00598478
481241128741 |
Knob oven thermostat. | Na dotaz | Zadat poptávku | |
| 334 6 WHR70534 |
C00487118
481241128781 |
Knob energy regulator 1-12 | Na dotaz | Zadat poptávku | |
| 351 0 WHR70534 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR70534 |
C00488698
481238118271 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR70534 |
C00610502
481246279786 |
Lens orange. | Na dotaz | Zadat poptávku | |
| 452 0 WHR70534 |
C00598819
481925928811 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR70534 |
C00481291
481925928812 |
OHRIEVACIE TELESO | Na dotaz | Zadat poptávku | |
| 462 0 WHR70534 |
C00597114
481925998524 |
Cooking plate 145mm radiant 1200W. | Na dotaz | Zadat poptávku | |
| 462 1 WHR70534 |
C00555767
481925998616 |
NAHRADENE 481225998319 | Na dotaz | Zadat poptávku | |
| 462 2 WHR70534 |
C00531273
481925998453 |
Cooking plate 210mm 21 210mm 2100 W | Na dotaz | Zadat poptávku | |
| 466 0 WHR70534 |
C00500283
481913448458 |
Pilot lamp residual heat | Na dotaz | Zadat poptávku | |
| 490 0 WHR70534 |
C00599382
481932118336 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 491 0 WHR70534 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR70534 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR70534 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 522 0 WHR70534 |
C00481295
481927328385 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 554 0 WHR70534 |
C00335484
481927128855 |
termostat | Na dotaz | Zadat poptávku | |
| 554 1 WHR70534 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR70534 |
C00597117
481927129102 |
Thermostat cut-off. | Na dotaz | Zadat poptávku | |
| 620 0 WHR70534 |
C00599378
481927328493 |
Switch,oven. | Na dotaz | Zadat poptávku | |
| 651 0 WHR70534 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR70534 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 743 0 WHR70534 |
C00493763
481253048357 |
Pipe steam exhaust | Na dotaz | Zadat poptávku | |
| 904 0 WHR70534 |
C00319513
481246258054 |
Buffer | Na dotaz | Zadat poptávku | |
| 921 0 WHR70534 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
