WHIRLPOOL ACM 504 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACM 504 WH |
| Kód 12NC: | 857650429000 |
| Značka: | WHIRLPOOL |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

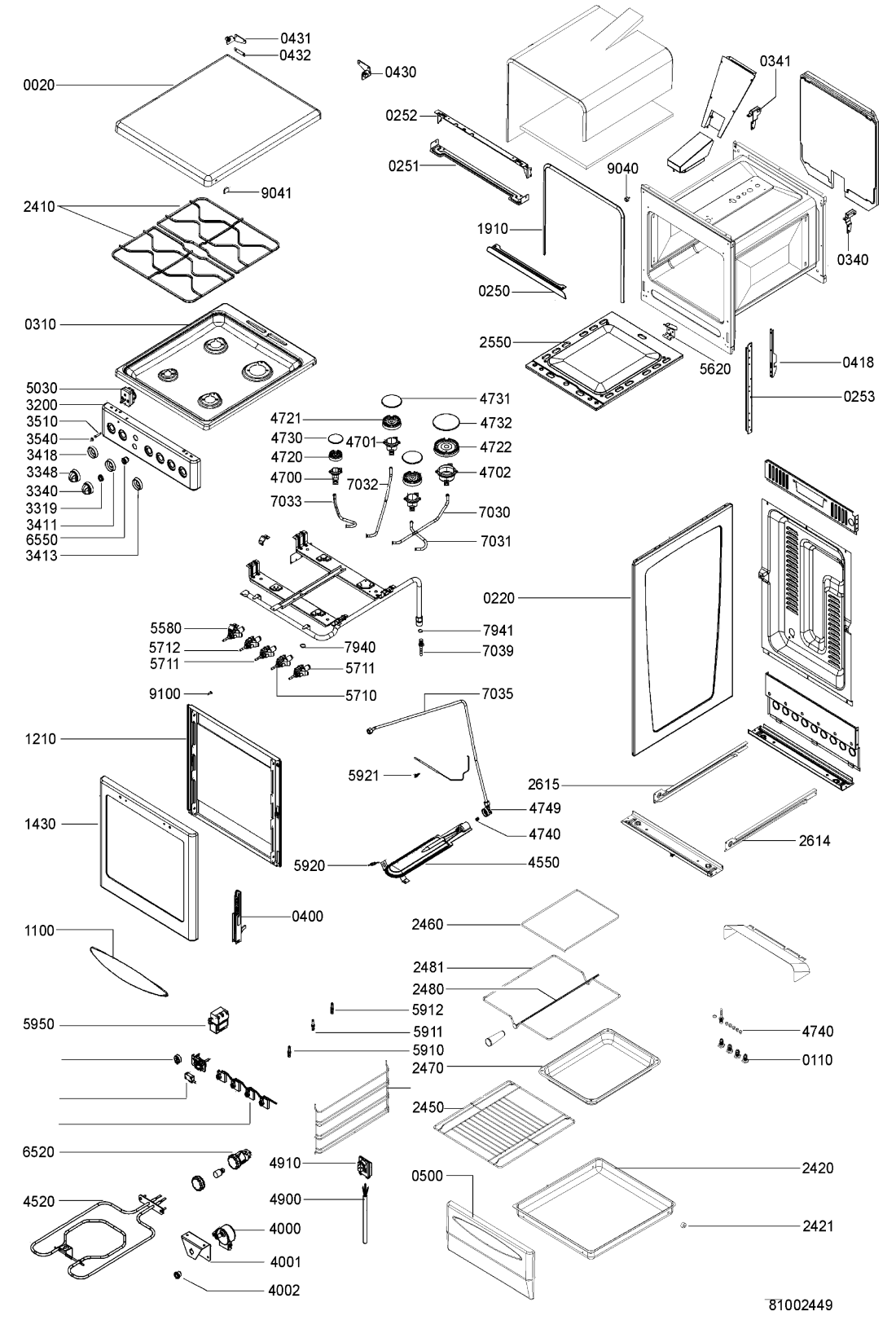

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR115129 |
C00582181
481244058249 |
Lid. | Na dotaz | Zadat poptávku | |
| 011 0 WHR115129 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 022 0 WHR115129 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
| 025 0 WHR115129 |
C00484773
481240478329 |
Trim cover | Na dotaz | Zadat poptávku | |
| 025 1 WHR115129 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR115129 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
| 025 3 WHR115129 |
C00484778
481240478493 |
Trim side | Na dotaz | Zadat poptávku | |
| 031 0 WHR115129 |
C00488534
481225998373 |
Hob cooktop | Na dotaz | Zadat poptávku | |
| 034 0 WHR115129 |
C00377657
481241719052 |
Hinge hob right | Na dotaz | Zadat poptávku | |
| 034 1 WHR115129 |
C00488955
481241719053 |
Hinge hob left | Na dotaz | Zadat poptávku | |
| 040 0 WHR115129 |
C00530018
481253548023 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 041 8 WHR115129 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
| 043 0 WHR115129 |
C00488957
481241719056 |
Hinge lid right | Na dotaz | Zadat poptávku | |
| 043 1 WHR115129 |
C00488958
481241719057 |
Hinge lid left | Na dotaz | Zadat poptávku | |
| 043 2 WHR115129 |
C00582242
481253228935 |
Washer hinge. | Na dotaz | Zadat poptávku | |
| 050 0 WHR115129 |
C00489330
481244269192 |
Plinth | Na dotaz | Zadat poptávku | |
| 110 0 WHR115129 |
C00599334
481246268085 |
Handle oven door. | Na dotaz | Zadat poptávku | |
| 121 0 WHR115129 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 143 0 WHR115129 |
C00528273
481245058594 |
Door inner oven | Na dotaz | Zadat poptávku | |
| 191 0 WHR115129 |
C00377819
481246668715 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 241 0 WHR115129 |
C00529551
481245858244 |
Grid hob hob | Na dotaz | Zadat poptávku | |
| 242 0 WHR115129 |
C00548544
481244269193 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 1 WHR115129 |
C00485205
481244269194 |
Drawer roller | Na dotaz | Zadat poptávku | |
| 245 0 WHR115129 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR115129 |
C00489060
481241838069 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR115129 |
C00582538
481941838332 |
Fat pan | Na dotaz | Zadat poptávku | |
| 248 0 WHR115129 |
C00496169
481231088363 |
Turn spit set | Na dotaz | Zadat poptávku | |
| 248 1 WHR115129 |
C00582145
481240478496 |
Turn spit Bracket | Na dotaz | Zadat poptávku | |
| 255 0 WHR115129 |
C00492371
481944059561 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 261 0 WHR115129 |
C00548555
481246238123 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 261 4 WHR115129 |
C00486024
481246238124 |
Rail pilot bar right | Na dotaz | Zadat poptávku | |
| 261 5 WHR115129 |
C00582217
481246238125 |
Rail pilot bar left. | Na dotaz | Zadat poptávku | |
| 320 0 WHR115129 |
C00758640
481245350128 |
Control panel WH | Na dotaz | Zadat poptávku | |
| 331 9 WHR115129 |
C00377834
481249268169 |
Spring | Na dotaz | Zadat poptávku | |
| 334 0 WHR115129 |
C00377616
481241128811 |
knoflik ovladaci | 122 Kč
€ 5.40 |
||
| 334 8 WHR115129 |
C00380472
481241128809 |
Knob control | Na dotaz | Zadat poptávku | |
| 341 1 WHR115129 |
C00377636
481241378675 |
krouzek termostatu | 100 Kč
€ 4.40 |
||
| 341 3 WHR115129 |
C00377635
481241378674 |
krouzek horaku | 111 Kč
€ 4.90 |
||
| 341 8 WHR115129 |
C00758641
481241378677 |
Collar timer | Na dotaz | Zadat poptávku | |
| 351 0 WHR115129 |
C00599045
481225518258 |
Lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR115129 |
C00582089
481225518214 |
Holder lamp pilot lamp red | Na dotaz | Zadat poptávku | |
| 400 0 WHR115129 |
C00491450
481236118288 |
Motor turnspit | Na dotaz | Zadat poptávku | |
| 400 1 WHR115129 |
C00582146
481240478497 |
Bracket motor | Na dotaz | Zadat poptávku | |
| 400 2 WHR115129 |
C00582147
481240478498 |
Turn spit guide. | Na dotaz | Zadat poptávku | |
| 452 0 WHR115129 |
C00488499
481225928816 |
Heating element grill | Na dotaz | Zadat poptávku | |
| 455 0 WHR115129 |
C00482757
481236068409 |
Burner oven | Na dotaz | Zadat poptávku | |
| 470 0 WHR115129 |
C00482756
481236068399 |
Burner cup small | Na dotaz | Zadat poptávku | |
| 470 1 WHR115129 |
C00582117
481236068403 |
Burner cup medium | Na dotaz | Zadat poptávku | |
| 470 2 WHR115129 |
C00582118
481236068406 |
Burner cup large | Na dotaz | Zadat poptávku | |
| 472 0 WHR115129 |
C00493253
481236068401 |
Distributor AUX | Na dotaz | Zadat poptávku | |
| 472 1 WHR115129 |
C00493254
481236068404 |
Distributor SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR115129 |
C00377582
481236068407 |
Distributor R | Na dotaz | Zadat poptávku | |
| 473 0 WHR115129 |
C00527427
481236068402 |
Burner cap small cap small | Na dotaz | Zadat poptávku | |
| 473 1 WHR115129 |
C00482804
481236078112 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR115129 |
C00582119
481236068408 |
Burner cap large. | Na dotaz | Zadat poptávku | |
| 474 0 WHR115129 |
C00482621
481231038611 |
Set of nozzles LPG G30/G31 | Na dotaz | Zadat poptávku | |
| 474 0 WHR115129 |
C00484301
481936061405 |
Nozzle 1.3 oven | Na dotaz | Zadat poptávku | |
| 474 0 WHR115129 |
C00582106
481231038651 |
Set of nozzles kit, NAT G 20/25. | Na dotaz | Zadat poptávku | |
| 474 9 WHR115129 |
C00582273
481936061377 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 490 0 WHR115129 |
C00493166
481232118254 |
Cable mains | Na dotaz | Zadat poptávku | |
| 491 0 WHR115129 |
C00582140
481240118572 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 503 0 WHR115129 |
C00492971
481228219221 |
Timer mechanical | Na dotaz | Zadat poptávku | |
| 558 0 WHR115129 |
C00491016
481227128497 |
Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR115129 |
C00486882
481953041097 |
Fuse | Na dotaz | Zadat poptávku | |
| 571 0 WHR115129 |
C00484727
481236058282 |
Tap R | Na dotaz | Zadat poptávku | |
| 571 1 WHR115129 |
C00484726
481236058281 |
Tap SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR115129 |
C00582113
481236058279 |
Tap AUX. | Na dotaz | Zadat poptávku | |
| 591 0 WHR115129 |
C00599044
481225268043 |
Spark plug L=190 | Na dotaz | Zadat poptávku | |
| 591 1 WHR115129 |
C00377485
481225268044 |
Spark plug L=320 | Na dotaz | Zadat poptávku | |
| 591 2 WHR115129 |
C00484642
481225268045 |
Spark plug L=240 | Na dotaz | Zadat poptávku | |
| 592 0 WHR115129 |
C00481058
481236068398 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 592 1 WHR115129 |
C00491993
481249248158 |
Spring | Na dotaz | Zadat poptávku | |
| 594 0 WHR115129 |
C00599112
481236068413 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 595 0 WHR115129 |
C00377400
481214238001 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 620 0 WHR115129 |
C00491099
481227618387 |
Switch grill | Na dotaz | Zadat poptávku | |
| 620 1 WHR115129 |
C00500757
481227618388 |
Switch cam | Na dotaz | Zadat poptávku | |
| 652 0 WHR115129 |
C00582091
481225518245 |
Lamp. | Na dotaz | Zadat poptávku | |
| 655 0 WHR115129 |
C00377509
481227328213 |
Switch | Na dotaz | Zadat poptávku | |
| 703 0 WHR115129 |
C00582235
481253048391 |
Pipe PB | Na dotaz | Zadat poptávku | |
| 703 1 WHR115129 |
C00493767
481253048389 |
Pipe PF | Na dotaz | Zadat poptávku | |
| 703 2 WHR115129 |
C00493766
481253048388 |
Pipe LB | Na dotaz | Zadat poptávku | |
| 703 3 WHR115129 |
C00493765
481253048387 |
Pipe LF | Na dotaz | Zadat poptávku | |
| 703 5 WHR115129 |
C00493768
481253048392 |
Pipe oven feeder | Na dotaz | Zadat poptávku | |
| 703 9 WHR115129 |
C00492602
481952648418 |
Holder hose for town u.natural gas | Na dotaz | Zadat poptávku | |
| 794 0 WHR115129 |
C00486890
481953268755 |
Gasket | Na dotaz | Zadat poptávku | |
| 794 1 WHR115129 |
C00500914
481250218433 |
Connector hose push on LP | Na dotaz | Zadat poptávku | |
| 904 0 WHR115129 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
| 904 1 WHR115129 |
C00491966
481246698998 |
Spacer | Na dotaz | Zadat poptávku | |
| 910 0 WHR115129 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku | |
