| Komerční kód: | ACM 542 WH COOKERS WP |
| Kód 12NC/I.C. kód: | 857654249000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

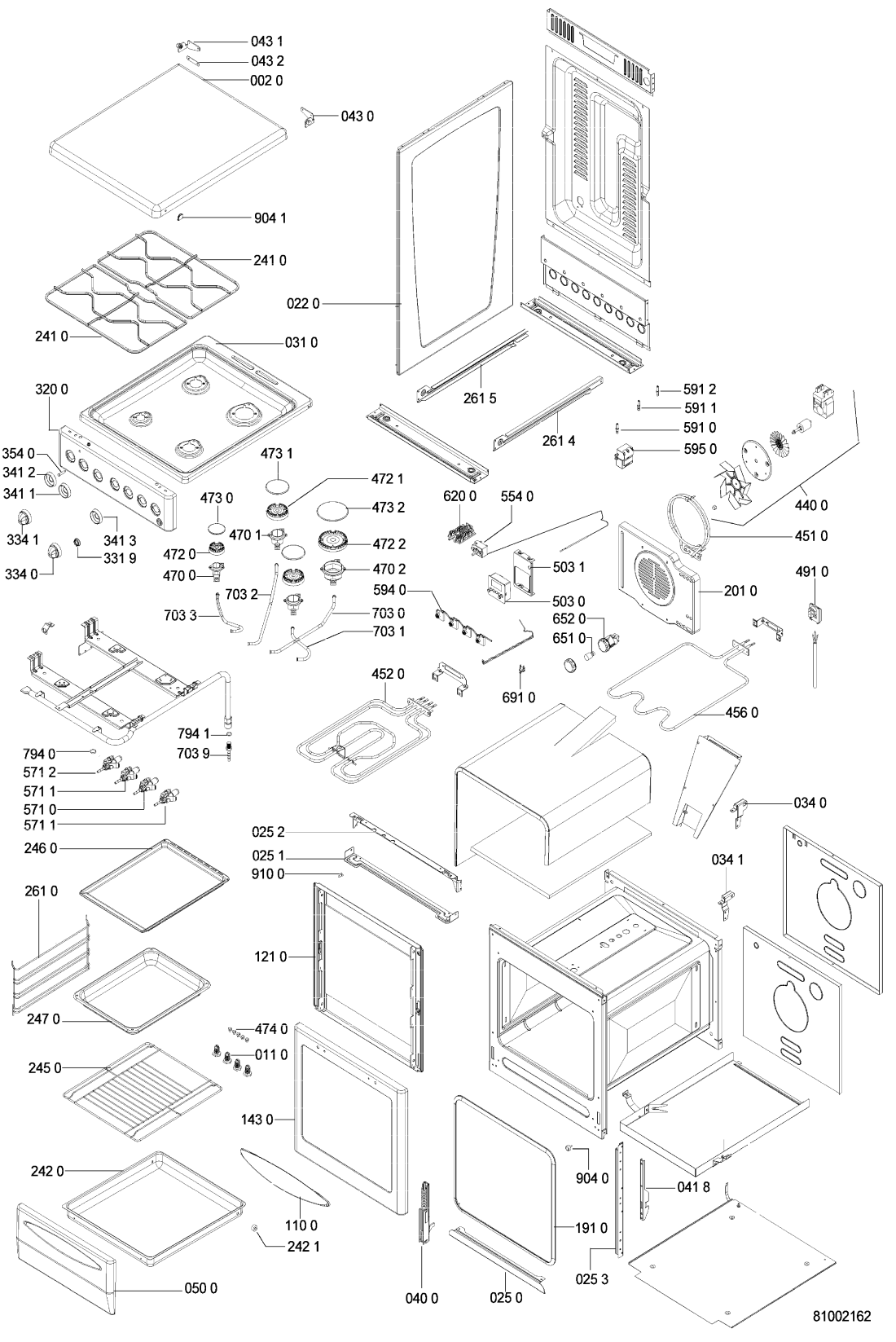

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR75976 |
C00582181
481244058249 |
Lid. | Na dotaz | Zadat poptávku | |
| 011 0 WHR75976 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 022 0 WHR75976 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
| 025 0 WHR75976 |
C00484773
481240478329 |
Trim cover | Na dotaz | Zadat poptávku | |
| 025 1 WHR75976 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR75976 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
| 025 3 WHR75976 |
C00484778
481240478493 |
Trim side | Na dotaz | Zadat poptávku | |
| 031 0 WHR75976 |
C00553339
481225998385 |
Hob cookplate | Na dotaz | Zadat poptávku | |
| 034 0 WHR75976 |
C00377657
481241719052 |
Hinge hob right | Na dotaz | Zadat poptávku | |
| 034 1 WHR75976 |
C00488955
481241719053 |
Hinge hob left | Na dotaz | Zadat poptávku | |
| 040 0 WHR75976 |
C00582243
481253548018 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
| 041 8 WHR75976 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
| 043 0 WHR75976 |
C00488957
481241719056 |
Hinge lid right | Na dotaz | Zadat poptávku | |
| 043 1 WHR75976 |
C00488958
481241719057 |
Hinge lid left | Na dotaz | Zadat poptávku | |
| 043 2 WHR75976 |
C00582242
481253228935 |
Washer hinge. | Na dotaz | Zadat poptávku | |
| 050 0 WHR75976 |
C00489330
481244269192 |
Plinth | Na dotaz | Zadat poptávku | |
| 110 0 WHR75976 |
C00599334
481246268085 |
Handle oven door. | Na dotaz | Zadat poptávku | |
| 121 0 WHR75976 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 143 0 WHR75976 |
C00599257
481245058588 |
Door inner oven | Na dotaz | Zadat poptávku | |
| 191 0 WHR75976 |
C00621448
481246668716 |
Gasket oven door. | Na dotaz | Zadat poptávku | |
| 201 0 WHR75976 |
C00599245
481244528017 |
Fan distributing cover. | Na dotaz | Zadat poptávku | |
| 241 0 WHR75976 |
C00529551
481245858244 |
Grid hob hob | Na dotaz | Zadat poptávku | |
| 242 0 WHR75976 |
C00548544
481244269193 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 1 WHR75976 |
C00485205
481244269194 |
Drawer roller | Na dotaz | Zadat poptávku | |
| 245 0 WHR75976 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR75976 |
C00597185
481941838415 |
Baking tray. | Na dotaz | Zadat poptávku | |
| 247 0 WHR75976 |
C00582538
481941838332 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR75976 |
C00548555
481246238123 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 261 4 WHR75976 |
C00486024
481246238124 |
Rail pilot bar right | Na dotaz | Zadat poptávku | |
| 261 5 WHR75976 |
C00582217
481246238125 |
Rail pilot bar left. | Na dotaz | Zadat poptávku | |
| 320 0 WHR75976 |
C00599299
481245359526 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 9 WHR75976 |
C00377834
481249268169 |
Spring | Na dotaz | Zadat poptávku | |
| 334 0 WHR75976 |
C00377616
481241128811 |
knoflik ovladaci | Na dotaz | Zadat poptávku | |
| 334 1 WHR75976 |
C00380472
481241128809 |
Knob control | Na dotaz | Zadat poptávku | |
| 341 1 WHR75976 |
C00599176
481241378672 |
Collar thermostat. | Na dotaz | Zadat poptávku | |
| 341 2 WHR75976 |
C00599182
481241378685 |
Collar electric oven. | Na dotaz | Zadat poptávku | |
| 341 3 WHR75976 |
C00377635
481241378674 |
krouzek horaku | Na dotaz | Zadat poptávku | |
| 354 0 WHR75976 |
C00582089
481225518214 |
Holder lamp pilot lamp red | Na dotaz | Zadat poptávku | |
| 440 0 WHR75976 |
C00556776
481236158345 |
Fan motor complete.. | Na dotaz | Zadat poptávku | |
| 451 0 WHR75976 |
C00599047
481225928821 |
Heating element circular 2000W 230V. | Na dotaz | Zadat poptávku | |
| 452 0 WHR75976 |
C00318916
481225928817 |
Heating element upper+grill 750/1850 W | Na dotaz | Zadat poptávku | |
| 456 0 WHR75976 |
C00582050
481225928818 |
Heating element lower lower 1100W 230V. | Na dotaz | Zadat poptávku | |
| 470 0 WHR75976 |
C00482756
481236068399 |
Burner cup small | Na dotaz | Zadat poptávku | |
| 470 1 WHR75976 |
C00582117
481236068403 |
Burner cup medium | Na dotaz | Zadat poptávku | |
| 470 2 WHR75976 |
C00582118
481236068406 |
Burner cup large | Na dotaz | Zadat poptávku | |
| 472 0 WHR75976 |
C00493253
481236068401 |
Distributor AUX | Na dotaz | Zadat poptávku | |
| 472 1 WHR75976 |
C00493254
481236068404 |
Distributor SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR75976 |
C00377582
481236068407 |
Distributor R | Na dotaz | Zadat poptávku | |
| 473 0 WHR75976 |
C00527427
481236068402 |
Burner cap small cap small | Na dotaz | Zadat poptávku | |
| 473 1 WHR75976 |
C00553393
481236068405 |
Burner cap medium | Na dotaz | Zadat poptávku | |
| 473 2 WHR75976 |
C00582119
481236068408 |
Burner cap large. | Na dotaz | Zadat poptávku | |
| 474 0 WHR75976 |
C00599086
481231058112 |
Nozzle set GZ 35. | Na dotaz | Zadat poptávku | |
| 474 0 WHR75976 |
C00599087
481231058113 |
Nozzle set GZ 41. | Na dotaz | Zadat poptávku | |
| 474 0 WHR75976 |
C00599088
481231058114 |
Nozzle set Butan. | Na dotaz | Zadat poptávku | |
| 491 0 WHR75976 |
C00582140
481240118572 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 503 0 WHR75976 |
C00599071
481228219255 |
Timer. | Na dotaz | Zadat poptávku | |
| 503 1 WHR75976 |
C00599072
481228219256 |
Timer holder. | Na dotaz | Zadat poptávku | |
| 554 0 WHR75976 |
C00527095
481228238096 |
Thermostat 240V AC/16A 240V AC/16A 290° | Na dotaz | Zadat poptávku | |
| 571 0 WHR75976 |
C00527386
481236058295 |
Tap gas large 0,37 gas large 0,37 | Na dotaz | Zadat poptávku | |
| 571 1 WHR75976 |
C00599098
481236058287 |
Tap gas medium 0,30. | Na dotaz | Zadat poptávku | |
| 571 2 WHR75976 |
C00599097
481236058284 |
Tap gas small. | Na dotaz | Zadat poptávku | |
| 591 0 WHR75976 |
C00599044
481225268043 |
Spark plug L=190 | Na dotaz | Zadat poptávku | |
| 591 1 WHR75976 |
C00377485
481225268044 |
Spark plug L=320 | Na dotaz | Zadat poptávku | |
| 591 2 WHR75976 |
C00484642
481225268045 |
Spark plug L=240 | Na dotaz | Zadat poptávku | |
| 594 0 WHR75976 |
C00599067
481227618392 |
Switch ignition. | Na dotaz | Zadat poptávku | |
| 595 0 WHR75976 |
C00377400
481214238001 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 620 0 WHR75976 |
C00599066
481227618391 |
Switch oven rotary. | Na dotaz | Zadat poptávku | |
| 651 0 WHR75976 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR75976 |
C00582091
481225518245 |
Lamp. | Na dotaz | Zadat poptávku | |
| 691 0 WHR75976 |
C00599055
481227128499 |
Sensor limiter assy.. | Na dotaz | Zadat poptávku | |
| 703 0 WHR75976 |
C00582235
481253048391 |
Pipe PB | Na dotaz | Zadat poptávku | |
| 703 1 WHR75976 |
C00493767
481253048389 |
Pipe PF | Na dotaz | Zadat poptávku | |
| 703 2 WHR75976 |
C00493766
481253048388 |
Pipe LB | Na dotaz | Zadat poptávku | |
| 703 3 WHR75976 |
C00493765
481253048387 |
Pipe LF | Na dotaz | Zadat poptávku | |
| 703 9 WHR75976 |
C00557591
481952648419 |
Holder,hose for bottle.. | Na dotaz | Zadat poptávku | |
| 794 0 WHR75976 |
C00556620
481250218571 |
Seal.. | Na dotaz | Zadat poptávku | |
| 794 1 WHR75976 |
C00500914
481250218433 |
Connector hose push on LP | Na dotaz | Zadat poptávku | |
| 904 0 WHR75976 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
| 904 1 WHR75976 |
C00491966
481246698998 |
Spacer | Na dotaz | Zadat poptávku | |
| 910 0 WHR75976 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku | |
