WHIRLPOOL ACM 542/WH/02
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACM 542/WH/02 |
| Kód 12NC/I.C. kód: | 857654284000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

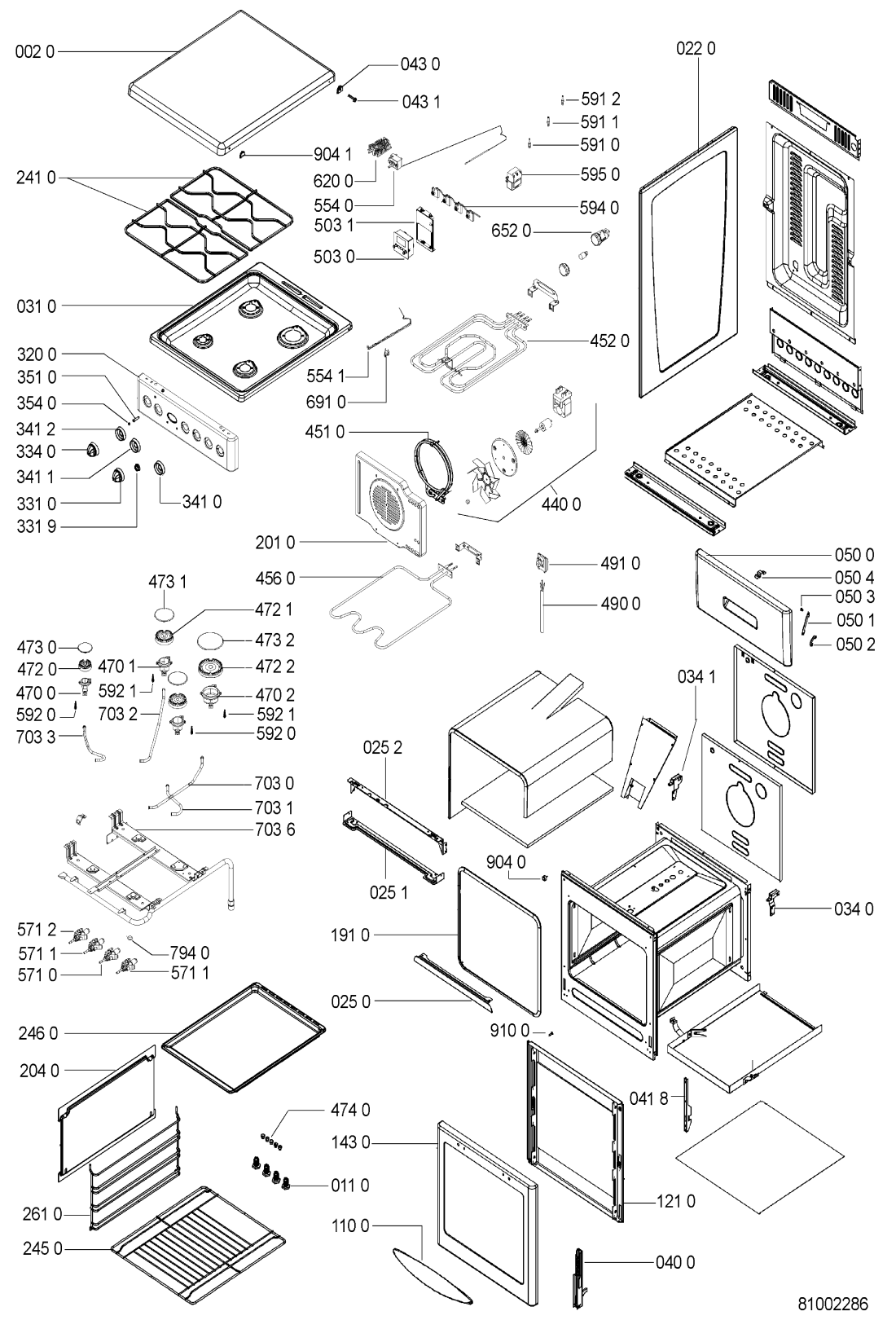

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR103410 |
C00485122
481244058293 |
Lid | Na dotaz | Zadat poptávku | |
| 011 0 WHR103410 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 022 0 WHR103410 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
| 025 0 WHR103410 |
C00484773
481240478329 |
Trim cover | Na dotaz | Zadat poptávku | |
| 025 1 WHR103410 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR103410 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
| 031 0 WHR103410 |
C00758656
481225998431 |
Hob | Na dotaz | Zadat poptávku | |
| 034 0 WHR103410 |
C00553503
481241719157 |
Hinge | Na dotaz | Zadat poptávku | |
| 034 1 WHR103410 |
C00553504
481241719158 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 0 WHR103410 |
C00582243
481253548018 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
| 041 8 WHR103410 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
| 043 0 WHR103410 |
C00636106
481253268122 |
Washer. | Na dotaz | Zadat poptávku | |
| 043 1 WHR103410 |
C00492111
481253268123 |
Pivot lid | Na dotaz | Zadat poptávku | |
| 050 0 WHR103410 |
C00599242
481244269302 |
Flap. | Na dotaz | Zadat poptávku | |
| 050 1 WHR103410 |
C00493561
481244269303 |
Rod drawer upper | Na dotaz | Zadat poptávku | |
| 050 2 WHR103410 |
C00493562
481244269304 |
Rod drawer lower | Na dotaz | Zadat poptávku | |
| 050 3 WHR103410 |
C00489336
481244269305 |
Bush drawer | Na dotaz | Zadat poptávku | |
| 050 4 WHR103410 |
C00582194
481244269306 |
Spring drawer. | Na dotaz | Zadat poptávku | |
| 110 0 WHR103410 |
C00377807
481246268871 |
Handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR103410 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 143 0 WHR103410 |
C00582200
481245058777 |
Door frame upper sheet | Na dotaz | Zadat poptávku | |
| 191 0 WHR103410 |
C00377819
481246668715 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 201 0 WHR103410 |
C00599245
481244528017 |
Fan distributing cover. | Na dotaz | Zadat poptávku | |
| 204 0 WHR103410 |
C00491420
481231048113 |
Panel catalytic lateral | Na dotaz | Zadat poptávku | |
| 241 0 WHR103410 |
C00487681
481245858341 |
Grid hob | Na dotaz | Zadat poptávku | |
| 245 0 WHR103410 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR103410 |
C00597185
481941838415 |
Baking tray. | Na dotaz | Zadat poptávku | |
| 261 0 WHR103410 |
C00548555
481246238123 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 320 0 WHR103410 |
C00599299
481245359526 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR103410 |
C00377616
481241128811 |
knoflik ovladaci | Na dotaz | Zadat poptávku | |
| 331 9 WHR103410 |
C00377834
481249268169 |
Spring | Na dotaz | Zadat poptávku | |
| 334 0 WHR103410 |
C00380472
481241128809 |
Knob control | Na dotaz | Zadat poptávku | |
| 341 0 WHR103410 |
C00377635
481241378674 |
krouzek horaku | Na dotaz | Zadat poptávku | |
| 341 1 WHR103410 |
C00599176
481241378672 |
Collar thermostat. | Na dotaz | Zadat poptávku | |
| 341 2 WHR103410 |
C00599182
481241378685 |
Collar electric oven. | Na dotaz | Zadat poptávku | |
| 351 0 WHR103410 |
C00599045
481225518258 |
Lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR103410 |
C00488477
481225518252 |
Lens red | Na dotaz | Zadat poptávku | |
| 440 0 WHR103410 |
C00598457
481236158157 |
Motor with ventilator. | Na dotaz | Zadat poptávku | |
| 451 0 WHR103410 |
C00556762
481225928856 |
English description not available.. | Na dotaz | Zadat poptávku | |
| 452 0 WHR103410 |
C00318916
481225928817 |
Heating element upper+grill 750/1850 W | Na dotaz | Zadat poptávku | |
| 456 0 WHR103410 |
C00488505
481225928857 |
Heating element lower 1100W 230V | Na dotaz | Zadat poptávku | |
| 470 0 WHR103410 |
C00582127
481236068556 |
Burner cup AUX. | Na dotaz | Zadat poptávku | |
| 470 1 WHR103410 |
C00582128
481236068557 |
Burner cup SR. | Na dotaz | Zadat poptávku | |
| 470 2 WHR103410 |
C00582129
481236068558 |
Burner cup R. | Na dotaz | Zadat poptávku | |
| 472 0 WHR103410 |
C00493253
481236068401 |
Distributor AUX | Na dotaz | Zadat poptávku | |
| 472 1 WHR103410 |
C00493254
481236068404 |
Distributor SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR103410 |
C00377582
481236068407 |
Distributor R | Na dotaz | Zadat poptávku | |
| 473 0 WHR103410 |
C00482802
481236078109 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 473 1 WHR103410 |
C00482804
481236078112 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR103410 |
C00527440
481236068559 |
Burner R | Na dotaz | Zadat poptávku | |
| 474 0 WHR103410 |
C00758657
481231038737 |
Nozzle set LPG | Na dotaz | Zadat poptávku | |
| 490 0 WHR103410 |
C00493141
481232118162 |
Cable supply | Na dotaz | Zadat poptávku | |
| 491 0 WHR103410 |
C00582140
481240118572 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 503 0 WHR103410 |
C00599071
481228219255 |
Timer. | Na dotaz | Zadat poptávku | |
| 503 1 WHR103410 |
C00599072
481228219256 |
Timer holder. | Na dotaz | Zadat poptávku | |
| 554 0 WHR103410 |
C00377501
481227128493 |
Termostat | Na dotaz | Zadat poptávku | |
| 554 1 WHR103410 |
C00491347
481228238097 |
termostat | Na dotaz | Zadat poptávku | |
| 571 0 WHR103410 |
C00758658
481236058372 |
Tap gas large 0,37 | Na dotaz | Zadat poptávku | |
| 571 1 WHR103410 |
C00758659
481236058371 |
Tap gas medium 0,30 | Na dotaz | Zadat poptávku | |
| 571 2 WHR103410 |
C00758660
481236058369 |
Tap gas small 0,29 | Na dotaz | Zadat poptávku | |
| 591 0 WHR103410 |
C00599044
481225268043 |
Spark plug L=190 | Na dotaz | Zadat poptávku | |
| 591 1 WHR103410 |
C00377485
481225268044 |
Spark plug L=320 | Na dotaz | Zadat poptávku | |
| 591 2 WHR103410 |
C00484642
481225268045 |
Spark plug L=240 | Na dotaz | Zadat poptávku | |
| 592 0 WHR103410 |
C00582135
481236068622 |
Thermo couple 260mm | Na dotaz | Zadat poptávku | |
| 592 1 WHR103410 |
C00582136
481236068623 |
Thermo couple 500mm | Na dotaz | Zadat poptávku | |
| 594 0 WHR103410 |
C00758661
481227618418 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 595 0 WHR103410 |
C00377400
481214238001 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 620 0 WHR103410 |
C00599066
481227618391 |
Switch oven rotary. | Na dotaz | Zadat poptávku | |
| 652 0 WHR103410 |
C00377486
481225518257 |
Lamp 15W 240V AC | Na dotaz | Zadat poptávku | |
| 691 0 WHR103410 |
C00599055
481227128499 |
Sensor limiter assy.. | Na dotaz | Zadat poptávku | |
| 703 0 WHR103410 |
C00582134
481236068566 |
Pipe right back. | Na dotaz | Zadat poptávku | |
| 703 1 WHR103410 |
C00582133
481236068565 |
Pipe right front. | Na dotaz | Zadat poptávku | |
| 703 2 WHR103410 |
C00582132
481236068564 |
Pipe left back. | Na dotaz | Zadat poptávku | |
| 703 3 WHR103410 |
C00582131
481236068563 |
Pipe left front. | Na dotaz | Zadat poptávku | |
| 703 6 WHR103410 |
C00758662
481236068562 |
Pipe main gas connection | Na dotaz | Zadat poptávku | |
| 794 0 WHR103410 |
C00486890
481953268755 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR103410 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
| 904 1 WHR103410 |
C00491966
481246698998 |
Spacer | Na dotaz | Zadat poptávku | |
| 910 0 WHR103410 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku | |
