| Komerční kód: | ACM 823 WH COOKERS WP |
| Kód 12NC/I.C. kód: | 857682329000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

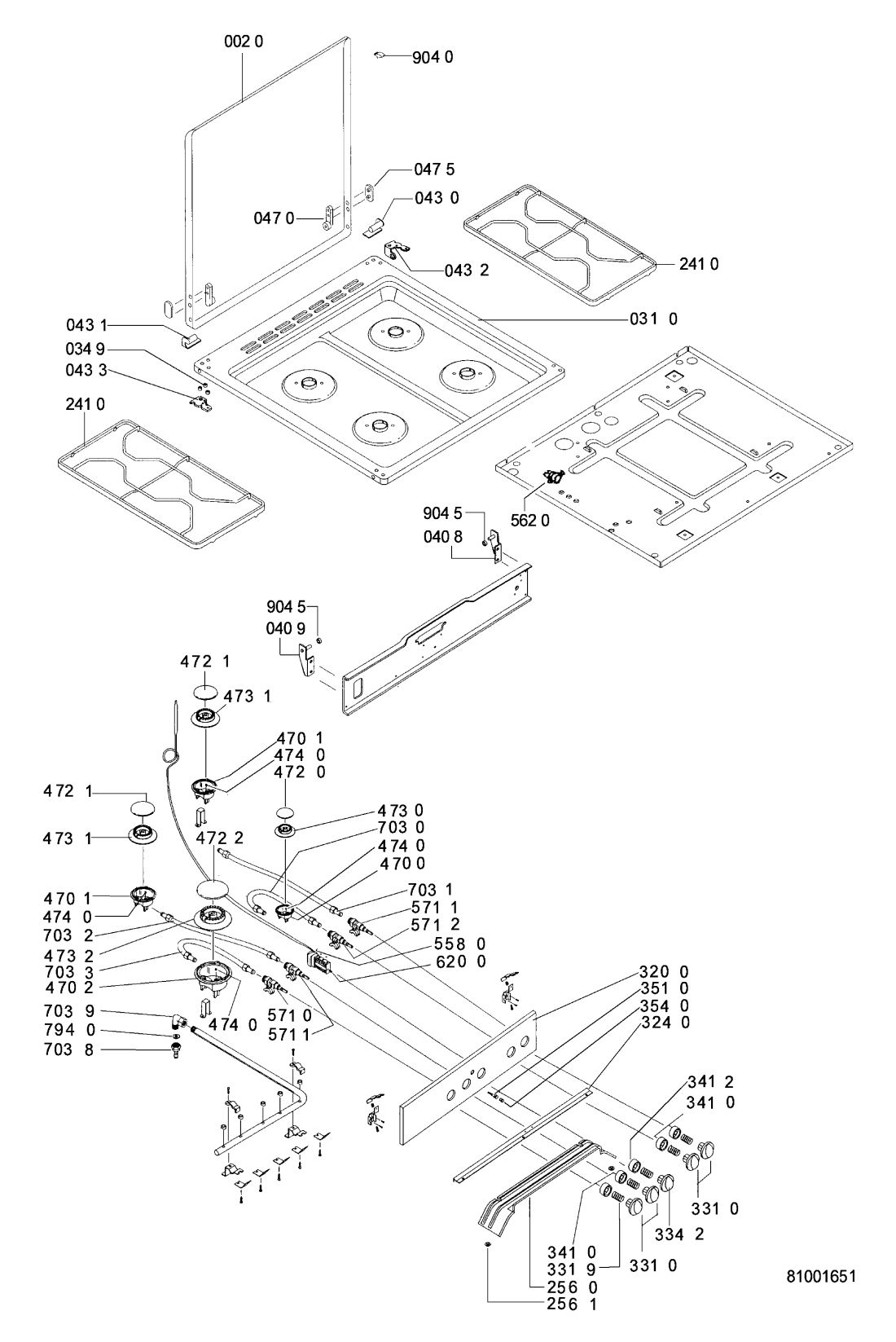

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR83918 |
C00599447
481944239054 |
Lid. | Na dotaz | Zadat poptávku | |
| 011 0 WHR83918 |
C00492565
481950018142 |
noha nastavitelna | Na dotaz | Zadat poptávku | |
| 011 1 WHR83918 |
C00492695
481953538113 |
NIT SO ZAVITOM N | Na dotaz | Zadat poptávku | |
| 022 0 WHR83918 |
C00152196
481944238681 |
HOSE -SOAP BOX TO COLD WATER V | Na dotaz | Zadat poptávku | |
| 022 1 WHR83918 |
C00152197
481944238682 |
CLAMP - FILTER DUCT INLET HOSE | Na dotaz | Zadat poptávku | |
| 031 0 WHR83918 |
C00599198
481244038792 |
Hob. | Na dotaz | Zadat poptávku | |
| 034 9 WHR83918 |
C00492500
481946698874 |
Spacer hob rear | Na dotaz | Zadat poptávku | |
| 040 0 WHR83918 |
C00599411
481941719545 |
ZAVES DVIER RURY ACM251 KOV. N | Na dotaz | Zadat poptávku | |
| 040 8 WHR83918 |
C00582883
481941719257 |
Z?VES HORNEJ DOSKY - PRAV# N | Na dotaz | Zadat poptávku | |
| 040 9 WHR83918 |
C00582682
481241718842 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 041 8 WHR83918 |
C00333001
481941758151 |
Hinge run.mech. | Na dotaz | Zadat poptávku | |
| 043 0 WHR83918 |
C00599408
481941719515 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 043 1 WHR83918 |
C00636173
481941719516 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 043 2 WHR83918 |
C00582885
481941719344 |
Hinge f. hob right. | Na dotaz | Zadat poptávku | |
| 043 3 WHR83918 |
C00582886
481941719345 |
Hinge f.hob left. | Na dotaz | Zadat poptávku | |
| 047 0 WHR83918 |
C00621583
481946258287 |
Cover. | Na dotaz | Zadat poptávku | |
| 047 5 WHR83918 |
C00621571
481941719517 |
Hinge. | Na dotaz | Zadat poptávku | |
| 050 0 WHR83918 |
C00599449
481944239282 |
Door. | Na dotaz | Zadat poptávku | |
| 050 1 WHR83918 |
C00599417
481941719621 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 050 2 WHR83918 |
C00599419
481941719622 |
Hinge left left. | Na dotaz | Zadat poptávku | |
| 110 0 WHR83918 |
C00378103
481949878179 |
Handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR83918 |
C00622689
481944239335 |
Door inner | Na dotaz | Zadat poptávku | |
| 141 0 WHR83918 |
C00528264
481245058399 |
Glass oven door | Na dotaz | Zadat poptávku | |
| 142 0 WHR83918 |
C00488239
481945069503 |
Inner glass | Na dotaz | Zadat poptávku | |
| 142 2 WHR83918 |
C00582402
481950218415 |
Screw | Na dotaz | Zadat poptávku | |
| 142 3 WHR83918 |
C00484372
481940478666 |
Bracket | Na dotaz | Zadat poptávku | |
| 191 0 WHR83918 |
C00373303
481946818298 |
Těsnění dveří trouby | 1 157 Kč
€ 47.50 |
||
| 241 0 WHR83918 |
C00599322
481245858114 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR83918 |
C00488244
481945819892 |
GRILOVACI ROST N | Na dotaz | Zadat poptávku | |
| 246 0 WHR83918 |
C00599425
481941838355 |
BAKING TRAY. | Na dotaz | Zadat poptávku | |
| 247 0 WHR83918 |
C00582895
481941838369 |
plech na peceni | Na dotaz | Zadat poptávku | |
| 255 0 WHR83918 |
C00599234
481244269051 |
Plate bottom. | Na dotaz | Zadat poptávku | |
| 256 0 WHR83918 |
C00621110
481944238257 |
kryt knofliku | Na dotaz | Zadat poptávku | |
| 256 1 WHR83918 |
C00492648
481953258252 |
podlozka distancni | Na dotaz | Zadat poptávku | |
| 320 0 WHR83918 |
C00599278
481245319765 |
Control panel. | Na dotaz | Zadat poptávku | |
| 324 0 WHR83918 |
C00599390
481940478804 |
Trim, lower | Na dotaz | Zadat poptávku | |
| 331 0 WHR83918 |
C00487248
481241278659 |
Knob | Na dotaz | Zadat poptávku | |
| 331 9 WHR83918 |
C00378100
481949258065 |
pruzina knofliku | 41 Kč
€ 1.70 |
||
| 334 2 WHR83918 |
C00599149
481241278661 |
Knob Oven. | Na dotaz | Zadat poptávku | |
| 341 0 WHR83918 |
C00488842
481241378561 |
Indication disc | Na dotaz | Zadat poptávku | |
| 341 2 WHR83918 |
C00599157
481241378562 |
Indication disc Oven. | Na dotaz | Zadat poptávku | |
| 351 0 WHR83918 |
C00332811
481913448486 |
signalka | Na dotaz | Zadat poptávku | |
| 354 0 WHR83918 |
C00555906
481938118233 |
KRYTKA SIGN?LKY ACM251 N | Na dotaz | Zadat poptávku | |
| 452 0 WHR83918 |
C00582793
481925928787 |
Topné těleso trouby – horní + gril | Na dotaz | Zadat poptávku | |
| 456 0 WHR83918 |
C00380487
481925928785 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 470 0 WHR83918 |
C00599384
481936069858 |
Burner A. | Na dotaz | Zadat poptávku | |
| 470 1 WHR83918 |
C00599385
481936069859 |
Burner SR. | Na dotaz | Zadat poptávku | |
| 470 2 WHR83918 |
C00599386
481936069861 |
Burner R. | Na dotaz | Zadat poptávku | |
| 472 0 WHR83918 |
C00531598
481936069862 |
BURNER CAP A A | Na dotaz | Zadat poptávku | |
| 472 1 WHR83918 |
C00531599
481936069863 |
KRYT HORAKA SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR83918 |
C00381034
481936069864 |
BURNER CAP RR | Na dotaz | Zadat poptávku | |
| 473 0 WHR83918 |
C00075996
481936069855 |
FLAME SPLITTER - SMALL BURNER | Na dotaz | Zadat poptávku | |
| 473 1 WHR83918 |
C00075968
481936069857 |
BURNER BASE - MEDIUM BURNER | Na dotaz | Zadat poptávku | |
| 473 2 WHR83918 |
C00075967
481936069856 |
FLAME SPLITTER - LARGE BURNER | Na dotaz | Zadat poptávku | |
| 474 0 WHR83918 |
C00582608
481231038365 |
SADA TRISIEK LPG G30/31 | Na dotaz | Zadat poptávku | |
| 474 0 WHR83918 |
C00582609
481231038468 |
Set of nozzles G20. | Na dotaz | Zadat poptávku | |
| 474 0 WHR83918 |
C00599094
481231068011 |
Set of nozzles G130. | Na dotaz | Zadat poptávku | |
| 491 0 WHR83918 |
C00343507
481929068173 |
svorkovnice | 81 Kč
€ 3.30 |
||
| 491 3 WHR83918 |
C00582853
481940118714 |
STRAIN RELIEF. | Na dotaz | Zadat poptávku | |
| 558 0 WHR83918 |
C00063568
481927128863 |
termostat kapilarni | Na dotaz | Zadat poptávku | |
| 562 0 WHR83918 |
C00776638
481927128616 |
pojistka tepelna | Na dotaz | Zadat poptávku | |
| 571 0 WHR83918 |
C00621557
481936058766 |
Tap burner R. | Na dotaz | Zadat poptávku | |
| 571 1 WHR83918 |
C00063481
481936058512 |
VENTIL STREDNY ACM22 | Na dotaz | Zadat poptávku | |
| 571 2 WHR83918 |
C00557417
481936058765 |
TAP BURNER A.. | Na dotaz | Zadat poptávku | |
| 620 0 WHR83918 |
C00063580
481927618228 |
LIGHT SWITCH | Na dotaz | Zadat poptávku | |
| 651 0 WHR83918 |
C00490311
481913488138 |
YIAROVKA OSVETLENIA 15W N | Na dotaz | Zadat poptávku | |
| 652 0 WHR83918 |
C00332821
481925518162 |
objimka zarovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR83918 |
C00582356
481945069999 |
KRYT ZIAROVKY kov N | Na dotaz | Zadat poptávku | |
| 703 0 WHR83918 |
C00599101
481236068063 |
Pipe rear right. | Na dotaz | Zadat poptávku | |
| 703 1 WHR83918 |
C00599102
481236068064 |
Pipe front right. | Na dotaz | Zadat poptávku | |
| 703 2 WHR83918 |
C00527402
481236068065 |
PIPE REAR LEFT | Na dotaz | Zadat poptávku | |
| 703 3 WHR83918 |
C00599103
481236068066 |
Pipe front left. | Na dotaz | Zadat poptávku | |
| 703 8 WHR83918 |
C00333268
481952648224 |
Gas connection G30/G31 | Na dotaz | Zadat poptávku | |
| 703 8 WHR83918 |
C00494670
481952648301 |
Gas connection natural | Na dotaz | Zadat poptávku | |
| 703 9 WHR83918 |
C00582569
481953048458 |
spojka hadice | Na dotaz | Zadat poptávku | |
| 794 0 WHR83918 |
C00333317
481953258189 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR83918 |
C00599471
481946699088 |
Cover rubber Lid. | Na dotaz | Zadat poptávku | |
| 904 5 WHR83918 |
C00583014
481953268838 |
Spacer. | Na dotaz | Zadat poptávku | |
