WHIRLPOOL ACM 932 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACM 932 IX |
| Kód 12NC/I.C. kód: | 857693210020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

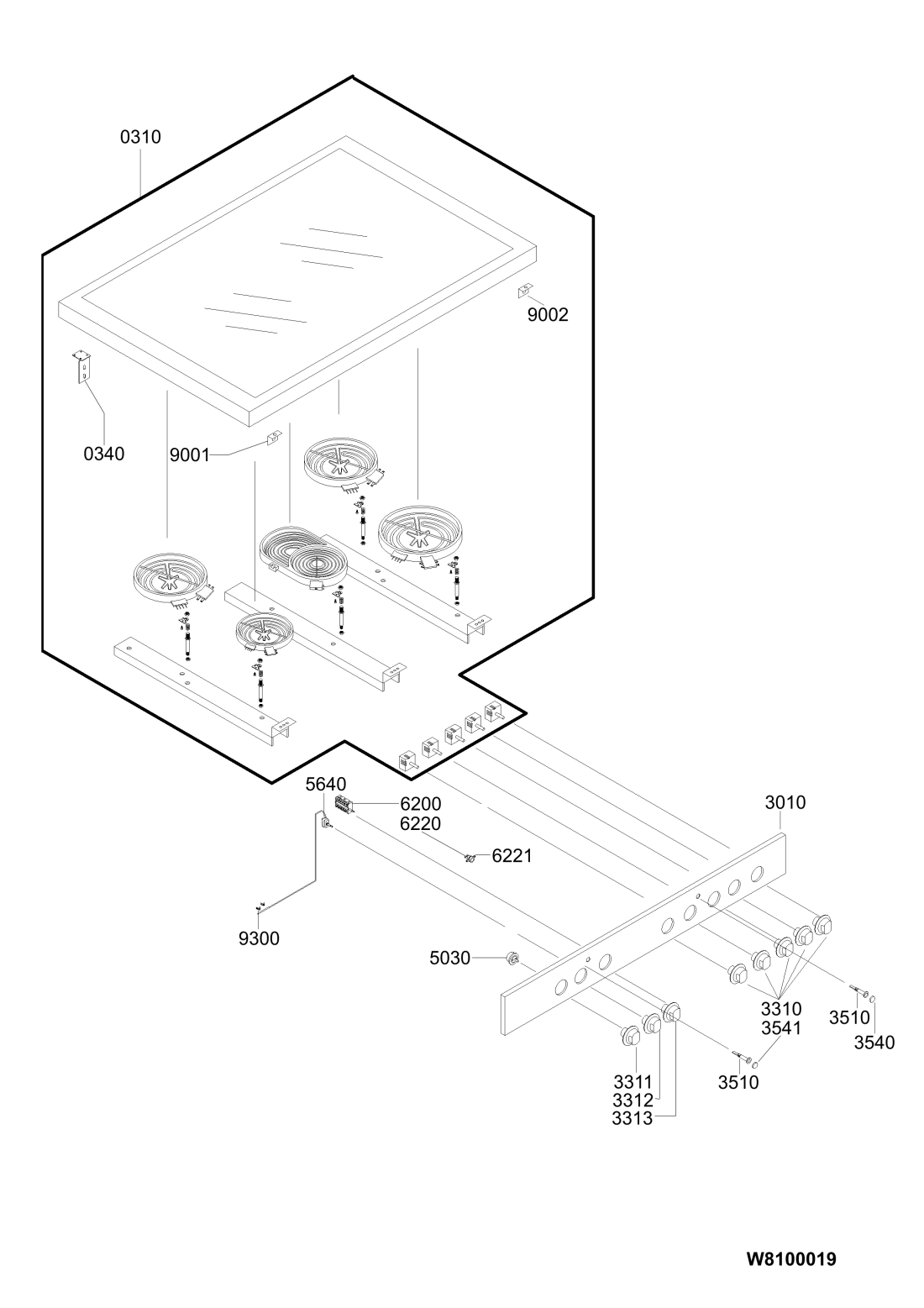

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR47677 |
C00430507
480121101363 |
Housing ,bottom side | Na dotaz | Zadat poptávku | |
| 011 1 WHR47677 |
C00332715
481253538111 |
Support foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR47677 |
C00430453
480121101014 |
Frame | Na dotaz | Zadat poptávku | |
| 021 2 WHR47677 |
C00430594
480121101542 |
Panel DRAWER GROUP | Na dotaz | Zadat poptávku | |
| 022 0 WHR47677 |
C00328082
481244011726 |
Side panel right | Na dotaz | Zadat poptávku | |
| 022 1 WHR47677 |
C00328083
481244011727 |
side panel left | Na dotaz | Zadat poptávku | |
| 024 0 WHR47677 |
C00430623
480121101631 |
Panel ,REAR | Na dotaz | Zadat poptávku | |
| 024 1 WHR47677 |
C00430624
480121101632 |
Clamp | Na dotaz | Zadat poptávku | |
| 031 0 WHR47677 |
C00390219
480121101633 |
Hotplate ,CERAMIC, GROUP | Na dotaz | Zadat poptávku | |
| 033 0 WHR47677 |
C00330346
481246049832 |
Plate cover frame fixing | Na dotaz | Zadat poptávku | |
| 034 0 WHR47677 |
C00328996
481240418593 |
Bracket Hob | Na dotaz | Zadat poptávku | |
| 040 0 WHR47677 |
C00430517
480121101375 |
Hinge ,oven door | Na dotaz | Zadat poptávku | |
| 047 0 WHR47677 |
C00333000
481941758142 |
Roller hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR47677 |
C00430518
480121101376 |
Handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR47677 |
C00430519
480121101377 |
Spacer | Na dotaz | Zadat poptávku | |
| 110 2 WHR47677 |
C00330728
481246268987 |
Spacer handle support | Na dotaz | Zadat poptávku | |
| 121 0 WHR47677 |
C00430520
480121101378 |
Frame ,door, black | Na dotaz | Zadat poptávku | |
| 141 0 WHR47677 |
C00430614
480121101606 |
Glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR47677 |
C00430522
480121101381 |
Door glass ,inside | Na dotaz | Zadat poptávku | |
| 142 1 WHR47677 |
C00430625
480121101634 |
Door glass | Na dotaz | Zadat poptávku | |
| 142 2 WHR47677 |
C00333172
481949268485 |
Spring | Na dotaz | Zadat poptávku | |
| 144 0 WHR47677 |
C00430523
480121101382 |
Profile ,door ,bottom | Na dotaz | Zadat poptávku | |
| 191 0 WHR47677 |
C00315662
480121100568 |
Těsnění | 1 179 Kč
€ 48.40 |
||
| 200 0 WHR47677 |
C00113471
480121101635 |
COVER HI T R S/STEEL (MSZ702NF-HB) | Na dotaz | Zadat poptávku | |
| 201 0 WHR47677 |
C00430626
480121101636 |
Housing ,INNER, REAR | Na dotaz | Zadat poptávku | |
| 202 0 WHR47677 |
C00430627
480121101637 |
Housing .INNER, BOTTOM | Na dotaz | Zadat poptávku | |
| 204 0 WHR47677 |
C00459020
481242318019 |
Housing inner upper wall | Na dotaz | Zadat poptávku | |
| 204 2 WHR47677 |
C00430628
480121101638 |
Support ,LOWER h.e. | Na dotaz | Zadat poptávku | |
| 245 0 WHR47677 |
C00330104
481245819398 |
Oven shelf wire | Na dotaz | Zadat poptávku | |
| 247 0 WHR47677 |
C00327788
481241838121 |
Tray oven pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR47677 |
C00321911
480121100569 |
Rail Frame | Na dotaz | Zadat poptávku | |
| 301 0 WHR47677 |
C00430621
480121101626 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR47677 |
C00379153
480121101627 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR47677 |
C00430590
480121101537 |
Knob timer | Na dotaz | Zadat poptávku | |
| 331 2 WHR47677 |
C00379197
480121101628 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 331 3 WHR47677 |
C00430622
480121101629 |
Knob | Na dotaz | Zadat poptávku | |
| 351 0 WHR47677 |
C00326838
481213448353 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR47677 |
C00488697
481238118257 |
KRYTKA SIGN?LKY ACM251 N | Na dotaz | Zadat poptávku | |
| 354 1 WHR47677 |
C00317822
481238118258 |
kryt signalky oranz. | 149 Kč
€ 6.10 |
||
| 441 0 WHR47677 |
C00321888
480121100444 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 441 1 WHR47677 |
C00379191
481246699077 |
Gasket tangential fan | Na dotaz | Zadat poptávku | |
| 454 0 WHR47677 |
C00430463
480121101031 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 454 1 WHR47677 |
C00329129
481240449818 |
Support upper grill heating elem | Na dotaz | Zadat poptávku | |
| 456 0 WHR47677 |
C00430464
480121101032 |
Spodní topné těleso | Na dotaz | Zadat poptávku | |
| 490 0 WHR47677 |
C00330225
481245938102 |
Strip for wire lock | Na dotaz | Zadat poptávku | |
| 491 0 WHR47677 |
C00320079
481229068226 |
Terminal block | Na dotaz | Zadat poptávku | |
| 503 0 WHR47677 |
C00430619
480121101624 |
Timer | Na dotaz | Zadat poptávku | |
| 564 0 WHR47677 |
C00312002
481228238149 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 620 0 WHR47677 |
C00430620
480121101625 |
Selector | Na dotaz | Zadat poptávku | |
| 622 0 WHR47677 |
C00327235
481227128588 |
Temper.limiter | Na dotaz | Zadat poptávku | |
| 622 1 WHR47677 |
C00330343
481246049825 |
Plate for thermoswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR47677 |
C00316183
481204728003 |
Lamp 220/240V 25W | Na dotaz | Zadat poptávku | |
| 652 0 WHR47677 |
C00332821
481925518162 |
objimka zarovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR47677 |
C00332902
481938118213 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 900 0 WHR47677 |
C00328973
481240418454 |
Bracket oven shelf | Na dotaz | Zadat poptávku | |
| 900 1 WHR47677 |
C00328998
481240418595 |
Bracket left lock for work top | Na dotaz | Zadat poptávku | |
| 900 2 WHR47677 |
C00328997
481240418594 |
Bracket right lock work top | Na dotaz | Zadat poptávku | |
| 900 5 WHR47677 |
C00457644
481240449821 |
Support sides | Na dotaz | Zadat poptávku | |
| 904 2 WHR47677 |
C00327660
481231039044 |
Cover for turnspit hole | Na dotaz | Zadat poptávku | |
| 904 3 WHR47677 |
C00430564
480121101438 |
Plate ,cover hole | Na dotaz | Zadat poptávku | |
| 921 0 WHR47677 |
C00333316
481953238099 |
RING | Na dotaz | Zadat poptávku | |
| 930 0 WHR47677 |
C00345740
481249148007 |
Clip fix thermostat | Na dotaz | Zadat poptávku | |
