WHIRLPOOL ADG 4500
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADG 4500 |
| Kód 12NC/I.C. kód: | 851119322300 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
| Další podobné modely: | 851119311000, 851119322100 |
Potřebujete servis? Jsme tady pro Vás

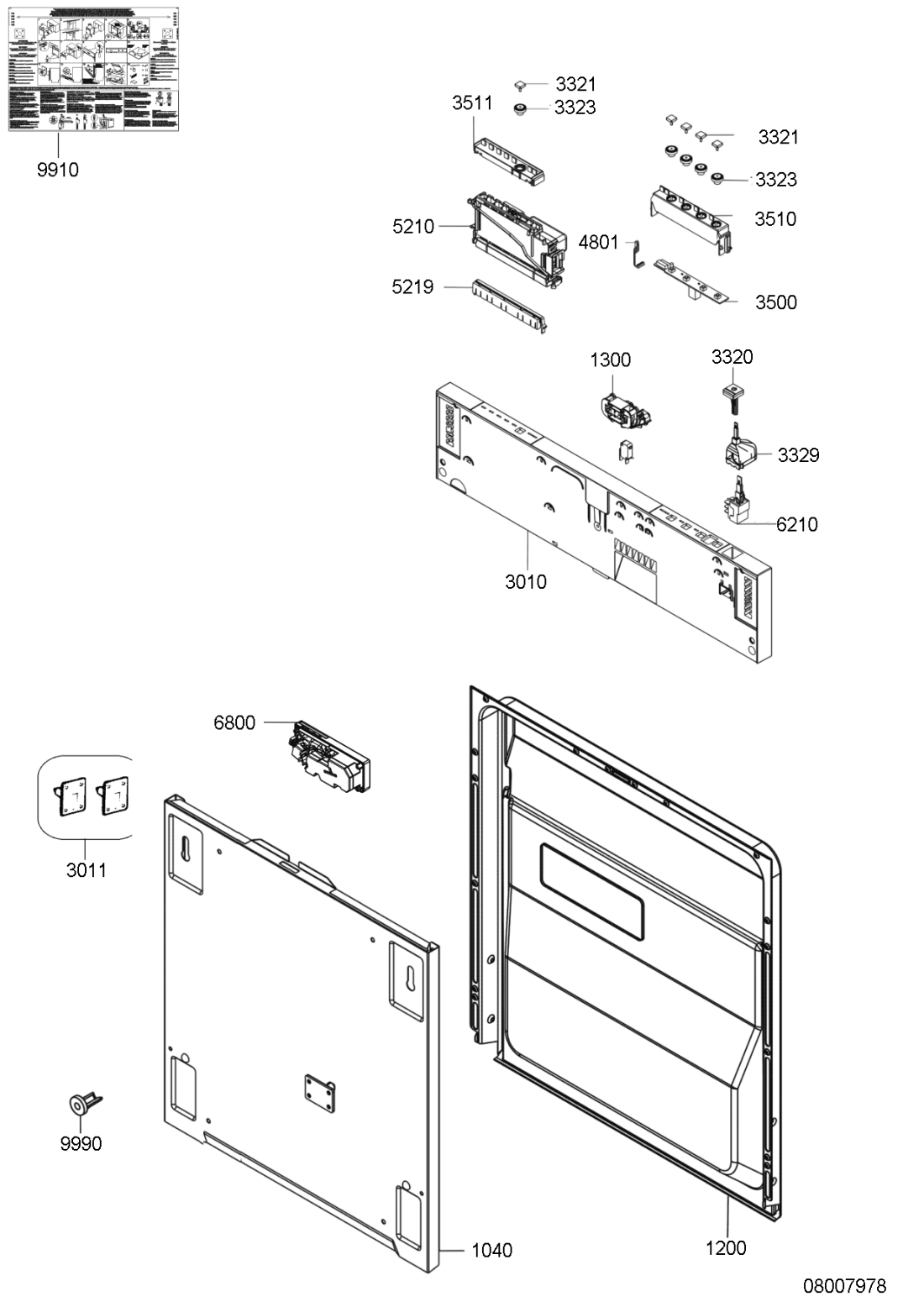

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0122 WHR18897 |
C00340911
481290508148 |
balicek montazni | 695 Kč
€ 28.60 |
||
| 1040 WHR18897 |
C00394768
480140102736 |
Door outer 860 alu-zinc | Na dotaz | Zadat poptávku | |
| 1200 WHR18897 |
C00411705
482000009580 |
Door inner 60 | Na dotaz | Zadat poptávku | |
| 1300 WHR18897 |
C00411694
482000009568 |
Door lock ITW EST 1MIC | Na dotaz | Zadat poptávku | |
| 1310 WHR18897 |
C00339500
481290508646 |
Hook | Na dotaz | Zadat poptávku | |
| 1311 WHR18897 |
C00344343
481290508612 |
Block Hook | Na dotaz | Zadat poptávku | |
| 1620 WHR18897 |
C00411753
482000009632 |
Side panel Kit left+right | Na dotaz | Zadat poptávku | |
| 1840 WHR18897 |
C00411751
482000009630 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 1850 WHR18897 |
C00411736
482000009614 |
Adjust. foot front | Na dotaz | Zadat poptávku | |
| 1851 WHR18897 |
C00411740
482000009618 |
Rod Adjust. foot | Na dotaz | Zadat poptávku | |
| 1852 WHR18897 |
C00411735
482000009613 |
Adjusting screw Foot back | Na dotaz | Zadat poptávku | |
| 1853 WHR18897 |
C00411733
482000009611 |
Adjust. foot back | Na dotaz | Zadat poptávku | |
| 1854 WHR18897 |
C00411734
482000009612 |
Ring,adjusting Foot back | Na dotaz | Zadat poptávku | |
| 1870 WHR18897 |
C00411756
482000009635 |
Frame Tub front | Na dotaz | Zadat poptávku | |
| 1871 WHR18897 |
C00335860
481290508567 |
Support back | Na dotaz | Zadat poptávku | |
| 1872 WHR18897 |
C00411741
482000009619 |
Frame kickplate | Na dotaz | Zadat poptávku | |
| 1873 WHR18897 |
C00342260
481290508553 |
Crossbar | Na dotaz | Zadat poptávku | |
| 1880 WHR18897 |
C00411737
482000009615 |
Hinge right | Na dotaz | Zadat poptávku | |
| 1881 WHR18897 |
C00411738
482000009616 |
Hinge left | Na dotaz | Zadat poptávku | |
| 1883 WHR18897 |
C00411743
482000009622 |
Spring Hinge | Na dotaz | Zadat poptávku | |
| 1884 WHR18897 |
C00411744
482000009623 |
Band brake Hinge | Na dotaz | Zadat poptávku | |
| 1885 WHR18897 |
C00411757
482000009637 |
Brake right Hinge | Na dotaz | Zadat poptávku | |
| 1886 WHR18897 |
C00411758
482000009638 |
Brake left Hinge | Na dotaz | Zadat poptávku | |
| 1887 WHR18897 |
C00411742
482000009621 |
Clutch right Hinge | Na dotaz | Zadat poptávku | |
| 1888 WHR18897 |
C00378605
482000009620 |
Clutch left Hinge | Na dotaz | Zadat poptávku | |
| 1910 WHR18897 |
C00316569
482000009636 |
tesneni dveri mycky obvodové | Na dotaz | Zadat poptávku | |
| 1912 WHR18897 |
C00411755
482000009634 |
Gasket border Tank lower | Na dotaz | Zadat poptávku | |
| 1921 WHR18897 |
C00320722
481290508619 |
tesneni | 75 Kč
€ 3.10 |
||
| 1922 WHR18897 |
C00320724
481290508621 |
tesneni | 77 Kč
€ 3.20 |
||
| 2030 WHR18897 |
C00342961
481290508625 |
Cover | Na dotaz | Zadat poptávku | |
| 2410 WHR18897 |
C00411752
482000009631 |
Basket upper SL | Na dotaz | Zadat poptávku | |
| 2411 WHR18897 |
C00394765
480140102731 |
Basket insert | Na dotaz | Zadat poptávku | |
| 2412 WHR18897 |
C00411754
482000009633 |
Cup holder | Na dotaz | Zadat poptávku | |
| 2413 WHR18897 |
C00374226
480140102728 |
Wheel lower basket | Na dotaz | Zadat poptávku | |
| 2415 WHR18897 |
C00414897
482000015955 |
Basket lower | Na dotaz | Zadat poptávku | |
| 2416 WHR18897 |
C00411746
482000009625 |
Plate support 4 wires | Na dotaz | Zadat poptávku | |
| 2417 WHR18897 |
C00411745
482000009624 |
Plate support 10 wires | Na dotaz | Zadat poptávku | |
| 2418 WHR18897 |
C00411750
482000009629 |
Plate support 13 wires | Na dotaz | Zadat poptávku | |
| 2419 WHR18897 |
C00411749
482000009628 |
Plate support 7 wires | Na dotaz | Zadat poptávku | |
| 2435 WHR18897 |
C00411790
482000009672 |
Cutlery basket | Na dotaz | Zadat poptávku | |
| 2610 WHR18897 |
C00374235
480140100033 |
kolejnice | 296 Kč
€ 12.20 |
||
| 2611 WHR18897 |
C00336941
481290508684 |
Koncovka kolejnice přední | 99 Kč
€ 4.10 |
||
| 2615 WHR18897 |
C00314368
481290508686 |
Support Wheel & Wheel grey | Na dotaz | Zadat poptávku | |
| 2616 WHR18897 |
C00335611
481290508676 |
Zarážka zadní | 82 Kč
€ 3.40 |
||
| 2650 WHR18897 |
C00314479
481290508729 |
Držák nastavení koše levý+pravý | 1 435 Kč
€ 59.00 |
||
| 2651 WHR18897 |
C00315670
481290508731 |
Držák nastavení koše - levý | Na dotaz | Zadat poptávku | |
| 3010 WHR18897 |
C00411696
482000009570 |
Control panel FD | Na dotaz | Zadat poptávku | |
| 3011 WHR18897 |
C00340989
481290508808 |
Sada montážní myčky | 534 Kč
€ 21.90 |
||
| 3011 WHR18897 |
C00415081
482000016468 |
Fastener Front panel right | Na dotaz | Zadat poptávku | |
| 3011 WHR18897 |
C00415082
482000016469 |
Fastener Front panel left | Na dotaz | Zadat poptávku | |
| 3320 WHR18897 |
C00411703
482000009578 |
Push button On/Off | Na dotaz | Zadat poptávku | |
| 3321 WHR18897 |
C00411700
482000009575 |
Push button Options | Na dotaz | Zadat poptávku | |
| 3323 WHR18897 |
C00288353
482000009572 |
KLÁVESA RUBBER | Na dotaz | Zadat poptávku | |
| 3329 WHR18897 |
C00411697
482000009571 |
Cover Push Button on/off | Na dotaz | Zadat poptávku | |
| 3500 WHR18897 |
C00411707
482000009582 |
Display board | Na dotaz | Zadat poptávku | |
| 3510 WHR18897 |
C00411704
482000009579 |
Indication unit Options | Na dotaz | Zadat poptávku | |
| 3511 WHR18897 |
C00411699
482000009574 |
Program indic. | Na dotaz | Zadat poptávku | |
| 4000 WHR18897 |
C00411730
482000009607 |
Spray pump permanent | Na dotaz | Zadat poptávku | |
| 4001 WHR18897 |
C00411717
482000009593 |
Rubber Support Motor | Na dotaz | Zadat poptávku | |
| 4210 WHR18897 |
C00411712
482000009587 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 4300 WHR18897 |
C00411718
482000009594 |
Pump draining 220/240 V | Na dotaz | Zadat poptávku | |
| 4500 WHR18897 |
C00373928
481290508537 |
topeni prutokove | Na dotaz | Zadat poptávku | |
| 4501 WHR18897 |
C00411728
482000009604 |
Hose Heating/Pump | Na dotaz | Zadat poptávku | |
| 4801 WHR18897 |
C00342878
480140102692 |
kabel | 497 Kč
€ 20.40 |
||
| 4900 WHR18897 |
C00411709
482000009584 |
Cable mains Schuko | Na dotaz | Zadat poptávku | |
| 4901 WHR18897 |
C00414954
482000016145 |
Cable holder | Na dotaz | Zadat poptávku | |
| 4902 WHR18897 |
C00414893
482000015951 |
Cable holder | Na dotaz | Zadat poptávku | |
| 5210 WHR18897 |
C00414955
482000016146 |
Timer 047FW042MD341PAR024 | Na dotaz | Zadat poptávku | |
| 5219 WHR18897 |
C00411701
482000009576 |
Support Timer | Na dotaz | Zadat poptávku | |
| 5620 WHR18897 |
C00411713
482000009588 |
Fuse | Na dotaz | Zadat poptávku | |
| 5830 WHR18897 |
C00411714
482000009590 |
Pressostat 54/30 INV. | Na dotaz | Zadat poptávku | |
| 6210 WHR18897 |
C00411702
482000009577 |
Switch pushbut. On/Off | Na dotaz | Zadat poptávku | |
| 6230 WHR18897 |
C00411723
482000009599 |
Microswitch Floater | Na dotaz | Zadat poptávku | |
| 6310 WHR18897 |
C00411720
482000009596 |
Floater | Na dotaz | Zadat poptávku | |
| 6800 WHR18897 |
C00411698
482000009573 |
Dispenser 230-50 | Na dotaz | Zadat poptávku | |
| 6910 WHR18897 |
C00411721
482000009597 |
Resistor NTC | Na dotaz | Zadat poptávku | |
| 7000 WHR18897 |
C00339334
481290508535 |
Hose inlet Reflex L1750 | Na dotaz | Zadat poptávku | |
| 7011 WHR18897 |
C00411711
482000009586 |
Bracket Valve | Na dotaz | Zadat poptávku | |
| 7012 WHR18897 |
C00411710
482000009585 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 7100 WHR18897 |
C00414894
482000015952 |
Water softener LS60-12+REED+ELV | Na dotaz | Zadat poptávku | |
| 7102 WHR18897 |
C00340513
481290508689 |
matice zasobniku | 168 Kč
€ 6.90 |
||
| 7103 WHR18897 |
C00340512
481990500002 |
tesneni | 85 Kč
€ 3.50 |
||
| 7105 WHR18897 |
C00345080
482000009605 |
zamek | 524 Kč
€ 21.50 |
||
| 7220 WHR18897 |
C00411689
482000009563 |
Spray arm lower | Na dotaz | Zadat poptávku | |
| 7221 WHR18897 |
C00313690
481290508681 |
Horní mycí rameno | 958 Kč
€ 39.40 |
||
| 7222 WHR18897 |
C00320760
481290508874 |
Nátrubek ramene | 764 Kč
€ 31.40 |
||
| 7223 WHR18897 |
C00340515
481290508604 |
Těsnění | 297 Kč
€ 12.20 |
||
| 7224 WHR18897 |
C00342728
481290508696 |
Držák ramena | 731 Kč
€ 30.00 |
||
| 7230 WHR18897 |
C00415065
482000016372 |
Douche ceiling LS08 | Na dotaz | Zadat poptávku | |
| 7260 WHR18897 |
C00411690
482000009564 |
Tube | Na dotaz | Zadat poptávku | |
| 7261 WHR18897 |
C00411693
482000009567 |
Fitting Tube Spray arm upper | Na dotaz | Zadat poptávku | |
| 7262 WHR18897 |
C00411691
482000009565 |
Tube Douche ceiling | Na dotaz | Zadat poptávku | |
| 7269 WHR18897 |
C00411688
482000009562 |
Gasket Flange spray arm | Na dotaz | Zadat poptávku | |
| 7500 WHR18897 |
C00414895
482000015953 |
Reg.dosage LS2012+DEC | Na dotaz | Zadat poptávku | |
| 7501 WHR18897 |
C00340514
481290508133 |
tesneni | 134 Kč
€ 5.50 |
||
| 7502 WHR18897 |
C00342962
481290508715 |
zaslepka | Na dotaz | Zadat poptávku | |
| 7510 WHR18897 |
C00414890
482000015946 |
Water collector | Na dotaz | Zadat poptávku | |
| 7511 WHR18897 |
C00411684
482000009558 |
Gasket Water collector | Na dotaz | Zadat poptávku | |
| 7540 WHR18897 |
C00411729
482000009606 |
Cover top Water collector | Na dotaz | Zadat poptávku | |
| 7550 WHR18897 |
C00411716
482000009592 |
Bend | Na dotaz | Zadat poptávku | |
| 7552 WHR18897 |
C00411748
482000009627 |
Tray leak Crossbar | Na dotaz | Zadat poptávku | |
| 7630 WHR18897 |
C00411685
482000009559 |
Filter St.Steel | Na dotaz | Zadat poptávku | |
| 7631 WHR18897 |
C00411686
482000009560 |
Filtr myčky sestava | 1 003 Kč
€ 41.20 |
||
| 7633 WHR18897 |
C00411687
482000009561 |
Support Spray arm lower | Na dotaz | Zadat poptávku | |
| 7810 WHR18897 |
C00411719
482000009595 |
Hose draining | Na dotaz | Zadat poptávku | |
| 7813 WHR18897 |
C00411722
482000009598 |
Flap non-return | Na dotaz | Zadat poptávku | |
| 7834 WHR18897 |
C00411726
482000009602 |
Hose Sump/Softener | Na dotaz | Zadat poptávku | |
| 7835 WHR18897 |
C00411724
482000009600 |
Hose Pump | Na dotaz | Zadat poptávku | |
| 7837 WHR18897 |
C00414896
482000015954 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| 9040 WHR18897 |
C00341453
481290508891 |
doraz centrovani dveri | 37 Kč
€ 1.50 |
||
| 9041 WHR18897 |
C00342826
481290508805 |
Cap door centration | Na dotaz | Zadat poptávku | |
| 9043 WHR18897 |
C00411739
482000009617 |
Cap Fuss verstellb. | Na dotaz | Zadat poptávku | |
| 9100 WHR18897 |
C00411727
482000009603 |
Bracket Hose Pump | Na dotaz | Zadat poptávku | |
| 9101 WHR18897 |
C00345211
480140100034 |
Screw Fastener rail | Na dotaz | Zadat poptávku | |
| 9103 WHR18897 |
C00411732
482000009610 |
Screw Hook Door centring | Na dotaz | Zadat poptávku | |
| 9910 WHR18897 |
C00411706
482000009581 |
Template FD 820/860 ST08 | Na dotaz | Zadat poptávku | |
| 9935 WHR18897 |
C00336773
481290508677 |
Salt Funnel | Na dotaz | Zadat poptávku | |
| 999 WHR18897 |
C00541077 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 9990 WHR18897 |
C00411708
482000009583 |
Spacer Door fixation | Na dotaz | Zadat poptávku | |
