WHIRLPOOL ADG 4700
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADG 4700 |
| Kód 12NC/I.C. kód: | 851120631000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
| Další podobné modely: | Q0915810000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

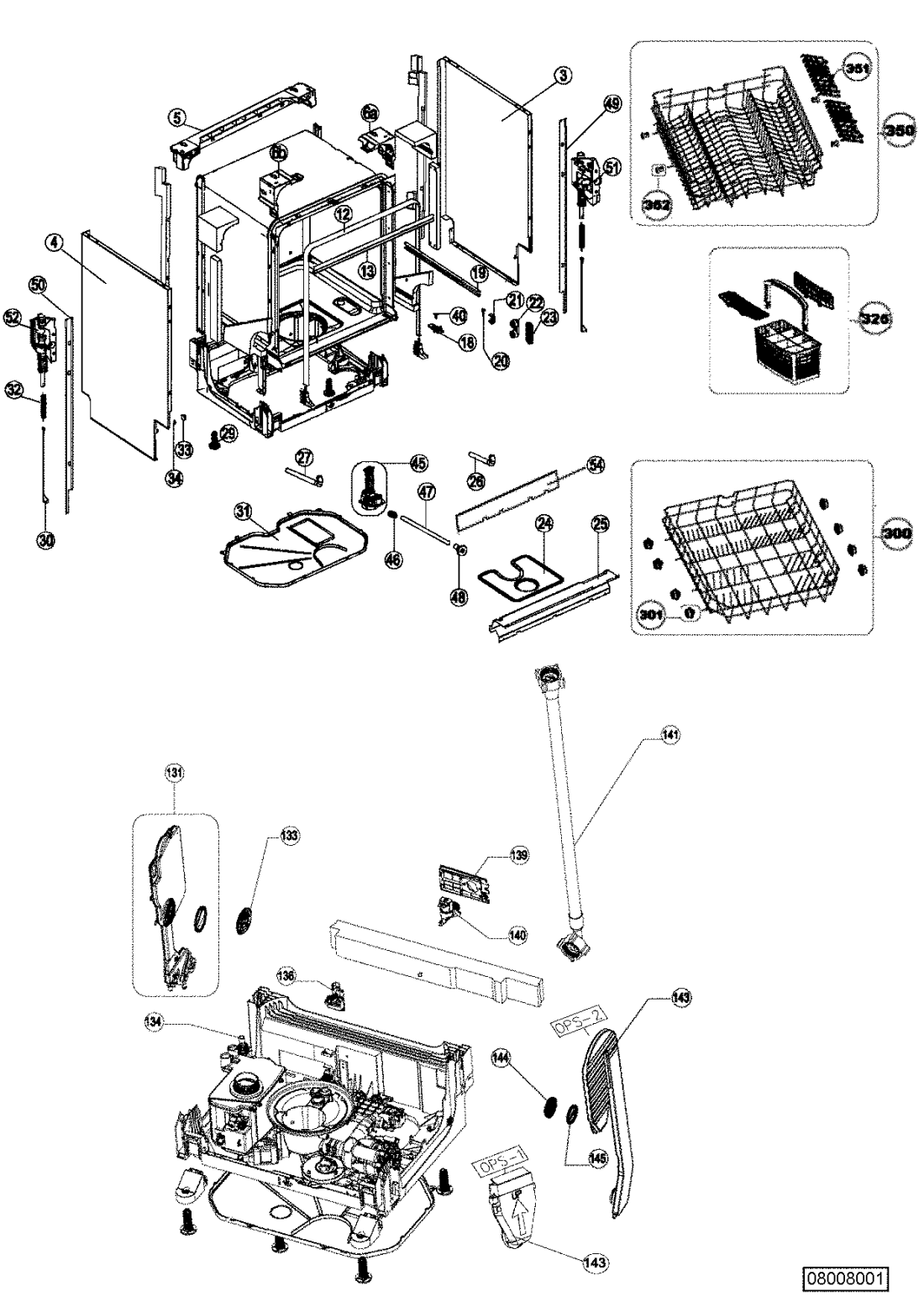

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 WHR00442 |
C00331880
482000004024 |
Side panel right | Na dotaz | Zadat poptávku | |
| 004 WHR00442 |
C00331881
482000004025 |
Side panel left | Na dotaz | Zadat poptávku | |
| 005 WHR00442 |
C00322790
480140101796 |
Crossbar upper rear | Na dotaz | Zadat poptávku | |
| 006A WHR00442 |
C00331851
482000003688 |
Support upper right | Na dotaz | Zadat poptávku | |
| 006B WHR00442 |
C00331852
482000003689 |
Support upper left | Na dotaz | Zadat poptávku | |
| 012 WHR00442 |
C00333877
482000009106 |
Gasket Tube | Na dotaz | Zadat poptávku | |
| 013 WHR00442 |
C00323775
480140101919 |
Gasket Tub top gr. | Na dotaz | Zadat poptávku | |
| 018 WHR00442 |
C00319500
480140101817 |
Hook lock | Na dotaz | Zadat poptávku | |
| 019 WHR00442 |
C00322792
480140101798 |
Sliding base upper | Na dotaz | Zadat poptávku | |
| 020 WHR00442 |
C00323776
480140101922 |
Stopper Sliding base gr. | Na dotaz | Zadat poptávku | |
| 021 WHR00442 |
C00322832
480140101877 |
Cap Sliding base | Na dotaz | Zadat poptávku | |
| 022 WHR00442 |
C00331889
482000004041 |
Support Sliding base | Na dotaz | Zadat poptávku | |
| 023 WHR00442 |
C00322795
480140101803 |
Holder Sliding base | Na dotaz | Zadat poptávku | |
| 024 WHR00442 |
C00331896
482000004063 |
Filter RAL 7046 | Na dotaz | Zadat poptávku | |
| 025 WHR00442 |
C00323768
480140101887 |
Plate sole | Na dotaz | Zadat poptávku | |
| 026 WHR00442 |
C00323769
480140101888 |
Overflow pipe | Na dotaz | Zadat poptávku | |
| 027 WHR00442 |
C00323770
480140101889 |
Overflow pipe | Na dotaz | Zadat poptávku | |
| 029 WHR00442 |
C00314746
482000005788 |
Adjust. foot BI | Na dotaz | Zadat poptávku | |
| 030 WHR00442 |
C00317237
480140101805 |
brake band | Na dotaz | Zadat poptávku | |
| 031 WHR00442 |
C00317349
480140101891 |
Plate bottom | Na dotaz | Zadat poptávku | |
| 032 WHR00442 |
C00331882
482000004030 |
Spring Hinge | Na dotaz | Zadat poptávku | |
| 034 WHR00442 |
C00322798
480140101807 |
Pulley fixed | Na dotaz | Zadat poptávku | |
| 040 WHR00442 |
C00331842
482000003659 |
Screw Rail M4X6 YSB | Na dotaz | Zadat poptávku | |
| 045 WHR00442 |
C00331988
482000005790 |
Adjust. foot mech. assy | Na dotaz | Zadat poptávku | |
| 046 WHR00442 |
C00331895
482000004062 |
Wheel worm Adjust. foot | Na dotaz | Zadat poptávku | |
| 047 WHR00442 |
C00331893
482000004059 |
Axle Adjust. foot | Na dotaz | Zadat poptávku | |
| 048 WHR00442 |
C00331894
482000004061 |
Cap Adjust. foot | Na dotaz | Zadat poptávku | |
| 049 WHR00442 |
C00331886
482000004038 |
Batten right gr. | Na dotaz | Zadat poptávku | |
| 050 WHR00442 |
C00331887
482000004039 |
Batten left gr. | Na dotaz | Zadat poptávku | |
| 051 WHR00442 |
C00331883
482000004035 |
Support Hinge spring right | Na dotaz | Zadat poptávku | |
| 052 WHR00442 |
C00331884
482000004036 |
Support Hinge spring left | Na dotaz | Zadat poptávku | |
| 054 WHR00442 |
C00333963
482000010589 |
Plinth | Na dotaz | Zadat poptávku | |
| 060 WHR00442 |
C00331879
482000004023 |
Door outer FD | Na dotaz | Zadat poptávku | |
| 061 WHR00442 |
C00333868
482000009094 |
Door inner | Na dotaz | Zadat poptávku | |
| 063 WHR00442 |
C00318434
482000004033 |
Dispenser w Reed RAL7046 | Na dotaz | Zadat poptávku | |
| 064 WHR00442 |
C00316006
480140101862 |
Door lock | Na dotaz | Zadat poptávku | |
| 065 WHR00442 |
C00313646
482000004032 |
Hinge metallsheet left | Na dotaz | Zadat poptávku | |
| 066 WHR00442 |
C00317460
482000004031 |
Hinge metallsheet right | Na dotaz | Zadat poptávku | |
| 067 WHR00442 |
C00322802
480140101812 |
Crossbar Hinge | Na dotaz | Zadat poptávku | |
| 068 WHR00442 |
C00333876
482000009105 |
Seal Door | Na dotaz | Zadat poptávku | |
| 100 WHR00442 |
C00319596
482000003684 |
Tube assembly cpl. | Na dotaz | Zadat poptávku | |
| 103 WHR00442 |
C00320885
482000003682 |
Support Spray arm upper cpl | Na dotaz | Zadat poptávku | |
| 108 WHR00442 |
C00320881
482000003681 |
Spray arm upper cpl. | Na dotaz | Zadat poptávku | |
| 114 WHR00442 |
C00316460
482000003678 |
Spray arm lower | Na dotaz | Zadat poptávku | |
| 115 WHR00442 |
C00331885
482000004037 |
Microfilter RAL 7046 | Na dotaz | Zadat poptávku | |
| 119 WHR00442 |
C00322827
480140101865 |
Hose D28,5X3 pump | Na dotaz | Zadat poptávku | |
| 122 WHR00442 |
C00322828
480140101866 |
Hose D33X3 pump | Na dotaz | Zadat poptávku | |
| 123 WHR00442 |
C00322810
480140101828 |
Flap | Na dotaz | Zadat poptávku | |
| 125 WHR00442 |
C00319458
480140101867 |
Hose draining | Na dotaz | Zadat poptávku | |
| 126 WHR00442 |
C00322811
480140101829 |
Water collector | Na dotaz | Zadat poptávku | |
| 127 WHR00442 |
C00322812
480140101831 |
Gasket sump | Na dotaz | Zadat poptávku | |
| 128 WHR00442 |
C00331849
482000003679 |
Cover Sieve | Na dotaz | Zadat poptávku | |
| 131 WHR00442 |
C00317277
480140101833 |
Airtrap cpl. | Na dotaz | Zadat poptávku | |
| 133 WHR00442 |
C00331846
482000003675 |
Nut Airtrap | Na dotaz | Zadat poptávku | |
| 134 WHR00442 |
C00322829
480140101868 |
Hose D10*3*230 PVC/CORD reg.d. | Na dotaz | Zadat poptávku | |
| 136 WHR00442 |
C00322816
480140101836 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 139 WHR00442 |
C00322817
480140101837 |
Yoke Water inlet | Na dotaz | Zadat poptávku | |
| 140 WHR00442 |
C00320735
482000005801 |
Inlet valve 45 Degree | Na dotaz | Zadat poptávku | |
| 141 WHR00442 |
C00317291
480140101839 |
Hose, inlet | Na dotaz | Zadat poptávku | |
| 143 WHR00442 |
C00331888
482000004040 |
Fan active drying | Na dotaz | Zadat poptávku | |
| 144 WHR00442 |
C00331853
482000003691 |
Nut Condenser | Na dotaz | Zadat poptávku | |
| 145 WHR00442 |
C00322820
480140101843 |
Gasket Condenser | Na dotaz | Zadat poptávku | |
| 148 WHR00442 |
C00317584
480140101844 |
Water softener | Na dotaz | Zadat poptávku | |
| 153 WHR00442 |
C00319378
482000003695 |
Hose D12*3*160PVC w/ocord | Na dotaz | Zadat poptávku | |
| 154 WHR00442 |
C00322821
480140101845 |
Gasket Water softener | Na dotaz | Zadat poptávku | |
| 155 WHR00442 |
C00323766
480140101879 |
Nut Water softener | Na dotaz | Zadat poptávku | |
| 156 WHR00442 |
C00323767
480140101881 |
Cap Water softener | Na dotaz | Zadat poptávku | |
| 170 WHR00442 |
C00319536
480140101848 |
Floater | Na dotaz | Zadat poptávku | |
| 171 WHR00442 |
C00333869
482000009095 |
Cable harness C2 | Na dotaz | Zadat poptávku | |
| 172 WHR00442 |
C00316211
482000000426 |
cable mains UK | Na dotaz | Zadat poptávku | |
| 173 WHR00442 |
C00311175
480140101873 |
Motorek distribuce vody myčky (divertor) s topením | 2 670 Kč
€ 109.70 |
||
| 175 WHR00442 |
C00311783
480140101894 |
O-Ring Heating element | Na dotaz | Zadat poptávku | |
| 176 WHR00442 |
C00311458
482000004029 |
Pump draining B30-6A | Na dotaz | Zadat poptávku | |
| 177 WHR00442 |
C00311484
480140101852 |
Spray pump | Na dotaz | Zadat poptávku | |
| 178 WHR00442 |
C00322823
480140101853 |
Support Spray pump | Na dotaz | Zadat poptávku | |
| 213 WHR00442 |
C00312546
480140101912 |
Switch ON/OFF | Na dotaz | Zadat poptávku | |
| 300 WHR00442 |
C00331843
482000003671 |
Basket lower fix | Na dotaz | Zadat poptávku | |
| 301 WHR00442 |
C00331989
482000005802 |
Wheel basket lower GR-2-RAL7046 | Na dotaz | Zadat poptávku | |
| 325 WHR00442 |
C00331847
482000003676 |
Cutlery basket ASSY RAL 7046 | Na dotaz | Zadat poptávku | |
| 350 WHR00442 |
C00331986
482000005783 |
upper basket GR-DYA-2 | Na dotaz | Zadat poptávku | |
| 351 WHR00442 |
C00331844
482000003673 |
Shelf Cutlery | Na dotaz | Zadat poptávku | |
| 352 WHR00442 |
C00331892
482000004047 |
Wheel basket upper GR-2RAL7046 | Na dotaz | Zadat poptávku | |
| 401 WHR00442 |
C00319586
482000010590 |
Control panel FD | Na dotaz | Zadat poptávku | |
| 402 WHR00442 |
C00331990
482000005806 |
Button options | Na dotaz | Zadat poptávku | |
| 403 WHR00442 |
C00331991
482000005807 |
Spring | Na dotaz | Zadat poptávku | |
| 404 WHR00442 |
C00331992
482000005808 |
Light guide -1 | Na dotaz | Zadat poptávku | |
| 405 WHR00442 |
C00331993
482000005809 |
Light guide -2 | Na dotaz | Zadat poptávku | |
| 406 WHR00442 |
C00320865
482000005810 |
Electronic box | Na dotaz | Zadat poptávku | |
| 407 WHR00442 |
C00313412
482000005785 |
Control board D13-2 | Na dotaz | Zadat poptávku | |
| 408 WHR00442 |
C00316983
482000005786 |
Display board D13 LED red | Na dotaz | Zadat poptávku | |
| 409 WHR00442 |
C00317645
482000004058 |
Cable Display | Na dotaz | Zadat poptávku | |
| 410 WHR00442 |
C00316115
482000004034 |
Cover protect. CB | Na dotaz | Zadat poptávku | |
| 411 WHR00442 |
C00331987
482000005787 |
Button ON/OFF dark grey | Na dotaz | Zadat poptávku | |
| 500 WHR00442 |
C00333964
482000010591 |
Mounting kit FD | Na dotaz | Zadat poptávku | |
| 999 WHR00442 |
C00348288 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00442 |
C00348290 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00442 |
C00348291 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00442 |
C00348292 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00442 |
C00348294 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00442 |
C00348295 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00442 |
C00348296 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00442 |
C00348297 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
