| Komerční kód: | ADN 202/1 |
| Kód 12NC: | 854420201010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální lednice a mrazáky |
Potřebujete servis? Jsme tady pro Vás

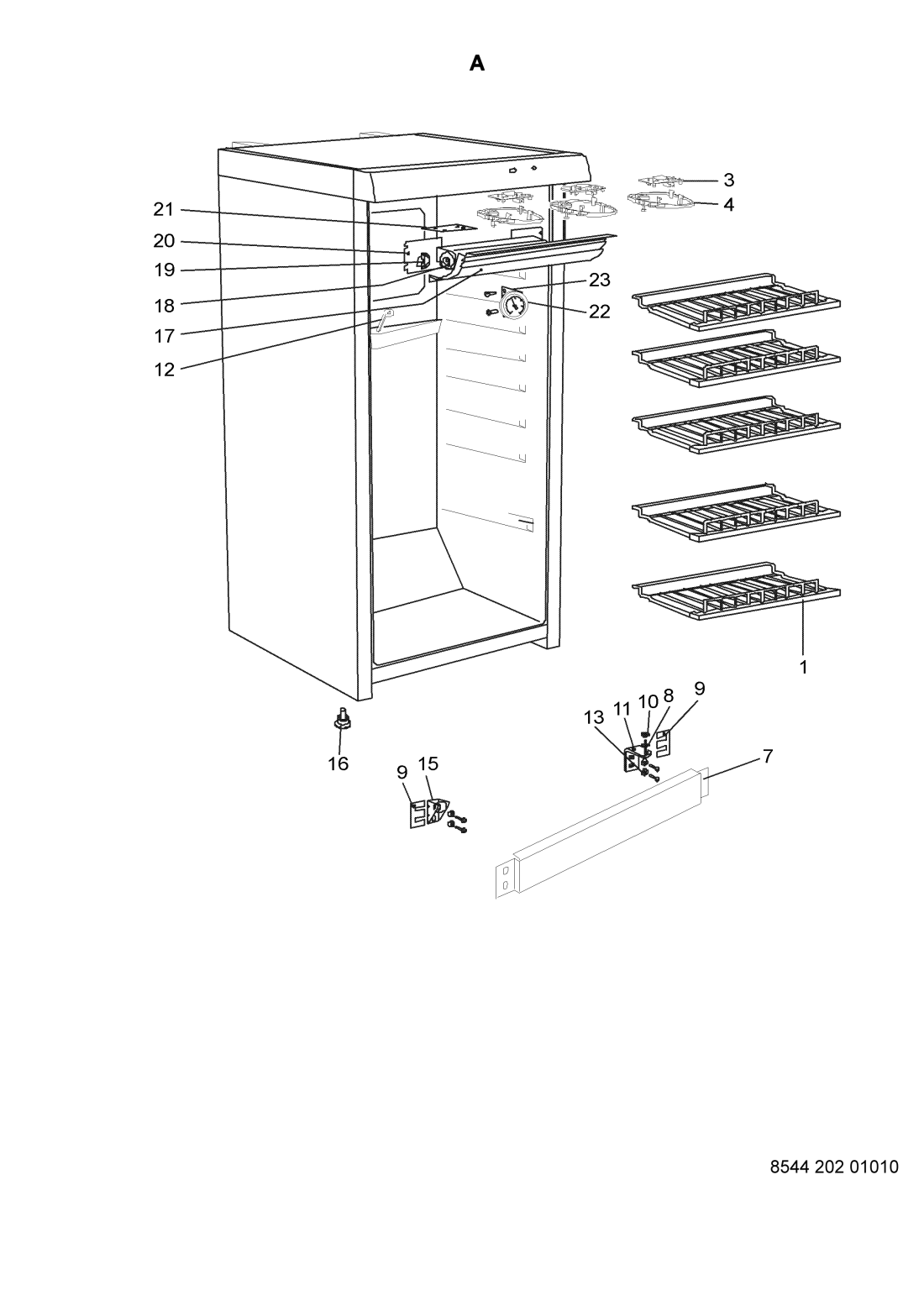

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A001 WHR24592 |
C00421563
483286003476 |
Shelf metal | Na dotaz | Zadat poptávku | |
| A003 WHR24592 |
C00424049
483286011954 |
Plate LED | Na dotaz | Zadat poptávku | |
| A004 WHR24592 |
C00424050
483286011955 |
Cover | Na dotaz | Zadat poptávku | |
| A007 WHR24592 |
C00424087
483286011996 |
Panel | Na dotaz | Zadat poptávku | |
| A008 WHR24592 |
C00424052
483286011957 |
Washer of bracket | Na dotaz | Zadat poptávku | |
| A009 WHR24592 |
C00424088
483286011997 |
Washer of bottom bracket | Na dotaz | Zadat poptávku | |
| A010 WHR24592 |
C00424053
483286011958 |
Washer | Na dotaz | Zadat poptávku | |
| A010 WHR24592 |
C00424054
483286011959 |
Washer | Na dotaz | Zadat poptávku | |
| A011 WHR24592 |
C00424089
483286011998 |
Hinge | Na dotaz | Zadat poptávku | |
| A012 WHR24592 |
C00421524
483286003433 |
Tube drainage | Na dotaz | Zadat poptávku | |
| A013 WHR24592 |
C00424051
483286011956 |
Washer | Na dotaz | Zadat poptávku | |
| A015 WHR24592 |
C00421564
483286003477 |
Hinge door bottom left | Na dotaz | Zadat poptávku | |
| A016 WHR24592 |
C00421517
483286003425 |
Foot front | Na dotaz | Zadat poptávku | |
| A017 WHR24592 |
C00421518
483286003426 |
Cover fan | Na dotaz | Zadat poptávku | |
| A018 WHR24592 |
C00424055
483286011961 |
Ventilátor do chladící vitríny | 3 656 Kč
€ 160.70 |
||
| A018 WHR24592 |
C00421519
483286003427 |
ventilátor 483286011961 | Na dotaz | Zadat poptávku | |
| A019 WHR24592 |
C00421520
483286003428 |
Holder | Na dotaz | Zadat poptávku | |
| A020 WHR24592 |
C00421565
483286003478 |
Plate fan rear | Na dotaz | Zadat poptávku | |
| A021 WHR24592 |
C00421522
483286003431 |
Plate fan | Na dotaz | Zadat poptávku | |
| A022 WHR24592 |
C00422428
483286010055 |
Thermometer | Na dotaz | Zadat poptávku | |
| A023 WHR24592 |
C00422429
483286010056 |
Bracket | Na dotaz | Zadat poptávku | |
| B001 WHR24592 |
C00424090
483286011999 |
Door | Na dotaz | Zadat poptávku | |
| B002 WHR24592 |
C00495090
482000093222 |
Strip black | Na dotaz | Zadat poptávku | |
| C001 WHR24592 |
C00424058
483286011964 |
Plate | Na dotaz | Zadat poptávku | |
| C002 WHR24592 |
C00424091
483286012001 |
Cover plate | Na dotaz | Zadat poptávku | |
| C003 WHR24592 |
C00424059
483286011965 |
Washer | Na dotaz | Zadat poptávku | |
| C005 WHR24592 |
C00424060
483286011966 |
Holder top left | Na dotaz | Zadat poptávku | |
| C006 WHR24592 |
C00424061
483286011967 |
Holder top right | Na dotaz | Zadat poptávku | |
| C007 WHR24592 |
C00424092
483286012002 |
Panel | Na dotaz | Zadat poptávku | |
| C008 WHR24592 |
C00421532
483286003442 |
Cover thermostat | Na dotaz | Zadat poptávku | |
| C009 WHR24592 |
C00424093
483286012003 |
Cover of green signal lamp | Na dotaz | Zadat poptávku | |
| C010 WHR24592 |
C00424063
483286011969 |
Cover | Na dotaz | Zadat poptávku | |
| C011 WHR24592 |
C00424064
483286011971 |
Washer of bracket | Na dotaz | Zadat poptávku | |
| C012 WHR24592 |
C00421535
483286003445 |
Hinge door top right | Na dotaz | Zadat poptávku | |
| C013 WHR24592 |
C00424094
483286012004 |
Washer of door | Na dotaz | Zadat poptávku | |
| C014 WHR24592 |
C00421536
483286003446 |
Hinge door top left | Na dotaz | Zadat poptávku | |
| C015 WHR24592 |
C00424065
483286011972 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| C016 WHR24592 |
C00424066
483286011973 |
Wheel of thermostat dial | Na dotaz | Zadat poptávku | |
| C017 WHR24592 |
C00418828
482000024148 |
Termostat | 1 565 Kč
€ 68.80 |
||
| C018 WHR24592 |
C00421540
483286003451 |
Holder signal lamp | Na dotaz | Zadat poptávku | |
| C019 WHR24592 |
C00424069
483286011976 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| C020 WHR24592 |
C00424070
483286011977 |
Holder | Na dotaz | Zadat poptávku | |
| C021 WHR24592 |
C00421542
483286003453 |
Switch light | Na dotaz | Zadat poptávku | |
| C022 WHR24592 |
C00424080
483286011988 |
Clamp | Na dotaz | Zadat poptávku | |
| C023 WHR24592 |
C00424071
483286011978 |
Panel | Na dotaz | Zadat poptávku | |
| C027 WHR24592 |
C00522447
482000099009 |
Relay KRNLE13KK4 | Na dotaz | Zadat poptávku | |
| C028 WHR24592 |
C00424098
483286012008 |
Cable mains | Na dotaz | Zadat poptávku | |
| C029 WHR24592 |
C00522448
482000099010 |
Compressor | Na dotaz | Zadat poptávku | |
| C030 WHR24592 |
C00421548
483286003459 |
Tube compressor | Na dotaz | Zadat poptávku | |
| C031 WHR24592 |
C00424100
483286012011 |
Support for compressor fixing | Na dotaz | Zadat poptávku | |
| C034 WHR24592 |
C00421550
483286003462 |
Condenser grip | Na dotaz | Zadat poptávku | |
| C035 WHR24592 |
C00421551
483286003463 |
Condenser washer | Na dotaz | Zadat poptávku | |
| C036 WHR24592 |
C00424077
483286011985 |
Bracket of condenser | Na dotaz | Zadat poptávku | |
| C037 WHR24592 |
C00424078
483286011986 |
Clip for wires fixing | Na dotaz | Zadat poptávku | |
| C038 WHR24592 |
C00424079
483286011987 |
Support | Na dotaz | Zadat poptávku | |
| C039 WHR24592 |
C00421568
483286003482 |
Evaporator fixing pin | Na dotaz | Zadat poptávku | |
| C040 WHR24592 |
C00421523
483286003432 |
Bushing evaporator | Na dotaz | Zadat poptávku | |
| C041 WHR24592 |
C00424081
483286011989 |
Clip | Na dotaz | Zadat poptávku | |
| C047 WHR24592 |
C00424101
483286012012 |
Bushing | Na dotaz | Zadat poptávku | |
| C048 WHR24592 |
C00421569
483286003483 |
Pipe drainage water | Na dotaz | Zadat poptávku | |
| C049 WHR24592 |
C00421570
483286003484 |
Pipe pin | Na dotaz | Zadat poptávku | |
| C050 WHR24592 |
C00421571
483286003485 |
Condenser | Na dotaz | Zadat poptávku | |
| C051 WHR24592 |
C00421558
483286003471 |
Tube | Na dotaz | Zadat poptávku | |
| C052 WHR24592 |
C00421559
483286003472 |
Filter | Na dotaz | Zadat poptávku | |
| C052 WHR24592 |
C00424082
483286011991 |
Filter | Na dotaz | Zadat poptávku | |
| C052 WHR24592 |
C00424083
483286011992 |
Filter | Na dotaz | Zadat poptávku | |
| C053 WHR24592 |
C00424102
483286012013 |
Wiring | Na dotaz | Zadat poptávku | |
| C054 WHR24592 |
C00424103
483286012014 |
Foam cabinet | Na dotaz | Zadat poptávku | |
| C055 WHR24592 |
C00424104
483286012015 |
výparník | 2 959 Kč
€ 130.10 |
||
| C056 WHR24592 |
C00421561
483286003474 |
Wheel | Na dotaz | Zadat poptávku | |
| C057 WHR24592 |
C00421562
483286003475 |
Axle | Na dotaz | Zadat poptávku | |
| C059 WHR24592 |
C00421554
483286003466 |
Plate mounting panel | Na dotaz | Zadat poptávku | |
