WHIRLPOOL ADN 203
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADN 203 |
| Kód 12NC/I.C. kód: | 854420301000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální lednice a mrazáky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

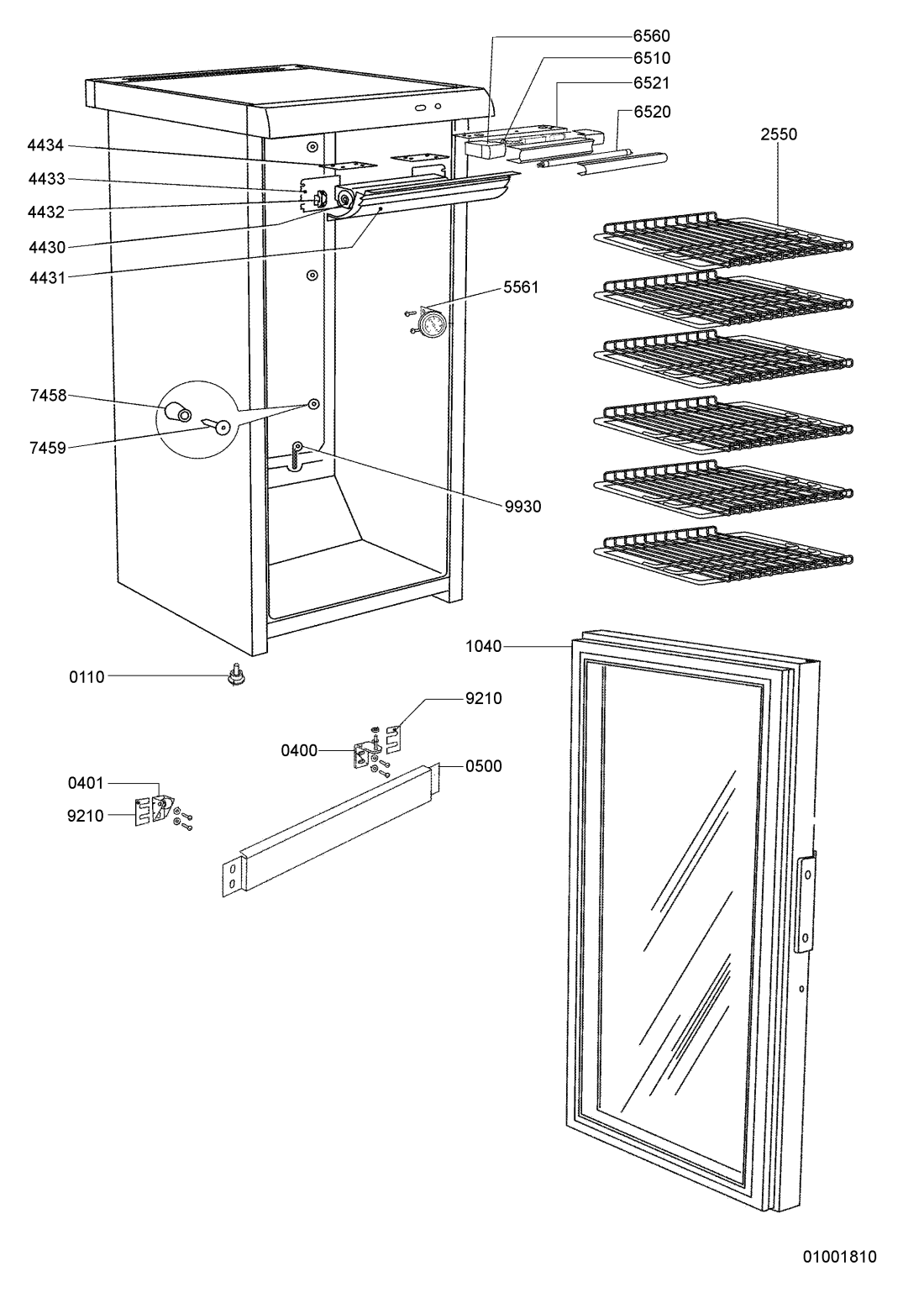

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR24584 |
C00421528
483286003437 |
Cover top | Na dotaz | Zadat poptávku | |
| 0110 WHR24584 |
C00421517
483286003425 |
Foot front | Na dotaz | Zadat poptávku | |
| 0111 WHR24584 |
C00421561
483286003474 |
Wheel | Na dotaz | Zadat poptávku | |
| 0112 WHR24584 |
C00421562
483286003475 |
Axle | Na dotaz | Zadat poptávku | |
| 0250 WHR24584 |
C00421529
483286003438 |
Support top left | Na dotaz | Zadat poptávku | |
| 0251 WHR24584 |
C00421530
483286003439 |
Support top right | Na dotaz | Zadat poptávku | |
| 0400 WHR24584 |
C00421514
483286003422 |
Hinge door bottom right | Na dotaz | Zadat poptávku | |
| 0401 WHR24584 |
C00421516
483286003424 |
Hinge door bottom left | Na dotaz | Zadat poptávku | |
| 0402 WHR24584 |
C00421535
483286003445 |
Hinge door top right | Na dotaz | Zadat poptávku | |
| 0403 WHR24584 |
C00421536
483286003446 |
Hinge door top left | Na dotaz | Zadat poptávku | |
| 0500 WHR24584 |
C00421512
483286003419 |
Panel bottom front | Na dotaz | Zadat poptávku | |
| 0501 WHR24584 |
C00421527
483286003436 |
Panel rear | Na dotaz | Zadat poptávku | |
| 0502 WHR24584 |
C00421553
483286003465 |
Support | Na dotaz | Zadat poptávku | |
| 1040 WHR24584 |
C00421526
483286003435 |
Dveře chladničky | Na dotaz | Zadat poptávku | |
| 2550 WHR24584 |
C00421507
483286003414 |
rošt | Na dotaz | Zadat poptávku | |
| 3040 WHR24584 |
C00421543
483286003454 |
Control panel mounting | Na dotaz | Zadat poptávku | |
| 3200 WHR24584 |
C00421531
483286003441 |
Panel refrigerator | Na dotaz | Zadat poptávku | |
| 3311 WHR24584 |
C00421537
483286003447 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 3319 WHR24584 |
C00421538
483286003448 |
Holder thermostat knob | Na dotaz | Zadat poptávku | |
| 3510 WHR24584 |
C00421541
483286003452 |
Lamp green | Na dotaz | Zadat poptávku | |
| 3511 WHR24584 |
C00421540
483286003451 |
Holder signal lamp | Na dotaz | Zadat poptávku | |
| 3540 WHR24584 |
C00421532
483286003442 |
Cover thermostat | Na dotaz | Zadat poptávku | |
| 3541 WHR24584 |
C00421533
483286003443 |
Cover signal lamp | Na dotaz | Zadat poptávku | |
| 3542 WHR24584 |
C00421534
483286003444 |
Cover | Na dotaz | Zadat poptávku | |
| 4020 WHR24584 |
C00421547
483286003458 |
Compressor GL 80 DA | Na dotaz | Zadat poptávku | |
| 4021 WHR24584 |
C00421544
483286003455 |
Tray compressor | Na dotaz | Zadat poptávku | |
| 4022 WHR24584 |
C00421549
483286003461 |
Support compressor | Na dotaz | Zadat poptávku | |
| 4430 WHR24584 |
C00421519
483286003427 |
ventilátor Náhrada 483286011961 |
Na dotaz | Zadat poptávku | |
| 4431 WHR24584 |
C00421518
483286003426 |
Cover fan | Na dotaz | Zadat poptávku | |
| 4432 WHR24584 |
C00421520
483286003428 |
Holder | Na dotaz | Zadat poptávku | |
| 4433 WHR24584 |
C00421521
483286003429 |
Plate fan rear | Na dotaz | Zadat poptávku | |
| 4434 WHR24584 |
C00421522
483286003431 |
Plate fan | Na dotaz | Zadat poptávku | |
| 5560 WHR24584 |
C00421539
483286003449 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5561 WHR24584 |
C00421525
483286003434 |
Bracket thermostat | Na dotaz | Zadat poptávku | |
| 6140 WHR24584 |
C00421546
483286003457 |
Relay | Na dotaz | Zadat poptávku | |
| 6200 WHR24584 |
C00421542
483286003453 |
Switch light | Na dotaz | Zadat poptávku | |
| 6510 WHR24584 |
C00421510
483286003417 |
Lighter | Na dotaz | Zadat poptávku | |
| 6520 WHR24584 |
C00421508
483286003415 |
Lamp / Bulb 8W | Na dotaz | Zadat poptávku | |
| 6521 WHR24584 |
C00421509
483286003416 |
Bushing | Na dotaz | Zadat poptávku | |
| 6560 WHR24584 |
C00421511
483286003418 |
Lampholder | Na dotaz | Zadat poptávku | |
| 6910 WHR24584 |
C00421545
483286003456 |
Sensor temperature | Na dotaz | Zadat poptávku | |
| 7020 WHR24584 |
C00421548
483286003459 |
Tube compressor | Na dotaz | Zadat poptávku | |
| 7400 WHR24584 |
C00421557
483286003469 |
Condenser | Na dotaz | Zadat poptávku | |
| 7417 WHR24584 |
C00421552
483286003464 |
Condenser bracket | Na dotaz | Zadat poptávku | |
| 7418 WHR24584 |
C00421551
483286003463 |
Condenser washer | Na dotaz | Zadat poptávku | |
| 7419 WHR24584 |
C00421550
483286003462 |
Condenser grip | Na dotaz | Zadat poptávku | |
| 7450 WHR24584 |
C00421560
483286003473 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7458 WHR24584 |
C00421523
483286003432 |
Bushing evaporator | Na dotaz | Zadat poptávku | |
| 7459 WHR24584 |
C00421515
483286003423 |
Pin | Na dotaz | Zadat poptávku | |
| 7640 WHR24584 |
C00421558
483286003471 |
Tube | Na dotaz | Zadat poptávku | |
| 7810 WHR24584 |
C00421559
483286003472 |
Filter | Na dotaz | Zadat poptávku | |
| 9000 WHR24584 |
C00421554
483286003466 |
Plate mounting panel | Na dotaz | Zadat poptávku | |
| 9001 WHR24584 |
C00421555
483286003467 |
Bushing condenser | Na dotaz | Zadat poptávku | |
| 9002 WHR24584 |
C00421556
483286003468 |
Plug condenser | Na dotaz | Zadat poptávku | |
| 9210 WHR24584 |
C00421513
483286003421 |
Washer bracket | Na dotaz | Zadat poptávku | |
| 9930 WHR24584 |
C00421524
483286003433 |
Tube drainage | Na dotaz | Zadat poptávku | |
| 999 WHR24584 |
C00849631
488000849631 |
Carton box CD350 | Na dotaz | Zadat poptávku | |
| 9990 WHR24584 |
C00407084
482000000673 |
Door handle | Na dotaz | Zadat poptávku | |
| 9991 WHR24584 |
C00407085
482000000674 |
Door lock | Na dotaz | Zadat poptávku | |
