WHIRLPOOL ADN 503 oven combi steam 11xGN2/1 CP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADN 503 oven combi steam 11xGN2/1 CP |
| Kód 12NC/I.C. kód: | 854450301000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

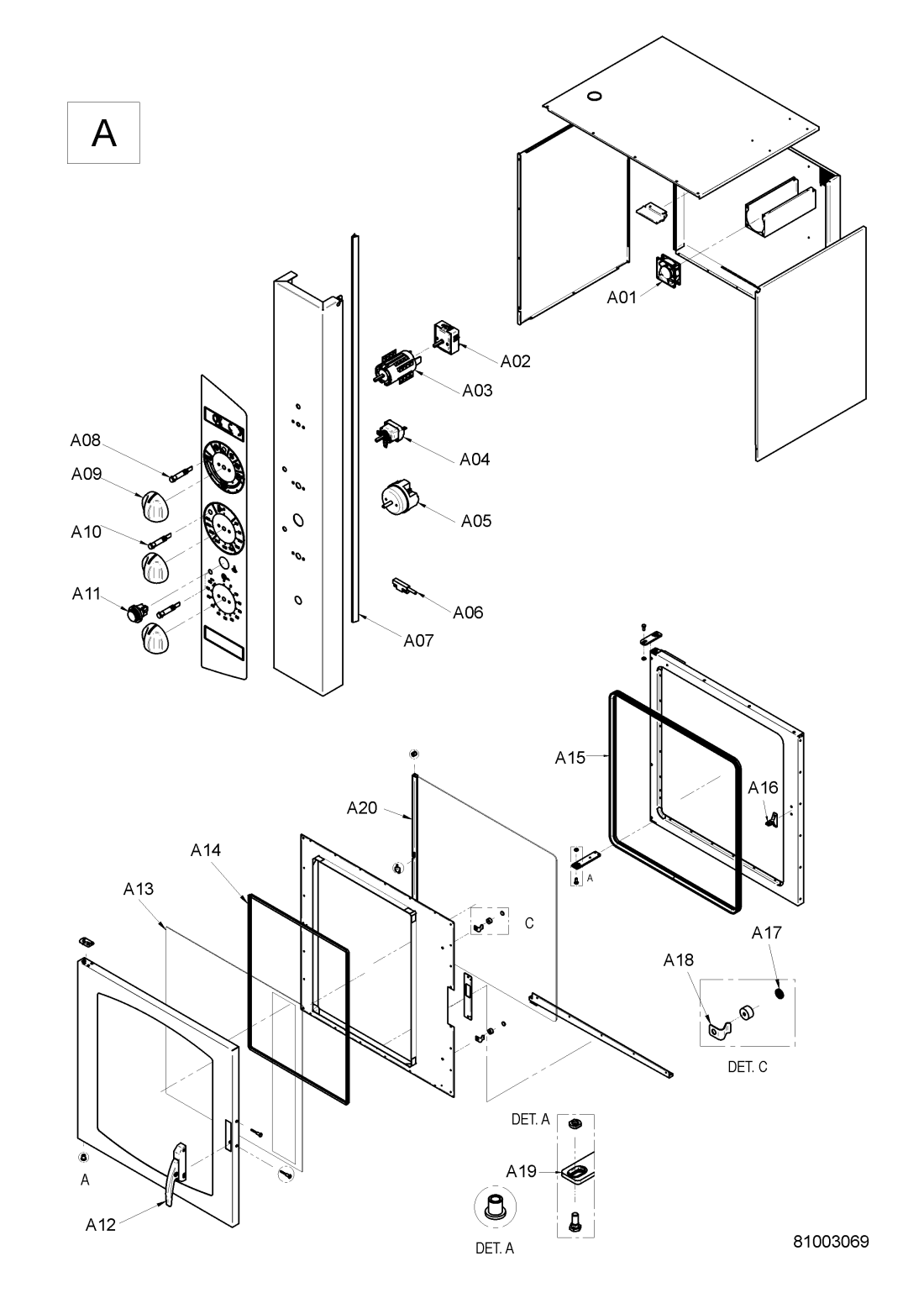

| A01 WHR47041 |
C00373262
483286008695 |
Motor fan 220V AC | Na dotaz | Zadat poptávku | |
| A02 WHR47041 |
C00581916
483286008224 |
Regulator energy | Na dotaz | Zadat poptávku | |
| A03 WHR47041 |
C00420688
483286002489 |
Switch ,11 positions 16A 600V | Na dotaz | Zadat poptávku | |
| A04 WHR47041 |
C00381037
483286010465 |
Thermostat ,COOKING CHAMBER | Na dotaz | Zadat poptávku | |
| A05 WHR47041 |
C00621632
483286008209 |
Timer | Na dotaz | Zadat poptávku | |
| A06 WHR47041 |
C00424105
483286012016 |
Sensor magnetic | Na dotaz | Zadat poptávku | |
| A07 WHR47041 |
C00423199
483286010938 |
Gasket | Na dotaz | Zadat poptávku | |
| A08 WHR47041 |
C00581902
483286008203 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| A09 WHR47041 |
C00424106
483286012017 |
Knob | Na dotaz | Zadat poptávku | |
| A10 WHR47041 |
C00581901
483286008202 |
Pilot lamp orange | Na dotaz | Zadat poptávku | |
| A11 WHR47041 |
C00420630
483286002425 |
Switch ,backlighted black | Na dotaz | Zadat poptávku | |
| A12 WHR47041 |
C00422788
483286010461 |
Rukojeť konvektomatu | Na dotaz | Zadat poptávku | |
| A13 WHR47041 |
C00424107
483286012018 |
Door glass external | Na dotaz | Zadat poptávku | |
| A14 WHR47041 |
C00423246
483286010991 |
Gasket ,door | Na dotaz | Zadat poptávku | |
| A15 WHR47041 |
C00424108
483286012019 |
Gasket | Na dotaz | Zadat poptávku | |
| A16 WHR47041 |
C00424109
483286012021 |
Lock handle | Na dotaz | Zadat poptávku | |
| A17 WHR47041 |
C00422793
483286010467 |
Gasket | Na dotaz | Zadat poptávku | |
| A18 WHR47041 |
C00424110
483286012022 |
Spring | Na dotaz | Zadat poptávku | |
| A19 WHR47041 |
C00424111
483286012023 |
Hinge lower | Na dotaz | Zadat poptávku | |
| A20 WHR47041 |
C00424116
483286012028 |
Glass door + frame | Na dotaz | Zadat poptávku | |
| B01 WHR47041 |
C00381036
483286008707 |
Thermostat steam cycle 100 #C | Na dotaz | Zadat poptávku | |
| B02 WHR47041 |
C00581907
483286008208 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| B03 WHR47041 |
C00420650
483286002447 |
Cable clamp | Na dotaz | Zadat poptávku | |
| B04 WHR47041 |
C00581935
483286008704 |
Thermostat condensation 30-90 #C | Na dotaz | Zadat poptávku | |
| B05 WHR47041 |
C00581948
483286008719 |
Holder fuse | Na dotaz | Zadat poptávku | |
| B06 WHR47041 |
C00424112
483286012024 |
Fuse 60 MA 5x20 | Na dotaz | Zadat poptávku | |
| B07 WHR47041 |
C00581917
483286008225 |
Fuse 2A | Na dotaz | Zadat poptávku | |
| B08 WHR47041 |
C00420612
483286002405 |
Terminal block | Na dotaz | Zadat poptávku | |
| B09 WHR47041 |
C00581934
483286008703 |
Valve water filling solenoid | Na dotaz | Zadat poptávku | |
| B10 WHR47041 |
C00423247
483286010992 |
Nozzle | Na dotaz | Zadat poptávku | |
| B11 WHR47041 |
C00422475
483286010107 |
Relay SCHRACK 230V | Na dotaz | Zadat poptávku | |
| B12 WHR47041 |
C00424113
483286012025 |
Holder lamp | Na dotaz | Zadat poptávku | |
| B13 WHR47041 |
C00424114
483286012026 |
Lamp,halogen 230V 40 | Na dotaz | Zadat poptávku | |
| B14 WHR47041 |
C00422792
483286010466 |
Handle ,venting | Na dotaz | Zadat poptávku | |
| B15 WHR47041 |
C00420718
483286002523 |
Gasket ,steamtight for engine | Na dotaz | Zadat poptávku | |
| B16 WHR47041 |
C00424118
483286012031 |
Fan d400 mm | Na dotaz | Zadat poptávku | |
| B17 WHR47041 |
C00420667
483286002466 |
Nozzle ,water for humidity 0,50mm | Na dotaz | Zadat poptávku | |
| B18 WHR47041 |
C00423244
483286010988 |
Motor | Na dotaz | Zadat poptávku | |
| B19 WHR47041 |
C00423250
483286010995 |
Gasket ,bulb socket | Na dotaz | Zadat poptávku | |
| B20 WHR47041 |
C00423248
483286010993 |
Glass ,lamp | Na dotaz | Zadat poptávku | |
| B21 WHR47041 |
C00423249
483286010994 |
Frame ,lamp holder | Na dotaz | Zadat poptávku | |
| B22 WHR47041 |
C00420604
483286002396 |
Holder ,brass pipe | Na dotaz | Zadat poptávku | |
| B23 WHR47041 |
C00422797
483286010472 |
Reductor ,water flow | Na dotaz | Zadat poptávku | |
| B24 WHR47041 |
C00424115
483286012027 |
Nozzle d0,7mm | Na dotaz | Zadat poptávku | |
| B25 WHR47041 |
C00424119
483286012032 |
Heating element thre | Na dotaz | Zadat poptávku | |
