| Komerční kód: | AFE 275-/B-K FREEZING INTEGRATABLE IG |
| Kód 12NC/I.C. kód: | 850727515360 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné mrazáky |
| Další podobné modely: | 850727515365, 850727515361, 850727515362, 850727515363, 850727515364 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

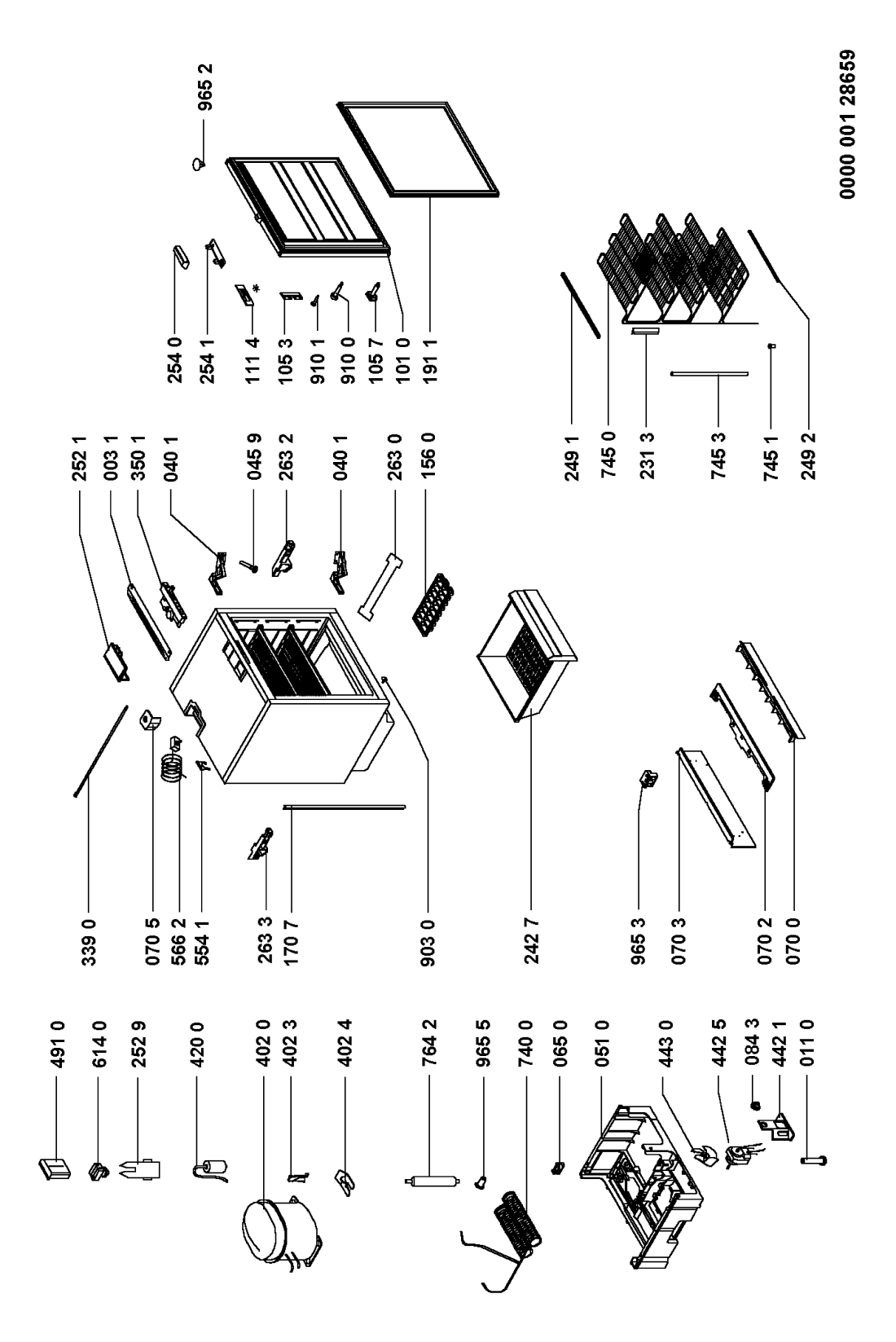

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR77731 |
C00328282
481244069218 |
lista | Na dotaz | Zadat poptávku | |
| 011 0 WHR77731 |
C00311579
481950018141 |
Noha vestavné chladničky Whirlpool AFB 821/1, AFB 8281, ARG 913/A+, ARG 913 1, ARZ 005/A+ | 31 Kč
€ 1.20 |
||
| 040 1 WHR77731 |
C00310966
481231018672 |
Závěs dveří - sada 481231018672 | Na dotaz | Zadat poptávku | |
| 045 9 WHR77731 |
C00315522
481241778065 |
Čep | Na dotaz | Zadat poptávku | |
| 051 0 WHR77731 |
C00330832
481246448171 |
ram lednice | Na dotaz | Zadat poptávku | |
| 065 0 WHR77731 |
C00333279
481952918041 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 070 0 WHR77731 |
C00319326
481244269321 |
sokl | 1 126 Kč
€ 45.20 |
||
| 070 2 WHR77731 |
C00317269
481244229215 |
kryt | Na dotaz | Zadat poptávku | |
| 070 3 WHR77731 |
C00333019
481944229927 |
Kryt | Na dotaz | Zadat poptávku | |
| 070 5 WHR77731 |
C00328320
481244079088 |
Separator | Na dotaz | Zadat poptávku | |
| 084 3 WHR77731 |
C00333073
481946248211 |
gufero | 59 Kč
€ 2.40 |
||
| 101 0 WHR77731 |
C00333020
481944229989 |
Door freezer | Na dotaz | Zadat poptávku | |
| 105 3 WHR77731 |
C00333128
481946689044 |
Fastener | Na dotaz | Zadat poptávku | |
| 105 7 WHR77731 |
C00333274
481952838286 |
kolik s excentrem | Na dotaz | Zadat poptávku | |
| 111 4 WHR77731 |
C00333061
481946049859 |
Nameplate | Na dotaz | Zadat poptávku | |
| 156 0 WHR77731 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 170 7 WHR77731 |
C00330264
481246049368 |
Trim | Na dotaz | Zadat poptávku | |
| 191 1 WHR77731 |
C00312856
481946818162 |
Těsnění magnetické | 1 770 Kč
€ 71.00 |
||
| 231 3 WHR77731 |
C00333124
481946688704 |
Clamp sensor thermostat | Na dotaz | Zadat poptávku | |
| 242 7 WHR77731 |
C00311662
481241848595 |
Šuplík Mrazáku | 5 427 Kč
€ 217.70 |
||
| 249 1 WHR77731 |
C00498305
481245948134 |
Profile | Na dotaz | Zadat poptávku | |
| 249 2 WHR77731 |
C00320056
481946088126 |
Trim short | Na dotaz | Zadat poptávku | |
| 252 1 WHR77731 |
C00333095
481946279338 |
kryt | 56 Kč
€ 2.20 |
||
| 252 9 WHR77731 |
C00333089
481946258371 |
Guard | Na dotaz | Zadat poptávku | |
| 254 0 WHR77731 |
C00327270
481227328221 |
LIGHT LEVEL | Na dotaz | Zadat poptávku | |
| 254 1 WHR77731 |
C00329049
481240448878 |
drzak | 363 Kč
€ 14.50 |
||
| 263 0 WHR77731 |
C00328424
481244098165 |
Guide | Na dotaz | Zadat poptávku | |
| 263 2 WHR77731 |
C00328425
481244098166 |
drzak kose a vyparn | Na dotaz | Zadat poptávku | |
| 263 3 WHR77731 |
C00331010
481244098167 |
Support | Na dotaz | Zadat poptávku | |
| 339 0 WHR77731 |
C00333349
481953598346 |
Rod | Na dotaz | Zadat poptávku | |
| 350 1 WHR77731 |
C00312136
481228018015 |
jednotka signalek | 3 050 Kč
€ 122.30 |
||
| 402 0 WHR77731 |
C00497500
481236038584 |
KOMPRESOR EMT40CLP N | Na dotaz | Zadat poptávku | |
| 402 3 WHR77731 |
C00333348
481953598345 |
Fastener | Na dotaz | Zadat poptávku | |
| 402 4 WHR77731 |
C00333135
481946689405 |
PRICHYTKA | 53 Kč
€ 2.10 |
||
| 420 0 WHR77731 |
C00326742
481212018008 |
Capacitor 4#F | Na dotaz | Zadat poptávku | |
| 442 1 WHR77731 |
C00332945
481940478859 |
drzak | 82 Kč
€ 3.30 |
||
| 442 5 WHR77731 |
C00314229
481936178144 |
motorek ventilatoru | Na dotaz | Zadat poptávku | |
| 443 0 WHR77731 |
C00328802
481236118422 |
vrtule vent. | 265 Kč
€ 10.60 |
||
| 491 0 WHR77731 |
C00333094
481946279241 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 1 WHR77731 |
C00333185
481949268723 |
pruzina | 248 Kč
€ 9.90 |
||
| 566 2 WHR77731 |
C00311565
481927129106 |
Thermostat A04-391 | Na dotaz | Zadat poptávku | |
| 614 0 WHR77731 |
C00332847
481928068367 |
RELE ART284 | 740 Kč
€ 29.70 |
||
| 740 0 WHR77731 |
C00332232
481251148279 |
Condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR77731 |
C00332193
481251138146 |
vyparnik | Na dotaz | Zadat poptávku | |
| 745 1 WHR77731 |
C00333321
481953268708 |
Bushing | Na dotaz | Zadat poptávku | |
| 745 3 WHR77731 |
C00332389
481252928038 |
Hose | Na dotaz | Zadat poptávku | |
| 764 2 WHR77731 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 903 0 WHR77731 |
C00319367
481246228507 |
Záslepka | Na dotaz | Zadat poptávku | |
| 910 0 WHR77731 |
C00332310
481252388004 |
Screw M5X18,5M5X18,5 | Na dotaz | Zadat poptávku | |
| 910 1 WHR77731 |
C00333205
481950218306 |
sroubek | Na dotaz | Zadat poptávku | |
| 965 2 WHR77731 |
C00330487
481246228383 |
STOPPER | Na dotaz | Zadat poptávku | |
| 965 3 WHR77731 |
C00315434
481246279858 |
Insert | Na dotaz | Zadat poptávku | |
| 965 5 WHR77731 |
C00333278
481952918039 |
Spacer | Na dotaz | Zadat poptávku | |
| 999 WHR77731 |
C00705273 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
