| Komerční kód: | AFO 631 |
| Kód 12NC: | 852563101000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás

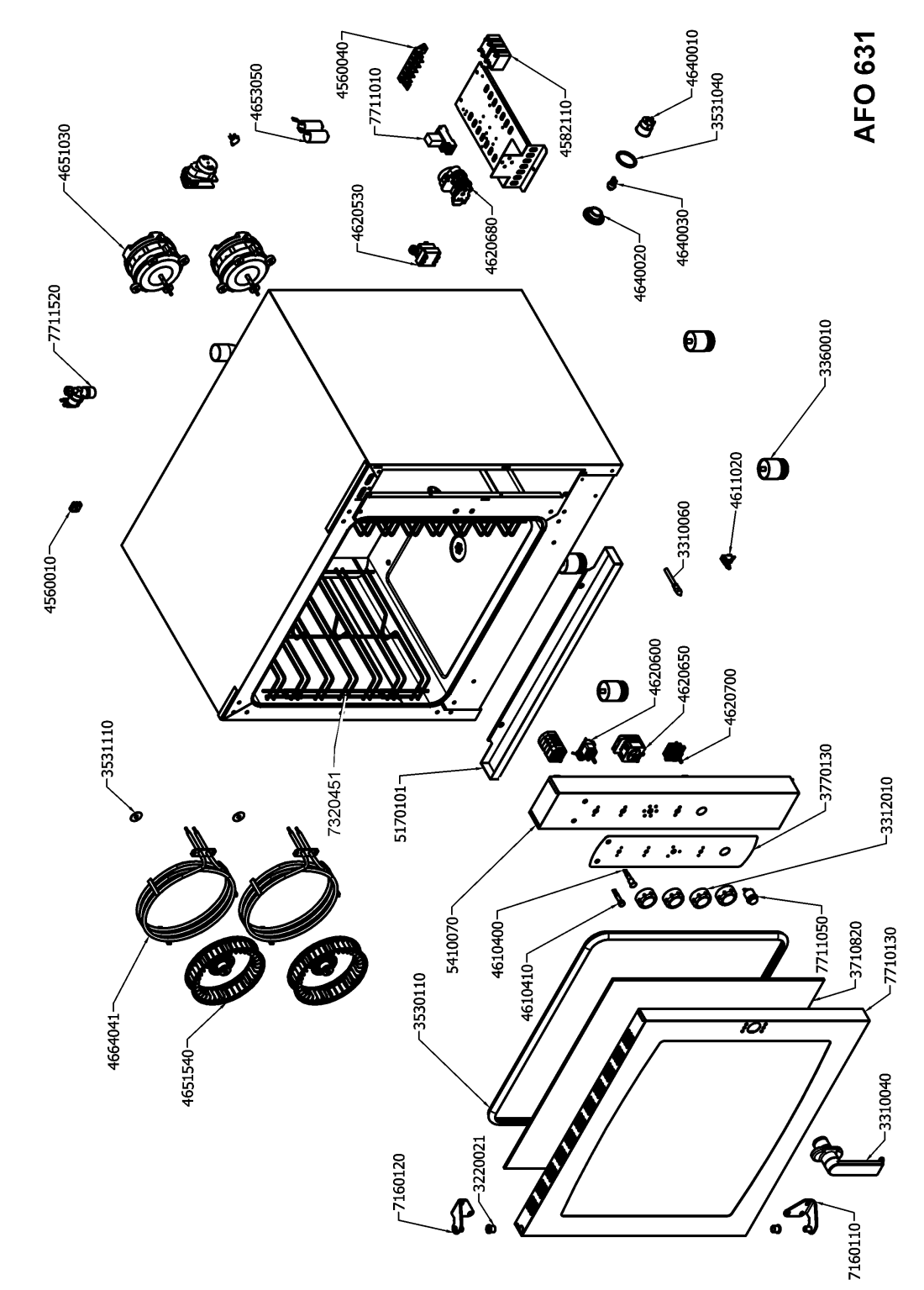

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 3220021 WHR21366 |
C00408455
482000003549 |
Bushing | Na dotaz | Zadat poptávku | |
| 3310040 WHR21366 |
C00412095
482000010524 |
Door handle | Na dotaz | Zadat poptávku | |
| 3310060 WHR21366 |
C00412096
482000010525 |
Support handle | Na dotaz | Zadat poptávku | |
| 3312010 WHR21366 |
C00412121
482000010550 |
Knob | Na dotaz | Zadat poptávku | |
| 3360010 WHR21366 |
C00412122
482000010551 |
Foot | Na dotaz | Zadat poptávku | |
| 3530110 WHR21366 |
C00412123
482000010566 |
Gasket door | Na dotaz | Zadat poptávku | |
| 3531040 WHR21366 |
C00408048
482000002793 |
Gasket Halogen lamp | Na dotaz | Zadat poptávku | |
| 3531110 WHR21366 |
C00412119
482000010548 |
Gasket motor | Na dotaz | Zadat poptávku | |
| 3710820 WHR21366 |
C00412124
482000010567 |
Door glass inner | Na dotaz | Zadat poptávku | |
| 3770130 WHR21366 |
C00412125
482000010568 |
Panel | Na dotaz | Zadat poptávku | |
| 4560010 WHR21366 |
C00408052
482000002797 |
Clamp | Na dotaz | Zadat poptávku | |
| 4560040 WHR21366 |
C00412100
482000010529 |
Terminal block | Na dotaz | Zadat poptávku | |
| 4582110 WHR21366 |
C00408077
482000002822 |
Relay 30A SINGLE 250V | Na dotaz | Zadat poptávku | |
| 4610400 WHR21366 |
C00412101
482000010530 |
Kontrolka zelená | 934 Kč
€ 41.10 |
||
| 4610410 WHR21366 |
C00412102
482000010531 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 4611020 WHR21366 |
C00408056
482000002801 |
Switch door mechanical | Na dotaz | Zadat poptávku | |
| 4620530 WHR21366 |
C00412103
482000010532 |
Thermostat TF 320° | Na dotaz | Zadat poptávku | |
| 4620600 WHR21366 |
C00412105
482000010534 |
Thermostat 50°-270° C | Na dotaz | Zadat poptávku | |
| 4620650 WHR21366 |
C00412108
482000010537 |
Time switch | Na dotaz | Zadat poptávku | |
| 4620670 WHR21366 |
C00412126
482000010569 |
Control board fan | Na dotaz | Zadat poptávku | |
| 4620700 WHR21366 |
C00412110
482000010539 |
Energy Regulat. | Na dotaz | Zadat poptávku | |
| 4640010 WHR21366 |
C00408060
482000002805 |
Lampholder | Na dotaz | Zadat poptávku | |
| 4640020 WHR21366 |
C00408061
482000002806 |
Lamp screen | Na dotaz | Zadat poptávku | |
| 4640030 WHR21366 |
C00314191
481010391431 |
Žárovka do trouby - halogen 40W G9 | 129 Kč
€ 5.70 |
||
| 4651030 WHR21366 |
C00408063
482000002808 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4651540 WHR21366 |
C00408080
482000002825 |
Impeller fan | Na dotaz | Zadat poptávku | |
| 4653050 WHR21366 |
C00408065
482000002810 |
Condenser | Na dotaz | Zadat poptávku | |
| 4664041 WHR21366 |
C00412120
482000010549 |
Heating element 4500W 230V | Na dotaz | Zadat poptávku | |
| 5170101 WHR21366 |
C00412111
482000010540 |
Drain strip | Na dotaz | Zadat poptávku | |
| 5410070 WHR21366 |
C00412127
482000010570 |
Front panel | Na dotaz | Zadat poptávku | |
| 7160110 WHR21366 |
C00412113
482000010542 |
Hinge right | Na dotaz | Zadat poptávku | |
| 7160120 WHR21366 |
C00412114
482000010543 |
Hinge left | Na dotaz | Zadat poptávku | |
| 7320451 WHR21366 |
C00419583
482000091498 |
Inset grid FCM 1-07 | Na dotaz | Zadat poptávku | |
| 7710130 WHR21366 |
C00412128
482000010571 |
Panel front door | Na dotaz | Zadat poptávku | |
| 7711010 WHR21366 |
C00412116
482000010545 |
Relay 10A 250V | Na dotaz | Zadat poptávku | |
| 7711520 WHR21366 |
C00412118
482000010547 |
Valve electr. | Na dotaz | Zadat poptávku | |
| 999 WHR21366 |
C00560850 | Legend WHP | Na dotaz | Zadat poptávku | |
