| Komerční kód: | AFO ED 5 S |
| Kód 12NC/I.C. kód: | 851299601350 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

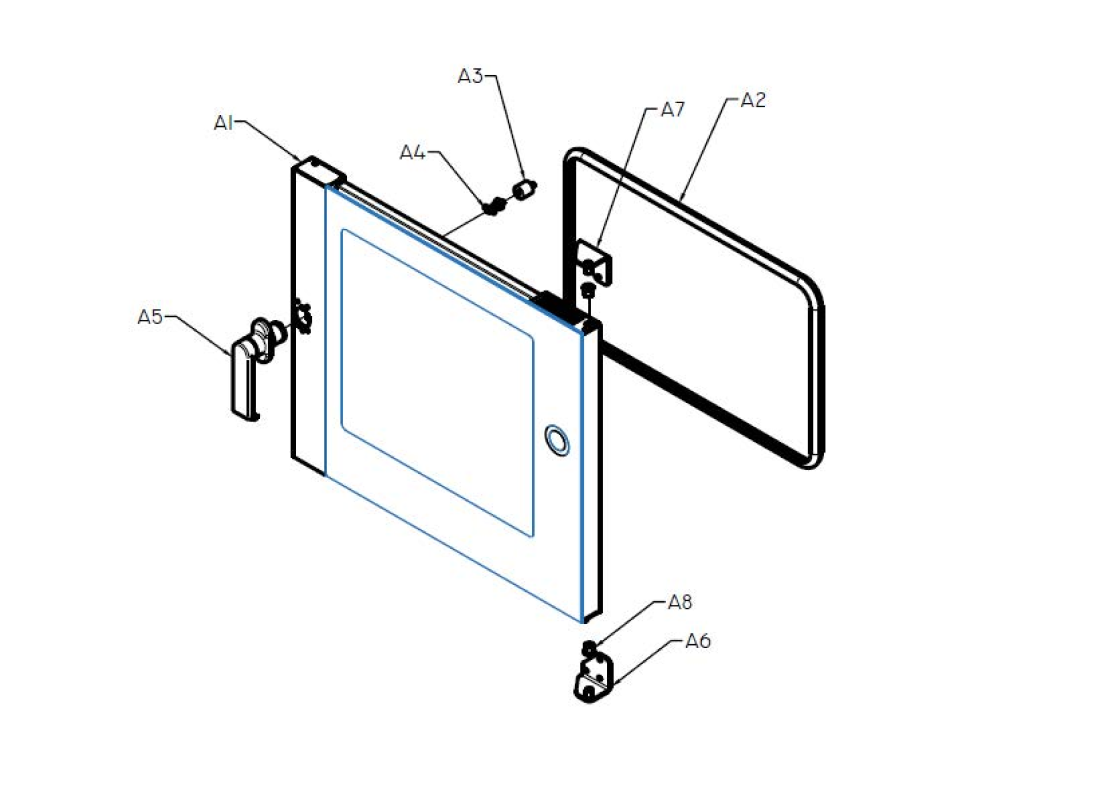

| 001 PROV01g |
C00570799
488000570799 |
FRONT GLASS+FRAME | Na dotaz | Zadat poptávku | |
| 002 PROV01g |
C00565309
488000565309 |
DVEŘNÍ BRZDY | Na dotaz | Zadat poptávku | |
| 003 PROV01g |
C00541238
488000541238 |
PIVOT OF THE HANDLE | Na dotaz | Zadat poptávku | |
| 004 PROV01g |
C00413144
482000012819 |
Spring handle | Na dotaz | Zadat poptávku | |
| 005 PROV01g |
C00541239
488000541239 |
INTERNAL FIX HANDLE | Na dotaz | Zadat poptávku | |
| 006 PROV01g |
C00541240
488000541240 |
LOWER RIGHT WELDED HINGE | Na dotaz | Zadat poptávku | |
| 007 PROV01g |
C00541241
488000541241 |
UPPER RIGHT WELDED HINGE | Na dotaz | Zadat poptávku | |
| 008 PROV01g |
C00408455
482000003549 |
Bushing | Na dotaz | Zadat poptávku | |
| 001 PROV02a |
C00413180
482000012855 |
Rotor washing | Na dotaz | Zadat poptávku | |
| 002 PROV02a |
C00413153
482000012828 |
Bush | Na dotaz | Zadat poptávku | |
| 003 PROV02a |
C00413182
482000012857 |
Pump 3l/h, 230V | Na dotaz | Zadat poptávku | |
| 004 PROV02a |
C00413183
482000012858 |
Inlet valve + filter | Na dotaz | Zadat poptávku | |
| 005 PROV02a |
C00413184
482000012859 |
Filter detergent | Na dotaz | Zadat poptávku | |
| 006 PROV02a |
C00413185
482000012860 |
Connection | Na dotaz | Zadat poptávku | |
| 007 PROV02a |
C00413186
482000012861 |
Connection interm. Y D8 | Na dotaz | Zadat poptávku | |
| 008 PROV02a |
C00413187
482000012862 |
Connection interm. D8 | Na dotaz | Zadat poptávku | |
| 009 PROV02a |
C00413188
482000012863 |
Connection D8 | Na dotaz | Zadat poptávku | |
| 010 PROV02a |
C00413189
482000012864 |
Reductor | Na dotaz | Zadat poptávku | |
| 011 PROV02a |
C00541252
488000541252 |
WASHING CARD PLUGIN | Na dotaz | Zadat poptávku | |
| 012 PROV02a |
C00413191
482000012866 |
Pipe D6xD4 L=2500 | Na dotaz | Zadat poptávku | |
| 013 PROV02a |
C00417325
482000020993 |
Pipe D8xD6, L=2.5 m | Na dotaz | Zadat poptávku | |
| 001 PROV02d |
C00413157
482000012832 |
Impeller | Na dotaz | Zadat poptávku | |
| 002 PROV02d |
C00413158
482000012833 |
Washer | Na dotaz | Zadat poptávku | |
| 003 PROV02d |
C00566437
488000566437 |
ODOLNOST OTVORU 7500W 400V | Na dotaz | Zadat poptávku | |
| 004 PROV02d |
C00408465
482000003559 |
Spínač | 1 892 Kč
€ 77.60 |
||
| 005 PROV02d |
C00541247
488000541247 |
CHAMBER PROBE PT1000 L=2500 WHITE | Na dotaz | Zadat poptávku | |
| 006 PROV02d |
C00560652
488000560652 |
CORE PROBE PT1000 D=4 L=1250 | Na dotaz | Zadat poptávku | |
| 007 PROV02d |
C00502635
482000093756 |
Gasket lamp | Na dotaz | Zadat poptávku | |
| 008 PROV02d |
C00502632
482000093754 |
Lamp holder | Na dotaz | Zadat poptávku | |
| 009 PROV02d |
C00408062
482000002807 |
Lamp halogen | Na dotaz | Zadat poptávku | |
| 010 PROV02d |
C00502636
482000093757 |
Oven glass 800# antishock | Na dotaz | Zadat poptávku | |
| 011 PROV02d |
C00412122
482000010551 |
Foot | Na dotaz | Zadat poptávku | |
| 012 PROV02d |
C00502633
482000093755 |
Trim lamp | Na dotaz | Zadat poptávku | |
| 001 PROV02f |
C00541250
488000541250 |
TWO DIRECTION MOTOR +COND. | Na dotaz | Zadat poptávku | |
| 002 PROV02f |
C00413161
482000012836 |
Fan | Na dotaz | Zadat poptávku | |
| 003 PROV02f |
C00413162
482000012837 |
Actuator 230 V | Na dotaz | Zadat poptávku | |
| 004 PROV02f |
C00413203
482000012882 |
Valve JG 8/8 | Na dotaz | Zadat poptávku | |
| 005 PROV02f |
C00413164
482000012839 |
Water inlet + filter | Na dotaz | Zadat poptávku | |
| 006 PROV02f |
C00408510
482000003642 |
Transformer | Na dotaz | Zadat poptávku | |
| 007 PROV02f |
C00413165
482000012840 |
Relay 30A | Na dotaz | Zadat poptávku | |
| 008 PROV02f |
C00541251
488000541251 |
POWER CARD TOUCH | Na dotaz | Zadat poptávku | |
| 010 PROV02f |
C00412103
482000010532 |
Thermostat TF 320° | Na dotaz | Zadat poptávku | |
| 011 PROV02f |
C00413210
482000012889 |
CONTACTOR LS MC-9b 25A AC-1 | Na dotaz | Zadat poptávku | |
| 012 PROV02f |
C00413167
482000012842 |
Condenser 4mf | Na dotaz | Zadat poptávku | |
| 013 PROV02f |
C00413168
482000012843 |
Condenser 10 mf | Na dotaz | Zadat poptávku | |
| 014 PROV02f |
C00408053
482000002798 |
Clamp Grey | Na dotaz | Zadat poptávku | |
| 015 PROV02f |
C00408054
482000002799 |
Clamp yellow-green | Na dotaz | Zadat poptávku | |
| 016 PROV02f |
C00575971
488000575971 |
zpožděná pojistka 5x20 1A | Na dotaz | Zadat poptávku | |
| 001 PROV03a |
C00575837
488000575837 |
vnitřní sklo FC | Na dotaz | Zadat poptávku | |
| 002 PROV03a |
C00413148
482000012823 |
Cap glass upper right | Na dotaz | Zadat poptávku | |
| 003 PROV03a |
C00413149
482000012824 |
Cap glass lower right | Na dotaz | Zadat poptávku | |
| 004 PROV03a |
C00413150
482000012825 |
Cap glass lower left | Na dotaz | Zadat poptávku | |
| 005 PROV03a |
C00413151
482000012826 |
Cap glass upper left | Na dotaz | Zadat poptávku | |
| 006 PROV03a |
C00413155
482000012830 |
Pivot Glass | Na dotaz | Zadat poptávku | |
| 007 PROV03a |
C00413156
482000012831 |
Control board. | Na dotaz | Zadat poptávku | |
