| Komerční kód: | AGB 210/WP WEF14ST - 14KG Low spin washi |
| Kód 12NC/I.C. kód: | 851221001000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

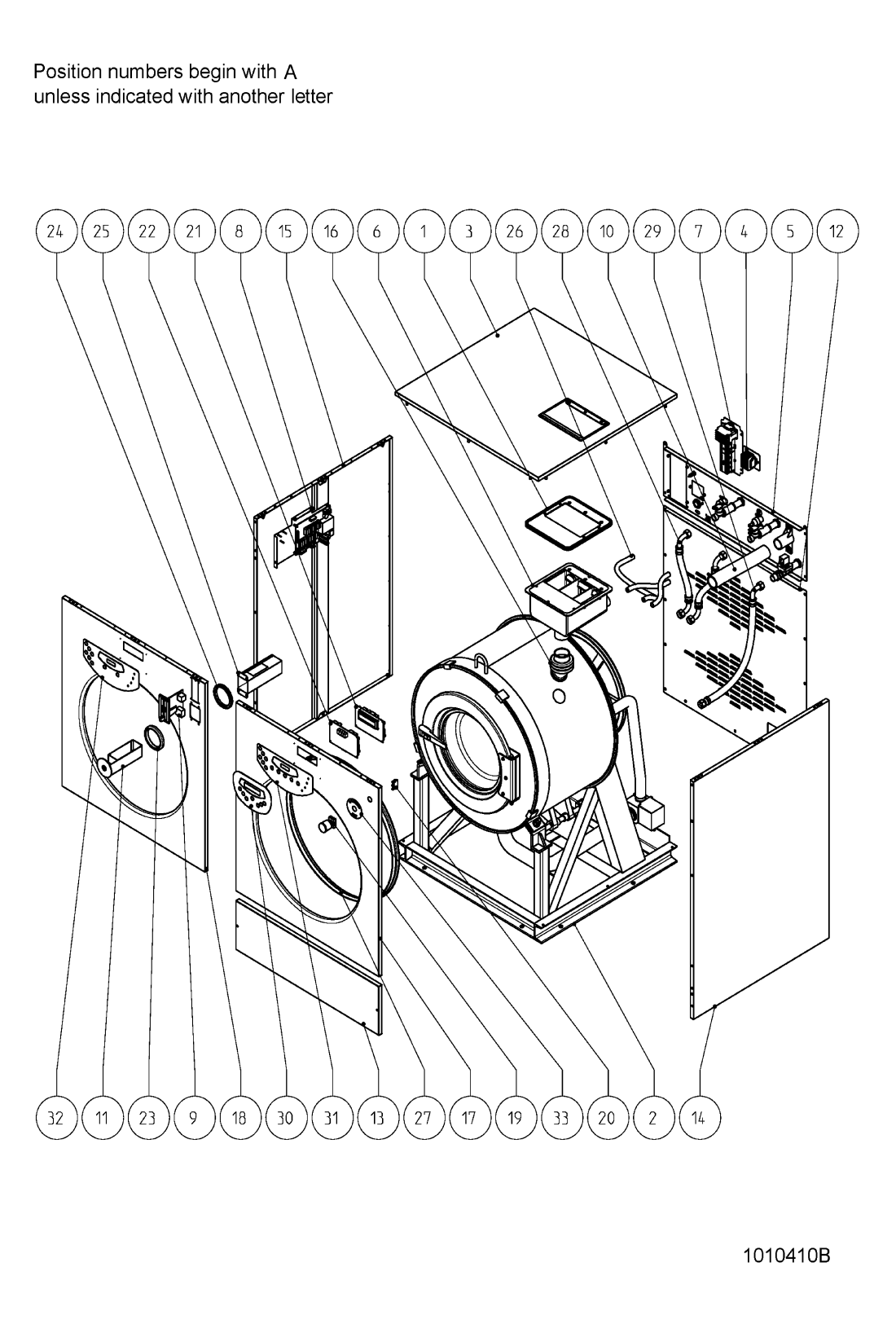

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A01 WHR46312 |
C00422372
483286008188 |
Gasket Soap dispenser | Na dotaz | Zadat poptávku | |
| A02 WHR46312 |
C00581292
483286009158 |
Wash unit Group | Na dotaz | Zadat poptávku | |
| A03 WHR46312 |
C00581230
483286008227 |
Cover plate cpl. | Na dotaz | Zadat poptávku | |
| A04 WHR46312 |
C00581252
483286008527 |
Connectionblock | Na dotaz | Zadat poptávku | |
| A05 WHR46312 |
C00581231
483286008228 |
Rear panel Group | Na dotaz | Zadat poptávku | |
| A06 WHR46312 |
C00524572
483286008229 |
Soap dispenser cpl. | Na dotaz | Zadat poptávku | |
| A07 WHR46312 |
C00581291
483286009145 |
Remote switch Group | Na dotaz | Zadat poptávku | |
| A08 WHR46312 |
C00581233
483286008232 |
User board Group | Na dotaz | Zadat poptávku | |
| A09 WHR46312 |
C00524573
483286008234 |
Coin box 220V | Na dotaz | Zadat poptávku | |
| A10 WHR46312 |
C00524574
483286008235 |
Tube,discharg. | Na dotaz | Zadat poptávku | |
| A11 WHR46312 |
C00581234
483286008236 |
Coin box | Na dotaz | Zadat poptávku | |
| A12 WHR46312 |
C00524575
483286008237 |
Rear panel | Na dotaz | Zadat poptávku | |
| A13 WHR46312 |
C00496432
483286008238 |
Front part low. | Na dotaz | Zadat poptávku | |
| A14 WHR46312 |
C00581235
483286008239 |
Side panel right | Na dotaz | Zadat poptávku | |
| A15 WHR46312 |
C00581236
483286008241 |
Side panel left | Na dotaz | Zadat poptávku | |
| A16 WHR46312 |
C00501082
483286008244 |
Bellows | Na dotaz | Zadat poptávku | |
| A17 WHR46312 |
C00524578
483286008245 |
Front standard | Na dotaz | Zadat poptávku | |
| A18 WHR46312 |
C00581237
483286008246 |
Front with Coin | Na dotaz | Zadat poptávku | |
| A19 WHR46312 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| A20 WHR46312 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
| A21 WHR46312 |
C00501084
483286008249 |
Control board IM6 | Na dotaz | Zadat poptávku | |
| A22 WHR46312 |
C00501085
483286008251 |
Control board IM9 | Na dotaz | Zadat poptávku | |
| A23 WHR46312 |
C00524579
483286008252 |
Frame Coin front | Na dotaz | Zadat poptávku | |
| A24 WHR46312 |
C00524580
483286008253 |
Ring coins fixing | Na dotaz | Zadat poptávku | |
| A25 WHR46312 |
C00581250
483286008487 |
Container for coin | Na dotaz | Zadat poptávku | |
| A26 WHR46312 |
C00524582
483286008255 |
Hose rubber D 13mm | Na dotaz | Zadat poptávku | |
| A28 WHR46312 |
C00524584
483286008258 |
Rubber Tube dm19x26 45cm | Na dotaz | Zadat poptávku | |
| A29 WHR46312 |
C00524585
483286008259 |
Tube silicon DM19x26 105cm | Na dotaz | Zadat poptávku | |
| A30 WHR46312 |
C00581239
483286008261 |
Keyboard | Na dotaz | Zadat poptávku | |
| A31 WHR46312 |
C00581240
483286008262 |
Keyboard | Na dotaz | Zadat poptávku | |
| A32 WHR46312 |
C00581241
483286008263 |
Keyboard for coin | Na dotaz | Zadat poptávku | |
| A33 WHR46312 |
C00581003
483286008264 |
Disc Emergency | Na dotaz | Zadat poptávku | |
| B01 WHR46312 |
C00581293
483286009159 |
Container Group | Na dotaz | Zadat poptávku | |
| B02 WHR46312 |
C00581242
483286008273 |
Door lock cpl. | Na dotaz | Zadat poptávku | |
| B03 WHR46312 |
C00581243
483286008274 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| B04 WHR46312 |
C00581288
483286008736 |
MOTOR | Na dotaz | Zadat poptávku | |
| B05 WHR46312 |
C00524592
483286008277 |
Cover 3/4 " | Na dotaz | Zadat poptávku | |
| B06 WHR46312 |
C00524593
483286008278 |
Cover protect. Heating | Na dotaz | Zadat poptávku | |
| B07 WHR46312 |
C00524754
483286008598 |
Bushing D 38 | Na dotaz | Zadat poptávku | |
| B08 WHR46312 |
C00524787
483286008737 |
Pulley SPA 500X1 | Na dotaz | Zadat poptávku | |
| B09 WHR46312 |
C00581294
483286009161 |
Wash unit cpl. | Na dotaz | Zadat poptávku | |
| B10 WHR46312 |
C00524588
483286008267 |
Ring,retaining lower | Na dotaz | Zadat poptávku | |
| B11 WHR46312 |
C00581253
483286008531 |
Ring,retaining upper | Na dotaz | Zadat poptávku | |
| B12 WHR46312 |
C00524590
483286008269 |
Nozzle steam | Na dotaz | Zadat poptávku | |
| B13 WHR46312 |
C00501094
483286008384 |
Valve 1 1/2 " | Na dotaz | Zadat poptávku | |
| B14 WHR46312 |
C00374621
483286008271 |
Heating element 3000 W | Na dotaz | Zadat poptávku | |
| B15 WHR46312 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B16 WHR46312 |
C00581244
483286008281 |
Hinge Door | Na dotaz | Zadat poptávku | |
| B17 WHR46312 |
C00581289
483286008738 |
Belt SPA 2032 MC | Na dotaz | Zadat poptávku | |
| B18 WHR46312 |
C00524594
483286008283 |
O-Ring Silicon | Na dotaz | Zadat poptávku | |
| B19 WHR46312 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
| B20 WHR46312 |
C00501087
483286008285 |
Steam hose | Na dotaz | Zadat poptávku | |
| B21 WHR46312 |
C00524648
483286008386 |
Outlet Stud | Na dotaz | Zadat poptávku | |
| B22 WHR46312 |
C00524596
483286008286 |
Overflow pipe | Na dotaz | Zadat poptávku | |
| B23 WHR46312 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
| B24 WHR46312 |
C00524598
483286008288 |
Nut self-blocking | Na dotaz | Zadat poptávku | |
| B25 WHR46312 |
C00524599
483286008289 |
Nut M8 | Na dotaz | Zadat poptávku | |
| B26 WHR46312 |
C00524650
483286008389 |
Nut M10 | Na dotaz | Zadat poptávku | |
| B27 WHR46312 |
C00524600
483286008291 |
Clamp fixation 44-56 | Na dotaz | Zadat poptávku | |
| B28 WHR46312 |
C00524652
483286008392 |
Clamp fixation 68-85 | Na dotaz | Zadat poptávku | |
| B29 WHR46312 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
| B30 WHR46312 |
C00524601
483286008292 |
Nut M8x20 Cylindr. | Na dotaz | Zadat poptávku | |
| B31 WHR46312 |
C00524726
483286008538 |
Key 10x8x40 | Na dotaz | Zadat poptávku | |
| B32 WHR46312 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| B33 WHR46312 |
C00524603
483286008294 |
Rosette 8x16 | Na dotaz | Zadat poptávku | |
| B34 WHR46312 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| B35 WHR46312 |
C00524655
483286008395 |
Rosette 12x24 | Na dotaz | Zadat poptávku | |
| B36 WHR46312 |
C00524604
483286008295 |
Rosette 16x30 | Na dotaz | Zadat poptávku | |
| B37 WHR46312 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
| B38 WHR46312 |
C00524607
483286008298 |
Screw hexa. M16x60 | Na dotaz | Zadat poptávku | |
| B39 WHR46312 |
C00524608
483286008299 |
Screw hexa.cylind. M6x16 | Na dotaz | Zadat poptávku | |
| B40 WHR46312 |
C00524657
483286008397 |
Screw hexa. M10x50 | Na dotaz | Zadat poptávku | |
| B41 WHR46312 |
C00524727
483286008539 |
Screw M10x40 hexa. | Na dotaz | Zadat poptávku | |
| B42 WHR46312 |
C00524728
483286008541 |
Screw M12x50 hexa. | Na dotaz | Zadat poptávku | |
| B43 WHR46312 |
C00524609
483286008301 |
Screw hexa.cylind.M8x12 | Na dotaz | Zadat poptávku | |
| E02,G03 WHR46312 |
C00524736
483286008554 |
Clamp blue 6 mm | Na dotaz | Zadat poptávku | |
| E03,G04 WHR46312 |
C00524737
483286008555 |
Clamp yellow 6 mm | Na dotaz | Zadat poptávku | |
| E04,G05 WHR46312 |
C00524738
483286008556 |
Clamp brown 6 mm | Na dotaz | Zadat poptávku | |
| E05,G06 WHR46312 |
C00524739
483286008557 |
Plate | Na dotaz | Zadat poptávku | |
| E06 WHR46312 |
C00581255
483286008558 |
Holder | Na dotaz | Zadat poptávku | |
| F06,I05 WHR46312 |
C00503469
483286008552 |
Contact Addition | Na dotaz | Zadat poptávku | |
| G01 WHR46312 |
C00421115
483286002974 |
Holder Clamp | Na dotaz | Zadat poptávku | |
| H01 WHR46312 |
C00524729
483286008542 |
Spring DM 3 | Na dotaz | Zadat poptávku | |
| H02 WHR46312 |
C00524788
483286008739 |
Bushing DM 24 | Na dotaz | Zadat poptávku | |
| H03 WHR46312 |
C00581290
483286008741 |
Pulley, motor 63X1 | Na dotaz | Zadat poptávku | |
| H04 WHR46312 |
C00524789
483286008742 |
MOTOR | Na dotaz | Zadat poptávku | |
| H05 WHR46312 |
C00524732
483286008545 |
Bushing | Na dotaz | Zadat poptávku | |
| H06 WHR46312 |
C00524733
483286008546 |
Pivot | Na dotaz | Zadat poptávku | |
| H07 WHR46312 |
C00524670
483286008427 |
Screw M6x10 | Na dotaz | Zadat poptávku | |
| H08 WHR46312 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| H09 WHR46312 |
C00524734
483286008547 |
Screw M8x20 hexa. | Na dotaz | Zadat poptávku | |
| I01 WHR46312 |
C00524672
483286008429 |
Contactor A9-30-01 | Na dotaz | Zadat poptávku | |
| I02 WHR46312 |
C00524735
483286008548 |
Lock | Na dotaz | Zadat poptávku | |
| I03 WHR46312 |
C00503467
483286008549 |
Altern.switch Mini | Na dotaz | Zadat poptávku | |
| I04 WHR46312 |
C00503468
483286008551 |
Contactor Mini | Na dotaz | Zadat poptávku | |
| I06 WHR46312 |
C00581254
483286008553 |
Holder electric | Na dotaz | Zadat poptávku | |
| J01 WHR46312 |
C00581257
483286008562 |
Hub cpl. | Na dotaz | Zadat poptávku | |
| J02 WHR46312 |
C00581256
483286008559 |
Plate bottom | Na dotaz | Zadat poptávku | |
| J03 WHR46312 |
C00524676
483286008437 |
Ring,pressure | Na dotaz | Zadat poptávku | |
| J04 WHR46312 |
C00524677
483286008438 |
Container | Na dotaz | Zadat poptávku | |
| J05 WHR46312 |
C00524874
483286009162 |
Drum cpl. | Na dotaz | Zadat poptávku | |
| J06 WHR46312 |
C00524681
483286008444 |
Gasket Tub | Na dotaz | Zadat poptávku | |
| J07 WHR46312 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| K01 WHR46312 |
C00524685
483286008452 |
Can plug | Na dotaz | Zadat poptávku | |
| K02 WHR46312 |
C00524619
483286008319 |
Nut lock 3/4 " | Na dotaz | Zadat poptávku | |
| K03 WHR46312 |
C00524743
483286008565 |
Rear tub plate | Na dotaz | Zadat poptávku | |
| K04 WHR46312 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
| K05 WHR46312 |
C00524687
483286008455 |
Screwed joint 1 1/4 " | Na dotaz | Zadat poptávku | |
| K06 WHR46312 |
C00524688
483286008456 |
Seal 1 1/4 " | Na dotaz | Zadat poptávku | |
| K07 WHR46312 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
| K08 WHR46312 |
C00524690
483286008458 |
Cleaner nozzle 1 1/4 " | Na dotaz | Zadat poptávku | |
| K09 WHR46312 |
C00524691
483286008459 |
Rosette 28x40x2 black | Na dotaz | Zadat poptávku | |
| L01 WHR46312 |
C00581258
483286008566 |
Bearing,roll | Na dotaz | Zadat poptávku | |
| L02 WHR46312 |
C00581259
483286008567 |
Bearing,ball | Na dotaz | Zadat poptávku | |
| L03 WHR46312 |
C00581260
483286008568 |
Slide bearing | Na dotaz | Zadat poptávku | |
| L04 WHR46312 |
C00524744
483286008569 |
Flange | Na dotaz | Zadat poptávku | |
| L05 WHR46312 |
C00524695
483286008466 |
Ring,adjusting O-Ring | Na dotaz | Zadat poptávku | |
| L06 WHR46312 |
C00501103
483286008571 |
Bearing ring | Na dotaz | Zadat poptávku | |
| L07 WHR46312 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
| L08 WHR46312 |
C00524745
483286008572 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| M01 WHR46312 |
C00581245
483286008304 |
Water inlet Group hot water | Na dotaz | Zadat poptávku | |
| M02 WHR46312 |
C00581246
483286008306 |
Water inlet Group cold water | Na dotaz | Zadat poptávku | |
| M03 WHR46312 |
C00581247
483286008307 |
Water inlet Group Steam | Na dotaz | Zadat poptávku | |
| M04 WHR46312 |
C00524612
483286008308 |
Rear panel | Na dotaz | Zadat poptávku | |
| M05 WHR46312 |
C00503464
483286008309 |
Fuse Glass 5x20 1A | Na dotaz | Zadat poptávku | |
| M06 WHR46312 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| M08 WHR46312 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
| M09 WHR46312 |
C00524616
483286008314 |
Cap for hole | Na dotaz | Zadat poptávku | |
| M10 WHR46312 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| M13 WHR46312 |
C00524618
483286008316 |
Pipe,exhaust and breather pie | Na dotaz | Zadat poptávku | |
| N02 WHR46312 |
C00524620
483286008321 |
Nipple 3/4 " | Na dotaz | Zadat poptávku | |
| N03 WHR46312 |
C00524621
483286008325 |
Pipe 3/4 " x 100 | Na dotaz | Zadat poptávku | |
| N04 WHR46312 |
C00621167
483286008326 |
Valve magnet 3/4 " 240V | Na dotaz | Zadat poptávku | |
| O02 WHR46312 |
C00524623
483286008338 |
T-adapter 3/4 " | Na dotaz | Zadat poptávku | |
| O04 WHR46312 |
C00524624
483286008339 |
Valve magnet 1 way 90° 3/4" | Na dotaz | Zadat poptávku | |
| O05 WHR46312 |
C00501088
483286008342 |
Valve magnet 1 way 3/4 " 230V | Na dotaz | Zadat poptávku | |
| P04 WHR46312 |
C00524625
483286008343 |
Valve magnet 2 way 90° 230V | Na dotaz | Zadat poptávku | |
| Q01 WHR46312 |
C00524700
483286008474 |
Holder Unit control | Na dotaz | Zadat poptávku | |
| Q02 WHR46312 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| Q03 WHR46312 |
C00501099
483286008476 |
Řídící elektronika profesionální myčky nádobí Whirlpool | Na dotaz | Zadat poptávku | |
| Q04 WHR46312 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| R01 WHR46312 |
C00524626
483286008344 |
Lid washpan | Na dotaz | Zadat poptávku | |
| R02 WHR46312 |
C00524627
483286008345 |
Lamella lid | Na dotaz | Zadat poptávku | |
| R03 WHR46312 |
C00581248
483286008346 |
Cover plate | Na dotaz | Zadat poptávku | |
| R04 WHR46312 |
C00524628
483286008347 |
Nut M5 self-blocking | Na dotaz | Zadat poptávku | |
| R05 WHR46312 |
C00524629
483286008348 |
Pin fixing M5 | Na dotaz | Zadat poptávku | |
| R06 WHR46312 |
C00524630
483286008349 |
Screw cylinder M5x12 | Na dotaz | Zadat poptávku | |
| S01 WHR46312 |
C00501089
483286008351 |
sklo dveří | Na dotaz | Zadat poptávku | |
| S02 WHR46312 |
C00524631
483286008352 |
Hinge Door | Na dotaz | Zadat poptávku | |
| S03 WHR46312 |
C00502656
483286008353 |
Magnet door hanger | Na dotaz | Zadat poptávku | |
| S04 WHR46312 |
C00501090
483286008354 |
Magnet M302 AA | Na dotaz | Zadat poptávku | |
| S05 WHR46312 |
C00524632
483286008355 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| S06 WHR46312 |
C00501091
483286008356 |
rukojeť | Na dotaz | Zadat poptávku | |
| S07 WHR46312 |
C00501092
483286008357 |
Door bellow | Na dotaz | Zadat poptávku | |
| S09 WHR46312 |
C00524633
483286008358 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| S10 WHR46312 |
C00524634
483286008359 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| S11 WHR46312 |
C00524635
483286008361 |
Screw M4x6 | Na dotaz | Zadat poptávku | |
| S12 WHR46312 |
C00524636
483286008362 |
Screw M4x8 | Na dotaz | Zadat poptávku | |
| S13 WHR46312 |
C00524637
483286008363 |
Screw socket M6x25 | Na dotaz | Zadat poptávku | |
| T01 WHR46312 |
C00524638
483286008364 |
Door lock stake | Na dotaz | Zadat poptávku | |
| T02 WHR46312 |
C00524639
483286008365 |
Guide pin | Na dotaz | Zadat poptávku | |
| T03 WHR46312 |
C00500227
483286008366 |
Coil | Na dotaz | Zadat poptávku | |
| T04 WHR46312 |
C00524640
483286008367 |
Terminal Board 2,5 | Na dotaz | Zadat poptávku | |
| T05 WHR46312 |
C00502657
483286008368 |
Shunt | Na dotaz | Zadat poptávku | |
| T06 WHR46312 |
C00524641
483286008369 |
Sensor Magnet | Na dotaz | Zadat poptávku | |
| T07 WHR46312 |
C00581249
483286008371 |
Door lock base | Na dotaz | Zadat poptávku | |
| T08 WHR46312 |
C00524642
483286008372 |
Door lock cover | Na dotaz | Zadat poptávku | |
| T09 WHR46312 |
C00502658
483286008373 |
Door lock spring | Na dotaz | Zadat poptávku | |
| T10 WHR46312 |
C00524643
483286008375 |
Pin elastic dm 3x35 | Na dotaz | Zadat poptávku | |
| T11 WHR46312 |
C00524644
483286008376 |
Screw cylind. M4x10 | Na dotaz | Zadat poptávku | |
| T13 WHR46312 |
C00502659
483286008377 |
Screw flathead M4x40 | Na dotaz | Zadat poptávku | |
| U01 WHR46312 |
C00524703
483286008478 |
Door lock | Na dotaz | Zadat poptávku | |
| U02 WHR46312 |
C00524704
483286008479 |
Clamp Door lock | Na dotaz | Zadat poptávku | |
| U03 WHR46312 |
C00524705
483286008481 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR46324 |
C00638455 | Mounting Instruction WHP | Na dotaz | Zadat poptávku | |
