| Komerční kód: | AGB 214/WP WEF8MP - 8KG Low spin washing |
| Kód 12NC/I.C. kód: | 851221401000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

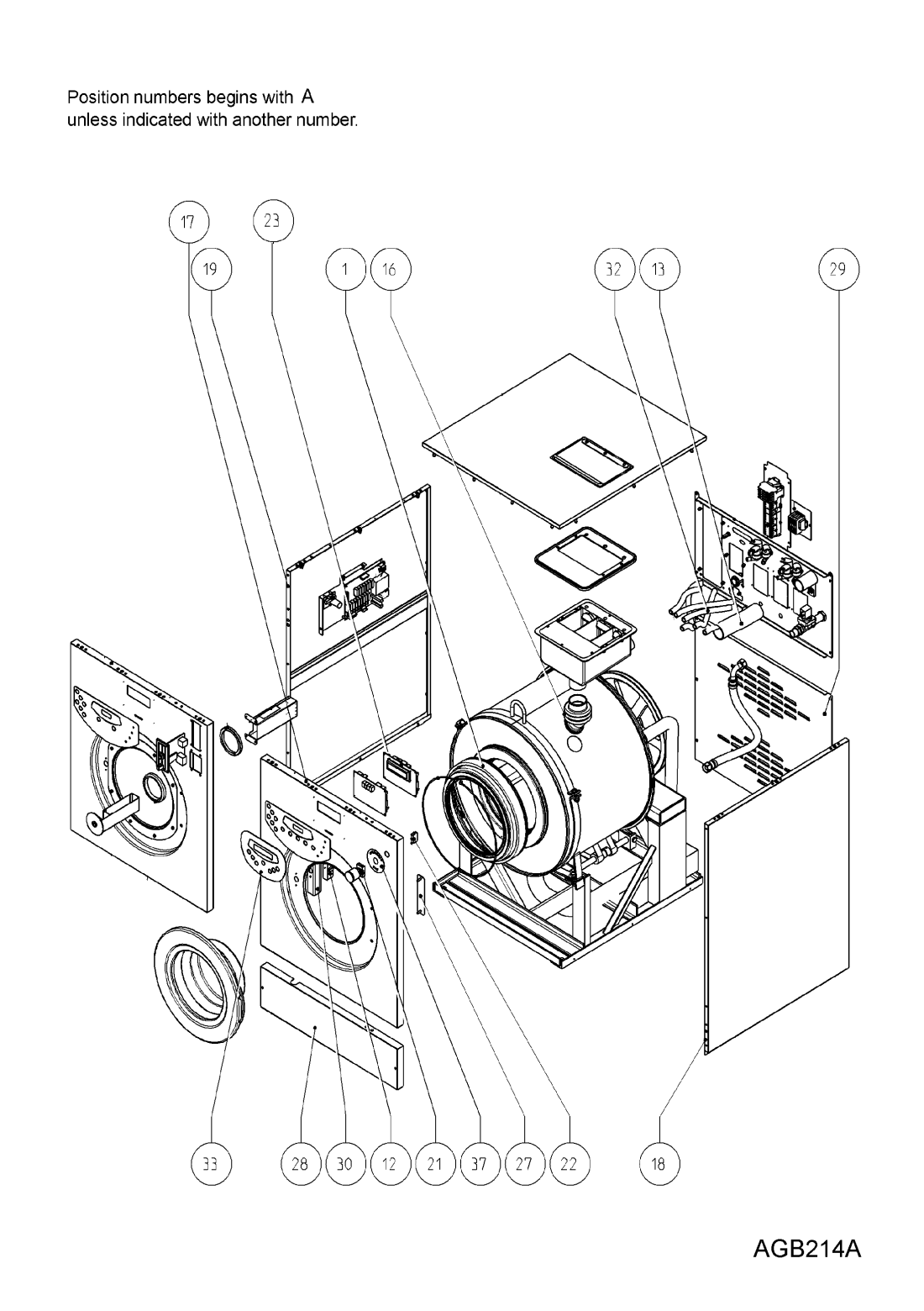

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR38978 |
C00610889 | Mounting Instruction WHP | Na dotaz | Zadat poptávku | |
| 999 WHR38978 |
C00610890 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| A01 WHR38978 |
C00497219
483286008592 |
Door bellow | Na dotaz | Zadat poptávku | |
| A12 WHR38978 |
C00501104
483286008579 |
Block Door 24V | Na dotaz | Zadat poptávku | |
| A13 WHR38978 |
C00524278
483286001147 |
Hose D 48X57 | Na dotaz | Zadat poptávku | |
| A16 WHR38978 |
C00501082
483286008244 |
Bellows | Na dotaz | Zadat poptávku | |
| A17 WHR38978 |
C00421107
483286002965 |
Front | Na dotaz | Zadat poptávku | |
| A18 WHR38978 |
C00421108
483286002966 |
Front right | Na dotaz | Zadat poptávku | |
| A19 WHR38978 |
C00421109
483286002967 |
Front left | Na dotaz | Zadat poptávku | |
| A21 WHR38978 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| A22 WHR38978 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
| A23 WHR38978 |
C00501084
483286008249 |
Control board IM6 | Na dotaz | Zadat poptávku | |
| A27 WHR38978 |
C00524748
483286008586 |
Fastener Hinge | Na dotaz | Zadat poptávku | |
| A28 WHR38978 |
C00524749
483286008587 |
Plinth | Na dotaz | Zadat poptávku | |
| A29 WHR38978 |
C00524750
483286008588 |
Rear panel | Na dotaz | Zadat poptávku | |
| A30 WHR38978 |
C00524781
483286008655 |
Cap,protect. | Na dotaz | Zadat poptávku | |
| A32 WHR38978 |
C00524582
483286008255 |
Hose rubber D 13mm | Na dotaz | Zadat poptávku | |
| A33 WHR38978 |
C00501132
483286009107 |
Keyboard IM 6 | Na dotaz | Zadat poptávku | |
| A37 WHR38978 |
C00581003
483286008264 |
Disc Emergency | Na dotaz | Zadat poptávku | |
| B03 WHR38978 |
C00524592
483286008277 |
Cover 3/4 " | Na dotaz | Zadat poptávku | |
| B05 WHR38978 |
C00524870
483286009147 |
Bushing DM 38 | Na dotaz | Zadat poptávku | |
| B06 WHR38978 |
C00524871
483286009148 |
Pulley 400x1 | Na dotaz | Zadat poptávku | |
| B08 WHR38978 |
C00524872
483286009149 |
Frame | Na dotaz | Zadat poptávku | |
| B09 WHR38978 |
C00421110
483286002968 |
Holder Ring | Na dotaz | Zadat poptávku | |
| B10 WHR38978 |
C00524758
483286008603 |
Holder Ring | Na dotaz | Zadat poptávku | |
| B11 WHR38978 |
C00501094
483286008384 |
Valve 1 1/2 " | Na dotaz | Zadat poptávku | |
| B12 WHR38978 |
C00524759
483286008604 |
Heating element 2000W,220V | Na dotaz | Zadat poptávku | |
| B13 WHR38978 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B14 WHR38978 |
C00502955
483286009151 |
Belt SPAX 1700 | Na dotaz | Zadat poptávku | |
| B16 WHR38978 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
| B17 WHR38978 |
C00501087
483286008285 |
Steam hose | Na dotaz | Zadat poptávku | |
| B18 WHR38978 |
C00524596
483286008286 |
Overflow pipe | Na dotaz | Zadat poptávku | |
| B19 WHR38978 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
| B20 WHR38978 |
C00524649
483286008388 |
Counternut M12 | Na dotaz | Zadat poptávku | |
| B21 WHR38978 |
C00524600
483286008291 |
Clamp fixation 44-56 | Na dotaz | Zadat poptávku | |
| B22 WHR38978 |
C00524652
483286008392 |
Clamp fixation 68-85 | Na dotaz | Zadat poptávku | |
| B23 WHR38978 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
| B24 WHR38978 |
C00524726
483286008538 |
Key 10x8x40 | Na dotaz | Zadat poptávku | |
| B25 WHR38978 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| B26 WHR38978 |
C00524761
483286008606 |
Rosette 12x36 | Na dotaz | Zadat poptávku | |
| B27 WHR38978 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| B28 WHR38978 |
C00524655
483286008395 |
Rosette 12x24 | Na dotaz | Zadat poptávku | |
| B29 WHR38978 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
| B30 WHR38978 |
C00524657
483286008397 |
Screw hexa. M10x50 | Na dotaz | Zadat poptávku | |
| B31 WHR38978 |
C00524727
483286008539 |
Screw M10x40 hexa. | Na dotaz | Zadat poptávku | |
| B32 WHR38978 |
C00524763
483286008608 |
Screw Hexa. M12x40 | Na dotaz | Zadat poptávku | |
| B33 WHR38978 |
C00501105
483286008615 |
Spout | Na dotaz | Zadat poptávku | |
| H01 WHR38978 |
C00524729
483286008542 |
Spring DM 3 | Na dotaz | Zadat poptávku | |
| H02 WHR38978 |
C00421111
483286002969 |
Bushing DM 19 | Na dotaz | Zadat poptávku | |
| H03 WHR38978 |
C00421112
483286002971 |
Pulley 63X1 | Na dotaz | Zadat poptávku | |
| H04 WHR38978 |
C00421113
483286002972 |
Motor L200 FA40 | Na dotaz | Zadat poptávku | |
| H05 WHR38978 |
C00524732
483286008545 |
Bushing | Na dotaz | Zadat poptávku | |
| H06 WHR38978 |
C00524733
483286008546 |
Pivot | Na dotaz | Zadat poptávku | |
| H07 WHR38978 |
C00524670
483286008427 |
Screw M6x10 | Na dotaz | Zadat poptávku | |
| H08 WHR38978 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| H09 WHR38978 |
C00524734
483286008547 |
Screw M8x20 hexa. | Na dotaz | Zadat poptávku | |
| J03 WHR38978 |
C00524769
483286008623 |
Ring,pressure | Na dotaz | Zadat poptávku | |
| J04 WHR38978 |
C00524785
483286008677 |
Drum cpl. | Na dotaz | Zadat poptávku | |
| J05 WHR38978 |
C00524786
483286008678 |
Container Drum | Na dotaz | Zadat poptávku | |
| J06 WHR38978 |
C00524681
483286008444 |
Gasket Tub | Na dotaz | Zadat poptávku | |
| J07 WHR38978 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| J09 WHR38978 |
C00524741
483286008563 |
Ring,locking SP40 | Na dotaz | Zadat poptávku | |
| J10 WHR38978 |
C00524772
483286008627 |
Ring,locking | Na dotaz | Zadat poptávku | |
| K03 WHR38978 |
C00524773
483286008628 |
Rear tub plate | Na dotaz | Zadat poptávku | |
| K04 WHR38978 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
| K05 WHR38978 |
C00524687
483286008455 |
Screwed joint 1 1/4 " | Na dotaz | Zadat poptávku | |
| K06 WHR38978 |
C00524688
483286008456 |
Seal 1 1/4 " | Na dotaz | Zadat poptávku | |
| K07 WHR38978 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
| K08 WHR38978 |
C00524690
483286008458 |
Cleaner nozzle 1 1/4 " | Na dotaz | Zadat poptávku | |
| L01 WHR38978 |
C00524774
483286008629 |
Bearing | Na dotaz | Zadat poptávku | |
| L02 WHR38978 |
C00524775
483286008631 |
Bearing,roll | Na dotaz | Zadat poptávku | |
| L03 WHR38978 |
C00421116
483286002975 |
Hub | Na dotaz | Zadat poptávku | |
| L04 WHR38978 |
C00503470
483286008633 |
Flange | Na dotaz | Zadat poptávku | |
| L05 WHR38978 |
C00524695
483286008466 |
Ring,adjusting O-Ring | Na dotaz | Zadat poptávku | |
| L06 WHR38978 |
C00501106
483286008634 |
Ring circlip 60x90x13,5/15 | Na dotaz | Zadat poptávku | |
| L07 WHR38978 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
| L08 WHR38978 |
C00524745
483286008572 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| M03 WHR38978 |
C00421101
483286002957 |
Fuse | Na dotaz | Zadat poptávku | |
| M04 WHR38978 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| M05 WHR38978 |
C00524419
483286001476 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
| M06 WHR38978 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
| M07 WHR38978 |
C00524776
483286008635 |
Valve magnet 3/4 " | Na dotaz | Zadat poptávku | |
| M08 WHR38978 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| M11 WHR38978 |
C00524777
483286008637 |
Screw,selftap 4,2x13 | Na dotaz | Zadat poptávku | |
| M12 WHR38978 |
C00524400
483286001447 |
Tube finale | Na dotaz | Zadat poptávku | |
| Q01 WHR38978 |
C00524700
483286008474 |
Holder Unit control | Na dotaz | Zadat poptávku | |
| Q02 WHR38978 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| Q03 WHR38978 |
C00524778
483286008638 |
Board printed Door opener | Na dotaz | Zadat poptávku | |
| Q04 WHR38978 |
C00501099
483286008476 |
Řídící elektronika profesionální myčky nádobí Whirlpool | Na dotaz | Zadat poptávku | |
| Q05 WHR38978 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| R01 WHR38978 |
C00524626
483286008344 |
Lid washpan | Na dotaz | Zadat poptávku | |
| R02 WHR38978 |
C00524627
483286008345 |
Lamella lid | Na dotaz | Zadat poptávku | |
| R03 WHR38978 |
C00421117
483286002976 |
Cover | Na dotaz | Zadat poptávku | |
| R04 WHR38978 |
C00524779
483286008641 |
Bolt M5 | Na dotaz | Zadat poptávku | |
| R05 WHR38978 |
C00524629
483286008348 |
Pin fixing M5 | Na dotaz | Zadat poptávku | |
| R06 WHR38978 |
C00524630
483286008349 |
Screw cylinder M5x12 | Na dotaz | Zadat poptávku | |
| S01 WHR38978 |
C00501107
483286008642 |
Door glass | Na dotaz | Zadat poptávku | |
| S02 WHR38978 |
C00421118
483286002977 |
Hinge | Na dotaz | Zadat poptávku | |
| S03 WHR38978 |
C00524780
483286008644 |
Door fixation | Na dotaz | Zadat poptávku | |
| S04 WHR38978 |
C00421119
483286002978 |
Window | Na dotaz | Zadat poptávku | |
| S05 WHR38978 |
C00421120
483286002979 |
Gasket Window | Na dotaz | Zadat poptávku | |
