WHIRLPOOL AGB 227/WP WVF30MP - 30KG Low spin washi
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AGB 227/WP WVF30MP - 30KG Low spin washi |
| Kód 12NC/I.C. kód: | 851222701000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

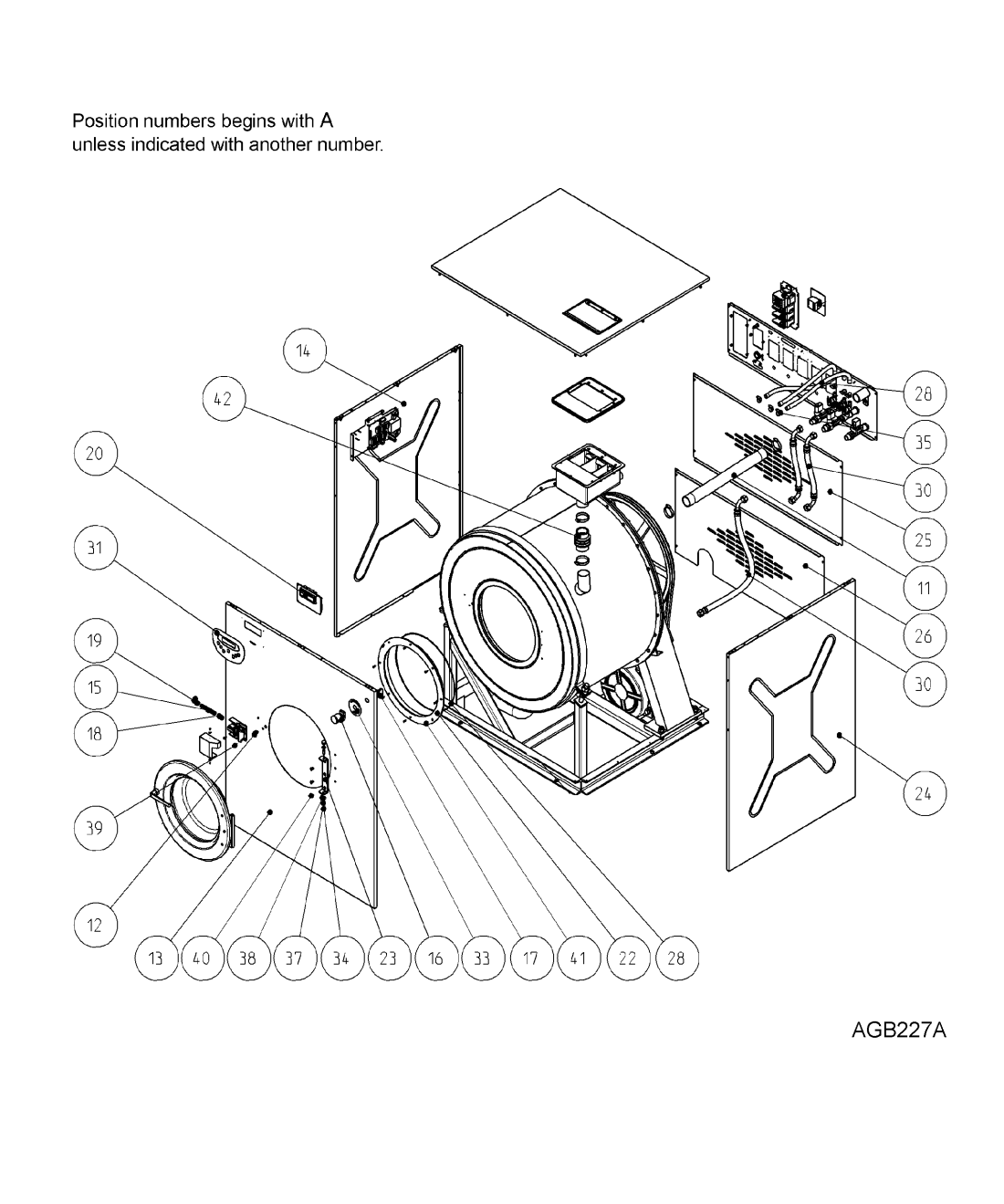

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR46427 |
C00638475 | Mounting Instruction WHP | Na dotaz | Zadat poptávku | |
| A11 WHR46427 |
C00524278
483286001147 |
Hose D 48X57 | Na dotaz | Zadat poptávku | |
| A12 WHR46427 |
C00524353
483286001365 |
Nut f. Handle | Na dotaz | Zadat poptávku | |
| A13 WHR46427 |
C00421123
483286002983 |
Front | Na dotaz | Zadat poptávku | |
| A14 WHR46427 |
C00421124
483286002984 |
Side panel left | Na dotaz | Zadat poptávku | |
| A15 WHR46427 |
C00421125
483286002985 |
Bowden cable | Na dotaz | Zadat poptávku | |
| A16 WHR46427 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| A17 WHR46427 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
| A18 WHR46427 |
C00421127
483286002987 |
Fitting d10 | Na dotaz | Zadat poptávku | |
| A19 WHR46427 |
C00421126
483286002986 |
Fitting | Na dotaz | Zadat poptávku | |
| A20 WHR46427 |
C00501084
483286008249 |
Control board IM6 | Na dotaz | Zadat poptávku | |
| A22 WHR46427 |
C00421128
483286002988 |
Seal set | Na dotaz | Zadat poptávku | |
| A23 WHR46427 |
C00421129
483286002989 |
Pedestal Window | Na dotaz | Zadat poptávku | |
| A24 WHR46427 |
C00421130
483286002991 |
Side panel right | Na dotaz | Zadat poptávku | |
| A25 WHR46427 |
C00421134
483286002995 |
Panel rear middle | Na dotaz | Zadat poptávku | |
| A26 WHR46427 |
C00421135
483286002996 |
Panel rear lower | Na dotaz | Zadat poptávku | |
| A27 WHR46427 |
C00524582
483286008255 |
Hose rubber D 13mm | Na dotaz | Zadat poptávku | |
| A28 WHR46427 |
C00524695
483286008466 |
Ring,adjusting O-Ring | Na dotaz | Zadat poptávku | |
| A29 WHR46427 |
C00524584
483286008258 |
Rubber Tube dm19x26 45cm | Na dotaz | Zadat poptávku | |
| A30 WHR46427 |
C00524585
483286008259 |
Tube silicon DM19x26 105cm | Na dotaz | Zadat poptávku | |
| A31 WHR46427 |
C00501132
483286009107 |
Keyboard IM 6 | Na dotaz | Zadat poptávku | |
| A33 WHR46427 |
C00581003
483286008264 |
Disc Emergency | Na dotaz | Zadat poptávku | |
| A34 WHR46427 |
C00524328
483286001259 |
Nut M10 | Na dotaz | Zadat poptávku | |
| A35 WHR46427 |
C00524280
483286001152 |
Clamp fixation 18-28 | Na dotaz | Zadat poptávku | |
| A36 WHR46427 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
| A37 WHR46427 |
C00524378
483286001421 |
Dowel M10X25 | Na dotaz | Zadat poptávku | |
| A38 WHR46427 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| A39 WHR46427 |
C00524380
483286001423 |
Screw M 6X14 | Na dotaz | Zadat poptávku | |
| A40 WHR46427 |
C00524609
483286008301 |
Screw hexa.cylind.M8x12 | Na dotaz | Zadat poptávku | |
| A41 WHR46427 |
C00524118
483286000666 |
Screw M5X16 | Na dotaz | Zadat poptávku | |
| A42 WHR46427 |
C00421136
483286002997 |
Bellows | Na dotaz | Zadat poptávku | |
| B01 WHR46427 |
C00421075
483286002927 |
Pillar | Na dotaz | Zadat poptávku | |
| B02 WHR46427 |
C00421048
483286002897 |
Spout | Na dotaz | Zadat poptávku | |
| B06 WHR46427 |
C00524593
483286008278 |
Cover protect. Heating | Na dotaz | Zadat poptávku | |
| B07 WHR46427 |
C00421137
483286002998 |
Bushing d19 | Na dotaz | Zadat poptávku | |
| B08 WHR46427 |
C00524725
483286008536 |
Pulley 630x2 | Na dotaz | Zadat poptávku | |
| B11 WHR46427 |
C00421121
483286002981 |
Nozzle | Na dotaz | Zadat poptávku | |
| B12 WHR46427 |
C00421138
483286002999 |
Holder Ring | Na dotaz | Zadat poptávku | |
| B13 WHR46427 |
C00421139
483286003001 |
Holder Ring | Na dotaz | Zadat poptávku | |
| B14 WHR46427 |
C00421140
483286003002 |
Staple | Na dotaz | Zadat poptávku | |
| B15 WHR46427 |
C00421141
483286003003 |
Tie rod | Na dotaz | Zadat poptávku | |
| B16 WHR46427 |
C00524322
483286001251 |
Valve | Na dotaz | Zadat poptávku | |
| B18 WHR46427 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B19 WHR46427 |
C00421142
483286003004 |
Protector Inlet valve | Na dotaz | Zadat poptávku | |
| B20 WHR46427 |
C00524354
483286001366 |
Tube | Na dotaz | Zadat poptávku | |
| B21 WHR46427 |
C00421143
483286003005 |
Belt | Na dotaz | Zadat poptávku | |
| B22 WHR46427 |
C00524594
483286008283 |
O-Ring Silicon | Na dotaz | Zadat poptávku | |
| B23 WHR46427 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
| B24 WHR46427 |
C00524649
483286008388 |
Counternut M12 | Na dotaz | Zadat poptávku | |
| B25 WHR46427 |
C00524598
483286008288 |
Nut self-blocking | Na dotaz | Zadat poptávku | |
| B26 WHR46427 |
C00524651
483286008391 |
Nut M12 | Na dotaz | Zadat poptávku | |
| B27 WHR46427 |
C00421144
483286003006 |
Nut M22 | Na dotaz | Zadat poptávku | |
| B28 WHR46427 |
C00524327
483286001258 |
Clamp fixation 26-38 | Na dotaz | Zadat poptávku | |
| B29 WHR46427 |
C00524652
483286008392 |
Clamp fixation 68-85 | Na dotaz | Zadat poptávku | |
| B30 WHR46427 |
C00421145
483286003007 |
Plate | Na dotaz | Zadat poptávku | |
| B31 WHR46427 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| B32 WHR46427 |
C00524181
483286000799 |
Rosette 12X24 IX | Na dotaz | Zadat poptávku | |
| B33 WHR46427 |
C00524604
483286008295 |
Rosette 16x30 | Na dotaz | Zadat poptávku | |
| B34 WHR46427 |
C00421146
483286003008 |
Disc 23X39 | Na dotaz | Zadat poptávku | |
| B35 WHR46427 |
C00524422
483286001482 |
Screw M 6X16 | Na dotaz | Zadat poptávku | |
| B36 WHR46427 |
C00421147
483286003009 |
Screw M 16X50 | Na dotaz | Zadat poptávku | |
| B37 WHR46427 |
C00524607
483286008298 |
Screw hexa. M16x60 | Na dotaz | Zadat poptávku | |
| C01 WHR46427 |
C00501097
483286008424 |
Pulley | Na dotaz | Zadat poptávku | |
| C02 WHR46427 |
C00421148
483286003011 |
Blocking | Na dotaz | Zadat poptávku | |
| C03 WHR46427 |
C00421149
483286003012 |
Pin Motor | Na dotaz | Zadat poptávku | |
| C04 WHR46427 |
C00421070
483286002922 |
Cable clamp | Na dotaz | Zadat poptávku | |
| C05 WHR46427 |
C00421150
483286003013 |
Motor L300 BM 60 | Na dotaz | Zadat poptávku | |
| C07 WHR46427 |
C00524914
483286009562 |
Dowel 45 H M6X8 | Na dotaz | Zadat poptávku | |
| D01 WHR46427 |
C00524311
483286001232 |
Ribbon,stranded 2X40 | Na dotaz | Zadat poptávku | |
| D04 WHR46427 |
C00524679
483286008441 |
Spacebar | Na dotaz | Zadat poptávku | |
| D05 WHR46427 |
C00421151
483286003014 |
Ring behind | Na dotaz | Zadat poptávku | |
| D06 WHR46427 |
C00421152
483286003015 |
Drum cpl. | Na dotaz | Zadat poptávku | |
| D07 WHR46427 |
C00421153
483286003016 |
Container | Na dotaz | Zadat poptávku | |
| D08 WHR46427 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| D09 WHR46427 |
C00524899
483286009523 |
Nut M8 Zn UNI 5588 | Na dotaz | Zadat poptávku | |
| D10 WHR46427 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| D11 WHR46427 |
C00421154
483286003017 |
Screw M8X40 | Na dotaz | Zadat poptávku | |
| D12 WHR46427 |
C00421155
483286003018 |
Ring,locking 80 | Na dotaz | Zadat poptávku | |
| D13 WHR46427 |
C00524683
483286008446 |
Clamp ring KM 14 | Na dotaz | Zadat poptávku | |
| D14 WHR46427 |
C00524684
483286008447 |
Rosette MB 14 | Na dotaz | Zadat poptávku | |
| E01 WHR46427 |
C00524685
483286008452 |
Can plug | Na dotaz | Zadat poptávku | |
| E02 WHR46427 |
C00524619
483286008319 |
Nut lock 3/4 " | Na dotaz | Zadat poptávku | |
| E03 WHR46427 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
| E04 WHR46427 |
C00421156
483286003019 |
Plate bottom | Na dotaz | Zadat poptávku | |
| E05 WHR46427 |
C00524687
483286008455 |
Screwed joint 1 1/4 " | Na dotaz | Zadat poptávku | |
| E06 WHR46427 |
C00421157
483286003021 |
Counternut | Na dotaz | Zadat poptávku | |
| E07 WHR46427 |
C00421158
483286003022 |
Seal | Na dotaz | Zadat poptávku | |
| E08 WHR46427 |
C00524688
483286008456 |
Seal 1 1/4 " | Na dotaz | Zadat poptávku | |
| E09 WHR46427 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
| E10 WHR46427 |
C00421159
483286003023 |
Cleaner nozzle 3/4" | Na dotaz | Zadat poptávku | |
| E11 WHR46427 |
C00524690
483286008458 |
Cleaner nozzle 1 1/4 " | Na dotaz | Zadat poptávku | |
| E12 WHR46427 |
C00524691
483286008459 |
Rosette 28x40x2 black | Na dotaz | Zadat poptávku | |
| F02 WHR46427 |
C00421068
483286002919 |
Contactor Serie A8-30-01 | Na dotaz | Zadat poptávku | |
| F03 WHR46427 |
C00420936
483286002765 |
Contactor A 16-30-01 | Na dotaz | Zadat poptávku | |
| F04 WHR46427 |
C00524526
483286001766 |
Contactor A26-30-01 230V | Na dotaz | Zadat poptávku | |
| F05 WHR46427 |
C00421069
483286002921 |
Contactor Front | Na dotaz | Zadat poptávku | |
| F06 WHR46427 |
C00524735
483286008548 |
Lock | Na dotaz | Zadat poptávku | |
| G01 WHR46427 |
C00421161
483286003025 |
Holder | Na dotaz | Zadat poptávku | |
| G02 WHR46427 |
C00524766
483286008617 |
Rectifier OT 16 steam | Na dotaz | Zadat poptávku | |
| G04 WHR46427 |
C00501096
483286008412 |
Switch,toggle OHY 2RJ | Na dotaz | Zadat poptávku | |
| H01 WHR46427 |
C00524700
483286008474 |
Holder Unit control | Na dotaz | Zadat poptávku | |
| H02 WHR46427 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| H03 WHR46427 |
C00501099
483286008476 |
Řídící elektronika profesionální myčky nádobí Whirlpool | Na dotaz | Zadat poptávku | |
| H04 WHR46427 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| I01 WHR46427 |
C00421162
483286003026 |
Bearing,roll | Na dotaz | Zadat poptávku | |
| I02 WHR46427 |
C00421163
483286003027 |
Bearing,ball | Na dotaz | Zadat poptávku | |
| I03 WHR46427 |
C00421164
483286003028 |
Hub | Na dotaz | Zadat poptávku | |
| I04 WHR46427 |
C00524694
483286008465 |
Flange | Na dotaz | Zadat poptávku | |
| I05 WHR46427 |
C00421165
483286003029 |
Flange | Na dotaz | Zadat poptávku | |
| I07 WHR46427 |
C00524696
483286008467 |
Ring circlip 85/110/12 | Na dotaz | Zadat poptávku | |
| I08 WHR46427 |
C00503465
483286008468 |
Ring 110X140X14,5/16 | Na dotaz | Zadat poptávku | |
| I09 WHR46427 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
| I11 WHR46427 |
C00524699
483286008473 |
Screw hexa.M 8X30 | Na dotaz | Zadat poptávku | |
| I12 WHR46427 |
C00524234
483286000979 |
Screw M8X25 | Na dotaz | Zadat poptávku | |
| J05 WHR46427 |
C00421101
483286002957 |
Fuse | Na dotaz | Zadat poptávku | |
| J06 WHR46427 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| J07 WHR46427 |
C00524419
483286001476 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
| J08 WHR46427 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
| J09 WHR46427 |
C00421166
483286003031 |
Rear panel | Na dotaz | Zadat poptávku | |
| J10 WHR46427 |
C00524400
483286001447 |
Tube finale | Na dotaz | Zadat poptávku | |
| K02 WHR46427 |
C00524623
483286008338 |
T-adapter 3/4 " | Na dotaz | Zadat poptávku | |
| K03 WHR46427 |
C00524620
483286008321 |
Nipple 3/4 " | Na dotaz | Zadat poptávku | |
| K04 WHR46427 |
C00524621
483286008325 |
Pipe 3/4 " x 100 | Na dotaz | Zadat poptávku | |
| K05 WHR46427 |
C00421167
483286003032 |
Inlet valve | Na dotaz | Zadat poptávku | |
| K06 WHR46427 |
C00421168
483286003033 |
Inlet valve 2 way | Na dotaz | Zadat poptávku | |
| L06 WHR46427 |
C00503450
483286001461 |
Valve magnet one way 3/4" | Na dotaz | Zadat poptávku | |
| M04 WHR46427 |
C00621167
483286008326 |
Valve magnet 3/4 " 240V | Na dotaz | Zadat poptávku | |
| N01 WHR46427 |
C00501089
483286008351 |
sklo dveří | Na dotaz | Zadat poptávku | |
| N02 WHR46427 |
C00581197
483286001269 |
rukojeť | Na dotaz | Zadat poptávku | |
| N03 WHR46427 |
C00502643
483286001271 |
kontramatice rukojeť | Na dotaz | Zadat poptávku | |
| N04 WHR46427 |
C00421081
483286002934 |
podložka | Na dotaz | Zadat poptávku | |
| N05 WHR46427 |
C00421169
483286003034 |
kolík | Na dotaz | Zadat poptávku | |
| N06 WHR46427 |
C00421170
483286003035 |
Window | Na dotaz | Zadat poptávku | |
| N07 WHR46427 |
C00421171
483286003036 |
Hinge | Na dotaz | Zadat poptávku | |
| N08 WHR46427 |
C00502644
483286001281 |
kroužek závitový | Na dotaz | Zadat poptávku | |
| N09 WHR46427 |
C00501092
483286008357 |
Door bellow | Na dotaz | Zadat poptávku | |
| N10 WHR46427 |
C00524213
483286000937 |
Nut M6 | Na dotaz | Zadat poptávku | |
| N11 WHR46427 |
C00524745
483286008572 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| N12 WHR46427 |
C00524309
483286001229 |
Screw M6X16 exagonal | Na dotaz | Zadat poptávku | |
| O01 WHR46427 |
C00524346
483286001284 |
Block Door | Na dotaz | Zadat poptávku | |
| O02 WHR46427 |
C00421084
483286002937 |
Cover | Na dotaz | Zadat poptávku | |
| O03 WHR46427 |
C00421085
483286002938 |
Pin | Na dotaz | Zadat poptávku | |
| O04 WHR46427 |
C00503463
483286001804 |
Coil Door Opener | Na dotaz | Zadat poptávku | |
| O05 WHR46427 |
C00524350
483286001289 |
Microswitch | Na dotaz | Zadat poptávku | |
| O06 WHR46427 |
C00524347
483286001285 |
Spring,compres. | Na dotaz | Zadat poptávku | |
| O07 WHR46427 |
C00524348
483286001286 |
Dowel | Na dotaz | Zadat poptávku | |
| O08 WHR46427 |
C00524349
483286001287 |
Ring circlip | Na dotaz | Zadat poptávku | |
| O09 WHR46427 |
C00524382
483286001425 |
Screw,selftap 3,5X9,5 | Na dotaz | Zadat poptávku | |
| O10 WHR46427 |
C00524635
483286008361 |
Screw M4x6 | Na dotaz | Zadat poptávku | |
| P01 WHR46427 |
C00524626
483286008344 |
Lid washpan | Na dotaz | Zadat poptávku | |
| P02 WHR46427 |
C00524627
483286008345 |
Lamella lid | Na dotaz | Zadat poptávku | |
| P03 WHR46427 |
C00421122
483286002982 |
Cover plate | Na dotaz | Zadat poptávku | |
| P04 WHR46427 |
C00524628
483286008347 |
Nut M5 self-blocking | Na dotaz | Zadat poptávku | |
| P05 WHR46427 |
C00524629
483286008348 |
Pin fixing M5 | Na dotaz | Zadat poptávku | |
| P06 WHR46427 |
C00524630
483286008349 |
Screw cylinder M5x12 | Na dotaz | Zadat poptávku | |
