WHIRLPOOL AGB 230WP WES6ST - 6KG High spin washing
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AGB 230WP WES6ST - 6KG High spin washing |
| Kód 12NC/I.C. kód: | 851223001000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

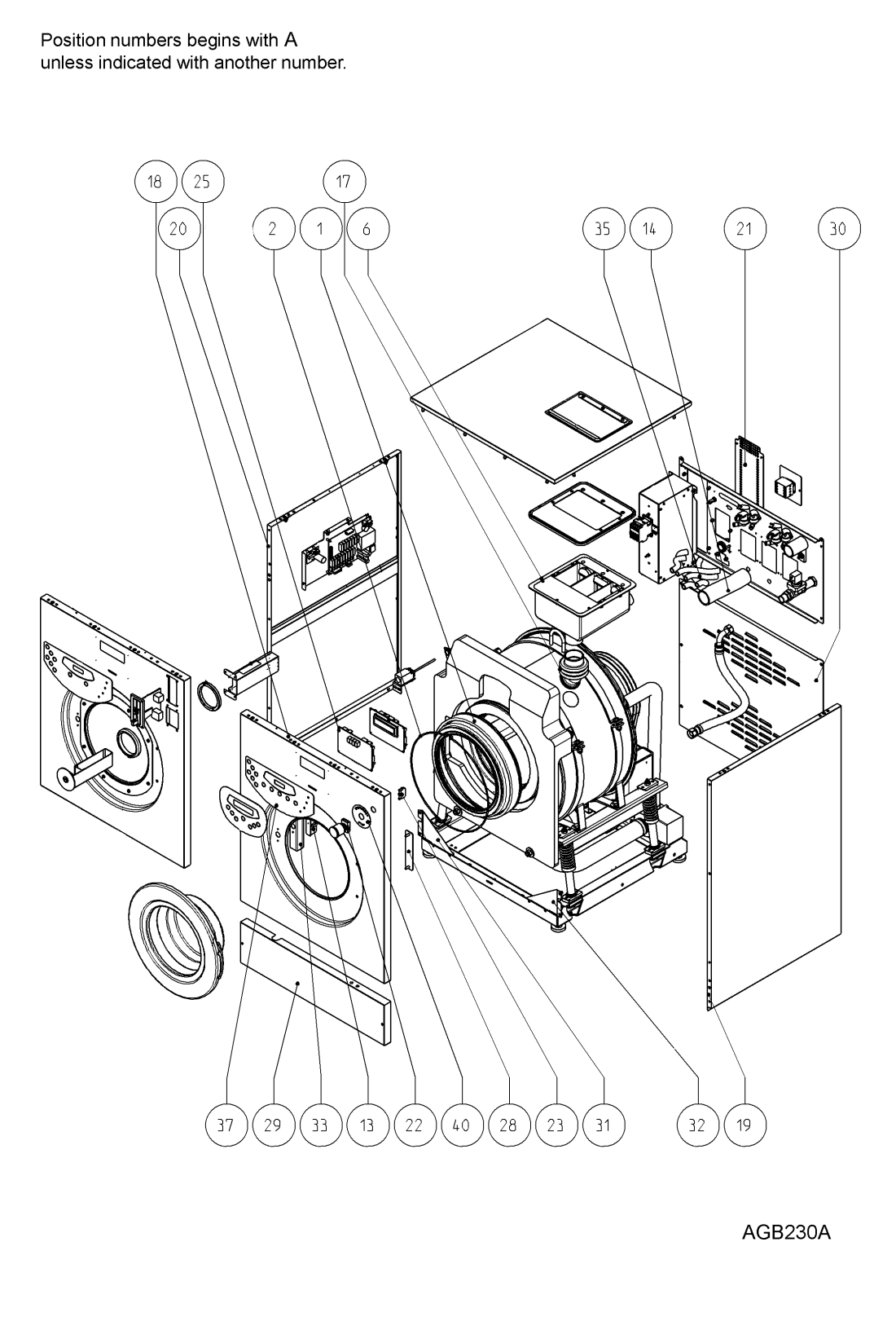

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR46461 |
C00638479 | Mounting Instruction WHP | Na dotaz | Zadat poptávku | |
| A01 WHR46461 |
C00497219
483286008592 |
Door bellow | Na dotaz | Zadat poptávku | |
| A02 WHR46461 |
C00497218
483286008573 |
Seal | Na dotaz | Zadat poptávku | |
| A03 WHR46461 |
C00422372
483286008188 |
Gasket Soap dispenser | Na dotaz | Zadat poptávku | |
| A04 WHR46461 |
C00581261
483286008574 |
Cover plate cpl. | Na dotaz | Zadat poptávku | |
| A05 WHR46461 |
C00581262
483286008575 |
Wash unit cpl. | Na dotaz | Zadat poptávku | |
| A06 WHR46461 |
C00524572
483286008229 |
Soap dispenser cpl. | Na dotaz | Zadat poptávku | |
| A07 WHR46461 |
C00581263
483286008576 |
User board Group | Na dotaz | Zadat poptávku | |
| A08 WHR46461 |
C00524746
483286008577 |
Rear panel | Na dotaz | Zadat poptávku | |
| A09 WHR46461 |
C00581269
483286008595 |
Housing,fuse | Na dotaz | Zadat poptávku | |
| A10 WHR46461 |
C00581264
483286008578 |
Electr.device Group | Na dotaz | Zadat poptávku | |
| A11 WHR46461 |
C00581232
483286008231 |
Microswitch Group | Na dotaz | Zadat poptávku | |
| A12 WHR46461 |
C00524573
483286008234 |
Coin box 220V | Na dotaz | Zadat poptávku | |
| A13 WHR46461 |
C00501104
483286008579 |
Block Door 24V | Na dotaz | Zadat poptávku | |
| A14 WHR46461 |
C00524574
483286008235 |
Tube,discharg. | Na dotaz | Zadat poptávku | |
| A15 WHR46461 |
C00524747
483286008581 |
Window cpl. | Na dotaz | Zadat poptávku | |
| A16 WHR46461 |
C00581234
483286008236 |
Coin box | Na dotaz | Zadat poptávku | |
| A17 WHR46461 |
C00501082
483286008244 |
Bellows | Na dotaz | Zadat poptávku | |
| A18 WHR46461 |
C00581265
483286008582 |
Front | Na dotaz | Zadat poptávku | |
| A19 WHR46461 |
C00581266
483286008583 |
Side panel right | Na dotaz | Zadat poptávku | |
| A20 WHR46461 |
C00581267
483286008584 |
Side panel left | Na dotaz | Zadat poptávku | |
| A21 WHR46461 |
C00581268
483286008585 |
Front with coin | Na dotaz | Zadat poptávku | |
| A22 WHR46461 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| A23 WHR46461 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
| A24 WHR46461 |
C00501084
483286008249 |
Control board IM6 | Na dotaz | Zadat poptávku | |
| A26 WHR46461 |
C00524579
483286008252 |
Frame Coin front | Na dotaz | Zadat poptávku | |
| A27 WHR46461 |
C00524580
483286008253 |
Ring coins fixing | Na dotaz | Zadat poptávku | |
| A28 WHR46461 |
C00524748
483286008586 |
Fastener Hinge | Na dotaz | Zadat poptávku | |
| A29 WHR46461 |
C00524749
483286008587 |
Plinth | Na dotaz | Zadat poptávku | |
| A30 WHR46461 |
C00524750
483286008588 |
Rear panel | Na dotaz | Zadat poptávku | |
| A31 WHR46461 |
C00524751
483286008589 |
Bracing f.foot left | Na dotaz | Zadat poptávku | |
| A32 WHR46461 |
C00524752
483286008591 |
Bracing f.foot right | Na dotaz | Zadat poptávku | |
| A33 WHR46461 |
C00524781
483286008655 |
Cap,protect. | Na dotaz | Zadat poptávku | |
| A34 WHR46461 |
C00581250
483286008487 |
Container for coin | Na dotaz | Zadat poptávku | |
| A35 WHR46461 |
C00524582
483286008255 |
Hose rubber D 13mm | Na dotaz | Zadat poptávku | |
| A36 WHR46461 |
C00524583
483286008256 |
Cover | Na dotaz | Zadat poptávku | |
| A37 WHR46461 |
C00581239
483286008261 |
Keyboard | Na dotaz | Zadat poptávku | |
| A38 WHR46461 |
C00581240
483286008262 |
Keyboard | Na dotaz | Zadat poptávku | |
| A39 WHR46461 |
C00581241
483286008263 |
Keyboard for coin | Na dotaz | Zadat poptávku | |
| A40 WHR46461 |
C00524753
483286008593 |
Hose inlet | Na dotaz | Zadat poptávku | |
| A41 WHR46461 |
C00581003
483286008264 |
Disc Emergency | Na dotaz | Zadat poptávku | |
| B01 WHR46461 |
C00581287
483286008648 |
Holder Micro Group | Na dotaz | Zadat poptávku | |
| B02 WHR46461 |
C00581270
483286008596 |
Container cpl. | Na dotaz | Zadat poptávku | |
| B03 WHR46461 |
C00581271
483286008597 |
Frame cpl. | Na dotaz | Zadat poptávku | |
| B04 WHR46461 |
C00524592
483286008277 |
Cover 3/4 " | Na dotaz | Zadat poptávku | |
| B05 WHR46461 |
C00524593
483286008278 |
Cover protect. Heating | Na dotaz | Zadat poptávku | |
| B06 WHR46461 |
C00524754
483286008598 |
Bushing D 38 | Na dotaz | Zadat poptávku | |
| B07 WHR46461 |
C00524755
483286008599 |
Pulley | Na dotaz | Zadat poptávku | |
| B08 WHR46461 |
C00524756
483286008601 |
Counter weight | Na dotaz | Zadat poptávku | |
| B09 WHR46461 |
C00524590
483286008269 |
Nozzle steam | Na dotaz | Zadat poptávku | |
| B10 WHR46461 |
C00524757
483286008602 |
Holder Ring upper | Na dotaz | Zadat poptávku | |
| B11 WHR46461 |
C00524758
483286008603 |
Holder Ring | Na dotaz | Zadat poptávku | |
| B12 WHR46461 |
C00524759
483286008604 |
Heating element 2000W,220V | Na dotaz | Zadat poptávku | |
| B13 WHR46461 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B14 WHR46461 |
C00524760
483286008605 |
Belt SPAX 1482 | Na dotaz | Zadat poptávku | |
| B15 WHR46461 |
C00524594
483286008283 |
O-Ring Silicon | Na dotaz | Zadat poptávku | |
| B16 WHR46461 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
| B17 WHR46461 |
C00501087
483286008285 |
Steam hose | Na dotaz | Zadat poptávku | |
| B18 WHR46461 |
C00524596
483286008286 |
Overflow pipe | Na dotaz | Zadat poptávku | |
| B19 WHR46461 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
| B20 WHR46461 |
C00524649
483286008388 |
Counternut M12 | Na dotaz | Zadat poptávku | |
| B21 WHR46461 |
C00524600
483286008291 |
Clamp fixation 44-56 | Na dotaz | Zadat poptávku | |
| B22 WHR46461 |
C00524726
483286008538 |
Key 10x8x40 | Na dotaz | Zadat poptávku | |
| B23 WHR46461 |
C00524761
483286008606 |
Rosette 12x36 | Na dotaz | Zadat poptávku | |
| B24 WHR46461 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| B25 WHR46461 |
C00524655
483286008395 |
Rosette 12x24 | Na dotaz | Zadat poptávku | |
| B26 WHR46461 |
C00524762
483286008607 |
Screw Hexa. 12x30 | Na dotaz | Zadat poptávku | |
| B27 WHR46461 |
C00524727
483286008539 |
Screw M10x40 hexa. | Na dotaz | Zadat poptávku | |
| B28 WHR46461 |
C00524763
483286008608 |
Screw Hexa. M12x40 | Na dotaz | Zadat poptávku | |
| C01 WHR46461 |
C00524764
483286008614 |
Adjust. foot | Na dotaz | Zadat poptávku | |
| C02 WHR46461 |
C00581272
483286008609 |
Motor Group | Na dotaz | Zadat poptávku | |
| C03 WHR46461 |
C00501093
483286008381 |
Shock absorber | Na dotaz | Zadat poptávku | |
| C04 WHR46461 |
C00581273
483286008611 |
Stay | Na dotaz | Zadat poptávku | |
| C05 WHR46461 |
C00581274
483286008612 |
Frame | Na dotaz | Zadat poptávku | |
| C06 WHR46461 |
C00581275
483286008613 |
Holder Ring lower | Na dotaz | Zadat poptávku | |
| C07 WHR46461 |
C00501094
483286008384 |
Valve 1 1/2 " | Na dotaz | Zadat poptávku | |
| C08 WHR46461 |
C00524647
483286008385 |
Holder | Na dotaz | Zadat poptávku | |
| C11 WHR46461 |
C00524650
483286008389 |
Nut M10 | Na dotaz | Zadat poptávku | |
| C12 WHR46461 |
C00524651
483286008391 |
Nut M12 | Na dotaz | Zadat poptávku | |
| C13 WHR46461 |
C00524652
483286008392 |
Clamp fixation 68-85 | Na dotaz | Zadat poptávku | |
| C14 WHR46461 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
| C15 WHR46461 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| C19 WHR46461 |
C00524656
483286008396 |
Tie rod with bush | Na dotaz | Zadat poptávku | |
| C20 WHR46461 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
| C24 WHR46461 |
C00501105
483286008615 |
Spout | Na dotaz | Zadat poptávku | |
| D01 WHR46461 |
C00502948
483286008399 |
Microswitch | Na dotaz | Zadat poptávku | |
| D02 WHR46461 |
C00524659
483286008401 |
Holder micro. | Na dotaz | Zadat poptávku | |
| D03 WHR46461 |
C00524660
483286008402 |
Fastener. | Na dotaz | Zadat poptávku | |
| D04 WHR46461 |
C00524661
483286008403 |
Screw Inbus M5x35 | Na dotaz | Zadat poptávku | |
| E01 WHR46461 |
C00524765
483286008616 |
Holder | Na dotaz | Zadat poptávku | |
| E02 WHR46461 |
C00524610
483286008302 |
Grommet cable gum | Na dotaz | Zadat poptávku | |
| F01 WHR46461 |
C00524662
483286008404 |
Flange | Na dotaz | Zadat poptávku | |
| F02 WHR46461 |
C00524663
483286008405 |
Spring | Na dotaz | Zadat poptávku | |
| F03 WHR46461 |
C00524664
483286008406 |
Guide Spring upper | Na dotaz | Zadat poptávku | |
| F04 WHR46461 |
C00524665
483286008407 |
Guide Spring lower | Na dotaz | Zadat poptávku | |
| F05 WHR46461 |
C00495327
483286008408 |
Damper | Na dotaz | Zadat poptávku | |
| F06 WHR46461 |
C00524666
483286008409 |
Rubber Plate | Na dotaz | Zadat poptávku | |
| G01 WHR46461 |
C00524766
483286008617 |
Rectifier OT 16 steam | Na dotaz | Zadat poptávku | |
| G02 WHR46461 |
C00501096
483286008412 |
Switch,toggle OHY 2RJ | Na dotaz | Zadat poptávku | |
| G03 WHR46461 |
C00524668
483286008413 |
Holder | Na dotaz | Zadat poptávku | |
| H01 WHR46461 |
C00524730
483286008543 |
Pulley 71x2 | Na dotaz | Zadat poptávku | |
| H02 WHR46461 |
C00524767
483286008618 |
Motor XS-90SA4/R327 1,1KW | Na dotaz | Zadat poptávku | |
| H03 WHR46461 |
C00524768
483286008619 |
Bearer,motor | Na dotaz | Zadat poptávku | |
| H05 WHR46461 |
C00524670
483286008427 |
Screw M6x10 | Na dotaz | Zadat poptávku | |
| H07 WHR46461 |
C00524671
483286008428 |
Screw M10x35 | Na dotaz | Zadat poptávku | |
| I01 WHR46461 |
C00524672
483286008429 |
Contactor A9-30-01 | Na dotaz | Zadat poptávku | |
| I02 WHR46461 |
C00581276
483286008621 |
Contactor A9-30-01 | Na dotaz | Zadat poptávku | |
| I03 WHR46461 |
C00524673
483286008432 |
Holder Inverter | Na dotaz | Zadat poptávku | |
| I04 WHR46461 |
C00524628
483286008347 |
Nut M5 self-blocking | Na dotaz | Zadat poptávku | |
| I05 WHR46461 |
C00524674
483286008433 |
Washer,spring 5x10 | Na dotaz | Zadat poptávku | |
| I06 WHR46461 |
C00524675
483286008434 |
Screw hexa. M5x20 | Na dotaz | Zadat poptávku | |
| J01 WHR46461 |
C00581278
483286008626 |
Plate bottom cpl. | Na dotaz | Zadat poptávku | |
| J02 WHR46461 |
C00581277
483286008622 |
Hub | Na dotaz | Zadat poptávku | |
| J03 WHR46461 |
C00524769
483286008623 |
Ring,pressure | Na dotaz | Zadat poptávku | |
| J04 WHR46461 |
C00524770
483286008624 |
Drum cpl. | Na dotaz | Zadat poptávku | |
| J05 WHR46461 |
C00524771
483286008625 |
Container | Na dotaz | Zadat poptávku | |
| J06 WHR46461 |
C00524681
483286008444 |
Gasket Tub | Na dotaz | Zadat poptávku | |
| J07 WHR46461 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| J08 WHR46461 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| J09 WHR46461 |
C00524741
483286008563 |
Ring,locking SP40 | Na dotaz | Zadat poptávku | |
| J10 WHR46461 |
C00524772
483286008627 |
Ring,locking | Na dotaz | Zadat poptávku | |
| K01 WHR46461 |
C00524685
483286008452 |
Can plug | Na dotaz | Zadat poptávku | |
| K02 WHR46461 |
C00524619
483286008319 |
Nut lock 3/4 " | Na dotaz | Zadat poptávku | |
| K03 WHR46461 |
C00524773
483286008628 |
Rear tub plate | Na dotaz | Zadat poptávku | |
| K04 WHR46461 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
| K05 WHR46461 |
C00524687
483286008455 |
Screwed joint 1 1/4 " | Na dotaz | Zadat poptávku | |
| K06 WHR46461 |
C00524688
483286008456 |
Seal 1 1/4 " | Na dotaz | Zadat poptávku | |
| K07 WHR46461 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
| K08 WHR46461 |
C00524690
483286008458 |
Cleaner nozzle 1 1/4 " | Na dotaz | Zadat poptávku | |
| K09 WHR46461 |
C00524691
483286008459 |
Rosette 28x40x2 black | Na dotaz | Zadat poptávku | |
| L01 WHR46461 |
C00524774
483286008629 |
Bearing | Na dotaz | Zadat poptávku | |
| L02 WHR46461 |
C00524775
483286008631 |
Bearing,roll | Na dotaz | Zadat poptávku | |
| L03 WHR46461 |
C00581279
483286008632 |
Hub | Na dotaz | Zadat poptávku | |
| L04 WHR46461 |
C00503470
483286008633 |
Flange | Na dotaz | Zadat poptávku | |
| L05 WHR46461 |
C00524695
483286008466 |
Ring,adjusting O-Ring | Na dotaz | Zadat poptávku | |
| L06 WHR46461 |
C00501106
483286008634 |
Ring circlip 60x90x13,5/15 | Na dotaz | Zadat poptávku | |
| L07 WHR46461 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
| L08 WHR46461 |
C00524745
483286008572 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| M01 WHR46461 |
C00581247
483286008307 |
Water inlet Group Steam | Na dotaz | Zadat poptávku | |
| M02 WHR46461 |
C00503464
483286008309 |
Fuse Glass 5x20 1A | Na dotaz | Zadat poptávku | |
| M03 WHR46461 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| M04 WHR46461 |
C00524614
483286008312 |
Nut plastic | Na dotaz | Zadat poptávku | |
| M05 WHR46461 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
| M06 WHR46461 |
C00524776
483286008635 |
Valve magnet 3/4 " | Na dotaz | Zadat poptávku | |
| M07 WHR46461 |
C00581281
483286008636 |
Rear panel | Na dotaz | Zadat poptávku | |
| M08 WHR46461 |
C00524616
483286008314 |
Cap for hole | Na dotaz | Zadat poptávku | |
| M09 WHR46461 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| M12 WHR46461 |
C00524777
483286008637 |
Screw,selftap 4,2x13 | Na dotaz | Zadat poptávku | |
| M13 WHR46461 |
C00524618
483286008316 |
Pipe,exhaust and breather pie | Na dotaz | Zadat poptávku | |
| N02 WHR46461 |
C00524620
483286008321 |
Nipple 3/4 " | Na dotaz | Zadat poptávku | |
| N03 WHR46461 |
C00524621
483286008325 |
Pipe 3/4 " x 100 | Na dotaz | Zadat poptávku | |
| N04 WHR46461 |
C00621167
483286008326 |
Valve magnet 3/4 " 240V | Na dotaz | Zadat poptávku | |
| Q01 WHR46461 |
C00524700
483286008474 |
Holder Unit control | Na dotaz | Zadat poptávku | |
| Q02 WHR46461 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| Q03 WHR46461 |
C00524778
483286008638 |
Board printed Door opener | Na dotaz | Zadat poptávku | |
| Q04 WHR46461 |
C00501099
483286008476 |
Řídící elektronika profesionální myčky nádobí Whirlpool | Na dotaz | Zadat poptávku | |
| Q05 WHR46461 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| R01 WHR46461 |
C00524626
483286008344 |
Lid washpan | Na dotaz | Zadat poptávku | |
| R02 WHR46461 |
C00524627
483286008345 |
Lamella lid | Na dotaz | Zadat poptávku | |
| R03 WHR46461 |
C00581282
483286008639 |
Cover plate | Na dotaz | Zadat poptávku | |
| R04 WHR46461 |
C00524779
483286008641 |
Bolt M5 | Na dotaz | Zadat poptávku | |
| R05 WHR46461 |
C00524629
483286008348 |
Pin fixing M5 | Na dotaz | Zadat poptávku | |
| R06 WHR46461 |
C00524630
483286008349 |
Screw cylinder M5x12 | Na dotaz | Zadat poptávku | |
| S01 WHR46461 |
C00501107
483286008642 |
Door glass | Na dotaz | Zadat poptávku | |
| S02 WHR46461 |
C00581283
483286008643 |
Hinge Window | Na dotaz | Zadat poptávku | |
| S03 WHR46461 |
C00524780
483286008644 |
Door fixation | Na dotaz | Zadat poptávku | |
| S04 WHR46461 |
C00581284
483286008645 |
Distance pin | Na dotaz | Zadat poptávku | |
| S05 WHR46461 |
C00581285
483286008646 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| S06 WHR46461 |
C00581286
483286008647 |
Door bellow | Na dotaz | Zadat poptávku | |
| U01 WHR46461 |
C00524703
483286008478 |
Door lock | Na dotaz | Zadat poptávku | |
| U02 WHR46461 |
C00524704
483286008479 |
Clamp Door lock | Na dotaz | Zadat poptávku | |
| U03 WHR46461 |
C00524705
483286008481 |
Cover | Na dotaz | Zadat poptávku | |
