| Komerční kód: | AGB 241WP WES23MP - 23KG High spin washi |
| Kód 12NC/I.C. kód: | 851224101000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

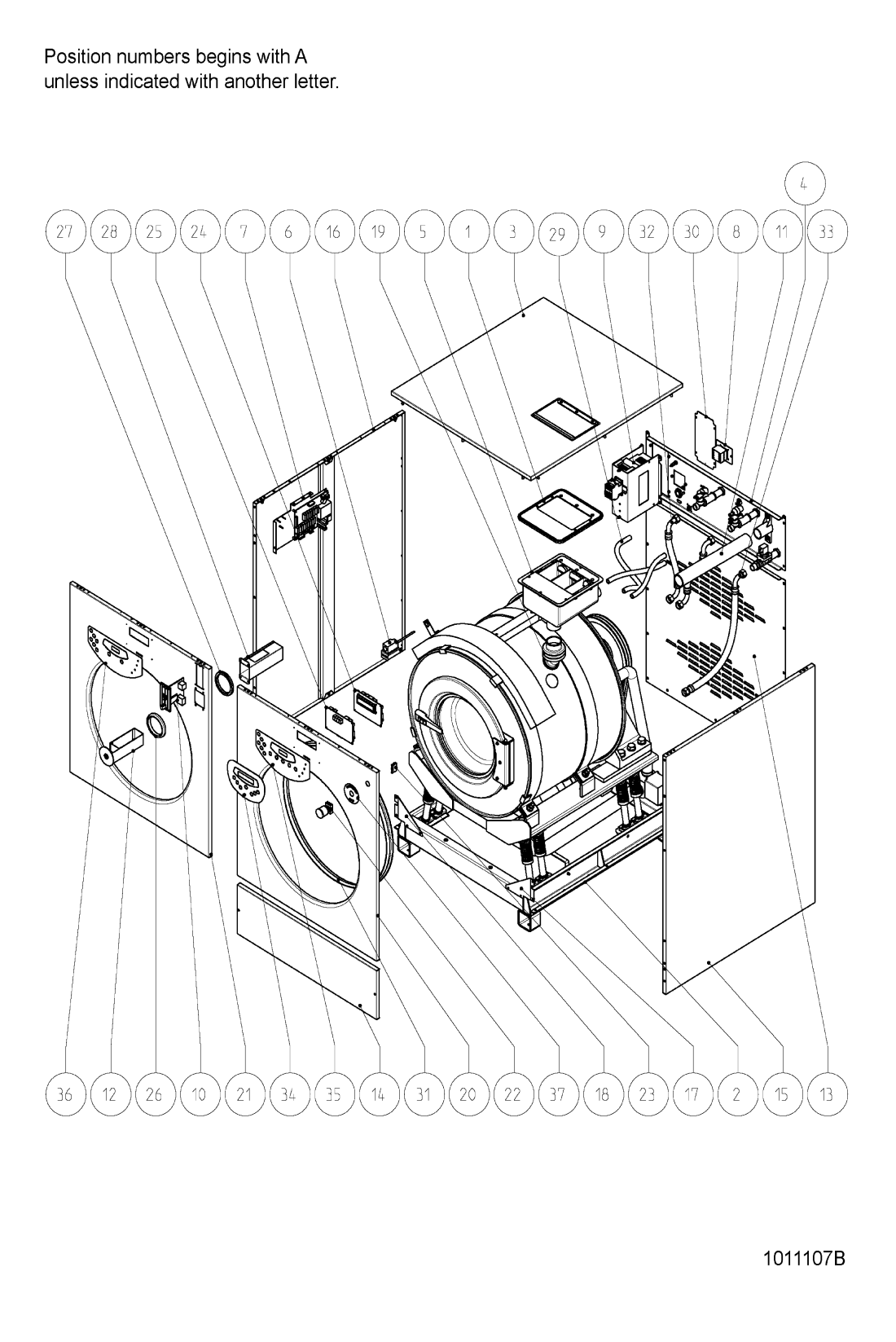

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A11 WHR52391 |
C00524574
483286008235 |
Tube,discharg. | Na dotaz | Zadat poptávku | |
| A13 WHR52391 |
C00524575
483286008237 |
Rear panel | Na dotaz | Zadat poptávku | |
| A14 WHR52391 |
C00496432
483286008238 |
Front part low. | Na dotaz | Zadat poptávku | |
| A15 WHR52391 |
C00524706
483286008485 |
Side panel right | Na dotaz | Zadat poptávku | |
| A16 WHR52391 |
C00524707
483286008486 |
Side panel left | Na dotaz | Zadat poptávku | |
| A17 WHR52391 |
C00524576
483286008242 |
Bracing f.foot right | Na dotaz | Zadat poptávku | |
| A18 WHR52391 |
C00524577
483286008243 |
Bracing f.foot left | Na dotaz | Zadat poptávku | |
| A19 WHR52391 |
C00501082
483286008244 |
Bellows | Na dotaz | Zadat poptávku | |
| A20 WHR52391 |
C00524578
483286008245 |
Front standard | Na dotaz | Zadat poptávku | |
| A22 WHR52391 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| A23 WHR52391 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
| A24 WHR52391 |
C00501084
483286008249 |
Control board IM6 | Na dotaz | Zadat poptávku | |
| A29 WHR52391 |
C00524582
483286008255 |
Hose rubber D 13mm | Na dotaz | Zadat poptávku | |
| A30 WHR52391 |
C00524583
483286008256 |
Cover | Na dotaz | Zadat poptávku | |
| A31 WHR52391 |
C00581238
483286008257 |
Ring,packing front | Na dotaz | Zadat poptávku | |
| A32 WHR52391 |
C00524584
483286008258 |
Rubber Tube dm19x26 45cm | Na dotaz | Zadat poptávku | |
| A33 WHR52391 |
C00524585
483286008259 |
Tube silicon DM19x26 105cm | Na dotaz | Zadat poptávku | |
| A34 WHR52391 |
C00501132
483286009107 |
Keyboard IM 6 | Na dotaz | Zadat poptávku | |
| A37 WHR52391 |
C00581003
483286008264 |
Disc Emergency | Na dotaz | Zadat poptávku | |
| B06 WHR52391 |
C00524591
483286008276 |
Gib 18x11x45 | Na dotaz | Zadat poptávku | |
| B07 WHR52391 |
C00524592
483286008277 |
Cover 3/4 " | Na dotaz | Zadat poptávku | |
| B09 WHR52391 |
C00524586
483286008265 |
Bushing DM 60 | Na dotaz | Zadat poptávku | |
| B10 WHR52391 |
C00524587
483286008266 |
Pulley | Na dotaz | Zadat poptávku | |
| B11 WHR52391 |
C00524588
483286008267 |
Ring,retaining lower | Na dotaz | Zadat poptávku | |
| B12 WHR52391 |
C00524589
483286008268 |
Ring,retaining upper | Na dotaz | Zadat poptávku | |
| B14 WHR52391 |
C00501100
483286008488 |
Heating element 5000W 220V | Na dotaz | Zadat poptávku | |
| B15 WHR52391 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B16 WHR52391 |
C00581244
483286008281 |
Hinge Door | Na dotaz | Zadat poptávku | |
| B17 WHR52391 |
C00501086
483286008282 |
Belt | Na dotaz | Zadat poptávku | |
| B19 WHR52391 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
| B20 WHR52391 |
C00501087
483286008285 |
Steam hose | Na dotaz | Zadat poptávku | |
| B21 WHR52391 |
C00524596
483286008286 |
Overflow pipe | Na dotaz | Zadat poptávku | |
| B22 WHR52391 |
C00524597
483286008287 |
Screw Hexagonal head M20x90 | Na dotaz | Zadat poptávku | |
| B23 WHR52391 |
C00524598
483286008288 |
Nut self-blocking | Na dotaz | Zadat poptávku | |
| B24 WHR52391 |
C00524599
483286008289 |
Nut M8 | Na dotaz | Zadat poptávku | |
| B25 WHR52391 |
C00524600
483286008291 |
Clamp fixation 44-56 | Na dotaz | Zadat poptávku | |
| B26 WHR52391 |
C00524601
483286008292 |
Nut M8x20 Cylindr. | Na dotaz | Zadat poptávku | |
| B27 WHR52391 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| B28 WHR52391 |
C00524603
483286008294 |
Rosette 8x16 | Na dotaz | Zadat poptávku | |
| B29 WHR52391 |
C00524604
483286008295 |
Rosette 16x30 | Na dotaz | Zadat poptávku | |
| B30 WHR52391 |
C00524605
483286008296 |
Rosette 20x37 | Na dotaz | Zadat poptávku | |
| B31 WHR52391 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
| B32 WHR52391 |
C00524607
483286008298 |
Screw hexa. M16x60 | Na dotaz | Zadat poptávku | |
| B33 WHR52391 |
C00524608
483286008299 |
Screw hexa.cylind. M6x16 | Na dotaz | Zadat poptávku | |
| B34 WHR52391 |
C00524609
483286008301 |
Screw hexa.cylind.M8x12 | Na dotaz | Zadat poptávku | |
| C05 WHR52391 |
C00501094
483286008384 |
Valve 1 1/2 " | Na dotaz | Zadat poptávku | |
| C06 WHR52391 |
C00524647
483286008385 |
Holder | Na dotaz | Zadat poptávku | |
| C07 WHR52391 |
C00524648
483286008386 |
Outlet Stud | Na dotaz | Zadat poptávku | |
| C08 WHR52391 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
| C09 WHR52391 |
C00524649
483286008388 |
Counternut M12 | Na dotaz | Zadat poptávku | |
| C10 WHR52391 |
C00524650
483286008389 |
Nut M10 | Na dotaz | Zadat poptávku | |
| C11 WHR52391 |
C00524651
483286008391 |
Nut M12 | Na dotaz | Zadat poptávku | |
| C12 WHR52391 |
C00524652
483286008392 |
Clamp fixation 68-85 | Na dotaz | Zadat poptávku | |
| C13 WHR52391 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
| C15 WHR52391 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| C16 WHR52391 |
C00524655
483286008395 |
Rosette 12x24 | Na dotaz | Zadat poptávku | |
| C17 WHR52391 |
C00524656
483286008396 |
Tie rod with bush | Na dotaz | Zadat poptávku | |
| C19 WHR52391 |
C00524657
483286008397 |
Screw hexa. M10x50 | Na dotaz | Zadat poptávku | |
| C20 WHR52391 |
C00524658
483286008398 |
Screw hexa. M10x30 | Na dotaz | Zadat poptávku | |
| D01 WHR52391 |
C00501097
483286008424 |
Pulley | Na dotaz | Zadat poptávku | |
| D02 WHR52391 |
C00524669
483286008425 |
Holder Motor | Na dotaz | Zadat poptávku | |
| D03 WHR52391 |
C00524709
483286008496 |
Motor XS-1122MA 4KW 4P | Na dotaz | Zadat poptávku | |
| D05 WHR52391 |
C00524670
483286008427 |
Screw M6x10 | Na dotaz | Zadat poptávku | |
| D07 WHR52391 |
C00524671
483286008428 |
Screw M10x35 | Na dotaz | Zadat poptávku | |
| E03 WHR52391 |
C00524676
483286008437 |
Ring,pressure | Na dotaz | Zadat poptávku | |
| E04 WHR52391 |
C00524710
483286008499 |
Container | Na dotaz | Zadat poptávku | |
| E05 WHR52391 |
C00524711
483286008501 |
Container drum | Na dotaz | Zadat poptávku | |
| E06 WHR52391 |
C00524679
483286008441 |
Spacebar | Na dotaz | Zadat poptávku | |
| E07 WHR52391 |
C00524680
483286008442 |
Gasket Tub | Na dotaz | Zadat poptávku | |
| E08 WHR52391 |
C00524681
483286008444 |
Gasket Tub | Na dotaz | Zadat poptávku | |
| E09 WHR52391 |
C00524712
483286008502 |
Ring,locking DM 80 | Na dotaz | Zadat poptávku | |
| E10 WHR52391 |
C00524682
483286008445 |
Washer,toothed | Na dotaz | Zadat poptávku | |
| E13 WHR52391 |
C00524683
483286008446 |
Clamp ring KM 14 | Na dotaz | Zadat poptávku | |
| E14 WHR52391 |
C00524684
483286008447 |
Rosette MB 14 | Na dotaz | Zadat poptávku | |
| F01 WHR52391 |
C00524685
483286008452 |
Can plug | Na dotaz | Zadat poptávku | |
| F02 WHR52391 |
C00524619
483286008319 |
Nut lock 3/4 " | Na dotaz | Zadat poptávku | |
| F03 WHR52391 |
C00524713
483286008503 |
Rear tub plate | Na dotaz | Zadat poptávku | |
| F04 WHR52391 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
| F05 WHR52391 |
C00524695
483286008466 |
Ring,adjusting O-Ring | Na dotaz | Zadat poptávku | |
| F06 WHR52391 |
C00524687
483286008455 |
Screwed joint 1 1/4 " | Na dotaz | Zadat poptávku | |
| F07 WHR52391 |
C00524688
483286008456 |
Seal 1 1/4 " | Na dotaz | Zadat poptávku | |
| F08 WHR52391 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
| F09 WHR52391 |
C00524690
483286008458 |
Cleaner nozzle 1 1/4 " | Na dotaz | Zadat poptávku | |
| F10 WHR52391 |
C00524691
483286008459 |
Rosette 28x40x2 black | Na dotaz | Zadat poptávku | |
| G01 WHR52391 |
C00501101
483286008504 |
Flange plate cpl. | Na dotaz | Zadat poptávku | |
| G02 WHR52391 |
C00524692
483286008461 |
Bearing,roll NU 2216 ECP | Na dotaz | Zadat poptávku | |
| G03 WHR52391 |
C00524693
483286008462 |
Bearing,roll C22214E | Na dotaz | Zadat poptávku | |
| G04 WHR52391 |
C00524714
483286008505 |
Adapter cylinr. mod.2601-9-1/8 | Na dotaz | Zadat poptávku | |
| G05 WHR52391 |
C00524694
483286008465 |
Flange | Na dotaz | Zadat poptávku | |
| G06 WHR52391 |
C00524715
483286008506 |
Hub LM 14/18/23 | Na dotaz | Zadat poptávku | |
| G07 WHR52391 |
C00524716
483286008507 |
O-Ring DM140X3 NBR | Na dotaz | Zadat poptávku | |
| G08 WHR52391 |
C00524696
483286008467 |
Ring circlip 85/110/12 | Na dotaz | Zadat poptávku | |
| G09 WHR52391 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
| G10 WHR52391 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| G11 WHR52391 |
C00524699
483286008473 |
Screw hexa.M 8X30 | Na dotaz | Zadat poptávku | |
| G12 WHR52391 |
C00524717
483286008508 |
Screw hexa.cylindr. M5X30 | Na dotaz | Zadat poptávku | |
| H04 WHR52391 |
C00524612
483286008308 |
Rear panel | Na dotaz | Zadat poptávku | |
| H05 WHR52391 |
C00503464
483286008309 |
Fuse Glass 5x20 1A | Na dotaz | Zadat poptávku | |
| H06 WHR52391 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| H07 WHR52391 |
C00524614
483286008312 |
Nut plastic | Na dotaz | Zadat poptávku | |
| H08 WHR52391 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
| H09 WHR52391 |
C00524616
483286008314 |
Cap for hole | Na dotaz | Zadat poptávku | |
| H10 WHR52391 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| H13 WHR52391 |
C00524618
483286008316 |
Pipe,exhaust and breather pie | Na dotaz | Zadat poptávku | |
| I01 WHR52391 |
C00524700
483286008474 |
Holder Unit control | Na dotaz | Zadat poptávku | |
| I02 WHR52391 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| I03 WHR52391 |
C00501099
483286008476 |
Řídící elektronika profesionální myčky nádobí Whirlpool | Na dotaz | Zadat poptávku | |
| I04 WHR52391 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| J01 WHR52391 |
C00501089
483286008351 |
sklo dveří | Na dotaz | Zadat poptávku | |
| J02 WHR52391 |
C00524631
483286008352 |
Hinge Door | Na dotaz | Zadat poptávku | |
| J03 WHR52391 |
C00502656
483286008353 |
Magnet door hanger | Na dotaz | Zadat poptávku | |
| J04 WHR52391 |
C00501090
483286008354 |
Magnet M302 AA | Na dotaz | Zadat poptávku | |
| J05 WHR52391 |
C00524632
483286008355 |
Glassdoor frame | Na dotaz | Zadat poptávku | |
| J06 WHR52391 |
C00501091
483286008356 |
rukojeť | Na dotaz | Zadat poptávku | |
| J07 WHR52391 |
C00501092
483286008357 |
Door bellow | Na dotaz | Zadat poptávku | |
| J09 WHR52391 |
C00524633
483286008358 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| J10 WHR52391 |
C00524634
483286008359 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| J11 WHR52391 |
C00524635
483286008361 |
Screw M4x6 | Na dotaz | Zadat poptávku | |
| J12 WHR52391 |
C00524636
483286008362 |
Screw M4x8 | Na dotaz | Zadat poptávku | |
| J13 WHR52391 |
C00524637
483286008363 |
Screw socket M6x25 | Na dotaz | Zadat poptávku | |
| K01 WHR52391 |
C00524638
483286008364 |
Door lock stake | Na dotaz | Zadat poptávku | |
| K02 WHR52391 |
C00524639
483286008365 |
Guide pin | Na dotaz | Zadat poptávku | |
| K03 WHR52391 |
C00500227
483286008366 |
Coil | Na dotaz | Zadat poptávku | |
| K04 WHR52391 |
C00524640
483286008367 |
Terminal Board 2,5 | Na dotaz | Zadat poptávku | |
| K05 WHR52391 |
C00502657
483286008368 |
Shunt | Na dotaz | Zadat poptávku | |
| K06 WHR52391 |
C00524641
483286008369 |
Sensor Magnet | Na dotaz | Zadat poptávku | |
| K07 WHR52391 |
C00581249
483286008371 |
Door lock base | Na dotaz | Zadat poptávku | |
| K08 WHR52391 |
C00524642
483286008372 |
Door lock cover | Na dotaz | Zadat poptávku | |
| K09 WHR52391 |
C00502658
483286008373 |
Door lock spring | Na dotaz | Zadat poptávku | |
| K10 WHR52391 |
C00524643
483286008375 |
Pin elastic dm 3x35 | Na dotaz | Zadat poptávku | |
| K11 WHR52391 |
C00524644
483286008376 |
Screw cylind. M4x10 | Na dotaz | Zadat poptávku | |
| K13 WHR52391 |
C00502659
483286008377 |
Screw flathead M4x40 | Na dotaz | Zadat poptávku | |
| L01 WHR52391 |
C00524718
483286008509 |
Ring,protecting | Na dotaz | Zadat poptávku | |
| L02 WHR52391 |
C00524720
483286008512 |
Flange plate | Na dotaz | Zadat poptávku | |
| L04 WHR52391 |
C00524719
483286008511 |
Ring 100x130x10 | Na dotaz | Zadat poptávku | |
| M01 WHR52391 |
C00581251
483286008497 |
Contactor A12-30-01 | Na dotaz | Zadat poptávku | |
| M02 WHR52391 |
C00422773
483286010444 |
Contactor Inverter | Na dotaz | Zadat poptávku | |
| M03 WHR52391 |
C00524673
483286008432 |
Holder Inverter | Na dotaz | Zadat poptávku | |
| M04 WHR52391 |
C00524628
483286008347 |
Nut M5 self-blocking | Na dotaz | Zadat poptávku | |
| M05 WHR52391 |
C00524674
483286008433 |
Washer,spring 5x10 | Na dotaz | Zadat poptávku | |
| M06 WHR52391 |
C00524675
483286008434 |
Screw hexa. M5x20 | Na dotaz | Zadat poptávku | |
| N01 WHR52391 |
C00524626
483286008344 |
Lid washpan | Na dotaz | Zadat poptávku | |
| N02 WHR52391 |
C00524627
483286008345 |
Lamella lid | Na dotaz | Zadat poptávku | |
| N03 WHR52391 |
C00524721
483286008513 |
Cover plate | Na dotaz | Zadat poptávku | |
| N05 WHR52391 |
C00524629
483286008348 |
Pin fixing M5 | Na dotaz | Zadat poptávku | |
| N06 WHR52391 |
C00524630
483286008349 |
Screw cylinder M5x12 | Na dotaz | Zadat poptávku | |
| O01 WHR52391 |
C00502948
483286008399 |
Microswitch | Na dotaz | Zadat poptávku | |
| O02 WHR52391 |
C00524659
483286008401 |
Holder micro. | Na dotaz | Zadat poptávku | |
| O03 WHR52391 |
C00524660
483286008402 |
Fastener. | Na dotaz | Zadat poptávku | |
| O04 WHR52391 |
C00524661
483286008403 |
Screw Inbus M5x35 | Na dotaz | Zadat poptávku | |
| P01 WHR52391 |
C00524611
483286008303 |
Holder micro housing | Na dotaz | Zadat poptávku | |
| P02 WHR52391 |
C00524610
483286008302 |
Grommet cable gum | Na dotaz | Zadat poptávku | |
| Q01 WHR52391 |
C00524662
483286008404 |
Flange | Na dotaz | Zadat poptávku | |
| Q02 WHR52391 |
C00524663
483286008405 |
Spring | Na dotaz | Zadat poptávku | |
| Q03 WHR52391 |
C00524664
483286008406 |
Guide Spring upper | Na dotaz | Zadat poptávku | |
| Q04 WHR52391 |
C00524665
483286008407 |
Guide Spring lower | Na dotaz | Zadat poptávku | |
| Q05 WHR52391 |
C00495327
483286008408 |
Damper | Na dotaz | Zadat poptávku | |
| Q06 WHR52391 |
C00524666
483286008409 |
Rubber Plate | Na dotaz | Zadat poptávku | |
| R01 WHR52391 |
C00524667
483286008411 |
Switch OT25 | Na dotaz | Zadat poptávku | |
| R02 WHR52391 |
C00501096
483286008412 |
Switch,toggle OHY 2RJ | Na dotaz | Zadat poptávku | |
| R03 WHR52391 |
C00524668
483286008413 |
Holder | Na dotaz | Zadat poptávku | |
| S02 WHR52391 |
C00524623
483286008338 |
T-adapter 3/4 " | Na dotaz | Zadat poptávku | |
| S03 WHR52391 |
C00524621
483286008325 |
Pipe 3/4 " x 100 | Na dotaz | Zadat poptávku | |
| S04 WHR52391 |
C00524624
483286008339 |
Valve magnet 1 way 90° 3/4" | Na dotaz | Zadat poptávku | |
| S05 WHR52391 |
C00501088
483286008342 |
Valve magnet 1 way 3/4 " 230V | Na dotaz | Zadat poptávku | |
| T04 WHR52391 |
C00524625
483286008343 |
Valve magnet 2 way 90° 230V | Na dotaz | Zadat poptávku | |
| 999 WHR52393 |
C00655201 | Mounting Instruction WHP | Na dotaz | Zadat poptávku | |
