| Komerční kód: | AGB 242WP WES30MP - 30KG High spin washi |
| Kód 12NC/I.C. kód: | 851224201000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás

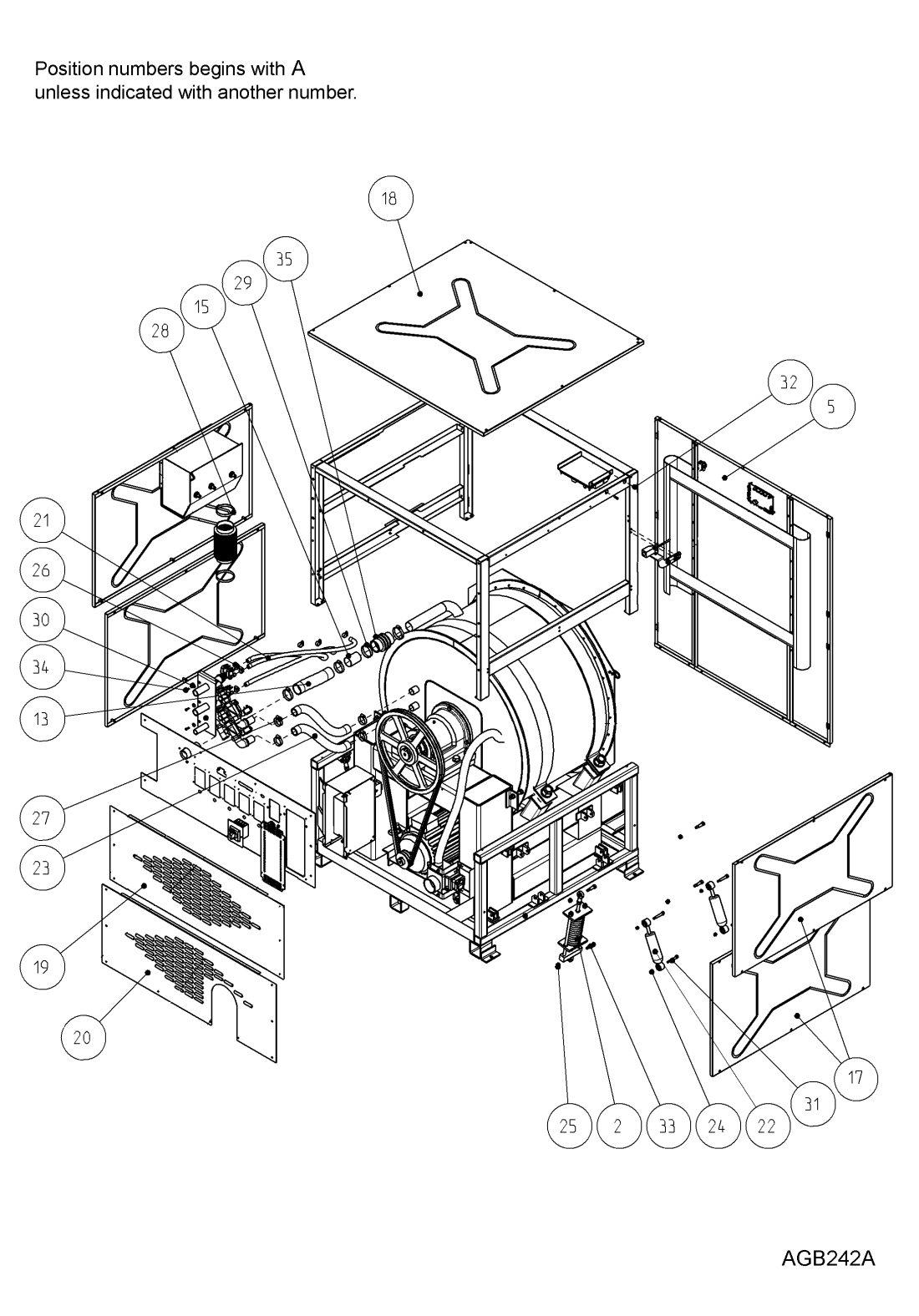

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR67339 |
C00686471 | Mounting Instruction WHP | Na dotaz | Zadat poptávku | |
| A02 WHR67339 |
C00421244
483286003117 |
Bracket cpl. | Na dotaz | Zadat poptávku | |
| A13 WHR67339 |
C00524278
483286001147 |
Hose D 48X57 | Na dotaz | Zadat poptávku | |
| A15 WHR67339 |
C00421243
483286003116 |
Tube air regul. | Na dotaz | Zadat poptávku | |
| A17 WHR67339 |
C00421245
483286003118 |
Side panel | Na dotaz | Zadat poptávku | |
| A18 WHR67339 |
C00421246
483286003119 |
Cover | Na dotaz | Zadat poptávku | |
| A19 WHR67339 |
C00421247
483286003121 |
Rear panel ^middle | Na dotaz | Zadat poptávku | |
| A20 WHR67339 |
C00421248
483286003122 |
Rear panel lower | Na dotaz | Zadat poptávku | |
| A21 WHR67339 |
C00524582
483286008255 |
Hose rubber D 13mm | Na dotaz | Zadat poptávku | |
| A22 WHR67339 |
C00524286
483286001167 |
Shock absorber | Na dotaz | Zadat poptávku | |
| A23 WHR67339 |
C00421249
483286003123 |
Hose flex. | Na dotaz | Zadat poptávku | |
| A24 WHR67339 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| A25 WHR67339 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
| A26 WHR67339 |
C00524280
483286001152 |
Clamp fixation 18-28 | Na dotaz | Zadat poptávku | |
| A27 WHR67339 |
C00524600
483286008291 |
Clamp fixation 44-56 | Na dotaz | Zadat poptávku | |
| A28 WHR67339 |
C00524652
483286008392 |
Clamp fixation 68-85 | Na dotaz | Zadat poptávku | |
| A29 WHR67339 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
| A30 WHR67339 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| A31 WHR67339 |
C00524281
483286001153 |
Screw M8XDM10X50 | Na dotaz | Zadat poptávku | |
| A32 WHR67339 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
| A33 WHR67339 |
C00524282
483286001154 |
Screw M10XDM12X30 | Na dotaz | Zadat poptávku | |
| A34 WHR67339 |
C00524608
483286008299 |
Screw hexa.cylind. M6x16 | Na dotaz | Zadat poptávku | |
| A35 WHR67339 |
C00421136
483286002997 |
Bellows | Na dotaz | Zadat poptávku | |
| B01 WHR67339 |
C00421250
483286003124 |
Column right front | Na dotaz | Zadat poptávku | |
| B02 WHR67339 |
C00421251
483286003125 |
Column left front | Na dotaz | Zadat poptávku | |
| B03 WHR67339 |
C00421252
483286003126 |
Column left behind | Na dotaz | Zadat poptávku | |
| B04 WHR67339 |
C00421253
483286003127 |
Column right behind | Na dotaz | Zadat poptávku | |
| B05 WHR67339 |
C00421254
483286003128 |
Bearer behind | Na dotaz | Zadat poptávku | |
| B06 WHR67339 |
C00421255
483286003129 |
Bearer right upper | Na dotaz | Zadat poptávku | |
| B07 WHR67339 |
C00421256
483286003131 |
Bearer right lower | Na dotaz | Zadat poptávku | |
| B08 WHR67339 |
C00421257
483286003132 |
Bearer left upper | Na dotaz | Zadat poptávku | |
| B09 WHR67339 |
C00421258
483286003133 |
Bearer left lower | Na dotaz | Zadat poptávku | |
| B10 WHR67339 |
C00421259
483286003134 |
Holder | Na dotaz | Zadat poptávku | |
| B11 WHR67339 |
C00421260
483286003135 |
Bracing f.foot | Na dotaz | Zadat poptávku | |
| B12 WHR67339 |
C00421261
483286003136 |
Bearer front | Na dotaz | Zadat poptávku | |
| C01 WHR67339 |
C00421101
483286002957 |
Fuse | Na dotaz | Zadat poptávku | |
| C02 WHR67339 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| C03 WHR67339 |
C00524419
483286001476 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
| C04 WHR67339 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
| C05 WHR67339 |
C00421262
483286003137 |
Rear panel upper cpl. | Na dotaz | Zadat poptávku | |
| C06 WHR67339 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| C08 WHR67339 |
C00524745
483286008572 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| C09 WHR67339 |
C00524309
483286001229 |
Screw M6X16 exagonal | Na dotaz | Zadat poptávku | |
| C10 WHR67339 |
C00524400
483286001447 |
Tube finale | Na dotaz | Zadat poptávku | |
| D01 WHR67339 |
C00421263
483286003138 |
Cabinet cpl. | Na dotaz | Zadat poptávku | |
| D02 WHR67339 |
C00524526
483286001766 |
Contactor A26-30-01 230V | Na dotaz | Zadat poptávku | |
| D03 WHR67339 |
C00524735
483286008548 |
Lock | Na dotaz | Zadat poptávku | |
| D04 WHR67339 |
C00524610
483286008302 |
Grommet cable gum | Na dotaz | Zadat poptávku | |
| D05 WHR67339 |
C00422774
483286010445 |
Contactor Inverter | Na dotaz | Zadat poptávku | |
| D06 WHR67339 |
C00524174
483286000779 |
Nut M5 | Na dotaz | Zadat poptávku | |
| D07 WHR67339 |
C00524674
483286008433 |
Washer,spring 5x10 | Na dotaz | Zadat poptávku | |
| D08 WHR67339 |
C00524895
483286009512 |
Screw M5X12 exagonal | Na dotaz | Zadat poptávku | |
| E01 WHR67339 |
C00421161
483286003025 |
Holder | Na dotaz | Zadat poptávku | |
| E03 WHR67339 |
C00524424
483286001484 |
Switch QT 45 | Na dotaz | Zadat poptávku | |
| E04 WHR67339 |
C00501096
483286008412 |
Switch,toggle OHY 2RJ | Na dotaz | Zadat poptávku | |
| F01 WHR67339 |
C00421265
483286003141 |
Cleaner nozzle | Na dotaz | Zadat poptávku | |
| F03 WHR67339 |
C00421266
483286003142 |
Nipple 1" | Na dotaz | Zadat poptávku | |
| F04 WHR67339 |
C00421267
483286003143 |
Bow 90# M/F 1" | Na dotaz | Zadat poptávku | |
| F05 WHR67339 |
C00421268
483286003144 |
Reductor M 1" F 3/4" | Na dotaz | Zadat poptávku | |
| F06 WHR67339 |
C00421269
483286003145 |
T-adapter | Na dotaz | Zadat poptávku | |
| F07 WHR67339 |
C00421270
483286003146 |
Holder | Na dotaz | Zadat poptávku | |
| F08 WHR67339 |
C00421271
483286003147 |
Tube | Na dotaz | Zadat poptávku | |
| F09 WHR67339 |
C00421272
483286003148 |
Inlet valve | Na dotaz | Zadat poptávku | |
| F11 WHR67339 |
C00421273
483286003149 |
Inlet valve one way | Na dotaz | Zadat poptávku | |
| F12 WHR67339 |
C00421168
483286003033 |
Inlet valve 2 way | Na dotaz | Zadat poptávku | |
| G01 WHR67339 |
C00421226
483286003097 |
Detergent disp. | Na dotaz | Zadat poptávku | |
| G02 WHR67339 |
C00421227
483286003098 |
Nozzle Soap dispenser | Na dotaz | Zadat poptávku | |
| G03 WHR67339 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
| G04 WHR67339 |
C00524138
483286000707 |
Rosette 16X30 INOX | Na dotaz | Zadat poptávku | |
| G05 WHR67339 |
C00524396
483286001443 |
Nut | Na dotaz | Zadat poptávku | |
| H01 WHR67339 |
C00421228
483286003099 |
Pawl | Na dotaz | Zadat poptávku | |
| H02 WHR67339 |
C00421229
483286003101 |
Nut | Na dotaz | Zadat poptávku | |
| H03 WHR67339 |
C00421230
483286003102 |
Lid | Na dotaz | Zadat poptávku | |
| H04 WHR67339 |
C00524389
483286001435 |
Hinge | Na dotaz | Zadat poptávku | |
| H05 WHR67339 |
C00421231
483286003103 |
Rotary locking | Na dotaz | Zadat poptávku | |
| H06 WHR67339 |
C00421232
483286003104 |
Frame Detergent disp. | Na dotaz | Zadat poptávku | |
| H07 WHR67339 |
C00421233
483286003105 |
Small plate | Na dotaz | Zadat poptávku | |
| H08 WHR67339 |
C00421234
483286003106 |
Gasket | Na dotaz | Zadat poptávku | |
| H09 WHR67339 |
C00421235
483286003107 |
Nut M6 INOX | Na dotaz | Zadat poptávku | |
| H10 WHR67339 |
C00421274
483286003151 |
Nut M4 | Na dotaz | Zadat poptávku | |
| H11 WHR67339 |
C00524544
483286001799 |
Washer,toothed 6 | Na dotaz | Zadat poptávku | |
| H13 WHR67339 |
C00421236
483286003108 |
Screw M4X6 INOX | Na dotaz | Zadat poptávku | |
| H14 WHR67339 |
C00524105
483286000641 |
Screw M4X12 | Na dotaz | Zadat poptávku | |
| I01 WHR67339 |
C00421275
483286003152 |
Detergent disp. cpl. | Na dotaz | Zadat poptávku | |
| I02 WHR67339 |
C00421276
483286003153 |
Side panel Detergent disp. | Na dotaz | Zadat poptávku | |
| I03 WHR67339 |
C00421214
483286003084 |
Lid | Na dotaz | Zadat poptávku | |
| J01 WHR67339 |
C00421277
483286003154 |
Holder | Na dotaz | Zadat poptávku | |
| J02 WHR67339 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| J03 WHR67339 |
C00501099
483286008476 |
Řídící elektronika profesionální myčky nádobí Whirlpool | Na dotaz | Zadat poptávku | |
| J04 WHR67339 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| K01 WHR67339 |
C00421278
483286003155 |
Holder | Na dotaz | Zadat poptávku | |
| K02 WHR67339 |
C00524488
483286001693 |
Microswitch | Na dotaz | Zadat poptávku | |
| K03 WHR67339 |
C00524660
483286008402 |
Fastener. | Na dotaz | Zadat poptávku | |
| K04 WHR67339 |
C00524661
483286008403 |
Screw Inbus M5x35 | Na dotaz | Zadat poptávku | |
| L01 WHR67339 |
C00421279
483286003156 |
Door Block kit | Na dotaz | Zadat poptávku | |
| L03 WHR67339 |
C00421280
483286003157 |
Staple DM 45 | Na dotaz | Zadat poptávku | |
| L05 WHR67339 |
C00421075
483286002927 |
Pillar | Na dotaz | Zadat poptávku | |
| L06 WHR67339 |
C00421048
483286002897 |
Spout | Na dotaz | Zadat poptávku | |
| L07 WHR67339 |
C00524311
483286001232 |
Ribbon,stranded 2X40 | Na dotaz | Zadat poptávku | |
| L12 WHR67339 |
C00524314
483286001238 |
Stopper 1/2 " | Na dotaz | Zadat poptávku | |
| L14 WHR67339 |
C00524586
483286008265 |
Bushing DM 60 | Na dotaz | Zadat poptávku | |
| L15 WHR67339 |
C00524529
483286001778 |
Pulley SPA 450X2 | Na dotaz | Zadat poptávku | |
| L16 WHR67339 |
C00524353
483286001365 |
Nut f. Handle | Na dotaz | Zadat poptávku | |
| L17 WHR67339 |
C00524539
483286001791 |
Holder Inlet valve | Na dotaz | Zadat poptávku | |
| L18 WHR67339 |
C00421281
483286003158 |
Microswitch seat | Na dotaz | Zadat poptávku | |
| L19 WHR67339 |
C00524322
483286001251 |
Valve | Na dotaz | Zadat poptávku | |
| L20 WHR67339 |
C00501102
483286008518 |
Heating element 4000W 220V | Na dotaz | Zadat poptávku | |
| L21 WHR67339 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| L22 WHR67339 |
C00421282
483286003159 |
Ring upper | Na dotaz | Zadat poptávku | |
| L23 WHR67339 |
C00421283
483286003161 |
Ring lower | Na dotaz | Zadat poptávku | |
| L24 WHR67339 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
| L26 WHR67339 |
C00421284
483286003162 |
Seal | Na dotaz | Zadat poptávku | |
| L27 WHR67339 |
C00421129
483286002989 |
Pedestal Window | Na dotaz | Zadat poptávku | |
| L28 WHR67339 |
C00524354
483286001366 |
Tube | Na dotaz | Zadat poptávku | |
| L29 WHR67339 |
C00421285
483286003163 |
řemen | Na dotaz | Zadat poptávku | |
| L30 WHR67339 |
C00524695
483286008466 |
Ring,adjusting O-Ring | Na dotaz | Zadat poptávku | |
| L31 WHR67339 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
| L32 WHR67339 |
C00421286
483286003164 |
Cover | Na dotaz | Zadat poptávku | |
| L34 WHR67339 |
C00524649
483286008388 |
Counternut M12 | Na dotaz | Zadat poptávku | |
| L35 WHR67339 |
C00524355
483286001367 |
Blocking M 30 | Na dotaz | Zadat poptávku | |
| L36 WHR67339 |
C00524542
483286001797 |
Blocking M 30 | Na dotaz | Zadat poptávku | |
| L37 WHR67339 |
C00524328
483286001259 |
Nut M10 | Na dotaz | Zadat poptávku | |
| L38 WHR67339 |
C00524899
483286009523 |
Nut M8 Zn UNI 5588 | Na dotaz | Zadat poptávku | |
| L39 WHR67339 |
C00524651
483286008391 |
Nut M12 | Na dotaz | Zadat poptávku | |
| L40 WHR67339 |
C00524326
483286001257 |
Nut M20 | Na dotaz | Zadat poptávku | |
| L41 WHR67339 |
C00524543
483286001798 |
Screw M30 | Na dotaz | Zadat poptávku | |
| L42 WHR67339 |
C00524327
483286001258 |
Clamp fixation 26-38 | Na dotaz | Zadat poptávku | |
| L44 WHR67339 |
C00524378
483286001421 |
Dowel M10X25 | Na dotaz | Zadat poptávku | |
| L45 WHR67339 |
C00524333
483286001265 |
Gib 18X11X4 | Na dotaz | Zadat poptávku | |
| L46 WHR67339 |
C00524893
483286009508 |
Washer 10X20 INOX UNI 6592 | Na dotaz | Zadat poptávku | |
| L47 WHR67339 |
C00524603
483286008294 |
Rosette 8x16 | Na dotaz | Zadat poptávku | |
| L48 WHR67339 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| L49 WHR67339 |
C00524655
483286008395 |
Rosette 12x24 | Na dotaz | Zadat poptávku | |
| L51 WHR67339 |
C00524605
483286008296 |
Rosette 20x37 | Na dotaz | Zadat poptávku | |
| L52 WHR67339 |
C00524545
483286001801 |
Rosette 30X56 | Na dotaz | Zadat poptávku | |
| L53 WHR67339 |
C00524380
483286001423 |
Screw M 6X14 | Na dotaz | Zadat poptávku | |
| L54 WHR67339 |
C00524175
483286000781 |
Screw cap. M8X20 | Na dotaz | Zadat poptávku | |
| L55 WHR67339 |
C00524422
483286001482 |
Screw M 6X16 | Na dotaz | Zadat poptávku | |
| L56 WHR67339 |
C00524546
483286001802 |
Screw M12X90 | Na dotaz | Zadat poptávku | |
| L58 WHR67339 |
C00524557
483286001823 |
Screw M 12X90 | Na dotaz | Zadat poptávku | |
| L59 WHR67339 |
C00524734
483286008547 |
Screw M8x20 hexa. | Na dotaz | Zadat poptávku | |
| L60 WHR67339 |
C00524609
483286008301 |
Screw hexa.cylind.M8x12 | Na dotaz | Zadat poptávku | |
| L61 WHR67339 |
C00524381
483286001424 |
Screw hexa. M 20X70 | Na dotaz | Zadat poptávku | |
| M02 WHR67339 |
C00421287
483286003165 |
Drum cpl. | Na dotaz | Zadat poptávku | |
| M03 WHR67339 |
C00421288
483286003166 |
Container | Na dotaz | Zadat poptávku | |
| M04 WHR67339 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| M05 WHR67339 |
C00421289
483286003167 |
Screw M10X25 | Na dotaz | Zadat poptávku | |
| M06 WHR67339 |
C00421102
483286002958 |
Ring,locking SP100 | Na dotaz | Zadat poptávku | |
| M07 WHR67339 |
C00524683
483286008446 |
Clamp ring KM 14 | Na dotaz | Zadat poptávku | |
| M08 WHR67339 |
C00524684
483286008447 |
Rosette MB 14 | Na dotaz | Zadat poptávku | |
| M09 WHR67339 |
C00421088
483286002943 |
Distance washer | Na dotaz | Zadat poptávku | |
| N01 WHR67339 |
C00421089
483286002944 |
Bearing,ball NU 2220 E | Na dotaz | Zadat poptávku | |
| N02 WHR67339 |
C00421090
483286002945 |
Bearing,ball NUP 314 E | Na dotaz | Zadat poptávku | |
| N03 WHR67339 |
C00421091
483286002946 |
Hub | Na dotaz | Zadat poptávku | |
| N04 WHR67339 |
C00421092
483286002947 |
Flange front | Na dotaz | Zadat poptávku | |
| N05 WHR67339 |
C00421093
483286002948 |
Flange rear | Na dotaz | Zadat poptávku | |
| N06 WHR67339 |
C00421094
483286002949 |
Ring | Na dotaz | Zadat poptávku | |
| N07 WHR67339 |
C00421095
483286002951 |
Ring | Na dotaz | Zadat poptávku | |
| N08 WHR67339 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
| O01 WHR67339 |
C00421290
483286003168 |
Pulley SPA 80x2 | Na dotaz | Zadat poptávku | |
| O02 WHR67339 |
C00421291
483286003169 |
Motor S132.IN170.3S 4P 5.5KW | Na dotaz | Zadat poptávku | |
| O03 WHR67339 |
C00421292
483286003171 |
Support Motor | Na dotaz | Zadat poptávku | |
| O05 WHR67339 |
C00524914
483286009562 |
Dowel 45 H M6X8 | Na dotaz | Zadat poptávku | |
| O07 WHR67339 |
C00524728
483286008541 |
Screw M12x50 hexa. | Na dotaz | Zadat poptávku | |
| P01 WHR67339 |
C00501089
483286008351 |
sklo dveří | Na dotaz | Zadat poptávku | |
| P02 WHR67339 |
C00581197
483286001269 |
rukojeť | Na dotaz | Zadat poptávku | |
| P03 WHR67339 |
C00502643
483286001271 |
kontramatice rukojeť | Na dotaz | Zadat poptávku | |
| P04 WHR67339 |
C00421081
483286002934 |
podložka | Na dotaz | Zadat poptávku | |
| P05 WHR67339 |
C00421169
483286003034 |
kolík | Na dotaz | Zadat poptávku | |
| P06 WHR67339 |
C00421170
483286003035 |
Window | Na dotaz | Zadat poptávku | |
| P07 WHR67339 |
C00421171
483286003036 |
Hinge | Na dotaz | Zadat poptávku | |
| P08 WHR67339 |
C00502644
483286001281 |
kroužek závitový | Na dotaz | Zadat poptávku | |
| P09 WHR67339 |
C00501092
483286008357 |
Door bellow | Na dotaz | Zadat poptávku | |
| P10 WHR67339 |
C00524213
483286000937 |
Nut M6 | Na dotaz | Zadat poptávku | |
| Q01 WHR67339 |
C00421293
483286003172 |
Upper, front | Na dotaz | Zadat poptávku | |
| Q03 WHR67339 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| Q04 WHR67339 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
| Q05 WHR67339 |
C00501084
483286008249 |
Control board IM6 | Na dotaz | Zadat poptávku | |
| Q06 WHR67339 |
C00421294
483286003173 |
Front part low. | Na dotaz | Zadat poptávku | |
| Q07 WHR67339 |
C00421295
483286003174 |
Column left | Na dotaz | Zadat poptávku | |
| Q08 WHR67339 |
C00421296
483286003175 |
Column right | Na dotaz | Zadat poptávku | |
| Q09 WHR67339 |
C00421297
483286003176 |
Protector upper | Na dotaz | Zadat poptávku | |
| Q10 WHR67339 |
C00421298
483286003177 |
Protector lower | Na dotaz | Zadat poptávku | |
| Q11 WHR67339 |
C00501132
483286009107 |
Keyboard IM 6 | Na dotaz | Zadat poptávku | |
| Q12 WHR67339 |
C00581003
483286008264 |
Disc Emergency | Na dotaz | Zadat poptávku | |
| Q14 WHR67339 |
C00524896
483286009513 |
Screw M8X20 exagonal | Na dotaz | Zadat poptávku | |
