Komerční kód: | AGB 254/WP WVS55MP - 55KG High spin wash |
Kód 12NC/I.C. kód: | 851225401000 |
Značka: | WHIRLPOOL |
Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
999 WHR67518 |
C00617245 | Mounting Instruction WHP | Na dotaz | Zadat poptávku | |

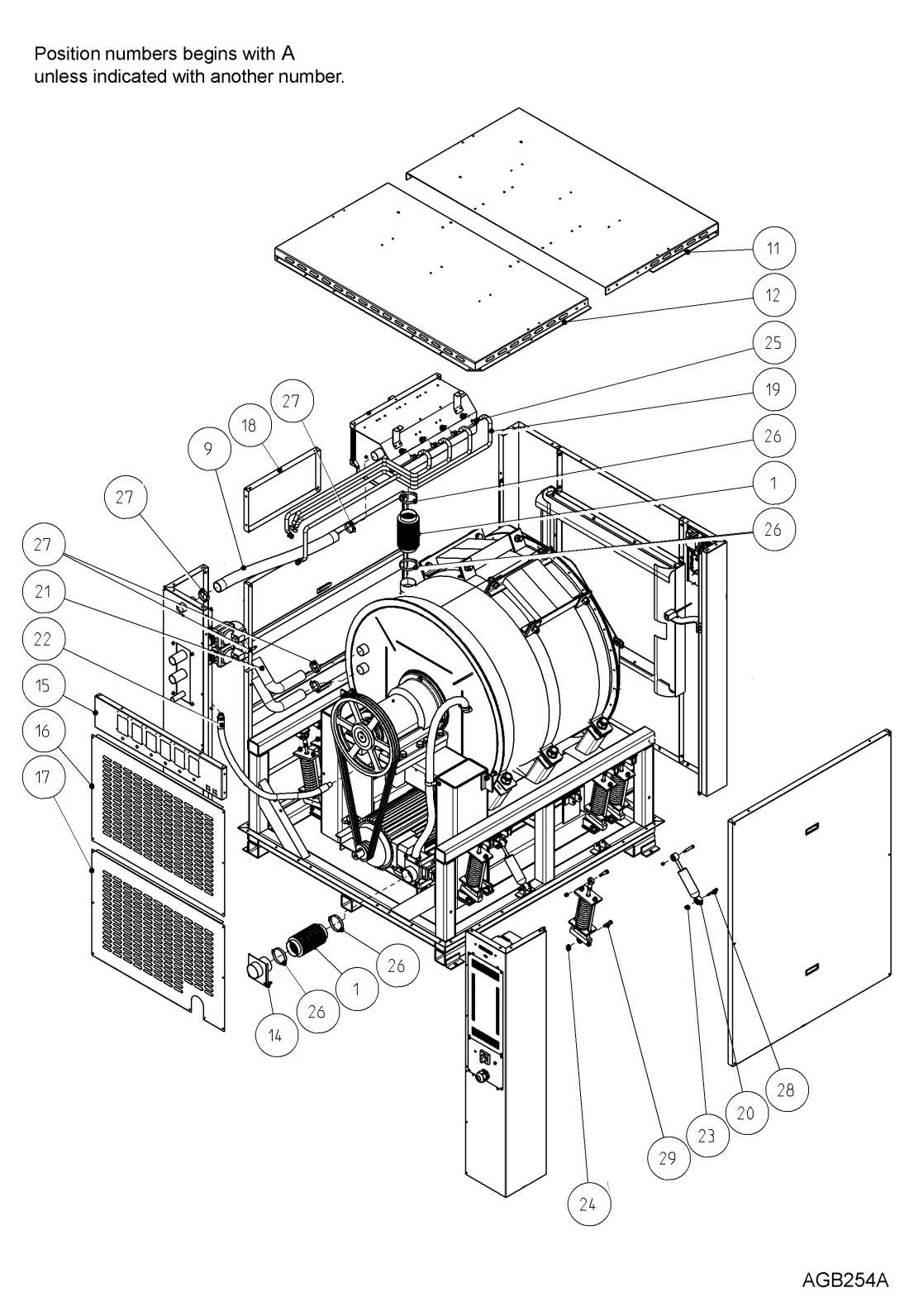

A01 WHR67518 |
C00501068
483286001157 |
Drainpipe | Na dotaz | Zadat poptávku | |
A09 WHR67518 |
C00421599
483286003566 |
Hose DM 48X57 | Na dotaz | Zadat poptávku | |
A11 WHR67518 |
C00524504
483286001726 |
Cover front | Na dotaz | Zadat poptávku | |
A12 WHR67518 |
C00524505
483286001727 |
Cover behind | Na dotaz | Zadat poptávku | |
A14 WHR67518 |
C00524507
483286001729 |
Spout | Na dotaz | Zadat poptávku | |
A15 WHR67518 |
C00524508
483286001731 |
Rear panel upper | Na dotaz | Zadat poptávku | |
A16 WHR67518 |
C00524509
483286001732 |
Rear panel middle | Na dotaz | Zadat poptávku | |
A17 WHR67518 |
C00524510
483286001733 |
Rear panel lower | Na dotaz | Zadat poptávku | |
A18 WHR67518 |
C00421930
483286003939 |
Cover | Na dotaz | Zadat poptávku | |
A19 WHR67518 |
C00524582
483286008255 |
Hose rubber D 13mm | Na dotaz | Zadat poptávku | |
A20 WHR67518 |
C00524286
483286001167 |
Shock absorber | Na dotaz | Zadat poptávku | |
A21 WHR67518 |
C00524287
483286001168 |
Tube bend | Na dotaz | Zadat poptávku | |
A22 WHR67518 |
C00524288
483286001169 |
Swell pipe steam | Na dotaz | Zadat poptávku | |
A23 WHR67518 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
A24 WHR67518 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
A25 WHR67518 |
C00524280
483286001152 |
Clamp fixation 18-28 | Na dotaz | Zadat poptávku | |
A26 WHR67518 |
C00524652
483286008392 |
Clamp fixation 68-85 | Na dotaz | Zadat poptávku | |
A27 WHR67518 |
C00524653
483286008393 |
Clamp fixation 50-70 | Na dotaz | Zadat poptávku | |
A28 WHR67518 |
C00524281
483286001153 |
Screw M8XDM10X50 | Na dotaz | Zadat poptávku | |
A29 WHR67518 |
C00524282
483286001154 |
Screw M10XDM12X30 | Na dotaz | Zadat poptávku | |
B01 WHR67518 |
C00524311
483286001232 |
Ribbon,stranded 2X40 | Na dotaz | Zadat poptávku | |
B06 WHR67518 |
C00524312
483286001236 |
Fitting 3/4 " | Na dotaz | Zadat poptávku | |
B07 WHR67518 |
C00524313
483286001237 |
Reductor 3/4 " 3/8 " | Na dotaz | Zadat poptávku | |
B08 WHR67518 |
C00524314
483286001238 |
Stopper 1/2 " | Na dotaz | Zadat poptávku | |
B09 WHR67518 |
C00524315
483286001239 |
Bushing | Na dotaz | Zadat poptávku | |
B10 WHR67518 |
C00524552
483286001817 |
Pulley | Na dotaz | Zadat poptávku | |
B11 WHR67518 |
C00524318
483286001245 |
Pedestal Window | Na dotaz | Zadat poptávku | |
B12 WHR67518 |
C00524353
483286001365 |
Nut f. Handle | Na dotaz | Zadat poptávku | |
B13 WHR67518 |
C00524553
483286001818 |
Counter weight | Na dotaz | Zadat poptávku | |
B14 WHR67518 |
C00524554
483286001819 |
Wash unit | Na dotaz | Zadat poptávku | |
B15 WHR67518 |
C00524531
483286001782 |
Cover plate | Na dotaz | Zadat poptávku | |
B16 WHR67518 |
C00524538
483286001789 |
Holder Microswitch | Na dotaz | Zadat poptávku | |
B17 WHR67518 |
C00524319
483286001246 |
Staple | Na dotaz | Zadat poptávku | |
B18 WHR67518 |
C00524539
483286001791 |
Holder Inlet valve | Na dotaz | Zadat poptávku | |
B19 WHR67518 |
C00524555
483286001821 |
Pulley SPA 80X3 | Na dotaz | Zadat poptávku | |
B20 WHR67518 |
C00524322
483286001251 |
Valve | Na dotaz | Zadat poptávku | |
B21 WHR67518 |
C00501100
483286008488 |
Heating element 5000W 220V | Na dotaz | Zadat poptávku | |
B22 WHR67518 |
C00497217
483286008279 |
Sensor temper. | Na dotaz | Zadat poptávku | |
B23 WHR67518 |
C00524540
483286001793 |
Ring Holder upper | Na dotaz | Zadat poptávku | |
B24 WHR67518 |
C00524541
483286001794 |
Ring Holder lower | Na dotaz | Zadat poptávku | |
B25 WHR67518 |
C00524686
483286008454 |
Nut,coupling D 6 | Na dotaz | Zadat poptávku | |
B26 WHR67518 |
C00524323
483286001253 |
Nozzle | Na dotaz | Zadat poptávku | |
B27 WHR67518 |
C00524324
483286001254 |
Seal | Na dotaz | Zadat poptávku | |
B28 WHR67518 |
C00524556
483286001822 |
Ring Holder upper | Na dotaz | Zadat poptávku | |
B29 WHR67518 |
C00524354
483286001366 |
Tube | Na dotaz | Zadat poptávku | |
B30 WHR67518 |
C00503466
483286008537 |
Belt AX91 | Na dotaz | Zadat poptávku | |
B31 WHR67518 |
C00524689
483286008457 |
Nozzle For Valve | Na dotaz | Zadat poptávku | |
B32 WHR67518 |
C00501087
483286008285 |
Steam hose | Na dotaz | Zadat poptávku | |
B33 WHR67518 |
C00524325
483286001256 |
Spout | Na dotaz | Zadat poptávku | |
B34 WHR67518 |
C00524628
483286008347 |
Nut M5 self-blocking | Na dotaz | Zadat poptávku | |
B35 WHR67518 |
C00524649
483286008388 |
Counternut M12 | Na dotaz | Zadat poptávku | |
B36 WHR67518 |
C00524355
483286001367 |
Blocking M 30 | Na dotaz | Zadat poptávku | |
B37 WHR67518 |
C00524542
483286001797 |
Blocking M 30 | Na dotaz | Zadat poptávku | |
B38 WHR67518 |
C00524328
483286001259 |
Nut M10 | Na dotaz | Zadat poptávku | |
B39 WHR67518 |
C00524213
483286000937 |
Nut M6 | Na dotaz | Zadat poptávku | |
B40 WHR67518 |
C00524651
483286008391 |
Nut M12 | Na dotaz | Zadat poptávku | |
B41 WHR67518 |
C00524326
483286001257 |
Nut M20 | Na dotaz | Zadat poptávku | |
B42 WHR67518 |
C00524543
483286001798 |
Screw M30 | Na dotaz | Zadat poptávku | |
B43 WHR67518 |
C00524327
483286001258 |
Clamp fixation 26-38 | Na dotaz | Zadat poptávku | |
B45 WHR67518 |
C00524378
483286001421 |
Dowel M10X25 | Na dotaz | Zadat poptávku | |
B46 WHR67518 |
C00524914
483286009562 |
Dowel 45 H M6X8 | Na dotaz | Zadat poptávku | |
B47 WHR67518 |
C00524333
483286001265 |
Gib 18X11X4 | Na dotaz | Zadat poptávku | |
B48 WHR67518 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
B49 WHR67518 |
C00524330
483286001262 |
Washer,toothed 6 | Na dotaz | Zadat poptávku | |
B50 WHR67518 |
C00524331
483286001263 |
Disc 20X60 | Na dotaz | Zadat poptávku | |
B51 WHR67518 |
C00524893
483286009508 |
Washer 10X20 INOX UNI 6592 | Na dotaz | Zadat poptávku | |
B52 WHR67518 |
C00524181
483286000799 |
Rosette 12X24 IX | Na dotaz | Zadat poptávku | |
B53 WHR67518 |
C00524603
483286008294 |
Rosette 8x16 | Na dotaz | Zadat poptávku | |
B54 WHR67518 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
B55 WHR67518 |
C00524655
483286008395 |
Rosette 12x24 | Na dotaz | Zadat poptávku | |
B56 WHR67518 |
C00524605
483286008296 |
Rosette 20x37 | Na dotaz | Zadat poptávku | |
B57 WHR67518 |
C00524545
483286001801 |
Rosette 30X56 | Na dotaz | Zadat poptávku | |
B58 WHR67518 |
C00524379
483286001422 |
Screw M 5X12 | Na dotaz | Zadat poptávku | |
B59 WHR67518 |
C00524380
483286001423 |
Screw M 6X14 | Na dotaz | Zadat poptávku | |
B60 WHR67518 |
C00524175
483286000781 |
Screw cap. M8X20 | Na dotaz | Zadat poptávku | |
B61 WHR67518 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
B62 WHR67518 |
C00524546
483286001802 |
Screw M12X90 | Na dotaz | Zadat poptávku | |
B63 WHR67518 |
C00524557
483286001823 |
Screw M 12X90 | Na dotaz | Zadat poptávku | |
B64 WHR67518 |
C00524734
483286008547 |
Screw M8x20 hexa. | Na dotaz | Zadat poptávku | |
B65 WHR67518 |
C00524381
483286001424 |
Screw hexa. M 20X70 | Na dotaz | Zadat poptávku | |
C01 WHR67518 |
C00524364
483286001382 |
Soap dispenser | Na dotaz | Zadat poptávku | |
C02 WHR67518 |
C00524365
483286001383 |
Nozzle Dispenser | Na dotaz | Zadat poptávku | |
C03 WHR67518 |
C00524383
483286001428 |
Locking lever Carafe | Na dotaz | Zadat poptávku | |
C04 WHR67518 |
C00524384
483286001429 |
Holder Carafe | Na dotaz | Zadat poptávku | |
C05 WHR67518 |
C00524385
483286001431 |
Pin | Na dotaz | Zadat poptávku | |
C06 WHR67518 |
C00524386
483286001432 |
Cover | Na dotaz | Zadat poptávku | |
C07 WHR67518 |
C00524387
483286001433 |
Bushing | Na dotaz | Zadat poptávku | |
C08 WHR67518 |
C00524388
483286001434 |
Carafe | Na dotaz | Zadat poptávku | |
C09 WHR67518 |
C00524389
483286001435 |
Hinge | Na dotaz | Zadat poptávku | |
C10 WHR67518 |
C00421058
483286002908 |
Gasket | Na dotaz | Zadat poptávku | |
C11 WHR67518 |
C00524595
483286008284 |
Rubber joint | Na dotaz | Zadat poptávku | |
C12 WHR67518 |
C00524390
483286001436 |
Ring,rubber | Na dotaz | Zadat poptávku | |
C13 WHR67518 |
C00524391
483286001437 |
Lockingmechn. | Na dotaz | Zadat poptávku | |
C14 WHR67518 |
C00524405
483286001453 |
Nut | Na dotaz | Zadat poptávku | |
C15 WHR67518 |
C00524392
483286001438 |
Nut M4 | Na dotaz | Zadat poptávku | |
C16 WHR67518 |
C00524393
483286001439 |
Washer 5X10 | Na dotaz | Zadat poptávku | |
C17 WHR67518 |
C00524138
483286000707 |
Rosette 16X30 INOX | Na dotaz | Zadat poptávku | |
C18 WHR67518 |
C00524894
483286009509 |
Washer 5X15 Zn UNI 9021 | Na dotaz | Zadat poptávku | |
C19 WHR67518 |
C00524394
483286001441 |
Screw M 5X8 | Na dotaz | Zadat poptávku | |
C20 WHR67518 |
C00524636
483286008362 |
Screw M4x8 | Na dotaz | Zadat poptávku | |
C21 WHR67518 |
C00524896
483286009513 |
Screw M8X20 exagonal | Na dotaz | Zadat poptávku | |
C22 WHR67518 |
C00524395
483286001442 |
Fastener elastic | Na dotaz | Zadat poptávku | |
C23 WHR67518 |
C00524396
483286001443 |
Nut | Na dotaz | Zadat poptávku | |
D01 WHR67518 |
C00524477
483286001671 |
Ball Joint SAKB 12 F | Na dotaz | Zadat poptávku | |
D02 WHR67518 |
C00524478
483286001672 |
Ball Joint SIKB 12 F | Na dotaz | Zadat poptávku | |
D03 WHR67518 |
C00524427
483286001487 |
Spring D10 | Na dotaz | Zadat poptávku | |
D04 WHR67518 |
C00524428
483286001488 |
Tie rod middle cpl. | Na dotaz | Zadat poptávku | |
D05 WHR67518 |
C00524479
483286001673 |
Tie rod extern cpl. | Na dotaz | Zadat poptávku | |
D06 WHR67518 |
C00524480
483286001674 |
Plate cpl. | Na dotaz | Zadat poptávku | |
D09 WHR67518 |
C00524670
483286008427 |
Screw M6x10 | Na dotaz | Zadat poptávku | |
E01 WHR67518 |
C00524512
483286001745 |
Upper, front Rubber | Na dotaz | Zadat poptávku | |
E02 WHR67518 |
C00524513
483286001746 |
Front panel right, Rubber | Na dotaz | Zadat poptávku | |
E03 WHR67518 |
C00524514
483286001747 |
Front panel lower, Rubber | Na dotaz | Zadat poptávku | |
E04 WHR67518 |
C00524515
483286001748 |
Front panel left, Rubber | Na dotaz | Zadat poptávku | |
E07 WHR67518 |
C00524516
483286001751 |
Side panel lower | Na dotaz | Zadat poptávku | |
E08 WHR67518 |
C00524517
483286001752 |
Side panel upper | Na dotaz | Zadat poptávku | |
E09 WHR67518 |
C00524518
483286001753 |
Column left | Na dotaz | Zadat poptávku | |
E10 WHR67518 |
C00524519
483286001754 |
Column right | Na dotaz | Zadat poptávku | |
E11 WHR67518 |
C00524520
483286001755 |
Fastener upper, Rubber | Na dotaz | Zadat poptávku | |
E12 WHR67518 |
C00524521
483286001756 |
Fastener below, Rubber | Na dotaz | Zadat poptávku | |
E13 WHR67518 |
C00524522
483286001757 |
Fastener Side, Rubber | Na dotaz | Zadat poptávku | |
E14 WHR67518 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
E15 WHR67518 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
E17 WHR67518 |
C00581003
483286008264 |
Disc Emergency | Na dotaz | Zadat poptávku | |
E18 WHR67518 |
C00524127
483286000677 |
Screw M4 | Na dotaz | Zadat poptávku | |
E21 WHR67518 |
C00524264
483286001064 |
Rosette 4X9 | Na dotaz | Zadat poptávku | |
E23 WHR67518 |
C00524309
483286001229 |
Screw M6X16 exagonal | Na dotaz | Zadat poptávku | |
F03 WHR67518 |
C00524413
483286001468 |
Holder Unit | Na dotaz | Zadat poptávku | |
F04 WHR67518 |
C00524416
483286001473 |
Cover | Na dotaz | Zadat poptávku | |
F05 WHR67518 |
C00524525
483286001765 |
Column back | Na dotaz | Zadat poptávku | |
F06 WHR67518 |
C00524414
483286001471 |
Unit control | Na dotaz | Zadat poptávku | |
F07 WHR67518 |
C00524130
483286000684 |
Spacer | Na dotaz | Zadat poptávku | |
F08 WHR67518 |
C00524633
483286008358 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
G01 WHR67518 |
C00524406
483286001454 |
Holder | Na dotaz | Zadat poptávku | |
G02 WHR67518 |
C00524527
483286001769 |
Column right | Na dotaz | Zadat poptávku | |
G03 WHR67518 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
G08 WHR67518 |
C00524399
483286001446 |
Screw M 8X30 | Na dotaz | Zadat poptávku | |
G09 WHR67518 |
C00524400
483286001447 |
Tube finale | Na dotaz | Zadat poptávku | |
H01 WHR67518 |
C00421931
483286003941 |
Side panel right | Na dotaz | Zadat poptávku | |
H02 WHR67518 |
C00524104
483286000639 |
Handle black | Na dotaz | Zadat poptávku | |
I01 WHR67518 |
C00421932
483286003942 |
Side panel left | Na dotaz | Zadat poptávku | |
J01 WHR67518 |
C00524558
483286001824 |
Holder Motor | Na dotaz | Zadat poptávku | |
J02 WHR67518 |
C00524559
483286001825 |
Motor S160IN215.30 | Na dotaz | Zadat poptávku | |
J05 WHR67518 |
C00524728
483286008541 |
Screw M12x50 hexa. | Na dotaz | Zadat poptávku | |
K01 WHR67518 |
C00503445
483286001371 |
Bearing,ball NU 2226 | Na dotaz | Zadat poptávku | |
K02 WHR67518 |
C00503446
483286001372 |
Bearing,ball NUP 2220 | Na dotaz | Zadat poptávku | |
K03 WHR67518 |
C00524357
483286001373 |
Hub | Na dotaz | Zadat poptávku | |
K04 WHR67518 |
C00524358
483286001374 |
Flange below | Na dotaz | Zadat poptávku | |
K05 WHR67518 |
C00524695
483286008466 |
Ring,adjusting O-Ring | Na dotaz | Zadat poptávku | |
K06 WHR67518 |
C00503448
483286001426 |
Seal 130/160/12 | Na dotaz | Zadat poptávku | |
K07 WHR67518 |
C00503449
483286001427 |
Seal 160/190/15 | Na dotaz | Zadat poptávku | |
K08 WHR67518 |
C00524361
483286001377 |
Flange front | Na dotaz | Zadat poptávku | |
K09 WHR67518 |
C00524697
483286008471 |
Pin threaded OMR 8X1,25 | Na dotaz | Zadat poptávku | |
K12 WHR67518 |
C00524699
483286008473 |
Screw hexa.M 8X30 | Na dotaz | Zadat poptávku | |
L01 WHR67518 |
C00524310
483286001231 |
Spacebar | Na dotaz | Zadat poptávku | |
L03 WHR67518 |
C00524560
483286001826 |
Drum cpl. | Na dotaz | Zadat poptávku | |
L04 WHR67518 |
C00524561
483286001827 |
Tub | Na dotaz | Zadat poptávku | |
L05 WHR67518 |
C00524329
483286001261 |
Washer,toothed 12 | Na dotaz | Zadat poptávku | |
L07 WHR67518 |
C00524762
483286008607 |
Screw Hexa. 12x30 | Na dotaz | Zadat poptávku | |
L08 WHR67518 |
C00524334
483286001266 |
Ring,locking SP 130 | Na dotaz | Zadat poptávku | |
L09 WHR67518 |
C00524335
483286001267 |
Counternut | Na dotaz | Zadat poptávku | |
L10 WHR67518 |
C00524336
483286001268 |
Ring circlip | Na dotaz | Zadat poptávku | |
M01 WHR67518 |
C00581197
483286001269 |
rukojeť | Na dotaz | Zadat poptávku | |
M02 WHR67518 |
C00502643
483286001271 |
kontramatice rukojeť | Na dotaz | Zadat poptávku | |
M03 WHR67518 |
C00524337
483286001272 |
Nut f. Handle | Na dotaz | Zadat poptávku | |
M04 WHR67518 |
C00524338
483286001273 |
Window | Na dotaz | Zadat poptávku | |
M05 WHR67518 |
C00524339
483286001274 |
Seal | Na dotaz | Zadat poptávku | |
M06 WHR67518 |
C00524340
483286001275 |
Silicon Ring | Na dotaz | Zadat poptávku | |
M07 WHR67518 |
C00524341
483286001276 |
Hinge Window | Na dotaz | Zadat poptávku | |
M08 WHR67518 |
C00524342
483286001277 |
Ring Door glass cpl. | Na dotaz | Zadat poptávku | |
M09 WHR67518 |
C00524343
483286001278 |
Device,locking | Na dotaz | Zadat poptávku | |
M10 WHR67518 |
C00524547
483286001803 |
Door handle | Na dotaz | Zadat poptávku | |
M11 WHR67518 |
C00502644
483286001281 |
kroužek závitový | Na dotaz | Zadat poptávku | |
M12 WHR67518 |
C00524344
483286001282 |
Door glass | Na dotaz | Zadat poptávku | |
M13 WHR67518 |
C00524599
483286008289 |
Nut M8 | Na dotaz | Zadat poptávku | |
M15 WHR67518 |
C00524345
483286001283 |
Screw M6X20 | Na dotaz | Zadat poptávku | |
N01 WHR67518 |
C00524346
483286001284 |
Block Door | Na dotaz | Zadat poptávku | |
N02 WHR67518 |
C00524356
483286001368 |
Locking lever Door | Na dotaz | Zadat poptávku | |
N03 WHR67518 |
C00503463
483286001804 |
Coil Door Opener | Na dotaz | Zadat poptávku | |
N04 WHR67518 |
C00524350
483286001289 |
Microswitch | Na dotaz | Zadat poptávku | |
N05 WHR67518 |
C00503443
483286001288 |
Cover hinge | Na dotaz | Zadat poptávku | |
N06 WHR67518 |
C00524347
483286001285 |
Spring,compres. | Na dotaz | Zadat poptávku | |
N07 WHR67518 |
C00524348
483286001286 |
Dowel | Na dotaz | Zadat poptávku | |
N08 WHR67518 |
C00524349
483286001287 |
Ring circlip | Na dotaz | Zadat poptávku | |
N09 WHR67518 |
C00524382
483286001425 |
Screw,selftap 3,5X9,5 | Na dotaz | Zadat poptávku | |
N10 WHR67518 |
C00524635
483286008361 |
Screw M4x6 | Na dotaz | Zadat poptávku | |
O01 WHR67518 |
C00524401
483286001448 |
Tube bend 3/4 " | Na dotaz | Zadat poptávku | |
O02 WHR67518 |
C00524402
483286001449 |
Screwed joint 1 1/2 " | Na dotaz | Zadat poptávku | |
O03 WHR67518 |
C00524403
483286001451 |
Tube bend 1 1/2 " | Na dotaz | Zadat poptávku | |
O04 WHR67518 |
C00524404
483286001452 |
Gasket 1 1/2 " | Na dotaz | Zadat poptávku | |
O05 WHR67518 |
C00524489
483286001694 |
Nipple M7M 1 1/2 " | Na dotaz | Zadat poptávku | |
O06 WHR67518 |
C00524408
483286001456 |
Reductor M/F 1 1/2 " | Na dotaz | Zadat poptávku | |
O07 WHR67518 |
C00524410
483286001458 |
T-adapter 1 1/2 " | Na dotaz | Zadat poptávku | |
O08 WHR67518 |
C00524409
483286001457 |
Holder | Na dotaz | Zadat poptávku | |
O09 WHR67518 |
C00524411
483286001459 |
Valve magnet Servo controled | Na dotaz | Zadat poptávku | |
O10 WHR67518 |
C00621167
483286008326 |
Valve magnet 3/4 " 240V | Na dotaz | Zadat poptávku | |
O11 WHR67518 |
C00503450
483286001461 |
Valve magnet one way 3/4" | Na dotaz | Zadat poptávku | |
O12 WHR67518 |
C00524776
483286008635 |
Valve magnet 3/4 " | Na dotaz | Zadat poptávku | |
O13 WHR67518 |
C00524412
483286001466 |
Connection Tube | Na dotaz | Zadat poptávku | |
P01 WHR67518 |
C00524523
483286001758 |
Holder Microswitch | Na dotaz | Zadat poptávku | |
P02 WHR67518 |
C00524488
483286001693 |
Microswitch | Na dotaz | Zadat poptávku | |
P03 WHR67518 |
C00524660
483286008402 |
Fastener. | Na dotaz | Zadat poptávku | |
P04 WHR67518 |
C00524717
483286008508 |
Screw hexa.cylindr. M5X30 | Na dotaz | Zadat poptávku | |
Q01 WHR67518 |
C00524362
483286001378 |
Holder Timer | Na dotaz | Zadat poptávku | |
Q02 WHR67518 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
Q03 WHR67518 |
C00501084
483286008249 |
Control board IM6 | Na dotaz | Zadat poptávku | |
Q04 WHR67518 |
C00501099
483286008476 |
Řídící elektronika profesionální myčky nádobí Whirlpool | Na dotaz | Zadat poptávku | |
Q05 WHR67518 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
R01 WHR67518 |
C00524417
483286001474 |
Cabinet | Na dotaz | Zadat poptávku | |
R02 WHR67518 |
C00524245
483286001018 |
Connector 9 way | Na dotaz | Zadat poptávku | |
R03 WHR67518 |
C00524944
483286009735 |
Connection 12 way | Na dotaz | Zadat poptávku | |
R04 WHR67518 |
C00524526
483286001766 |
Contactor A26-30-01 230V | Na dotaz | Zadat poptávku | |
R05 WHR67518 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
R06 WHR67518 |
C00524418
483286001475 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
R07 WHR67518 |
C00524419
483286001476 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
R08 WHR67518 |
C00524420
483286001477 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
R09 WHR67518 |
C00422776
483286010447 |
Contactor Inverter | Na dotaz | Zadat poptávku | |
R10 WHR67518 |
C00524421
483286001481 |
Side panel | Na dotaz | Zadat poptávku | |
R12 WHR67518 |
C00524745
483286008572 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
R13 WHR67518 |
C00524422
483286001482 |
Screw M 6X16 | Na dotaz | Zadat poptávku | |
S01 WHR67518 |
C00524423
483286001483 |
Holder | Na dotaz | Zadat poptávku | |
S02 WHR67518 |
C00503464
483286008309 |
Fuse Glass 5x20 1A | Na dotaz | Zadat poptávku | |
S04 WHR67518 |
C00524209
483286000933 |
Screwed joint | Na dotaz | Zadat poptávku | |
S05 WHR67518 |
C00524210
483286000934 |
Nut f. Screwed joint | Na dotaz | Zadat poptávku | |
S07 WHR67518 |
C00524615
483286008313 |
Holder fuse | Na dotaz | Zadat poptávku | |
S08 WHR67518 |
C00524667
483286008411 |
Switch OT25 | Na dotaz | Zadat poptávku | |
S09 WHR67518 |
C00524424
483286001484 |
Switch QT 45 | Na dotaz | Zadat poptávku | |
S10 WHR67518 |
C00501096
483286008412 |
Switch,toggle OHY 2RJ | Na dotaz | Zadat poptávku | |
S13 WHR67518 |
C00524637
483286008363 |
Screw socket M6x25 | Na dotaz | Zadat poptávku |
