| Komerční kód: | AGS898/WP PROFOVEN COMBI 10XGN1/1 DIR-EL |
| Kód 12NC: | 856389801000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

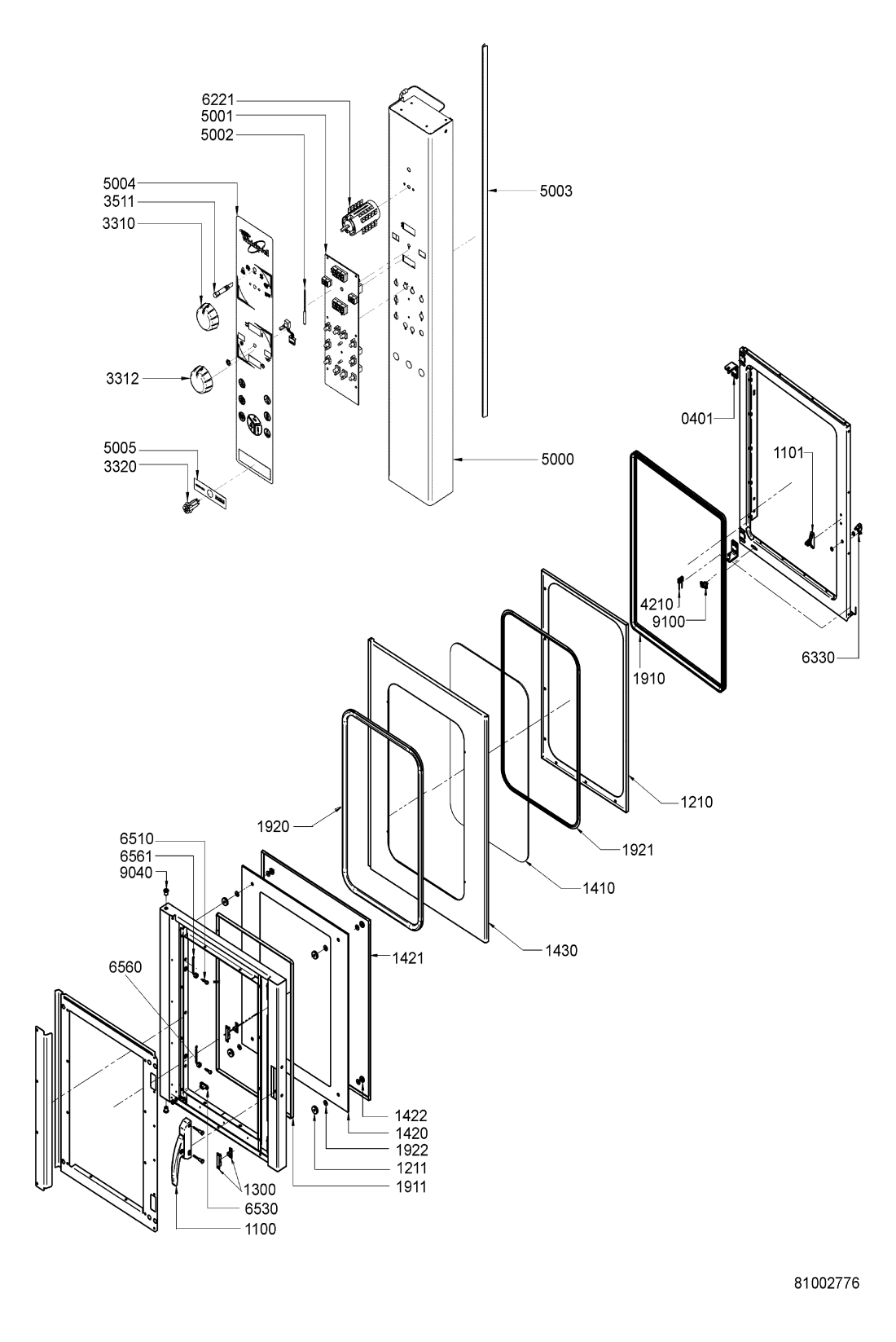

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR69821 |
C00422374
483286008721 |
Foot oven | Na dotaz | Zadat poptávku | |
| 040 1 WHR69821 |
C00581946
483286008717 |
Hinge lower door | Na dotaz | Zadat poptávku | |
| 110 0 WHR69821 |
C00420588
483286002378 |
Handle PORTA XT-M2005.072-3 | Na dotaz | Zadat poptávku | |
| 110 1 WHR69821 |
C00581952
483286008725 |
Lock for handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR69821 |
C00420674
483286002474 |
Frame ,internal type door 10 gr | Na dotaz | Zadat poptávku | |
| 121 1 WHR69821 |
C00420590
483286002381 |
Spacer ,internal door | Na dotaz | Zadat poptávku | |
| 130 0 WHR69821 |
C00420591
483286002382 |
Lock MECCANISMO PER APRIRE CHIUDERE | Na dotaz | Zadat poptávku | |
| 141 0 WHR69821 |
C00420675
483286002475 |
Glass ,type door 10 grid | Na dotaz | Zadat poptávku | |
| 142 0 WHR69821 |
C00582010
483286008686 |
Inner glass CRISTALLO TENUTA PORTA 10 GR | Na dotaz | Zadat poptávku | |
| 142 1 WHR69821 |
C00581920
483286008682 |
Gasket internal glass | Na dotaz | Zadat poptávku | |
| 142 2 WHR69821 |
C00581910
483286008215 |
Screw glass door | Na dotaz | Zadat poptávku | |
| 143 0 WHR69821 |
C00420676
483286002476 |
Window ,type external door 10 gr | Na dotaz | Zadat poptávku | |
| 191 0 WHR69821 |
C00581922
483286008684 |
Gasket door | Na dotaz | Zadat poptávku | |
| 191 1 WHR69821 |
C00581921
483286008683 |
Support glass door | Na dotaz | Zadat poptávku | |
| 192 0 WHR69821 |
C00581929
483286008693 |
Gasket porthole | Na dotaz | Zadat poptávku | |
| 192 1 WHR69821 |
C00581930
483286008694 |
Frame door window | Na dotaz | Zadat poptávku | |
| 192 2 WHR69821 |
C00581911
483286008216 |
Gasket glass door | Na dotaz | Zadat poptávku | |
| 331 0 WHR69821 |
C00420595
483286002386 |
Knob ,cycles selection | Na dotaz | Zadat poptávku | |
| 331 2 WHR69821 |
C00420647
483286002444 |
Knob ,050 | Na dotaz | Zadat poptávku | |
| 332 0 WHR69821 |
C00581928
483286008692 |
Button reset gas alarm | Na dotaz | Zadat poptávku | |
| 351 1 WHR69821 |
C00581902
483286008203 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 404 1 WHR69821 |
C00420604
483286002396 |
Holder ,brass pipe | Na dotaz | Zadat poptávku | |
| 411 0 WHR69821 |
C00420687
483286002488 |
Transformer ,single phase 100VA 230V | Na dotaz | Zadat poptávku | |
| 421 0 WHR69821 |
C00420606
483286002398 |
Filter ,interfer. +cable connect | Na dotaz | Zadat poptávku | |
| 421 1 WHR69821 |
C00581941
483286008712 |
Filter R.F.I. 250V 50-60 Hz | Na dotaz | Zadat poptávku | |
| 421 2 WHR69821 |
C00420685
483286002486 |
Filter ,RFI G479240 | Na dotaz | Zadat poptávku | |
| 440 0 WHR69821 |
C00373263
483286008681 |
Motor 3-phase 230/400V 50/60 Hz | Na dotaz | Zadat poptávku | |
| 440 1 WHR69821 |
C00501109
483286008697 |
Gasket steamtight f.engine shaft | Na dotaz | Zadat poptávku | |
| 440 2 WHR69821 |
C00501110
483286008698 |
Flange for engine shaft 17 diam. | Na dotaz | Zadat poptávku | |
| 440 3 WHR69821 |
C00501111
483286008699 |
Lock flange f. enginge shaft | Na dotaz | Zadat poptávku | |
| 442 0 WHR69821 |
C00373262
483286008695 |
Motor fan 220V AC | Na dotaz | Zadat poptávku | |
| 443 0 WHR69821 |
C00581932
483286008701 |
Fan 210 diam. | Na dotaz | Zadat poptávku | |
| 452 1 WHR69821 |
C00581943
483286008714 |
Probe detection w. cable | Na dotaz | Zadat poptávku | |
| 455 0 WHR69821 |
C00581940
483286008711 |
Burner 40 diam. 8 KW | Na dotaz | Zadat poptávku | |
| 455 1 WHR69821 |
C00420640
483286002436 |
Shield ,flame for exchanger | Na dotaz | Zadat poptávku | |
| 455 2 WHR69821 |
C00420641
483286002437 |
Fitting ,for pipe 0 12 + bicones | Na dotaz | Zadat poptávku | |
| 474 0 WHR69821 |
C00420607
483286002399 |
Nozzle ,0,7mm for steam condens. | Na dotaz | Zadat poptávku | |
| 474 1 WHR69821 |
C00420666
483286002465 |
Nozzle ,WATER FOR HUMIDITY 0,40MM | Na dotaz | Zadat poptávku | |
| 474 2 WHR69821 |
C00420667
483286002466 |
Nozzle ,water for humidity 0,50mm | Na dotaz | Zadat poptávku | |
| 474 3 WHR69821 |
C00420642
483286002438 |
Nozzle ,R type for G20 0 195 R | Na dotaz | Zadat poptávku | |
| 483 0 WHR69821 |
C00420684
483286002485 |
Connector ,pipe Y type | Na dotaz | Zadat poptávku | |
| 491 0 WHR69821 |
C00420612
483286002405 |
Terminal block | Na dotaz | Zadat poptávku | |
| 491 1 WHR69821 |
C00420638
483286002434 |
Relay ,electro | Na dotaz | Zadat poptávku | |
| 491 2 WHR69821 |
C00420613
483286002406 |
Spring ,extension for electrom. | Na dotaz | Zadat poptávku | |
| 500 0 WHR69821 |
C00420677
483286002477 |
Control panel ,10 grids | Na dotaz | Zadat poptávku | |
| 500 1 WHR69821 |
C00420340
483286002099 |
elektronika | Na dotaz | Zadat poptávku | |
| 500 2 WHR69821 |
C00420657
483286002455 |
Probe ,electronic keyboard | Na dotaz | Zadat poptávku | |
| 500 3 WHR69821 |
C00420672
483286002472 |
Gasket ,control panel | Na dotaz | Zadat poptávku | |
| 500 4 WHR69821 |
C00420678
483286002478 |
Control board ,combi electronic | Na dotaz | Zadat poptávku | |
| 500 5 WHR69821 |
C00420697
483286002499 |
Label ,blue | Na dotaz | Zadat poptávku | |
| 522 0 WHR69821 |
C00581938
483286008708 |
Control unit flame control | Na dotaz | Zadat poptávku | |
| 522 2 WHR69821 |
C00581934
483286008703 |
Valve water filling solenoid | Na dotaz | Zadat poptávku | |
| 522 3 WHR69821 |
C00420306
483286002062 |
ELEKTROVENTIL | Na dotaz | Zadat poptávku | |
| 563 0 WHR69821 |
C00581935
483286008704 |
Thermostat condensation 30-90 #C | Na dotaz | Zadat poptávku | |
| 564 0 WHR69821 |
C00581907
483286008208 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 571 0 WHR69821 |
C00581926
483286008689 |
Valve electric for gas | Na dotaz | Zadat poptávku | |
| 595 0 WHR69821 |
C00581944
483286008715 |
Electrode ignition | Na dotaz | Zadat poptávku | |
| 595 1 WHR69821 |
C00420643
483286002439 |
Bracket ,for ignition plugs | Na dotaz | Zadat poptávku | |
| 622 1 WHR69821 |
C00420679
483286002479 |
Switch ,6 positions 16A 600V | Na dotaz | Zadat poptávku | |
| 623 0 WHR69821 |
C00420668
483286002467 |
Contactor ,25A AC1 50-60 Hz | Na dotaz | Zadat poptávku | |
| 633 0 WHR69821 |
C00581898
483286008198 |
Door microswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR69821 |
C00581925
483286008688 |
Lamp,halogen 35W 12V | Na dotaz | Zadat poptávku | |
| 653 0 WHR69821 |
C00420629
483286002424 |
Plate ,door lighting | Na dotaz | Zadat poptávku | |
| 656 0 WHR69821 |
C00581924
483286008687 |
Holder lamp and cables 400mm | Na dotaz | Zadat poptávku | |
| 656 1 WHR69821 |
C00420673
483286002473 |
Socket ,bulb with teflon cable | Na dotaz | Zadat poptávku | |
| 691 0 WHR69821 |
C00420653
483286002451 |
sonda | 3 232 Kč
€ 142.10 |
||
| 691 1 WHR69821 |
C00420662
483286002461 |
SUPPORT ,core probe | Na dotaz | Zadat poptávku | |
| 691 2 WHR69821 |
C00420663
483286002462 |
Tube ,for core probe location | Na dotaz | Zadat poptávku | |
| 691 3 WHR69821 |
C00420661
483286002459 |
Probe ,core temperature PT1000 | Na dotaz | Zadat poptávku | |
| 743 0 WHR69821 |
C00420670
483286002469 |
Air diffuser ,right side | Na dotaz | Zadat poptávku | |
| 743 1 WHR69821 |
C00420671
483286002471 |
Air diffuser ,left side | Na dotaz | Zadat poptávku | |
| 904 0 WHR69821 |
C00581912
483286008217 |
Hinge bushing | Na dotaz | Zadat poptávku | |
| 910 0 WHR69821 |
C00420637
483286002433 |
Pin ,contact f.chamber light. | Na dotaz | Zadat poptávku | |
| 972 0 WHR69821 |
C00420665
483286002464 |
Fuse ,1A 5x20 AC 250V | Na dotaz | Zadat poptávku | |
| 972 1 WHR69821 |
C00581948
483286008719 |
Holder fuse | Na dotaz | Zadat poptávku | |
| 972 2 WHR69821 |
C00581917
483286008225 |
Fuse 2A | Na dotaz | Zadat poptávku | |
