WHIRLPOOL AGS923/WP - Prof Oven Combi 20X GN 2/1 p
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AGS923/WP - Prof Oven Combi 20X GN 2/1 p |
| Kód 12NC: | 856392301000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás

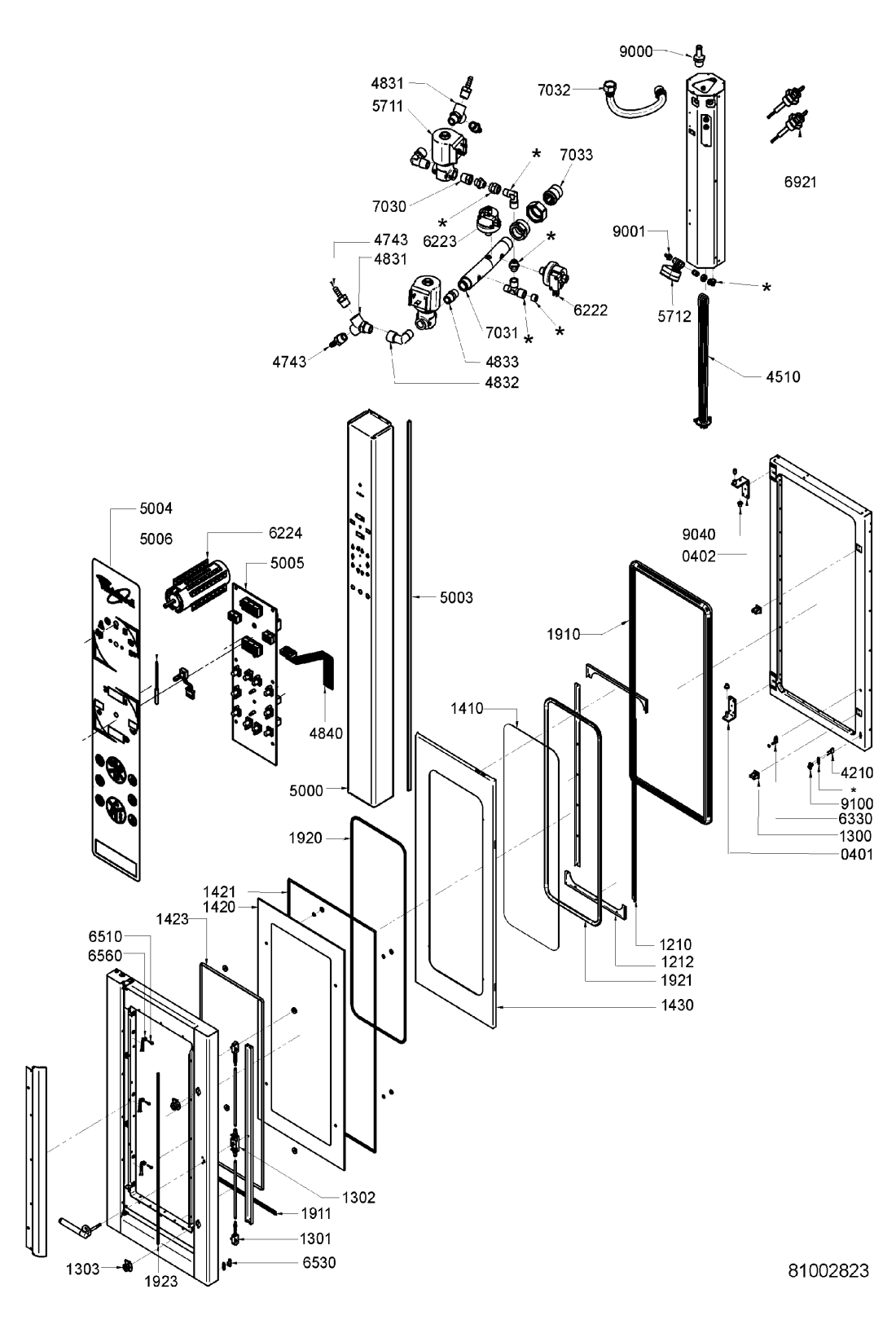

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR82398 |
C00420698
483286002501 |
Foot | Na dotaz | Zadat poptávku | |
| 022 1 WHR82398 |
C00421338
483286003223 |
Panel ,right front | Na dotaz | Zadat poptávku | |
| 022 2 WHR82398 |
C00421339
483286003224 |
Panel ,right rear | Na dotaz | Zadat poptávku | |
| 024 0 WHR82398 |
C00420769
483286002579 |
Panel ,back | Na dotaz | Zadat poptávku | |
| 040 1 WHR82398 |
C00420699
483286002502 |
Hinge ,door bottom | Na dotaz | Zadat poptávku | |
| 040 2 WHR82398 |
C00420700
483286002503 |
Hinge ,door top | Na dotaz | Zadat poptávku | |
| 121 0 WHR82398 |
C00420701
483286002504 |
Frame ,internal for mobile door | Na dotaz | Zadat poptávku | |
| 121 2 WHR82398 |
C00420702
483286002505 |
Frame ,top or bottom | Na dotaz | Zadat poptávku | |
| 130 0 WHR82398 |
C00420703
483286002506 |
Lock | Na dotaz | Zadat poptávku | |
| 130 1 WHR82398 |
C00420734
483286002541 |
Lock ,door lateral piece | Na dotaz | Zadat poptávku | |
| 130 2 WHR82398 |
C00420735
483286002542 |
Lock ,door central part | Na dotaz | Zadat poptávku | |
| 130 3 WHR82398 |
C00420704
483286002507 |
Wheel ,hand for block door | Na dotaz | Zadat poptávku | |
| 141 0 WHR82398 |
C00420705
483286002508 |
Glass ,neutral door | Na dotaz | Zadat poptávku | |
| 142 0 WHR82398 |
C00420706
483286002509 |
Glass ,internal door | Na dotaz | Zadat poptávku | |
| 142 1 WHR82398 |
C00420714
483286002518 |
Gasket ,beetw.int glass and door | Na dotaz | Zadat poptávku | |
| 142 3 WHR82398 |
C00420707
483286002511 |
Gasket ,internal glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR82398 |
C00420708
483286002512 |
Door ,external mobile | Na dotaz | Zadat poptávku | |
| 191 0 WHR82398 |
C00420709
483286002513 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 1 WHR82398 |
C00420710
483286002514 |
Gasket ,mobile rack | Na dotaz | Zadat poptávku | |
| 192 0 WHR82398 |
C00420711
483286002515 |
Gasket ,external window | Na dotaz | Zadat poptávku | |
| 192 1 WHR82398 |
C00420712
483286002516 |
Gasket ,internal for door window | Na dotaz | Zadat poptávku | |
| 192 3 WHR82398 |
C00420713
483286002517 |
Gasket ,beetw. ext.glass and doo | Na dotaz | Zadat poptávku | |
| 331 1 WHR82398 |
C00420596
483286002387 |
Knob ,threaded with valve | Na dotaz | Zadat poptávku | |
| 331 2 WHR82398 |
C00420647
483286002444 |
Knob ,050 | Na dotaz | Zadat poptávku | |
| 404 0 WHR82398 |
C00420603
483286002395 |
Pump ,vibration with valve | Na dotaz | Zadat poptávku | |
| 404 3 WHR82398 |
C00420650
483286002447 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 411 0 WHR82398 |
C00421198
483286003066 |
Transformer ,1 F 120 VA | Na dotaz | Zadat poptávku | |
| 421 0 WHR82398 |
C00581941
483286008712 |
Filter R.F.I. 250V 50-60 Hz | Na dotaz | Zadat poptávku | |
| 421 1 WHR82398 |
C00420606
483286002398 |
Filter ,interfer. +cable connect | Na dotaz | Zadat poptávku | |
| 421 2 WHR82398 |
C00420716
483286002521 |
Filter ,R.F.I for contactors | Na dotaz | Zadat poptávku | |
| 421 4 WHR82398 |
C00420685
483286002486 |
Filter ,RFI G479240 | Na dotaz | Zadat poptávku | |
| 440 0 WHR82398 |
C00420770
483286002581 |
Motor ,three-phase double speed | Na dotaz | Zadat poptávku | |
| 440 1 WHR82398 |
C00420718
483286002523 |
Gasket ,steamtight for engine | Na dotaz | Zadat poptávku | |
| 440 2 WHR82398 |
C00420719
483286002524 |
Flange ,for motor shaft | Na dotaz | Zadat poptávku | |
| 440 3 WHR82398 |
C00420720
483286002525 |
Flange ,counter for motor shaft | Na dotaz | Zadat poptávku | |
| 442 0 WHR82398 |
C00373262
483286008695 |
Motor fan 220V AC | Na dotaz | Zadat poptávku | |
| 443 0 WHR82398 |
C00421340
483286003225 |
Fan ,external 350mm h=120 | Na dotaz | Zadat poptávku | |
| 451 0 WHR82398 |
C00421383
483286003273 |
Heating element ,three-phase 19kW 230V | Na dotaz | Zadat poptávku | |
| 451 1 WHR82398 |
C00421375
483286003264 |
Heating element ,three phase 12kW 230V | Na dotaz | Zadat poptávku | |
| 451 2 WHR82398 |
C00421374
483286003263 |
Heating element ,three phase 13kW 230V | Na dotaz | Zadat poptávku | |
| 474 0 WHR82398 |
C00420607
483286002399 |
Nozzle ,0,7mm for steam condens. | Na dotaz | Zadat poptávku | |
| 474 1 WHR82398 |
C00421194
483286003062 |
Nozzle ,washing device | Na dotaz | Zadat poptávku | |
| 474 2 WHR82398 |
C00420609
483286002402 |
Nozzle ,1/4" for pipe diam. 12 | Na dotaz | Zadat poptávku | |
| 474 3 WHR82398 |
C00420608
483286002401 |
Nozzle ,1/4 M DIAM 7 | Na dotaz | Zadat poptávku | |
| 483 0 WHR82398 |
C00420800
483286002614 |
Nipple ,Y type | Na dotaz | Zadat poptávku | |
| 483 1 WHR82398 |
C00420809
483286002624 |
Connector ,1/4 MF | Na dotaz | Zadat poptávku | |
| 483 3 WHR82398 |
C00420799
483286002613 |
Nipple ,1/4 | Na dotaz | Zadat poptávku | |
| 491 1 WHR82398 |
C00420638
483286002434 |
Relay ,electro | Na dotaz | Zadat poptávku | |
| 491 2 WHR82398 |
C00420613
483286002406 |
Spring ,extension for electrom. | Na dotaz | Zadat poptávku | |
| 500 0 WHR82398 |
C00421337
483286003222 |
Control panel | Na dotaz | Zadat poptávku | |
| 500 3 WHR82398 |
C00420724
483286002529 |
Gasket ,steamtight f. control p. | Na dotaz | Zadat poptávku | |
| 500 4 WHR82398 |
C00525110
483286003185 |
Label | Na dotaz | Zadat poptávku | |
| 500 5 WHR82398 |
C00421197
483286003065 |
Keyboard ,programmable | Na dotaz | Zadat poptávku | |
| 500 6 WHR82398 |
C00421303
483286003183 |
Control board | Na dotaz | Zadat poptávku | |
| 500 7 WHR82398 |
C00421206
483286003075 |
Support ,controller programmable | Na dotaz | Zadat poptávku | |
| 522 2 WHR82398 |
C00420658
483286002456 |
Valve ,solenoid water filling | Na dotaz | Zadat poptávku | |
| 522 3 WHR82398 |
C00420659
483286002457 |
Valve ,solenoid water inlet | Na dotaz | Zadat poptávku | |
| 563 0 WHR82398 |
C00581935
483286008704 |
Thermostat condensation 30-90 #C | Na dotaz | Zadat poptávku | |
| 564 0 WHR82398 |
C00581907
483286008208 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 564 1 WHR82398 |
C00420739
483286002546 |
Thermostat ,three-phase safety 20A | Na dotaz | Zadat poptávku | |
| 571 1 WHR82398 |
C00420796
483286002609 |
Valve ,electric steam | Na dotaz | Zadat poptávku | |
| 571 2 WHR82398 |
C00420621
483286002415 |
Valve ,discharge with motor,1/2 | Na dotaz | Zadat poptávku | |
| 617 0 WHR82398 |
C00420668
483286002467 |
Contactor ,25A AC1 50-60 Hz | Na dotaz | Zadat poptávku | |
| 617 1 WHR82398 |
C00420802
483286002616 |
Contactor ,36A | Na dotaz | Zadat poptávku | |
| 617 2 WHR82398 |
C00421376
483286003265 |
Contactor ,50A AC1 50-60Hz | Na dotaz | Zadat poptávku | |
| 617 3 WHR82398 |
C00420803
483286002617 |
Contact ,10A | Na dotaz | Zadat poptávku | |
| 622 1 WHR82398 |
C00420622
483286002416 |
Switch ,boiler pressure 0,9 bar | Na dotaz | Zadat poptávku | |
| 622 2 WHR82398 |
C00420740
483286002547 |
Switch ,boiler pressure1,6 bar | Na dotaz | Zadat poptávku | |
| 622 3 WHR82398 |
C00420623
483286002417 |
Switch ,boiler pressure 2,3 bar | Na dotaz | Zadat poptávku | |
| 633 0 WHR82398 |
C00581898
483286008198 |
Door microswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR82398 |
C00581925
483286008688 |
Lamp,halogen 35W 12V | Na dotaz | Zadat poptávku | |
| 653 0 WHR82398 |
C00420629
483286002424 |
Plate ,door lighting | Na dotaz | Zadat poptávku | |
| 656 0 WHR82398 |
C00581924
483286008687 |
Holder lamp and cables 400mm | Na dotaz | Zadat poptávku | |
| 691 0 WHR82398 |
C00420653
483286002451 |
sonda | 3 232 Kč
€ 142.10 |
||
| 691 1 WHR82398 |
C00420662
483286002461 |
SUPPORT ,core probe | Na dotaz | Zadat poptávku | |
| 691 2 WHR82398 |
C00420663
483286002462 |
Tube ,for core probe location | Na dotaz | Zadat poptávku | |
| 691 3 WHR82398 |
C00420727
483286002533 |
Probe ,core temperature PT1000 | Na dotaz | Zadat poptávku | |
| 692 1 WHR82398 |
C00420741
483286002548 |
Probe ,min water level l=600mm | Na dotaz | Zadat poptávku | |
| 703 0 WHR82398 |
C00420681
483286002482 |
Connector ,1/4x1/8 of brass | Na dotaz | Zadat poptávku | |
| 703 1 WHR82398 |
C00420742
483286002549 |
Pipe ,steam distribution ramp | Na dotaz | Zadat poptávku | |
| 703 2 WHR82398 |
C00420743
483286002551 |
Pipe ,s/s flexible | Na dotaz | Zadat poptávku | |
| 703 3 WHR82398 |
C00421384
483286003274 |
Fitting ,MF 1/2 " of brass | Na dotaz | Zadat poptávku | |
| 703 4 WHR82398 |
C00420776
483286002587 |
Nipple ,1/2x3/4 | Na dotaz | Zadat poptávku | |
| 703 5 WHR82398 |
C00421201
483286003069 |
Pipe ,water threaded | Na dotaz | Zadat poptávku | |
| 703 6 WHR82398 |
C00421204
483286003073 |
Sleeve ,brass 1/2" | Na dotaz | Zadat poptávku | |
| 703 7 WHR82398 |
C00421202
483286003071 |
Bushing ,antifriction | Na dotaz | Zadat poptávku | |
| 703 8 WHR82398 |
C00421199
483286003067 |
Hub ,injector | Na dotaz | Zadat poptávku | |
| 703 9 WHR82398 |
C00421200
483286003068 |
Fitting ,1/2" gas | Na dotaz | Zadat poptávku | |
| 704 0 WHR82398 |
C00421304
483286003184 |
Spray arm | Na dotaz | Zadat poptávku | |
| 743 0 WHR82398 |
C00420804
483286002618 |
Air guide | Na dotaz | Zadat poptávku | |
| 743 1 WHR82398 |
C00420805
483286002619 |
Support | Na dotaz | Zadat poptávku | |
| 743 2 WHR82398 |
C00420806
483286002621 |
Lid | Na dotaz | Zadat poptávku | |
| 781 0 WHR82398 |
C00421377
483286003266 |
Pipe ,discharge | Na dotaz | Zadat poptávku | |
| 781 0 WHR82398 |
C00420729
483286002535 |
Pipe ,intermediate f. chamber | Na dotaz | Zadat poptávku | |
| 900 0 WHR82398 |
C00420604
483286002396 |
Holder ,brass pipe | Na dotaz | Zadat poptávku | |
| 900 1 WHR82398 |
C00420730
483286002536 |
Flange ,fix drain pipe | Na dotaz | Zadat poptávku | |
| 900 2 WHR82398 |
C00421180
483286003046 |
Clamp ,unipolar | Na dotaz | Zadat poptávku | |
| 900 3 WHR82398 |
C00421178
483286003044 |
Clamp ,unipolar blue | Na dotaz | Zadat poptávku | |
| 900 4 WHR82398 |
C00421179
483286003045 |
Clamp ,unipolar yellow-green | Na dotaz | Zadat poptávku | |
| 900 5 WHR82398 |
C00420731
483286002537 |
Support ,for filter | Na dotaz | Zadat poptávku | |
| 900 6 WHR82398 |
C00420634
483286002429 |
Holder ,1/2 cylindrical pipe d12 | Na dotaz | Zadat poptávku | |
| 904 0 WHR82398 |
C00420732
483286002538 |
Bushing ,door hinge | Na dotaz | Zadat poptávku | |
| 904 1 WHR82398 |
C00421301
483286003181 |
Cap ,M18x1,5 | Na dotaz | Zadat poptávku | |
| 910 0 WHR82398 |
C00420637
483286002433 |
Pin ,contact f.chamber light. | Na dotaz | Zadat poptávku | |
| 910 1 WHR82398 |
C00421193
483286003061 |
Nut ,lock 1/2 " | Na dotaz | Zadat poptávku | |
| 910 2 WHR82398 |
C00421302
483286003182 |
Nut | Na dotaz | Zadat poptávku | |
| 971 0 WHR82398 |
C00581917
483286008225 |
Fuse 2A | Na dotaz | Zadat poptávku | |
| 971 1 WHR82398 |
C00420733
483286002539 |
Fuse ,10A rapid | Na dotaz | Zadat poptávku | |
| 971 2 WHR82398 |
C00581948
483286008719 |
Holder fuse | Na dotaz | Zadat poptávku | |
