IGNIS AKF 111/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKF 111/IX |
| Kód 12NC: | 852760538000 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

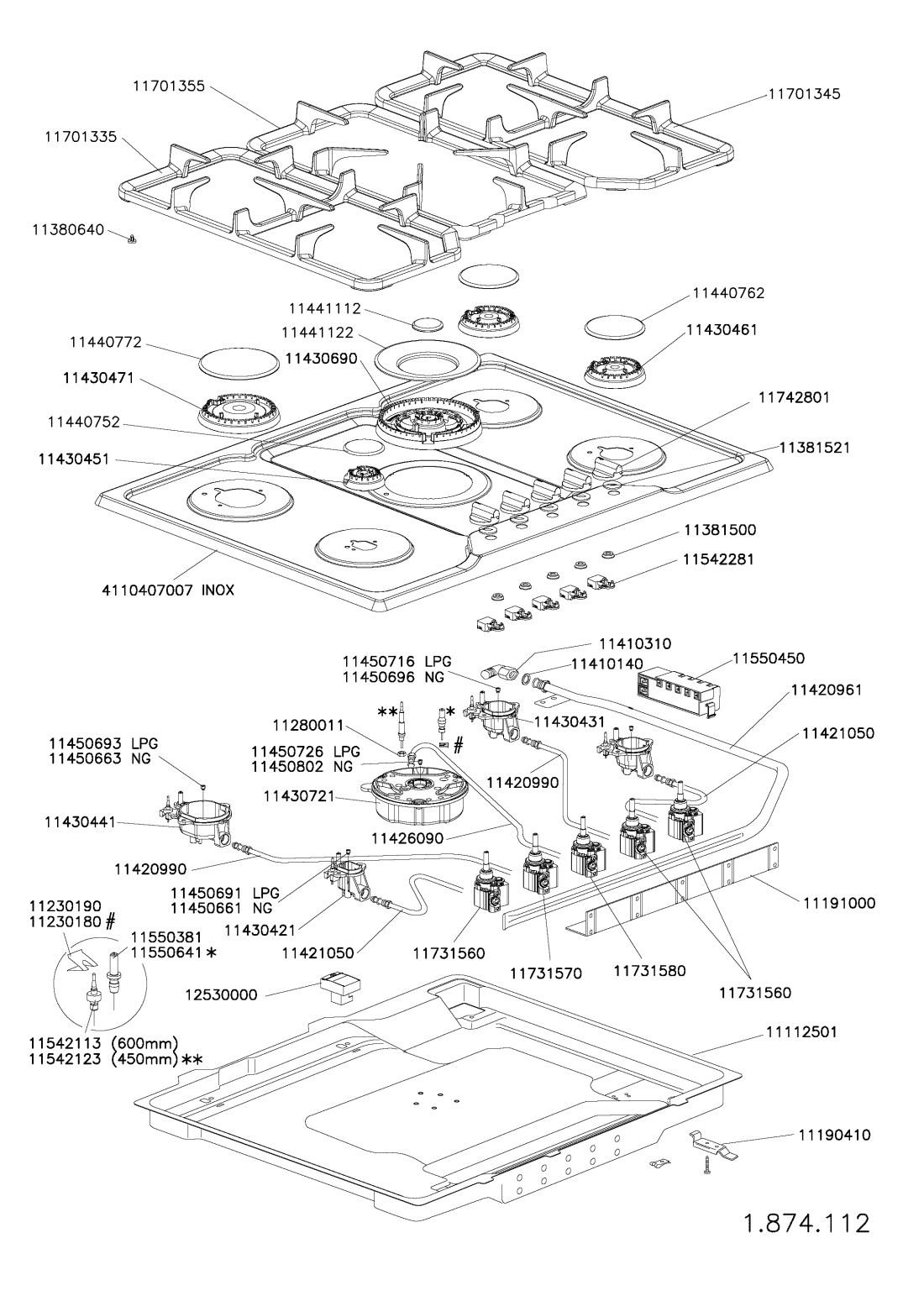

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 11190410 WHR11359 |
C00332869
481931039306 |
Holder | Na dotaz | Zadat poptávku | |
| 11230180 WHR11359 |
C00345755
481249258043 |
Spring spark plug/thermocouple | Na dotaz | Zadat poptávku | |
| 11230190 WHR11359 |
C00267205
481244048355 |
SPRING | Na dotaz | Zadat poptávku | |
| 11280011 WHR11359 |
C00332177
481250518404 |
Thermocouple nut | Na dotaz | Zadat poptávku | |
| 11380640 WHR11359 |
C00330797
481246378011 |
grille rubber | Na dotaz | Zadat poptávku | |
| 11381500 WHR11359 |
C00277038
480121102445 |
Kroužek spínače zapalování | Na dotaz | Zadat poptávku | |
| 11381521 WHR11359 |
C00277039
482000002664 |
Držák knoflíku | Na dotaz | Zadat poptávku | |
| 11410140 WHR11359 |
C00332675
481253268097 |
Těsnění | Na dotaz | Zadat poptávku | |
| 11410310 WHR11359 |
C00332506
481253048294 |
Spojka kónická | Na dotaz | Zadat poptávku | |
| 11420961 WHR11359 |
C00321843
480121100294 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11420990 WHR11359 |
C00332507
481253048295 |
Tube RL and RR | Na dotaz | Zadat poptávku | |
| 11421050 WHR11359 |
C00332336
481252648096 |
Gas pipe FL and FR | Na dotaz | Zadat poptávku | |
| 11426090 WHR11359 |
C00317788
480121100295 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11430421 WHR11359 |
C00328765
481236078104 |
Malý hořák | Na dotaz | Zadat poptávku | |
| 11430431 WHR11359 |
C00328766
481236078105 |
Burner medium | Na dotaz | Zadat poptávku | |
| 11430441 WHR11359 |
C00328767
481236078106 |
Burner cup | Na dotaz | Zadat poptávku | |
| 11430451 WHR11359 |
C00328655
481236068521 |
Spreader,burner small | Na dotaz | Zadat poptávku | |
| 11430461 WHR11359 |
C00328656
481236068522 |
Spreader,burner medium | Na dotaz | Zadat poptávku | |
| 11430471 WHR11359 |
C00328657
481236068523 |
Spreader,burner rapid | Na dotaz | Zadat poptávku | |
| 11430690 WHR11359 |
C00321838
480121100282 |
Spreader,burner DR | Na dotaz | Zadat poptávku | |
| 11430721 WHR11359 |
C00321837
480121100281 |
Burner double ring | Na dotaz | Zadat poptávku | |
| 11440752 WHR11359 |
C00328658
481236068525 |
Burner cap small | Na dotaz | Zadat poptávku | |
| 11440762 WHR11359 |
C00328659
481236068526 |
Burner cap medium | Na dotaz | Zadat poptávku | |
| 11440772 WHR11359 |
C00328660
481236068527 |
Burner cap rapid | Na dotaz | Zadat poptávku | |
| 11441112 WHR11359 |
C00321890
480121100459 |
Burner cap | Na dotaz | Zadat poptávku | |
| 11441122 WHR11359 |
C00321889
480121100458 |
Burner | Na dotaz | Zadat poptávku | |
| 11450661 WHR11359 |
C00267215
481231038823 |
TRYSKA D= 77 GN | Na dotaz | Zadat poptávku | |
| 11450663 WHR11359 |
C00267216
481231038824 |
TRYSKA D= 129 GN | Na dotaz | Zadat poptávku | |
| 11450691 WHR11359 |
C00267219
481231038825 |
TRYSKA D=50 GPL | Na dotaz | Zadat poptávku | |
| 11450693 WHR11359 |
C00267218
481231038826 |
TRYSKA D= 87 GPL | Na dotaz | Zadat poptávku | |
| 11450696 WHR11359 |
C00274935
481231038827 |
TRYSKA GN D=1.01 | Na dotaz | Zadat poptávku | |
| 11450716 WHR11359 |
C00274946
481231038828 |
GAS JET SMALL (066) - LPG | Na dotaz | Zadat poptávku | |
| 11450726 WHR11359 |
C00269564
480121100285 |
TRYSKA D=94 GPL | Na dotaz | Zadat poptávku | |
| 11450802 WHR11359 |
C00269565
480121100286 |
TRYSKA D= 141 GN | Na dotaz | Zadat poptávku | |
| 11542113 WHR11359 |
C00326863
481213838016 |
Thermo couple L=600mm | Na dotaz | Zadat poptávku | |
| 11542123 WHR11359 |
C00317778
480121100291 |
Thermo couple L=450mm | Na dotaz | Zadat poptávku | |
| 11542281 WHR11359 |
C00391310
480121103696 |
Microswitch ignition | Na dotaz | Zadat poptávku | |
| 11550381 WHR11359 |
C00385894
481225268053 |
Spark plug L=500mm | Na dotaz | Zadat poptávku | |
| 11550450 WHR11359 |
C00321842
480121100293 |
Generator | Na dotaz | Zadat poptávku | |
| 11550641 WHR11359 |
C00331782
482000002669 |
Spark plug 0,4 | Na dotaz | Zadat poptávku | |
| 11701335 WHR11359 |
C00330166
481245858394 |
Grid left | Na dotaz | Zadat poptávku | |
| 11701345 WHR11359 |
C00330167
481245858395 |
Grid right | Na dotaz | Zadat poptávku | |
| 11701355 WHR11359 |
C00330168
481245858396 |
Grid centre | Na dotaz | Zadat poptávku | |
| 11731560 WHR11359 |
C00322175
480121102427 |
Gas cock | Na dotaz | Zadat poptávku | |
| 11731570 WHR11359 |
C00277171
480121102426 |
Montáž plynového kohoutu 0,34 | Na dotaz | Zadat poptávku | |
| 11731580 WHR11359 |
C00277044
480121103757 |
KOHOUT BY-PASS 0,64 | Na dotaz | Zadat poptávku | |
| 11742801 WHR11359 |
C00407939
482000002666 |
Knob | Na dotaz | Zadat poptávku | |
| 12530000 WHR11359 |
C00322176
480121102442 |
Svorkovnice+upevnění kabelu 16A | 438 Kč
€ 19.30 |
||
| 4110407007 WHR11359 |
C00407941
482000002668 |
Hob | Na dotaz | Zadat poptávku | |
