| Komerční kód: | AKF 616 IX |
| Kód 12NC/I.C. kód: | 852761638000 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

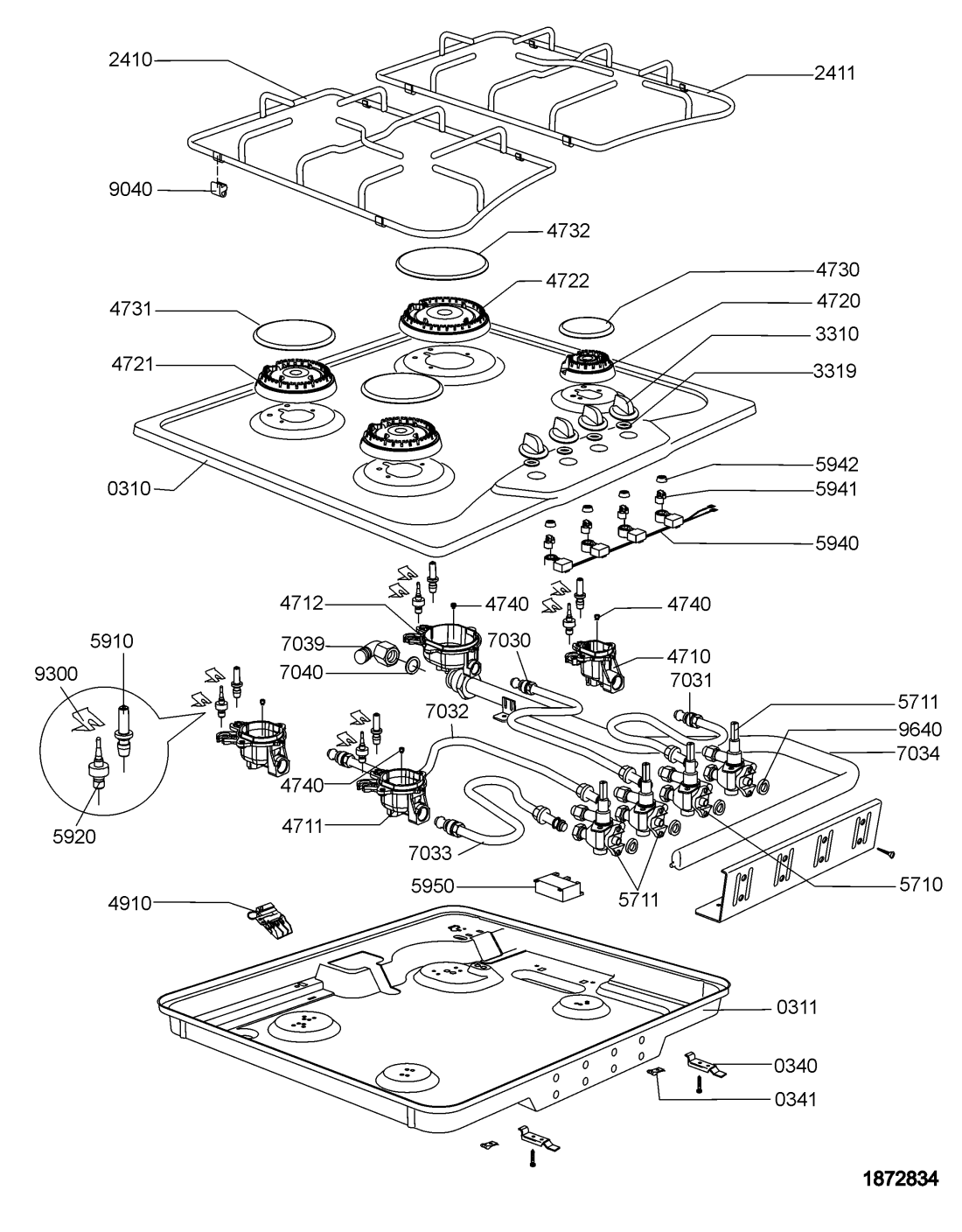

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0310 WHR12331 |
C00389611
480121100313 |
Hob | Na dotaz | Zadat poptávku | |
| 0311 WHR12331 |
C00403298
481244039753 |
Bottom hob | Na dotaz | Zadat poptávku | |
| 0340 WHR12331 |
C00332869
481931039306 |
Holder | Na dotaz | Zadat poptávku | |
| 0341 WHR12331 |
C00045235
481231038832 |
spona | Na dotaz | Zadat poptávku | |
| 2410 WHR12331 |
C00389659
480121100485 |
Grid left | Na dotaz | Zadat poptávku | |
| 2411 WHR12331 |
C00389658
480121100484 |
Grid right | Na dotaz | Zadat poptávku | |
| 3310 WHR12331 |
C00321836
480121100279 |
Knob | Na dotaz | Zadat poptávku | |
| 3319 WHR12331 |
C00492114
481253298017 |
Stud | Na dotaz | Zadat poptávku | |
| 4710 WHR12331 |
C00328765
481236078104 |
Malý hořák | Na dotaz | Zadat poptávku | |
| 4711 WHR12331 |
C00328766
481236078105 |
Burner medium | Na dotaz | Zadat poptávku | |
| 4712 WHR12331 |
C00328767
481236078106 |
Burner cup | Na dotaz | Zadat poptávku | |
| 4720 WHR12331 |
C00328655
481236068521 |
Spreader,burner small | Na dotaz | Zadat poptávku | |
| 4721 WHR12331 |
C00328656
481236068522 |
Spreader,burner medium | Na dotaz | Zadat poptávku | |
| 4722 WHR12331 |
C00328657
481236068523 |
Spreader,burner rapid | Na dotaz | Zadat poptávku | |
| 4730 WHR12331 |
C00328658
481236068525 |
Burner cap small | Na dotaz | Zadat poptávku | |
| 4731 WHR12331 |
C00328659
481236068526 |
Burner cap medium | Na dotaz | Zadat poptávku | |
| 4732 WHR12331 |
C00328660
481236068527 |
Burner cap rapid | Na dotaz | Zadat poptávku | |
| 4740 WHR12331 |
C00393681
480131000022 |
Set of nozzles LPG | Na dotaz | Zadat poptávku | |
| 4740 WHR12331 |
C00393682
480131000023 |
Set of nozzles NG | Na dotaz | Zadat poptávku | |
| 4910 WHR12331 |
C00287415
481229068336 |
TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 5710 WHR12331 |
C00328605
481236058351 |
Gas cock 0.43 large | Na dotaz | Zadat poptávku | |
| 5711 WHR12331 |
C00328604
481236058349 |
Gas cock 0.34 small/medium | Na dotaz | Zadat poptávku | |
| 5910 WHR12331 |
C00385894
481225268053 |
Spark plug L=500mm | Na dotaz | Zadat poptávku | |
| 5920 WHR12331 |
C00302819
481213838046 |
THERMOCOUPLE L=300MM | Na dotaz | Zadat poptávku | |
| 5920 WHR12331 |
C00326863
481213838016 |
Thermo couple L=600mm | Na dotaz | Zadat poptávku | |
| 5940 WHR12331 |
C00407938
482000002665 |
Switch | Na dotaz | Zadat poptávku | |
| 5941 WHR12331 |
C00327271
481227328228 |
Switch | Na dotaz | Zadat poptávku | |
| 5942 WHR12331 |
C00329419
481241259044 |
Push button ignition | Na dotaz | Zadat poptávku | |
| 5950 WHR12331 |
C00302818
481214528038 |
GENERATOR AT 4U | Na dotaz | Zadat poptávku | |
| 7030 WHR12331 |
C00405771
481253049161 |
Gas pipe rear right | Na dotaz | Zadat poptávku | |
| 7031 WHR12331 |
C00405770
481253049159 |
Gas pipe front right | Na dotaz | Zadat poptávku | |
| 7032 WHR12331 |
C00405773
481253049163 |
Gas pipe rear left | Na dotaz | Zadat poptávku | |
| 7033 WHR12331 |
C00405772
481253049162 |
Gas pipe front left | Na dotaz | Zadat poptávku | |
| 7034 WHR12331 |
C00405769
481253049158 |
Gas pipe main | Na dotaz | Zadat poptávku | |
| 7039 WHR12331 |
C00332506
481253048294 |
Spojka kónická | Na dotaz | Zadat poptávku | |
| 7040 WHR12331 |
C00332675
481253268097 |
Těsnění | Na dotaz | Zadat poptávku | |
| 9040 WHR12331 |
C00330797
481246378011 |
grille rubber | Na dotaz | Zadat poptávku | |
| 9300 WHR12331 |
C00345755
481249258043 |
Spring spark plug/thermocouple | Na dotaz | Zadat poptávku | |
| 9640 WHR12331 |
C00332780
481285018015 |
Gasket | Na dotaz | Zadat poptávku | |
