WHIRLPOOL AKG 074/IX/01
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKG 074/IX/01 |
| Kód 12NC: | 853507438010 |
| Značka: | WHIRLPOOL |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

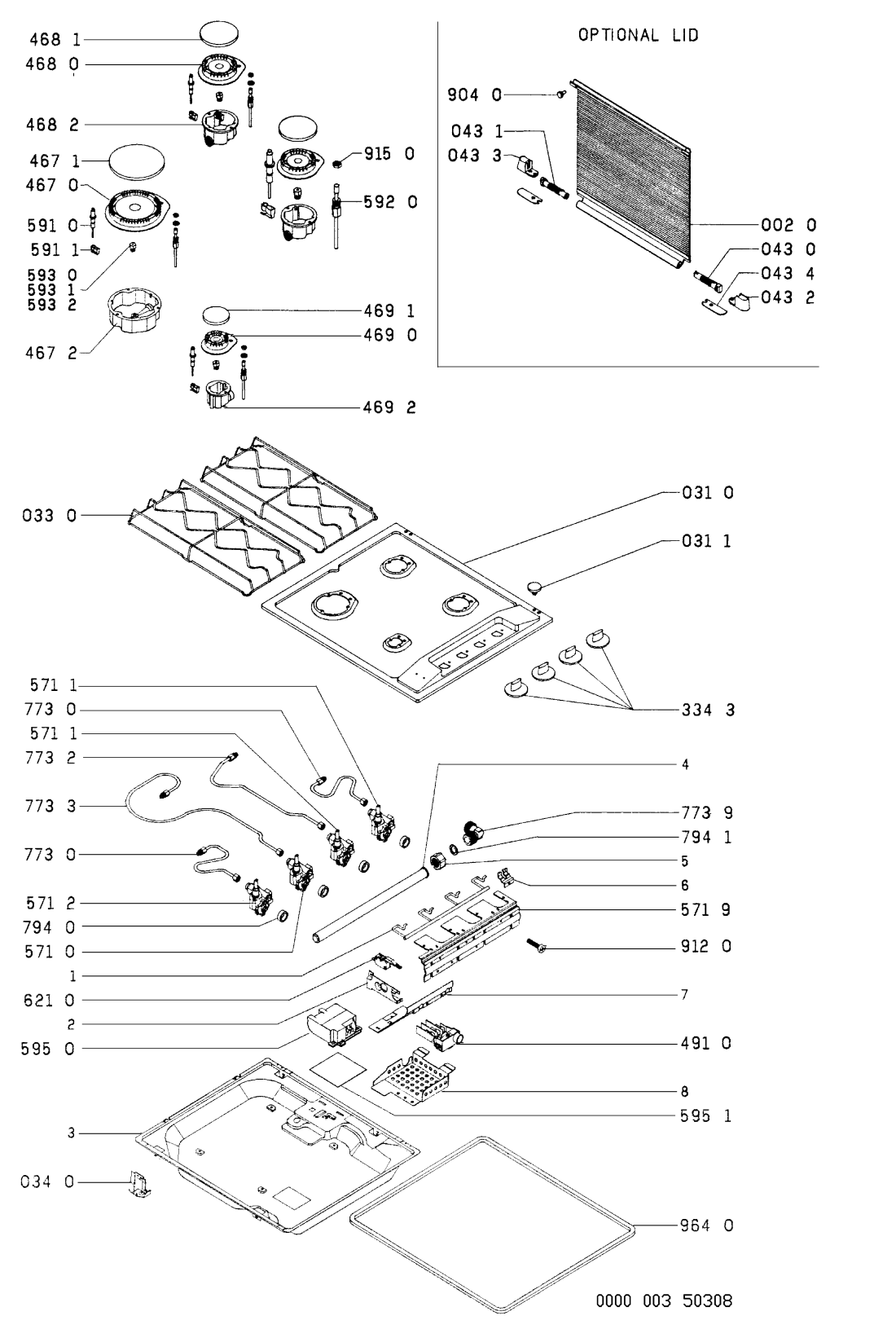

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR110503 |
C00747884
481945069917 |
Lid | Na dotaz | Zadat poptávku | |
| 031 0 WHR110503 |
C00747885
481944238431 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR110503 |
C00486739
481946258169 |
Plug | Na dotaz | Zadat poptávku | |
| 033 0 WHR110503 |
C00747886
481945858645 |
Grid | Na dotaz | Zadat poptávku | |
| 034 0 WHR110503 |
C00585116
481940478209 |
Bracket.. | Na dotaz | Zadat poptávku | |
| 043 0 WHR110503 |
C00332986
481941719216 |
Hinge right | Na dotaz | Zadat poptávku | |
| 043 1 WHR110503 |
C00332987
481941719217 |
Hinge left | Na dotaz | Zadat poptávku | |
| 043 2 WHR110503 |
C00747887
481940478967 |
Support | Na dotaz | Zadat poptávku | |
| 043 3 WHR110503 |
C00747888
481940478968 |
Support | Na dotaz | Zadat poptávku | |
| 043 4 WHR110503 |
C00747889
481931038879 |
Bracket BL(f.Hob) | Na dotaz | Zadat poptávku | |
| 334 3 WHR110503 |
C00747890
481941129116 |
Knob | Na dotaz | Zadat poptávku | |
| 467 0 WHR110503 |
C00747891
481936078382 |
Burner body | Na dotaz | Zadat poptávku | |
| 467 1 WHR110503 |
C00747892
481936069572 |
Cap | Na dotaz | Zadat poptávku | |
| 467 2 WHR110503 |
C00379210
481936078156 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 468 0 WHR110503 |
C00484348
481936078383 |
Burner body | Na dotaz | Zadat poptávku | |
| 468 1 WHR110503 |
C00747893
481936069573 |
Cap | Na dotaz | Zadat poptávku | |
| 468 2 WHR110503 |
C00492269
481936078157 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 469 0 WHR110503 |
C00747894
481936078381 |
Burner body | Na dotaz | Zadat poptávku | |
| 469 1 WHR110503 |
C00747895
481936069574 |
Cap | Na dotaz | Zadat poptávku | |
| 469 2 WHR110503 |
C00492270
481936078158 |
Injector holder A | Na dotaz | Zadat poptávku | |
| 491 0 WHR110503 |
C00385565
481929068293 |
Terminal block | Na dotaz | Zadat poptávku | |
| 571 0 WHR110503 |
C00486481
481936058615 |
Tap R | Na dotaz | Zadat poptávku | |
| 571 1 WHR110503 |
C00486482
481936058616 |
Tap SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR110503 |
C00486483
481936058617 |
Tap A | Na dotaz | Zadat poptávku | |
| 571 9 WHR110503 |
C00747896
481940478783 |
Support | Na dotaz | Zadat poptávku | |
| 591 0 WHR110503 |
C00556845
481925268116 |
Spark plug.. | Na dotaz | Zadat poptávku | |
| 591 1 WHR110503 |
C00492552
481949268737 |
MOLLA CANDELINA | Na dotaz | Zadat poptávku | |
| 592 0 WHR110503 |
C00747897
481913838083 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 593 0 WHR110503 |
C00747898
481931039208 |
Set of nozzles G20 | Na dotaz | Zadat poptávku | |
| 593 1 WHR110503 |
C00585082
481931039129 |
Set of nozzles G30/31.. | Na dotaz | Zadat poptávku | |
| 593 2 WHR110503 |
C00585079
481931038716 |
Set of nozzles town gas.. | Na dotaz | Zadat poptávku | |
| 595 0 WHR110503 |
C00747899
481914578153 |
Generator | Na dotaz | Zadat poptávku | |
| 595 1 WHR110503 |
C00747900
481946698678 |
Foil | Na dotaz | Zadat poptávku | |
| 621 0 WHR110503 |
C00494291
481927138167 |
Microswitch | Na dotaz | Zadat poptávku | |
| 773 0 WHR110503 |
C00585086
481931088569 |
Pipe, burner rear/front right.. | Na dotaz | Zadat poptávku | |
| 773 2 WHR110503 |
C00747901
481931088571 |
Pipe, burner rear left | Na dotaz | Zadat poptávku | |
| 773 3 WHR110503 |
C00747902
481931088572 |
Pipe, burner front left | Na dotaz | Zadat poptávku | |
| 773 9 WHR110503 |
C00337389
481952648179 |
Tube bend | Na dotaz | Zadat poptávku | |
| 794 0 WHR110503 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 1 WHR110503 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.70 |
||
| 904 0 WHR110503 |
C00747903
481946248437 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 912 0 WHR110503 |
C00747904
481950218312 |
Screw | Na dotaz | Zadat poptávku | |
| 915 0 WHR110503 |
C00747905
481950518269 |
Nut | Na dotaz | Zadat poptávku | |
| 964 0 WHR110503 |
C00585177
481946669837 |
Gasket.. | Na dotaz | Zadat poptávku | |
