WHIRLPOOL AKG 659/IX OVENS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKG 659/IX OVENS WP |
| Kód 12NC/I.C. kód: | 853565901010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 853565953000 |
Potřebujete servis? Jsme tady pro Vás

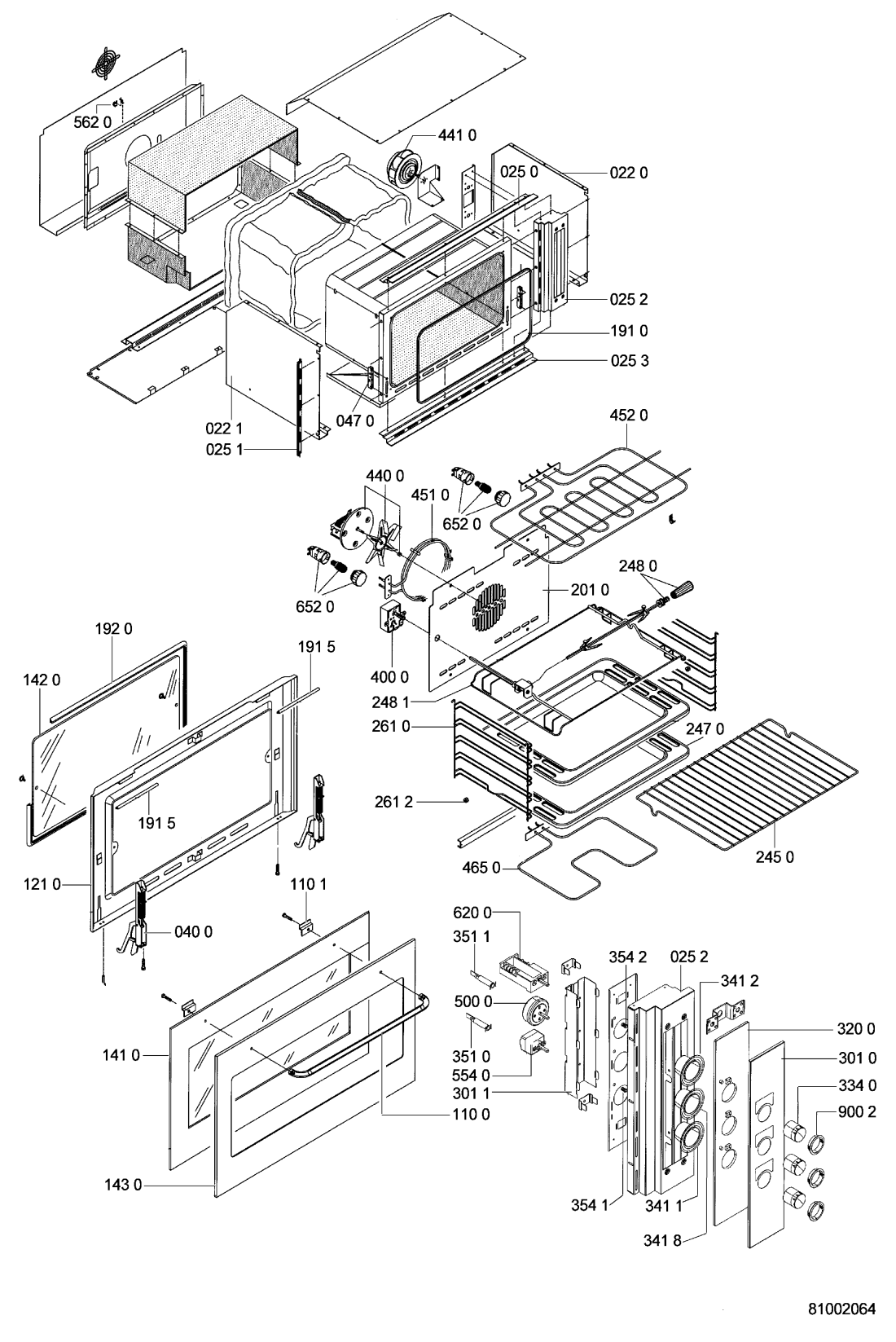

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR52474 |
C00497886
481244010554 |
Side panel | Na dotaz | Zadat poptávku | |
| 022 1 WHR52474 |
C00327940
481244010555 |
Side panel oven left | Na dotaz | Zadat poptávku | |
| 025 0 WHR52474 |
C00330433
481246098035 |
Trim upper IX | Na dotaz | Zadat poptávku | |
| 025 1 WHR52474 |
C00486079
481246418074 |
Trim oven left | Na dotaz | Zadat poptávku | |
| 025 2 WHR52474 |
C00485916
481246079017 |
Trim outer support | Na dotaz | Zadat poptávku | |
| 025 3 WHR52474 |
C00486080
481246418075 |
Trim oven lower | Na dotaz | Zadat poptávku | |
| 040 0 WHR52474 |
C00313542
481241719046 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 047 0 WHR52474 |
C00314503
481241758385 |
Hinge support | Na dotaz | Zadat poptávku | |
| 110 0 WHR52474 |
C00498408
481246268083 |
Handle WP S/Steel | Na dotaz | Zadat poptávku | |
| 110 1 WHR52474 |
C00497586
481240448682 |
Holder | Na dotaz | Zadat poptávku | |
| 121 0 WHR52474 |
C00330800
481246418073 |
Door inner skin | Na dotaz | Zadat poptávku | |
| 141 0 WHR52474 |
C00555359
481245058574 |
NAHRADENE 481245058573 N | Na dotaz | Zadat poptávku | |
| 142 0 WHR52474 |
C00082236
481245058581 |
INTERNAL GLASS 948 THER.EST.TYPE | Na dotaz | Zadat poptávku | |
| 143 0 WHR52474 |
C00485257
481245058573 |
sklo dveri vnejsi | Na dotaz | Zadat poptávku | |
| 191 0 WHR52474 |
C00314008
481246818111 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 191 5 WHR52474 |
C00331578
481246818113 |
Gasket door upper | Na dotaz | Zadat poptávku | |
| 192 0 WHR52474 |
C00529779
481246818112 |
Gasket remov.glass L=1 remov.glass L=16 | Na dotaz | Zadat poptávku | |
| 201 0 WHR52474 |
C00331097
481244528016 |
Fan difusser | Na dotaz | Zadat poptávku | |
| 245 0 WHR52474 |
C00330039
481245819083 |
Grid oven | Na dotaz | Zadat poptávku | |
| 247 0 WHR52474 |
C00327786
481241838077 |
plech na peceni | Na dotaz | Zadat poptávku | |
| 248 0 WHR52474 |
C00320255
481253578062 |
gril otocny | Na dotaz | Zadat poptávku | |
| 248 1 WHR52474 |
C00329181
481240478486 |
drzak grilu | Na dotaz | Zadat poptávku | |
| 261 0 WHR52474 |
C00330645
481246238122 |
Guide shelf | Na dotaz | Zadat poptávku | |
| 261 2 WHR52474 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 301 0 WHR52474 |
C00555400
481245359437 |
Control panel S/Steel.. | Na dotaz | Zadat poptávku | |
| 301 1 WHR52474 |
C00584938
481240478487 |
Support control panel.. | Na dotaz | Zadat poptávku | |
| 320 0 WHR52474 |
C00529049
481245359436 |
Control panel glass BL glass BL | Na dotaz | Zadat poptávku | |
| 334 0 WHR52474 |
C00382274
481241128802 |
Knob WP S/Steel | Na dotaz | Zadat poptávku | |
| 341 1 WHR52474 |
C00329518
481241378665 |
Collar thermostat | Na dotaz | Zadat poptávku | |
| 341 2 WHR52474 |
C00329516
481241378663 |
Collar oven selector | Na dotaz | Zadat poptávku | |
| 341 8 WHR52474 |
C00329517
481241378664 |
Collar end cooking | Na dotaz | Zadat poptávku | |
| 351 0 WHR52474 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 351 1 WHR52474 |
C00326832
481213448284 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 354 1 WHR52474 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 354 2 WHR52474 |
C00328847
481238118279 |
Lens green | Na dotaz | Zadat poptávku | |
| 400 0 WHR52474 |
C00317700
481236178016 |
Motor spit | Na dotaz | Zadat poptávku | |
| 440 0 WHR52474 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR52474 |
C00328826
481236158343 |
Motor fan rad. twin line | Na dotaz | Zadat poptávku | |
| 451 0 WHR52474 |
C00316916
481225928814 |
Heating element circular 230V | Na dotaz | Zadat poptávku | |
| 452 0 WHR52474 |
C00497311
481225928813 |
Topné těleso trouby – horní + gril | Na dotaz | Zadat poptávku | |
| 456 0 WHR52474 |
C00320306
481225948148 |
topeni | Na dotaz | Zadat poptávku | |
| 500 0 WHR52474 |
C00553366
481228219209 |
Timer stop-cooking 120 | Na dotaz | Zadat poptávku | |
| 554 0 WHR52474 |
C00327549
481228238095 |
Thermostat 2 bulbs ego 55.19 | Na dotaz | Zadat poptávku | |
| 562 0 WHR52474 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 620 0 WHR52474 |
C00327278
481227618383 |
Switch selector | Na dotaz | Zadat poptávku | |
| 652 0 WHR52474 |
C00327121
481225518243 |
Lamp oven 50HZ 25W | Na dotaz | Zadat poptávku | |
| 900 2 WHR52474 |
C00527063
481228158002 |
Flange fixing S/Steel fixing S/Steel | Na dotaz | Zadat poptávku | |
