WHIRLPOOL AKG 659/IX/02
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKG 659/IX/02 |
| Kód 12NC/I.C. kód: | 853565901050 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

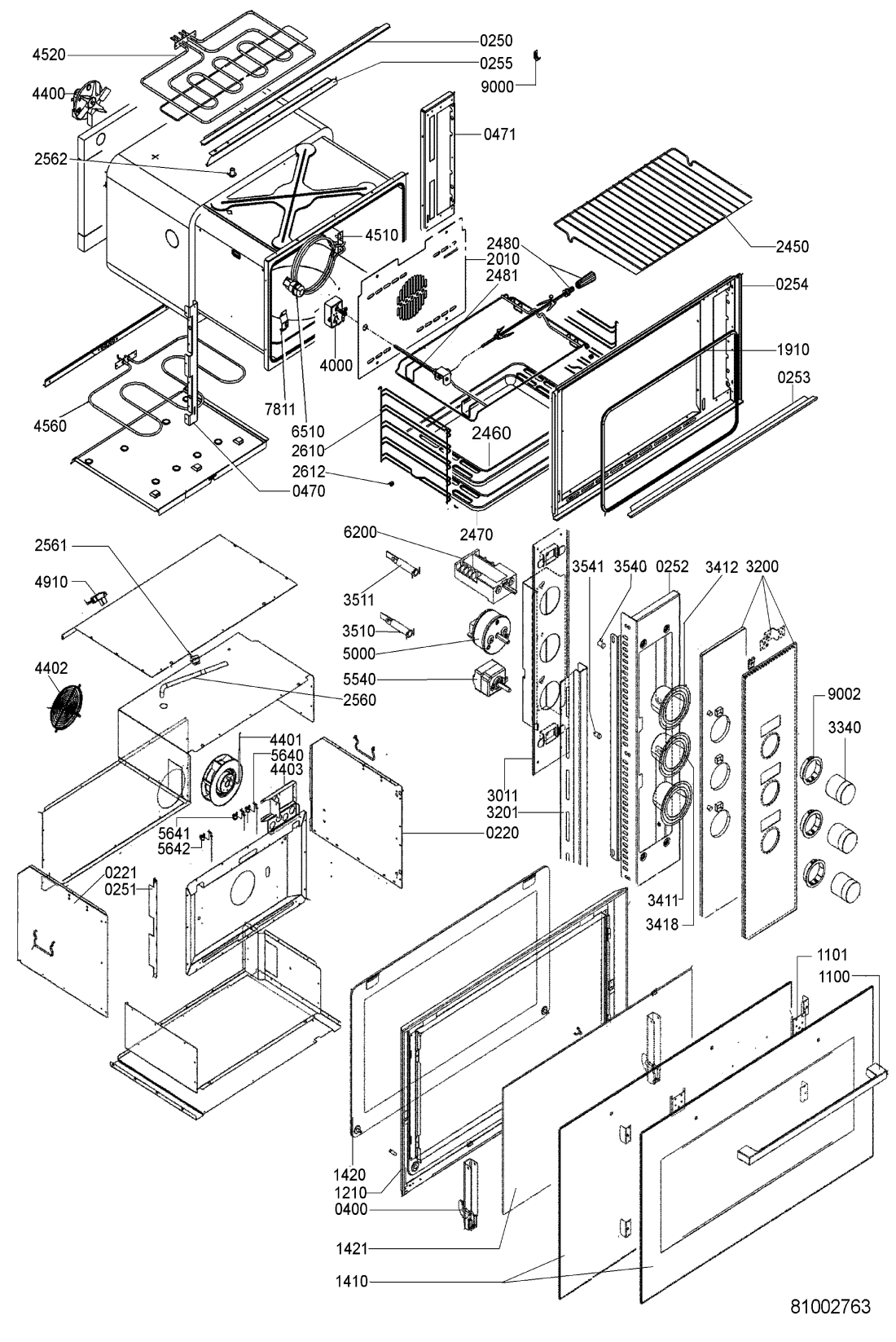

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0220 WHR14160 |
C00403206
481244011683 |
Side panel ,oven right | Na dotaz | Zadat poptávku | |
| 0221 WHR14160 |
C00403207
481244011684 |
Side panel ,oven left | Na dotaz | Zadat poptávku | |
| 0250 WHR14160 |
C00330442
481246098115 |
Trim upper | Na dotaz | Zadat poptávku | |
| 0251 WHR14160 |
C00404695
481246079225 |
Frame ,left | Na dotaz | Zadat poptávku | |
| 0252 WHR14160 |
C00404146
481245350349 |
Support ,control panel | Na dotaz | Zadat poptávku | |
| 0253 WHR14160 |
C00404696
481246079226 |
Frame ,lower oven | Na dotaz | Zadat poptávku | |
| 0254 WHR14160 |
C00404697
481246079227 |
Frame ,front cavity | Na dotaz | Zadat poptávku | |
| 0255 WHR14160 |
C00404721
481246098116 |
Trim ,covering | Na dotaz | Zadat poptávku | |
| 0400 WHR14160 |
C00314475
481241719475 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 0470 WHR14160 |
C00402785
481241758402 |
Hinge support left | Na dotaz | Zadat poptávku | |
| 0471 WHR14160 |
C00329795
481241758403 |
Hinge support right | Na dotaz | Zadat poptávku | |
| 1100 WHR14160 |
C00320389
481246268989 |
Handle | Na dotaz | Zadat poptávku | |
| 1101 WHR14160 |
C00329130
481240449831 |
Support handle | Na dotaz | Zadat poptávku | |
| 1210 WHR14160 |
C00404974
481246418247 |
Frame | Na dotaz | Zadat poptávku | |
| 1410 WHR14160 |
C00401213
481231039191 |
Door ,complete | Na dotaz | Zadat poptávku | |
| 1420 WHR14160 |
C00403886
481245168067 |
Door glass ,inner | Na dotaz | Zadat poptávku | |
| 1421 WHR14160 |
C00331255
481245168068 |
Glass door medium | Na dotaz | Zadat poptávku | |
| 1910 WHR14160 |
C00319993
481246688997 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 2010 WHR14160 |
C00403712
481244528073 |
Fan ,diffuser | Na dotaz | Zadat poptávku | |
| 2450 WHR14160 |
C00330039
481245819083 |
Grid oven | Na dotaz | Zadat poptávku | |
| 2460 WHR14160 |
C00344539
481241838089 |
Baking tray | Na dotaz | Zadat poptávku | |
| 2470 WHR14160 |
C00327786
481241838077 |
plech na peceni | Na dotaz | Zadat poptávku | |
| 2480 WHR14160 |
C00320255
481253578062 |
gril otocny | Na dotaz | Zadat poptávku | |
| 2481 WHR14160 |
C00329181
481240478486 |
drzak grilu | Na dotaz | Zadat poptávku | |
| 2560 WHR14160 |
C00403713
481244528074 |
Chimney ,tube exchausting smokes | Na dotaz | Zadat poptávku | |
| 2561 WHR14160 |
C00402064
481240449832 |
Support ,tube exchausting smokes | Na dotaz | Zadat poptávku | |
| 2562 WHR14160 |
C00403714
481244528075 |
Chimney | Na dotaz | Zadat poptávku | |
| 2610 WHR14160 |
C00330645
481246238122 |
Guide shelf | Na dotaz | Zadat poptávku | |
| 2612 WHR14160 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 3011 WHR14160 |
C00402182
481240478911 |
Support ,control panel | Na dotaz | Zadat poptávku | |
| 3200 WHR14160 |
C00404062
481245310408 |
Control panel ,complete | Na dotaz | Zadat poptávku | |
| 3201 WHR14160 |
C00404809
481246228931 |
Cover ,control panel | Na dotaz | Zadat poptávku | |
| 3340 WHR14160 |
C00329364
481241128948 |
Knoflík | Na dotaz | Zadat poptávku | |
| 3411 WHR14160 |
C00329518
481241378665 |
Collar thermostat | Na dotaz | Zadat poptávku | |
| 3412 WHR14160 |
C00329516
481241378663 |
Collar oven selector | Na dotaz | Zadat poptávku | |
| 3418 WHR14160 |
C00329517
481241378664 |
Collar end cooking | Na dotaz | Zadat poptávku | |
| 3510 WHR14160 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 3511 WHR14160 |
C00326832
481213448284 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 3540 WHR14160 |
C00328847
481238118279 |
Lens green | Na dotaz | Zadat poptávku | |
| 3541 WHR14160 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 4000 WHR14160 |
C00328827
481236158359 |
Motor spit | Na dotaz | Zadat poptávku | |
| 4400 WHR14160 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
| 4401 WHR14160 |
C00328816
481236118623 |
Fan wheel fan | Na dotaz | Zadat poptávku | |
| 4402 WHR14160 |
C00328831
481236158396 |
Cover fan motor | Na dotaz | Zadat poptávku | |
| 4403 WHR14160 |
C00401886
481240418602 |
Support ,fan | Na dotaz | Zadat poptávku | |
| 4510 WHR14160 |
C00327155
481225928839 |
Heating element circular 2500W | Na dotaz | Zadat poptávku | |
| 4520 WHR14160 |
C00316996
481225928948 |
topeni trouby universální 1050W/2250W 365x540 | 1 739 Kč
€ 71.40 |
||
| 4560 WHR14160 |
C00327156
481225928841 |
Heating element lower 1550W | Na dotaz | Zadat poptávku | |
| 4910 WHR14160 |
C00327591
481229068283 |
Terminal block | Na dotaz | Zadat poptávku | |
| 5000 WHR14160 |
C00327534
481228219708 |
Časovač | Na dotaz | Zadat poptávku | |
| 5540 WHR14160 |
C00327558
481228238248 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5640 WHR14160 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 5641 WHR14160 |
C00319446
481228248286 |
termostat | Na dotaz | Zadat poptávku | |
| 5642 WHR14160 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | Na dotaz | Zadat poptávku | |
| 6200 WHR14160 |
C00327278
481227618383 |
Switch selector | Na dotaz | Zadat poptávku | |
| 6510 WHR14160 |
C00400777
481225528025 |
Oven lamp 25W | Na dotaz | Zadat poptávku | |
| 7811 WHR14160 |
C00331102
481244528076 |
Deflector | Na dotaz | Zadat poptávku | |
| 9000 WHR14160 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 9002 WHR14160 |
C00329365
481241128949 |
Flange for knob | Na dotaz | Zadat poptávku | |
